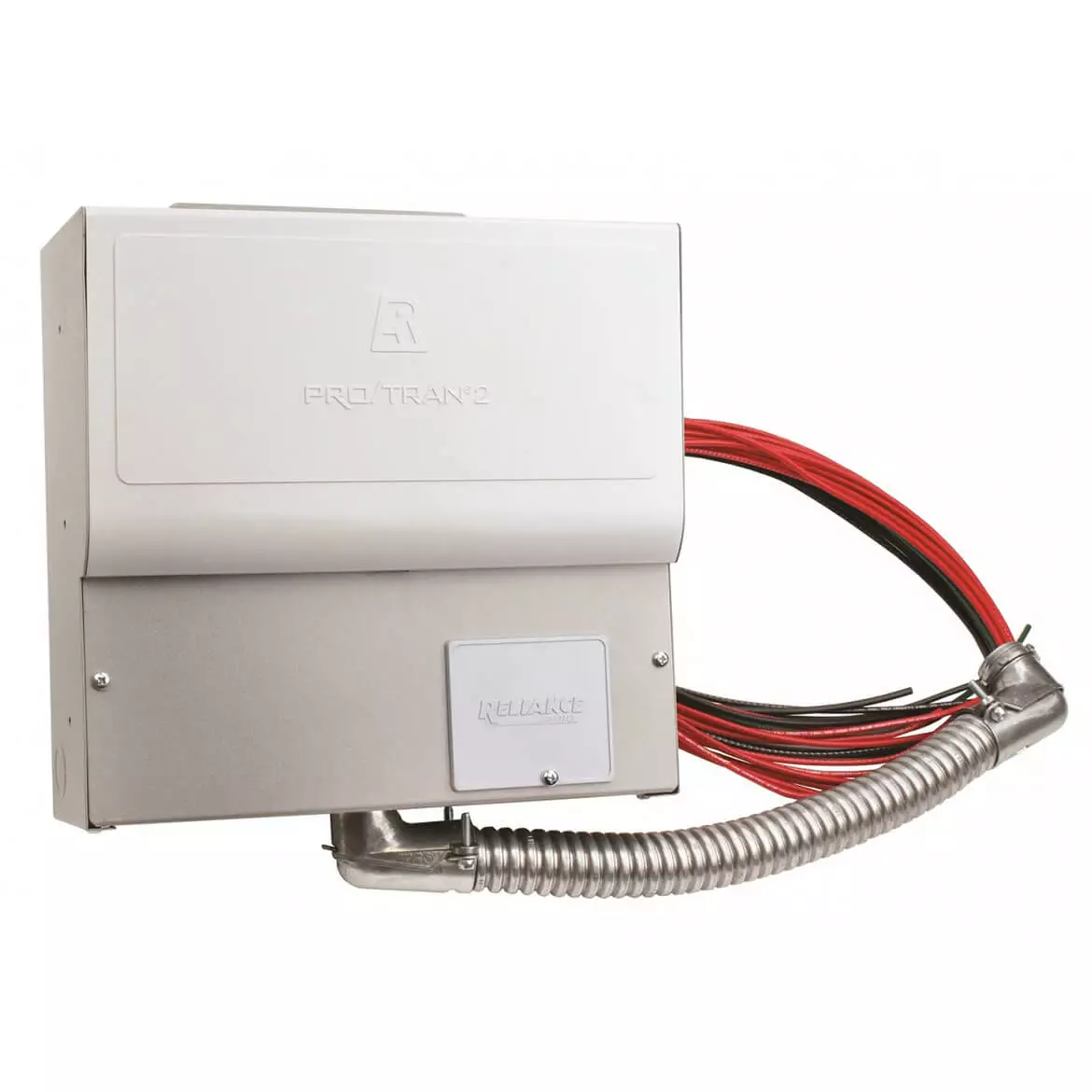

Transfer Switches Reliance 510C 120/240-Volt 50-Amp 10-Circuit Pro/Tran 2 Indoor Transfer Switch

Features

• The Pro/Tran 2 is the next generation of Loadside manual transfer switch by Reliance Controls.
• These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications.
• The 16-inch flexible conduit whip attaches easily to a knockout on the load center and all factory wires are clearly marked and colored for identification.
• Simply select the circuits needed in an emergency and connect them to the Pro/Tran 2 wire leads as instructed in the manual.
• Pro/Tran 2 transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, and 1-inch interchangeable circuit breakers.
• The 1-inch breakers allow a larger circuit size (max of 1 x 30A double-pole), and installation of AFCI & GFCI breakers.
• All models include a hinged detachable cover to help protect and finish off the overall look of the product.

What’s in The Box

• 120/240-Volt 50-Amp 10-Circuit Indoor Transfer Switch – 510C
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	510C
Brand	Reliance
Voltage	120/240
Max. Generator Running Watt	12,500
Frequency	60 Hertz
Phase	Single
Circuits	2/30A, 8/20A
Max. Single-Pole Circuits	10
Max. Double-Pole Circuits	5
Max. Combined Load at 125 Vac	100
Max. Combined Load at 250 Vac	50
Power Inlet	None
Recommended Cord Size (Guage)	6
Conduit Size (in.)	1
Conduit Lenght (in.)	18
Watt Meters	Yes
Weight (lbs.)	17
Cabinet Type	Indoor
Dimensions (HxWxD) (in.)	11 x 11.75 x 4.5 (28.58 x 29.85 x 11.43 cm)
