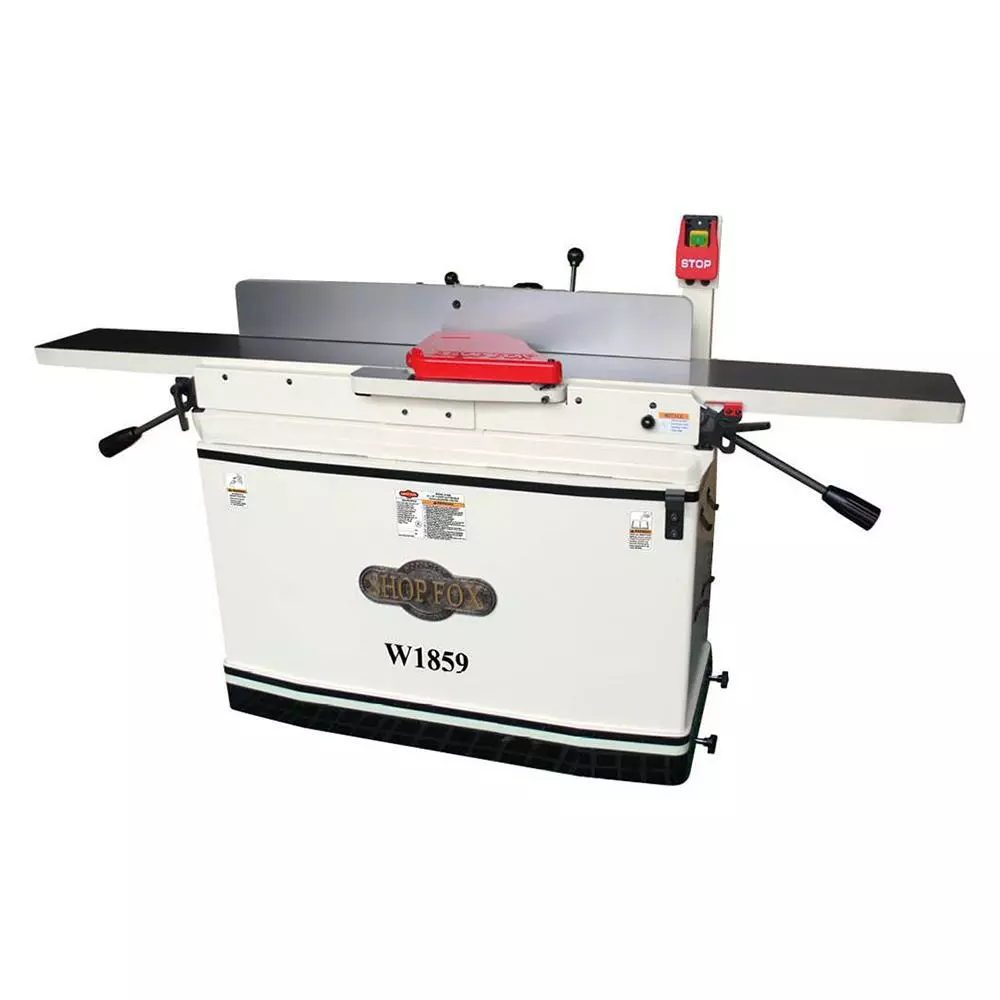

Tools & Equipment Shop Fox W1859 8-Inch X 76-Inch 3-Hp Parallelogram Jointer W/ Mobile Base

Features

• Lever-adjusted table height with depth gauge
• Center-mounted fence with rack and pinion adjustment
• Built-in mobile base
• Precision-ground cast-iron tables
• Extra-long 40″ infeed table
• Powder-coated finish
• 4″ dust port with built-in dust chute
• Parallelogram table design
• Power transfer: Poly V-belt
• Switch: magnetic push-button switch with large off paddle for safety
• Fence system: positive stops at +/- 45 degrees and 90 degrees

What’s in The Box

• 8-Inch x 76-Inch Parallelogram Jointer w/ Mobile Base
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	W1859
Brand	Shop Fox
Voltage	230V
Horsepower	3 Hp
Phase	Single
Table Size	9 in. x 76 in.
Fence Size	4-5/8 in. x 38 in.
Max. Depth of Cut	1/8 in.
Rabbeting Capacity	1/2 in.
Cutterhead Speed	5,500 Rpm
Cutterhead Diameter	3-1/16 in.
Cuts Per Minute	22,000
Cutterhead Knives	4
Shipping Weight	470 lbs.
