Features

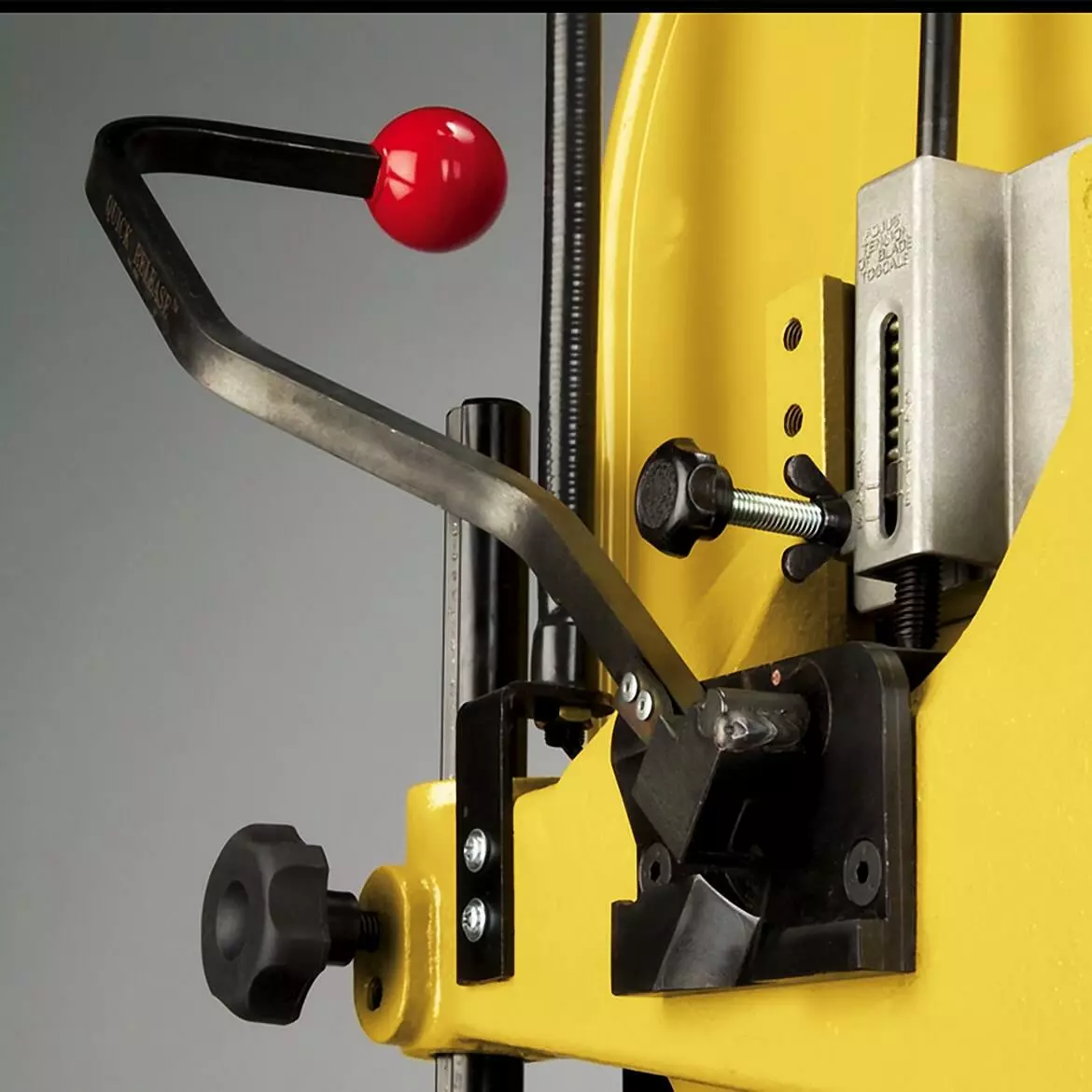

- CARTER quick tension lever speeds blade changes, and the de-tension setting extends blade life during non-use
- Extra-large, two piece cast iron table consists of a 15″ x 15″ tilting section and a fixed 15″ x 5″ extension for a total working surface area of 15″ x 20″
- Chip blower ensures a clean, visible cut line

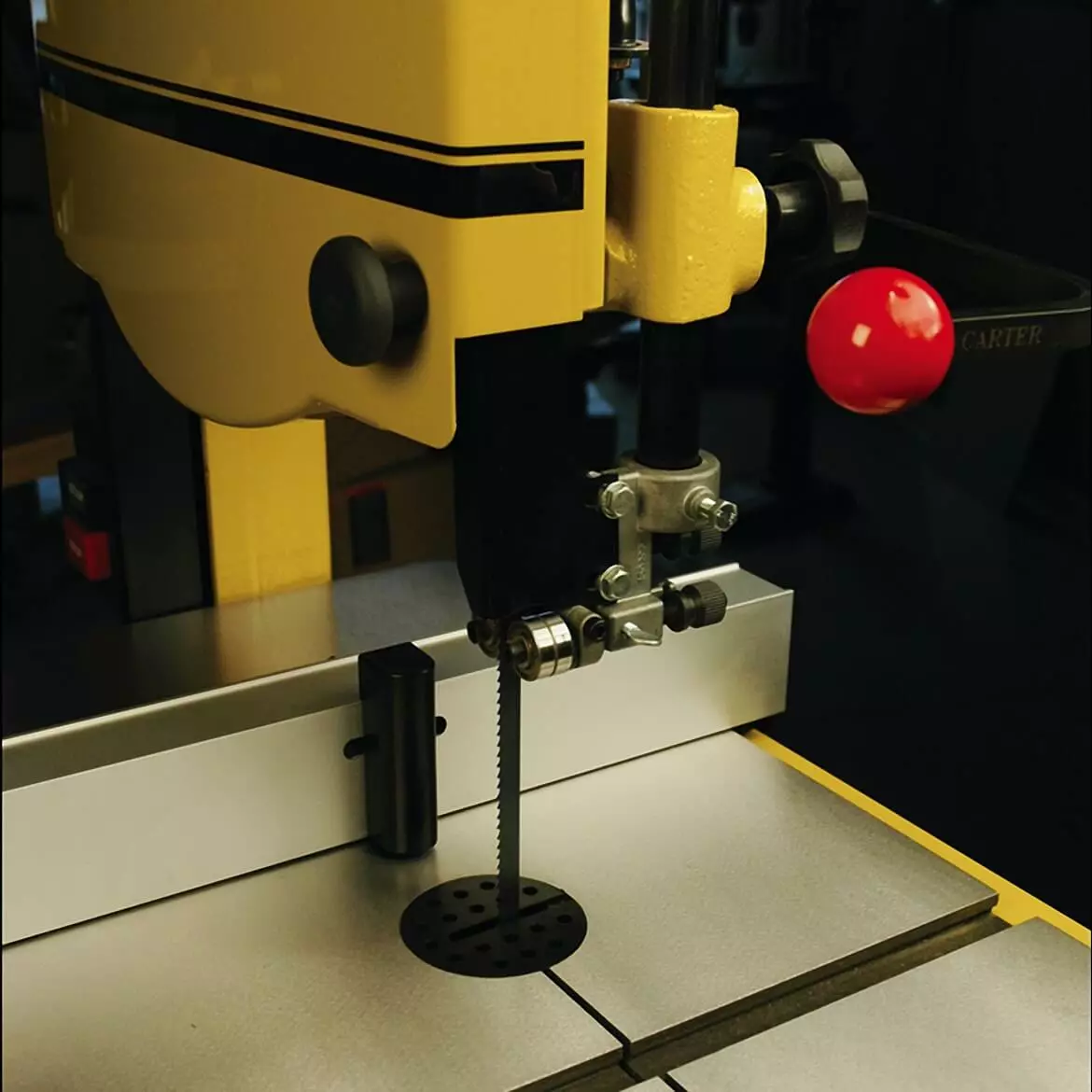

- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction

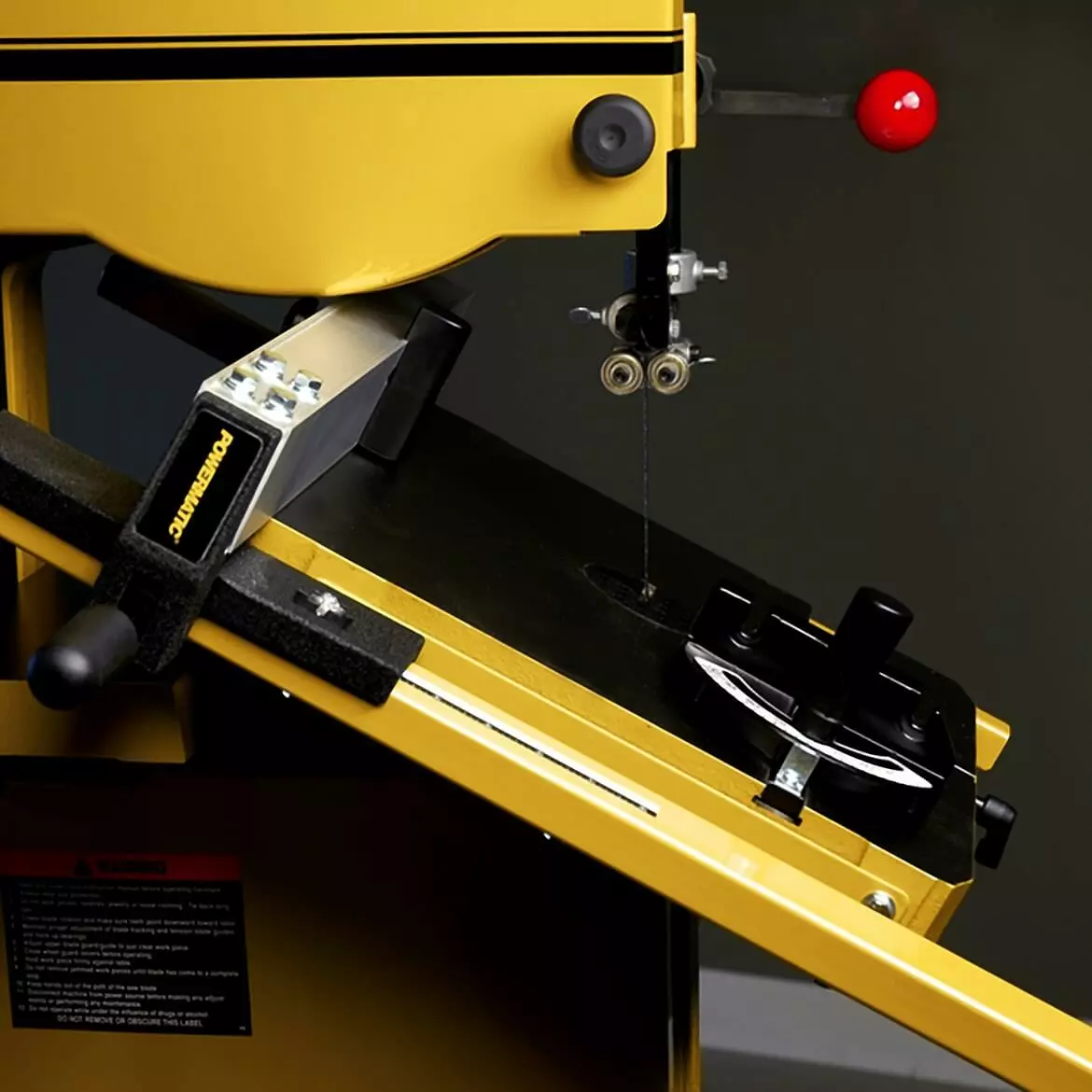

- Exclusive design, quick-release precision T-square style rip fence with 4″ resaw attachment

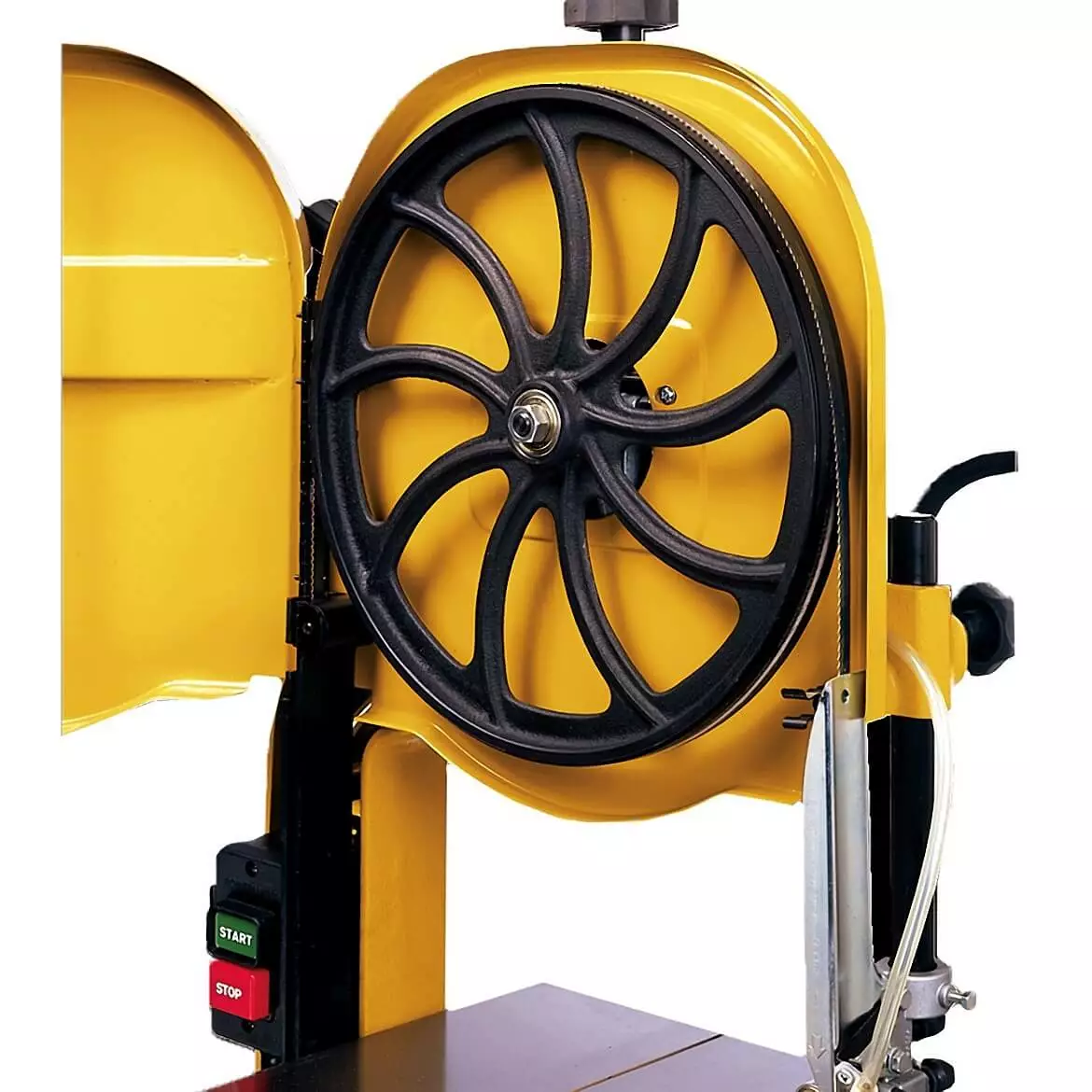

- Precision balanced, nine spoke cast iron wheels reduce vibration
- Easy to read tensioning gauge settings indicated in “blade width” increments
- Full 6″ under guide capacity with 13-1/2″ width capacity
- 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
- Rigid one-piece welded stand requires no assembly
- CARTER quick tension release
- Adjustable miter gauge
- T-style rip fence with resaw assembly
- Gooseneck work lamp and chip blower
- Riser block
What’s in The Box

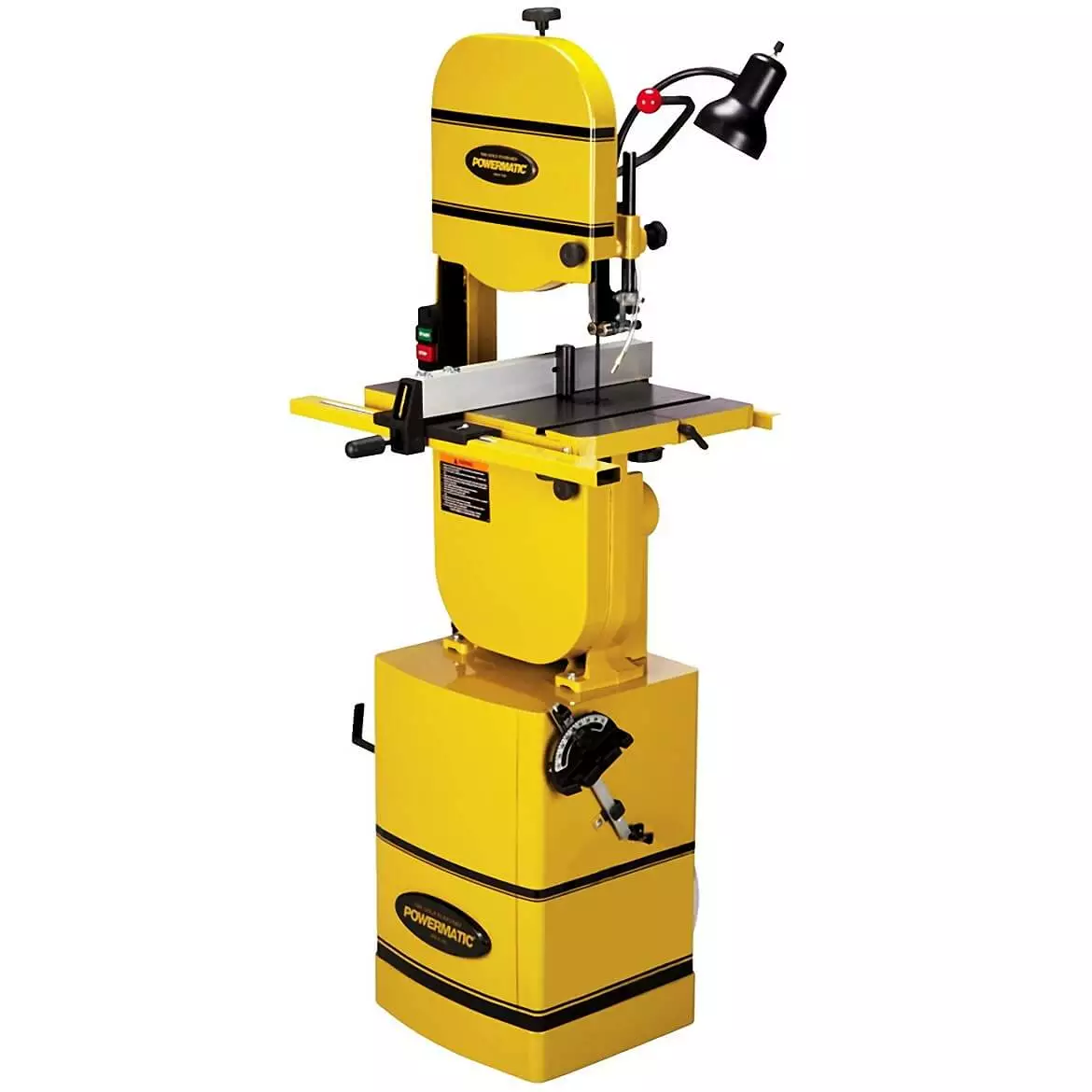

- Powermatic PWBS-14CS, 14″ Bandsaw, 1.5HP 1PH 115/230V
- Owner’s Manual
Warranty
- 5-Year on Woodworking machinery
- 2-Year on Industrial or commercial woodworking machinery
- 1-Year on Motors
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 1791216K |
| UPC | 662755489372 |
| Style (Type) | Bandsaw |
| Band Saw Size/Wheel Diameter (In.) | 14 |
| Cutting Capacity Width (In.) | 13-1/2 |
| Cutting Capacity Height (In.) | 6 |
| Blade Length (In.) | 93-1/2 |
| Table Size (L x W) (In.) | 15 x 15 |
| Blade Speed (SFPM) | 3,000 |
| Table Size with Extension (L x W) | 15 x 20-1/2 |
| Maximum Saw Blade Width (In.) | 3/4 |
| Table Height from Floor (In.) | 44 |
| Table Tilt (Deg.) | 10 Left, 45 Right |
| Minimum Saw Blade Width (In.) | 1/8 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 1-1/2 |
| Motor Phase | 1 P |
| Motor Voltage (V.) | 115, 230 |
| Prewired Voltage (V.) | 115 |
| Motor Current (Amps) | 11, 5-1/2 |
