Tools & Equipment Klein VDV501-852 Scout Pro 3 Cable Power Testing Kit W/ Locator Remote

$89.99

Fast, friendly, always here to help.

Sustainable materials, for a better tomorrow.

Nature-friendly materials, for a better planet.

Control the delivery date and try to deliver it in the fastest time

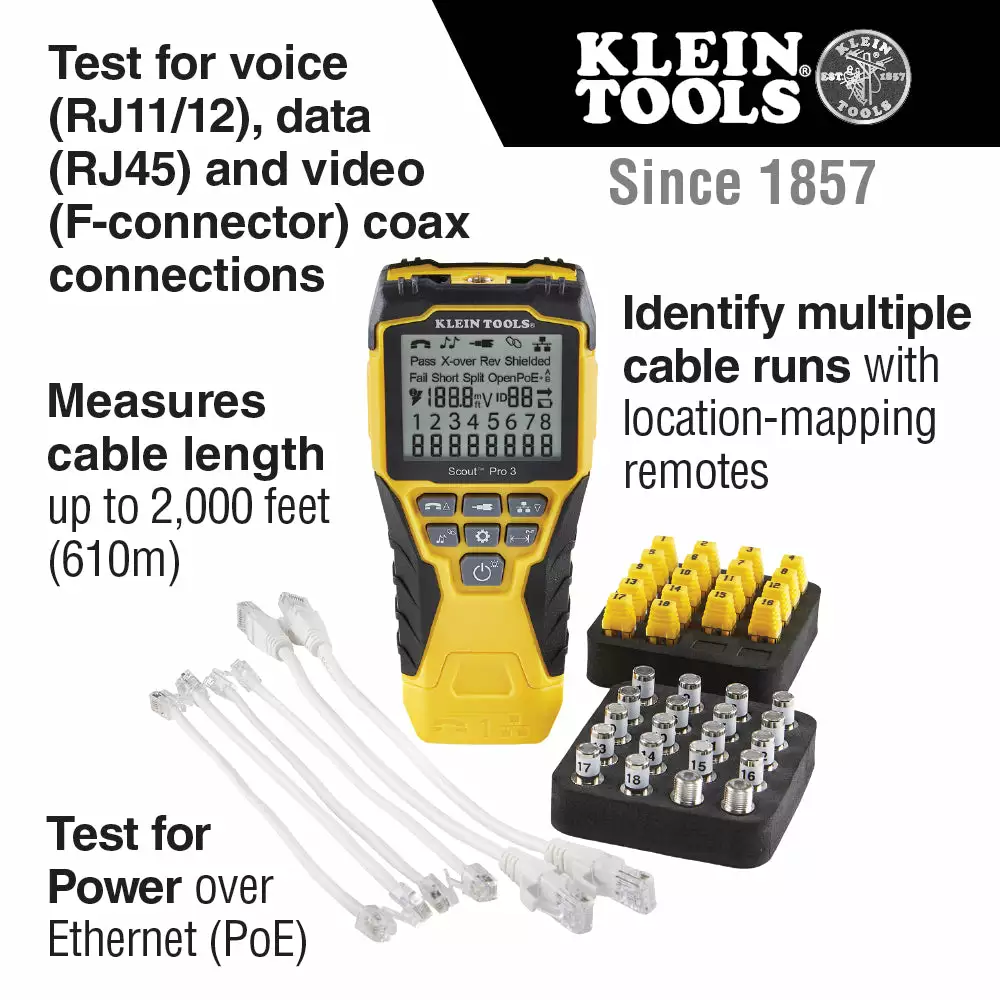

Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
Trace cables, wire pairs and individual conductor wires with a tone generator
Self-storing Test + Map Remote (#1) tests, maps and IDs a cable run in a single step

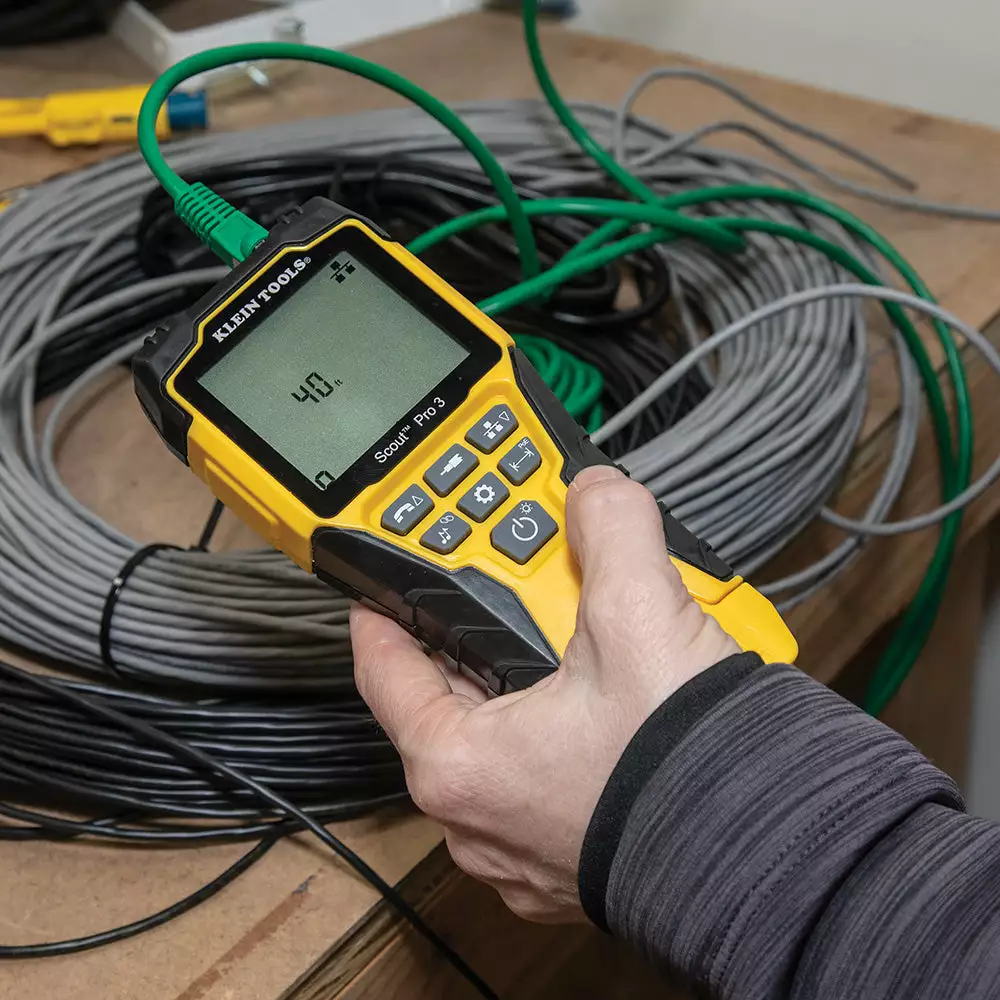

Measures cable length up to 2,000 feet (610 m)
Identify multiple cable runs with location-mapping remotes
Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers
Detect, identify and test Power over Ethernet (PoE)
Backlit LCD screen displays cable length, wiremap, cable ID and test results
Hub blink mode to identify port location on a hub or a switch

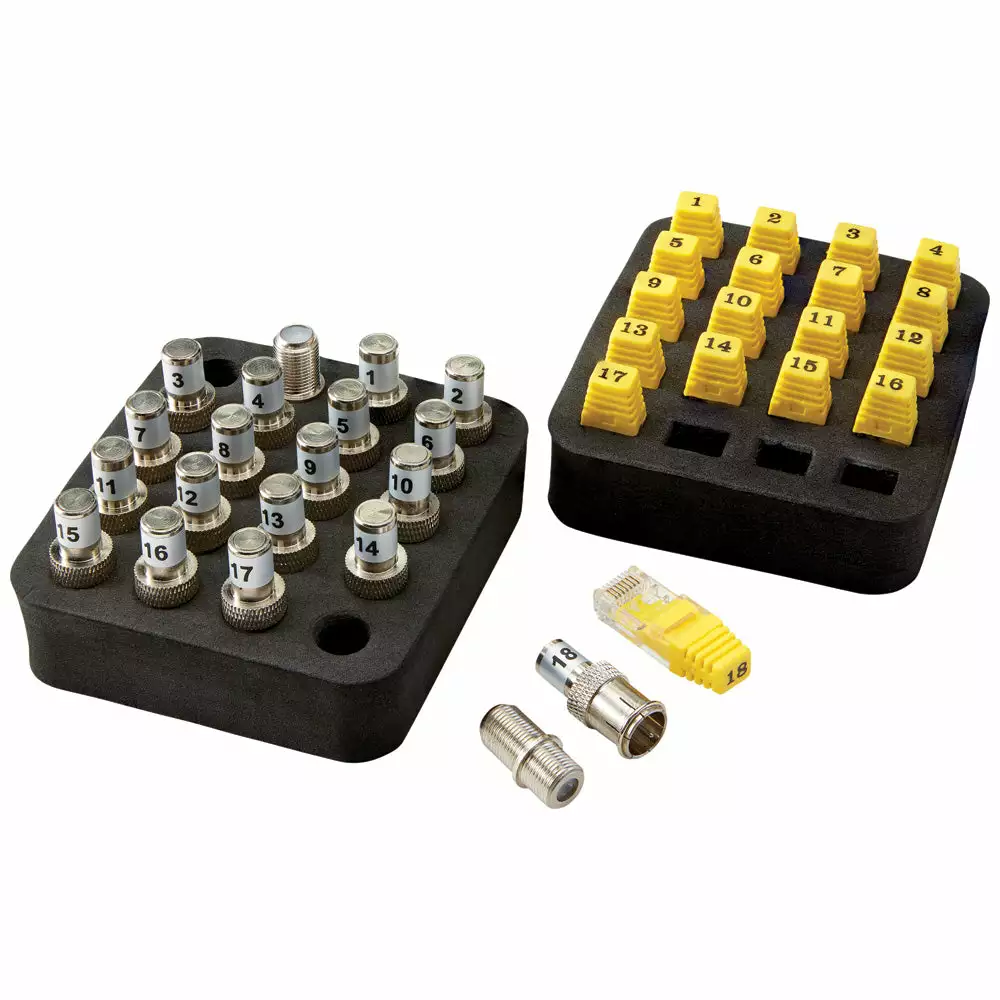

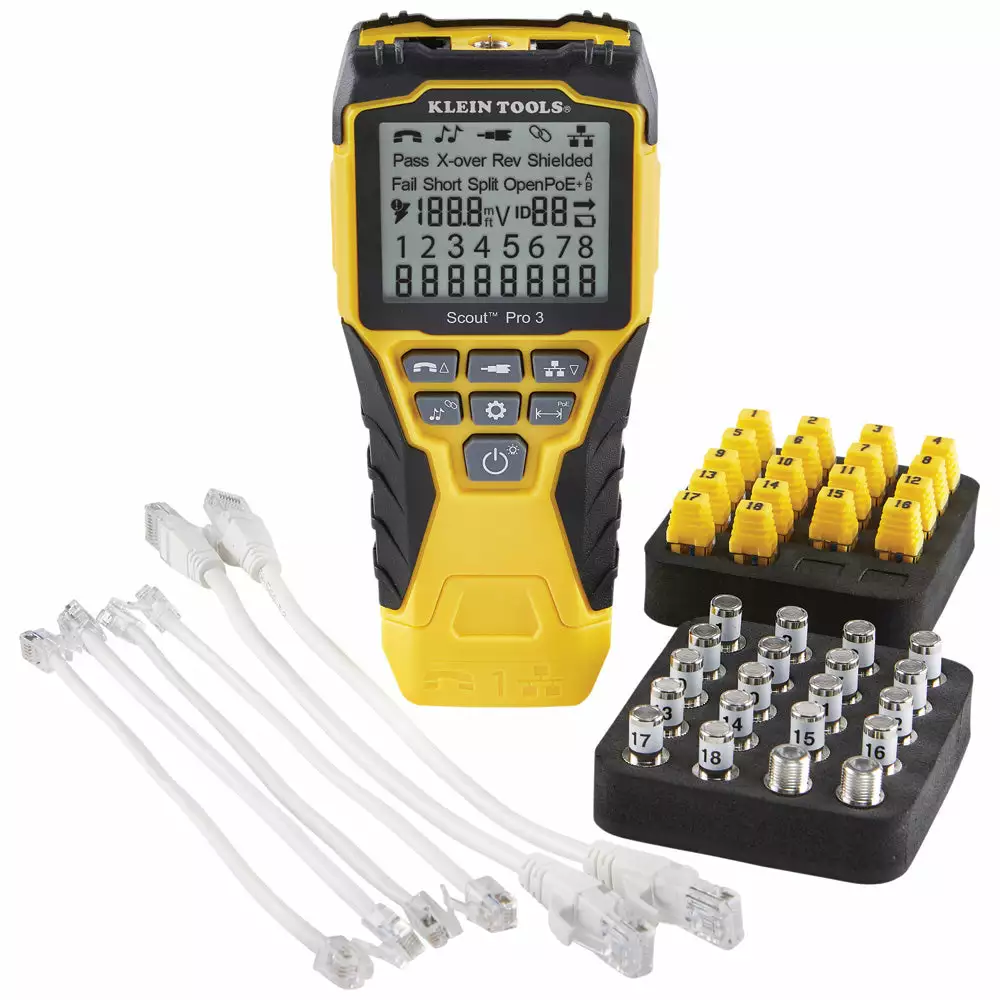

Includes 1 Self-storing Test + Map Remote (31), 18 RJ45 LAN locator remotes, 18 F coax locator remotes, 2 female-to-female coax adapters and a 9V battery
Convenient padded carrying case keeps everything together and in reach

SKU	VDV501-852
Brand	Klein
Application	Cable Testing
Material	Plastic Metal
Type	Twisted Pair, DATA, Voice, LAN, and Coaxial
Cable Type	DATA- Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7 COAXIAL- RG59, RG6/6Q
Test-n-map ID Remotes	Self Storing
Location ID	(18) RJ45 Data and F-Coax Locator Remotes
Batteries	9v Alkaline
Battery Life	50 hours active
Drop Protection	2m
Supported Remotes	18
Connection and Adapter Types	RJ11, RJ12, RJ45, Coax F
Display	LCD
Multiple Style Tone Generator	Yes (5) Requires Tracing Probe (Cat. No. VDV500-123) Sold Separately
Faults Detected	Open, Short, Miswire
Test and Measure Types	Ethernet, Data, Coaxial
Length	7 in
Width	1.5 in
Height	3.2 in
Weight	1.2 lbs
