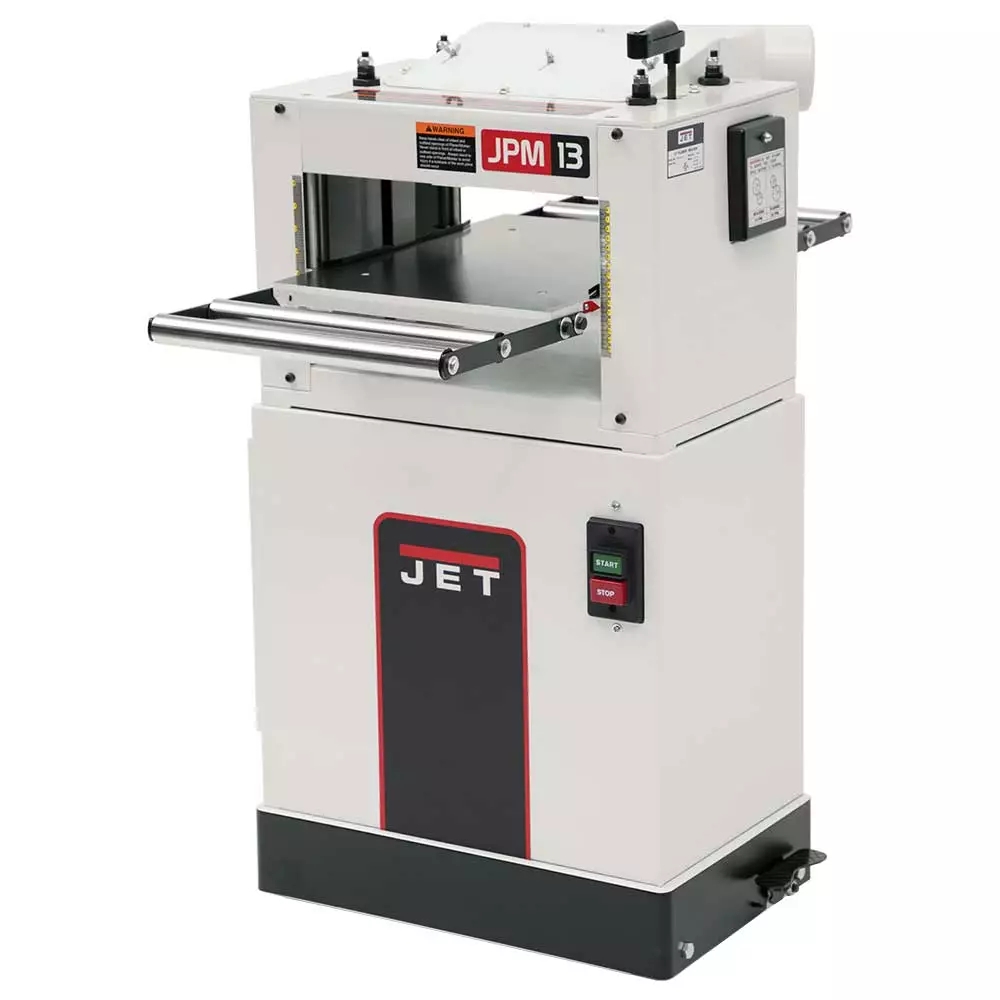

Tools & Equipment Jet JPM-13CS, 13″ 1.5HP 1PH 115/230V Planer/Molder 708524

Features

• Cast iron table and base provide strength and reduce vibration during use
• Four precision-ground column design feature adds stability when raising and lowering the table
• Three cutter head design produces a superior finish in either application
• Two speed gear box has feed rates set for optimum planing and molding results
• Molding cutter head accommodates over 40 standard molding cutter sets; most 2 or smaller heads can be installed without removing the planning knives to save you set-up time
• Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
• Top-mounted height adjustment handle is easy to use for quick table height changes
• Totally enclosed fan-cooled 1-1/2HP motor uses two matched V-belts to deliver smooth, consistent power to the cutter head
• Exclusive angled 4 dust port keeps the dust hose out of the way while providing efficient chip and dust removal
• Built-in lockable casters add support and stability to machine while in use

What’s in The Box

• JPM-13CS, 13 Closed Stand Planer / Molder, 1-1/2HP, 1Ph, 115/230V 708524

Warranty

• JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
• 30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Planer/Molder
Maximum Planing Width (In.)	13
Minimum Planing Length (In.)	14
Maximum Planing Thickness (In.)	6-1/8
Number of Knives	3
Cuts Per Minute	13500
Cutterhead Diameter (In.)	2-9/16
Cutterhead Speed (RPM)	4500
Feed Rate – Planing (FPM)	20
Feed Rate – Molding (FPM)	10
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1-1/2
Motor Phase (PH)	1
Motor Voltage (V.)	115/230
Prewired Voltage (V.)	115
Motor Amps	15/7.5
