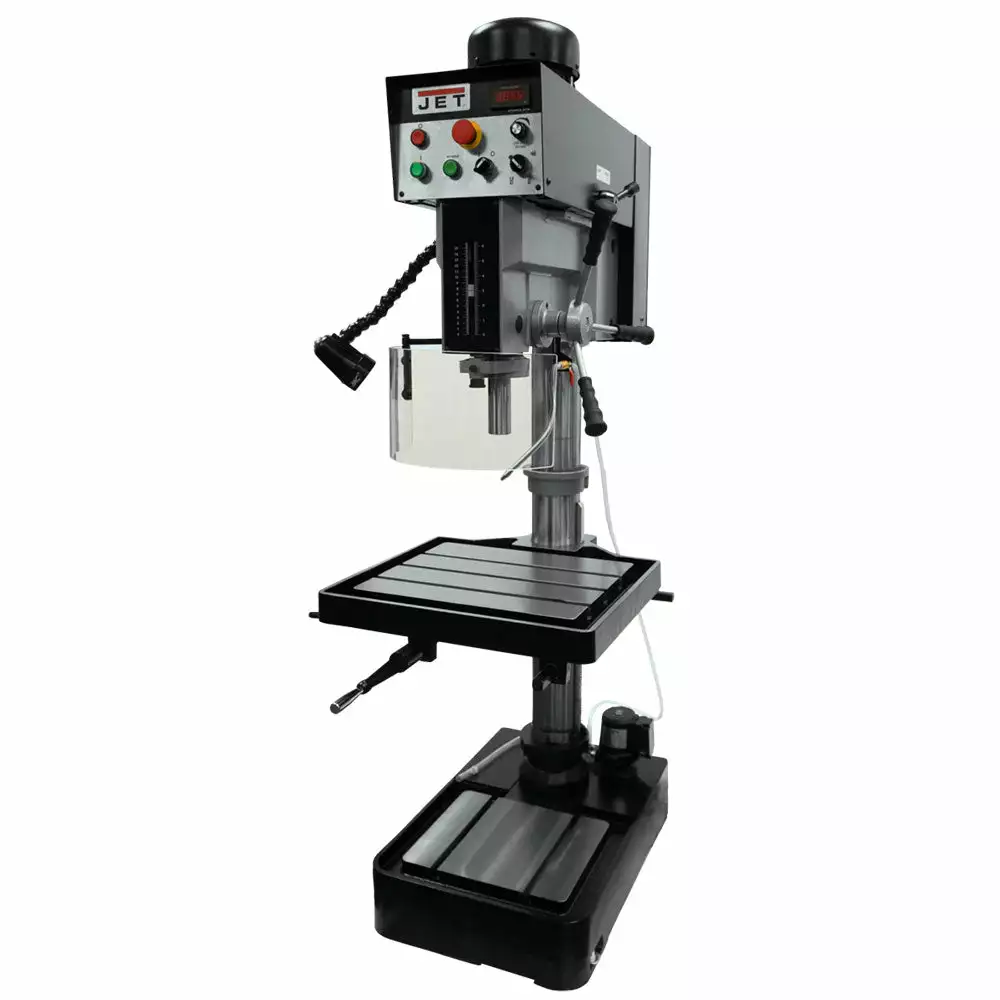

Tools & Equipment JET JDP-20EVST-230 230V 2 HP 1-1/2″ Variable Metalworking Tapping Drill Press

$89.99

Fast, friendly, always here to help.

Sustainable materials, for a better tomorrow.

Nature-friendly materials, for a better planet.

Control the delivery date and try to deliver it in the fastest time

Heavy-duty steel column for increased precision and rigidity
Heavy-Duty cast head for more accuracy and rigidity
Large Precision Ground T-slot Production Table for easy setups
Latest AC Inverter Variable Speed Technology
CSA Coolant System
The spindle is supported by high-quality ball bearings
CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
LED Machine Lamp
Spindle Guard
Emergency Stop
The spindle is supported by high-quality ball bearings
Variable Spindle Speeds from 65 – 2,000 RPM’s
High Torque at all speeds both forward and reverse
Continuous Speed Adjustment while in operation
Front Mounted LED Spindle RPM Readout
Forward and Reverse for Tapping
Front Mounted Positive Control Depth Stop
Large Hand Grips designed with the Users comfort in mind

SKU	354225
Brand	Jet
Volts	230
Horsepower	2
Phase	3
Style	Variable Speed
Drills to Center of Circle	20 in
Drilling Capacity Cast iron	1-1/2 in
Drilling Capacity Mild Steel	1-3/8 in
Tapping Capacity Cast Iron	7/8 in
Tapping Capacity Mild Steel	3/4 in
Column Diameter	4-1/2 in
Distance Column to Spindle	10-7/16 in
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	65-540 /245- 2,000
Column Diameter	4-1/2 in
Spindle Taper (in x TPI)	MT-3
Spindle Travel	6 in
Spindle Distance to Base	44-1/2 in
Spindle Distance to Table (Max)	30-1/4 in
Table Travel	20 in
Table T-Slots, Number and Size	2 Slots for 5/8 bolts
T-Slots Number and Size	3 and 5/8 in
T-Slot Centers	7-7/16 in
Table Size (Lx W)	22 x 18-3/4 in
Work Table Weight Capacity	154 lbs
Base Dimensions	27 x 19 in
Base Slots Number and Size	2 and 5/8 in
Dimensions (L x W x H)	38.18 x 27.16 x 79.52 in
Weight	792 lbs
