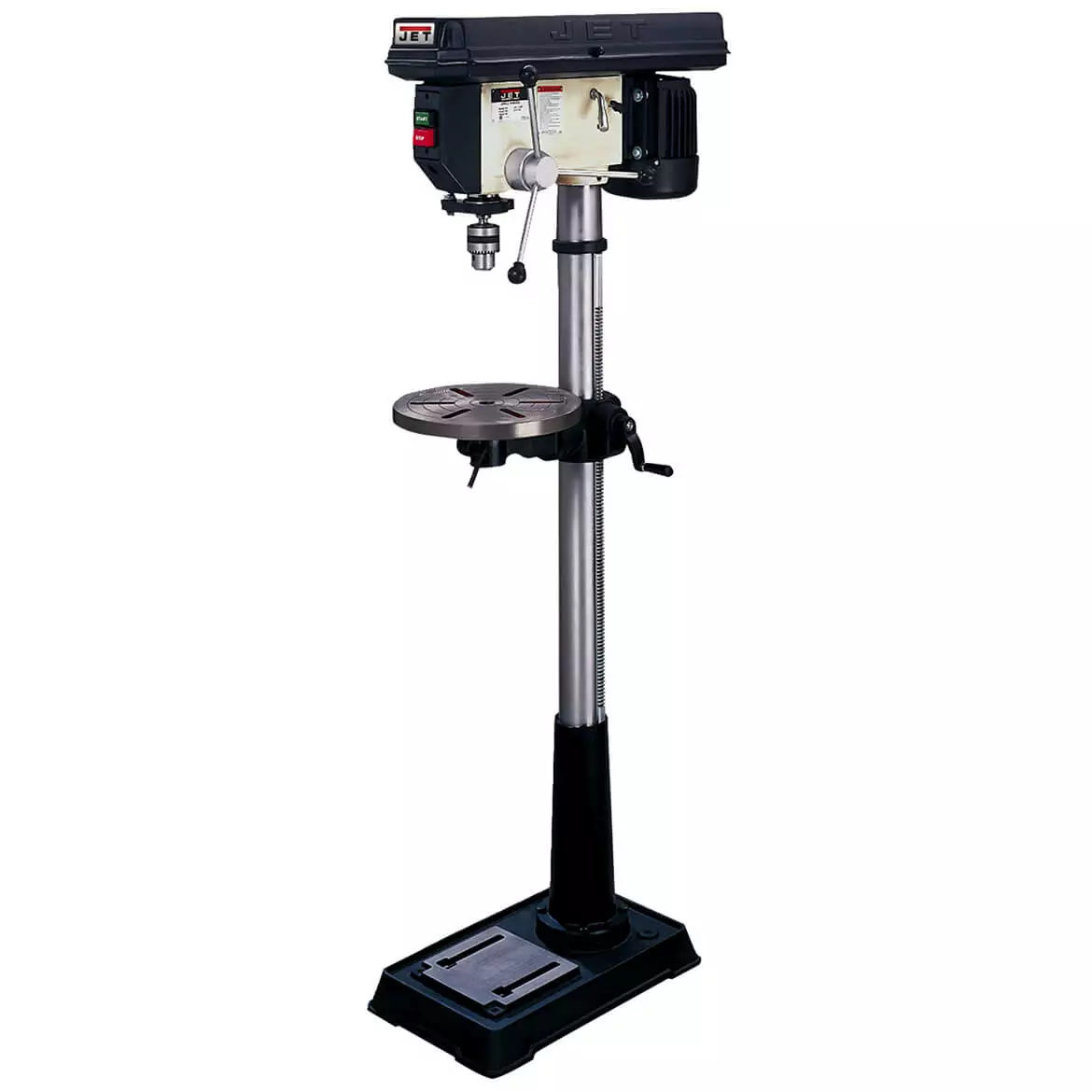

Tools & Equipment JET JDP-17MF 3/4-Hp 115/230V 16-1/2″ Floor Drill Press W/ Quick Release Crank

$93.99

Fast, friendly, always here to help.

Sustainable materials, for a better tomorrow.

Nature-friendly materials, for a better planet.

Control the delivery date and try to deliver it in the fastest time

16 speeds lets you choose the best speed for the job
Quick release crank operated worktable height adjustment rotates + or – 45° for versatility
Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
“X” pattern mounting grooves in table allow mounting a fence when table is in reverse position
Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
Spindle has high-quality ball bearing construction for long life
Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
Built-in worklight (bulb not included) provides additional visibility of your work

Model	354169
UPC	662755104114
Style (Type)	Floorstanding Model
Swing (In.)	16-1/2
Spindle Travel (In.)	4-3/8
Number of Spindle Speeds	16
Spindle Taper	MT2
Spindle Speed Range (RPM)	200 – 3630
Spindle Distance to Table (Max.) (In.)	29-1/8
Table Size (L x W) (In.)	13-3/4
Table Tilt (Deg.)	45 R and L
Chuck Size (In.)	5/8
Column Diameter (In.)	3-1/8
Base Size (In.)	11-1/8 x 19-5/8
Motor Power (HP)	3/4
Motor Phase (PH)	1
Motor Amps	9/4.5
Weight (Lbs.)	209
