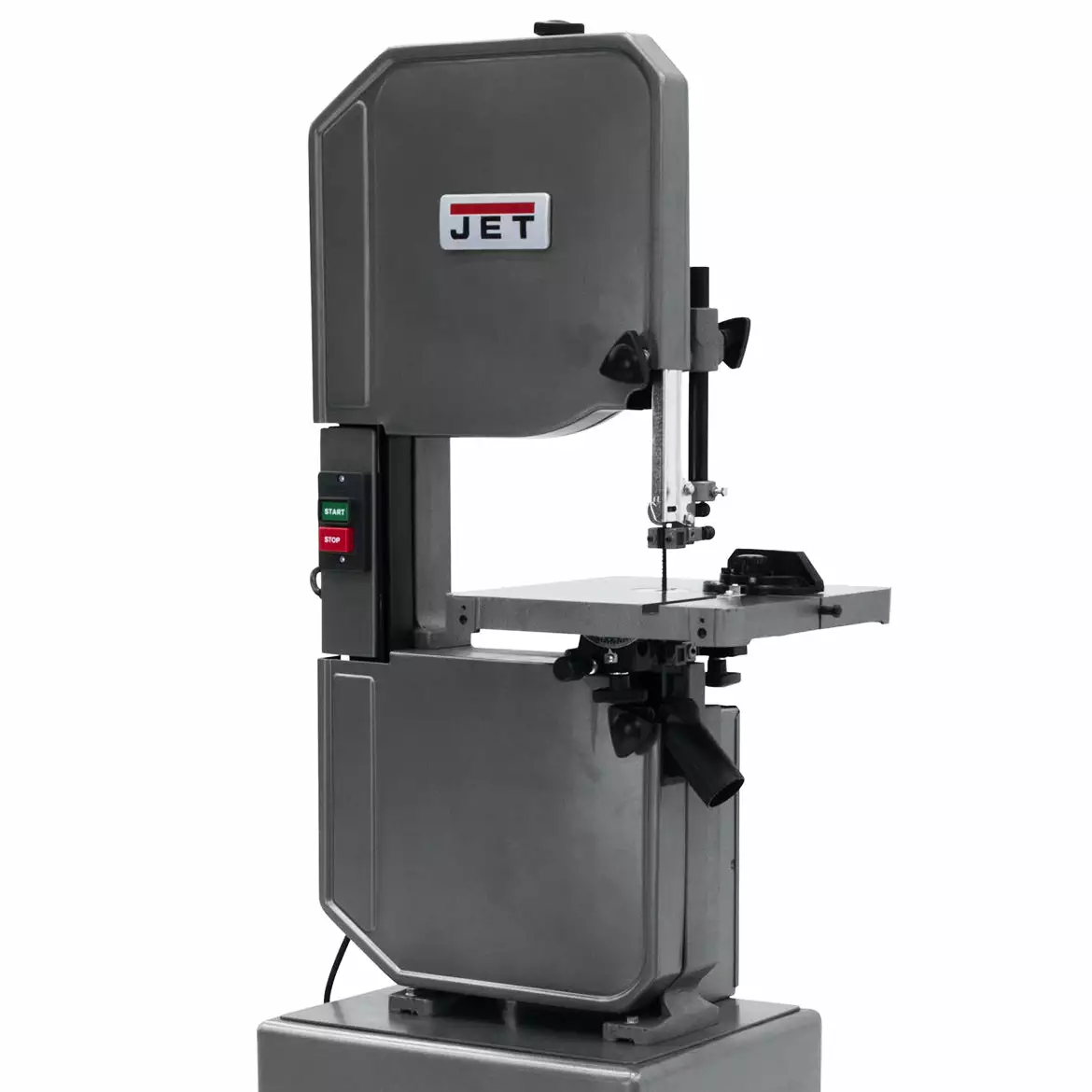

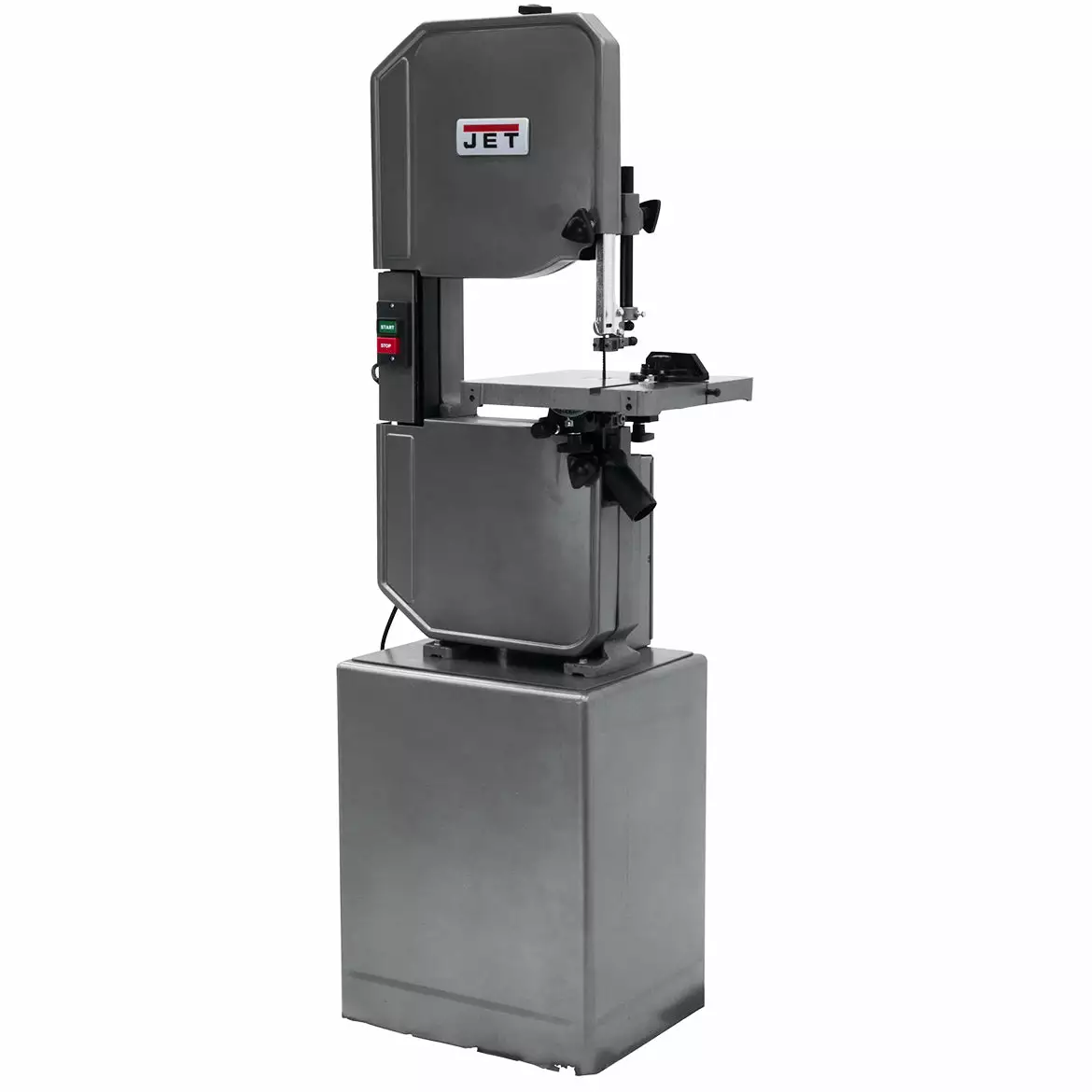

Tools & Equipment JET J-8203K 1-Hp 230/460V 14″ Metal/Wood Variable Speed Vertical Bandsaw

Features

• For added safety, the J-8203K follows strict guidelines and electrical requirements to be certified by CSA Group
• Solid, one-piece steel, base for extra stability
• Conveniently located on/off switch
• Variable speed drive system (8201VS)
• Gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal and plastic cutting applications

What’s in The Box

• 14-Inch Metal/Wood Cutting Vertical Bandsaw
• (1) 14-Tpi Metal Cutting Blade
• (1) 6-Tpi Wood Cutting Blade
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	J-8203K
Sku	414504C
Brand	Jet
Motor	1 Hp, 230/460-Volt, 3-Phase
Blade Speeds (Metal)(SFPM)	39, 57, 78, 107, 142, 196, 278
Blade Speeds (Wood)(SFPM)	3,300
Height Capacity (Max.)(in.)	6
Throat Capacity (in.)	12
Table Size (L x W)(in.)	14 x 14
Table Tilt To Right (Deg.)	45
Table Tilt to Left (Deg.)	15
Blade Size (in.)	3/8 x .025 x 92-1/2
Blade Length (in.)	92-1/2
Blade Width (Min. – Max.)	1/8 – 3/4
Table Height (in.)	44
Overall Dimensions (L x W x H)(in.)	25-1/2 x 22-3/8 x 73-1/2
Weight (lbs.)	280
