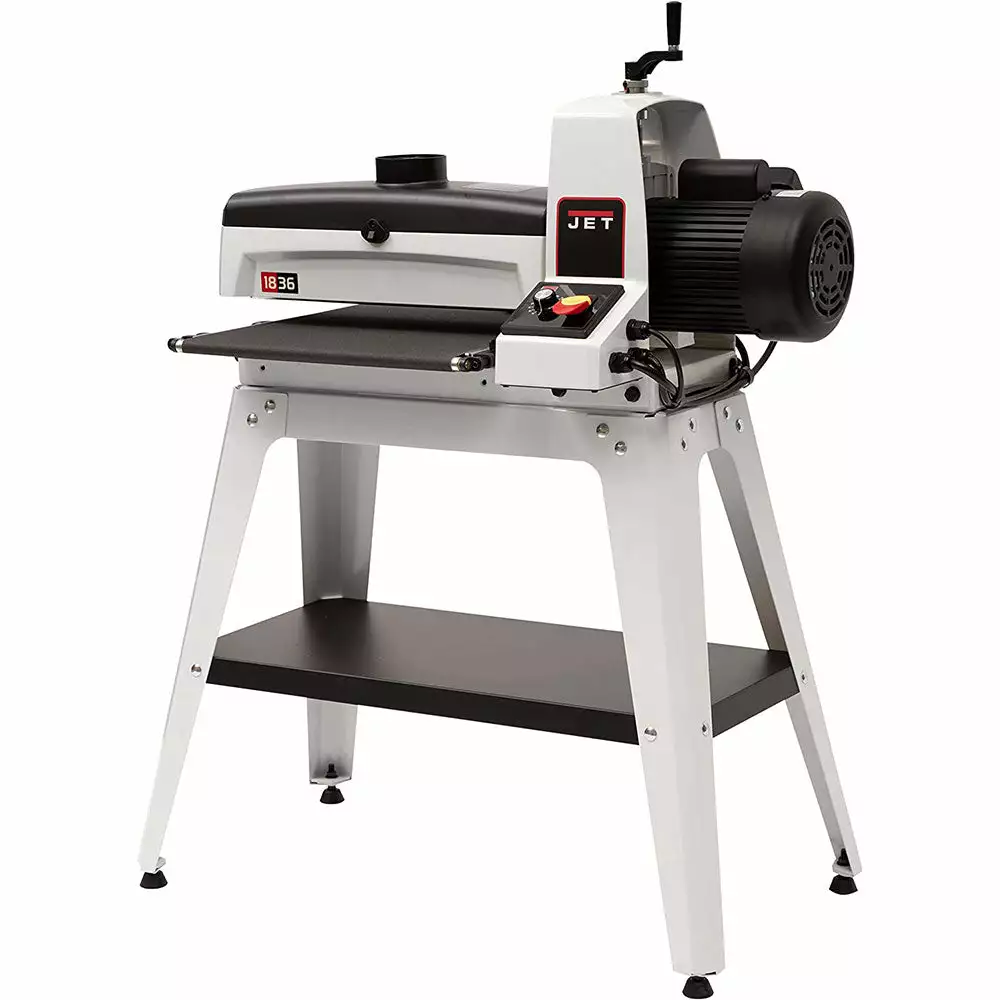

Tools & Equipment JET 723530K JWDS-1836 Smart Control Drum Sander W/ Stand

Features

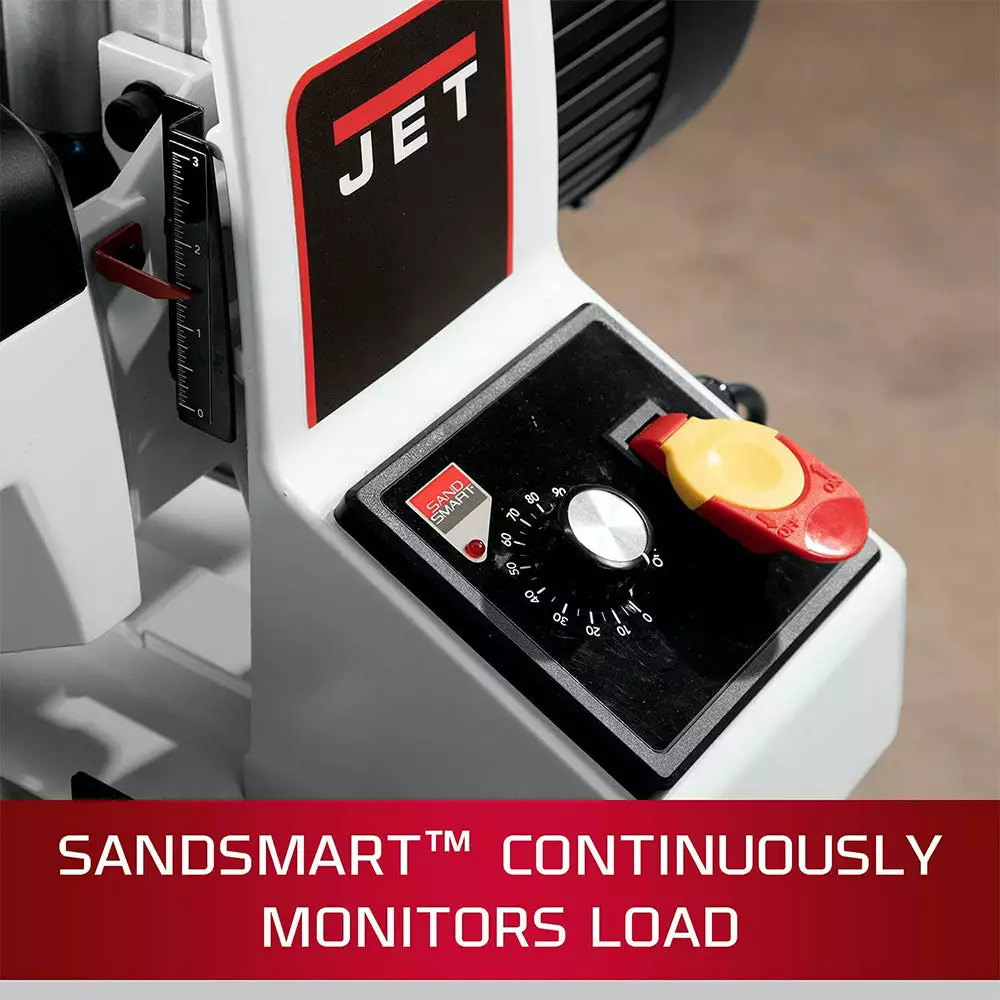

• Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

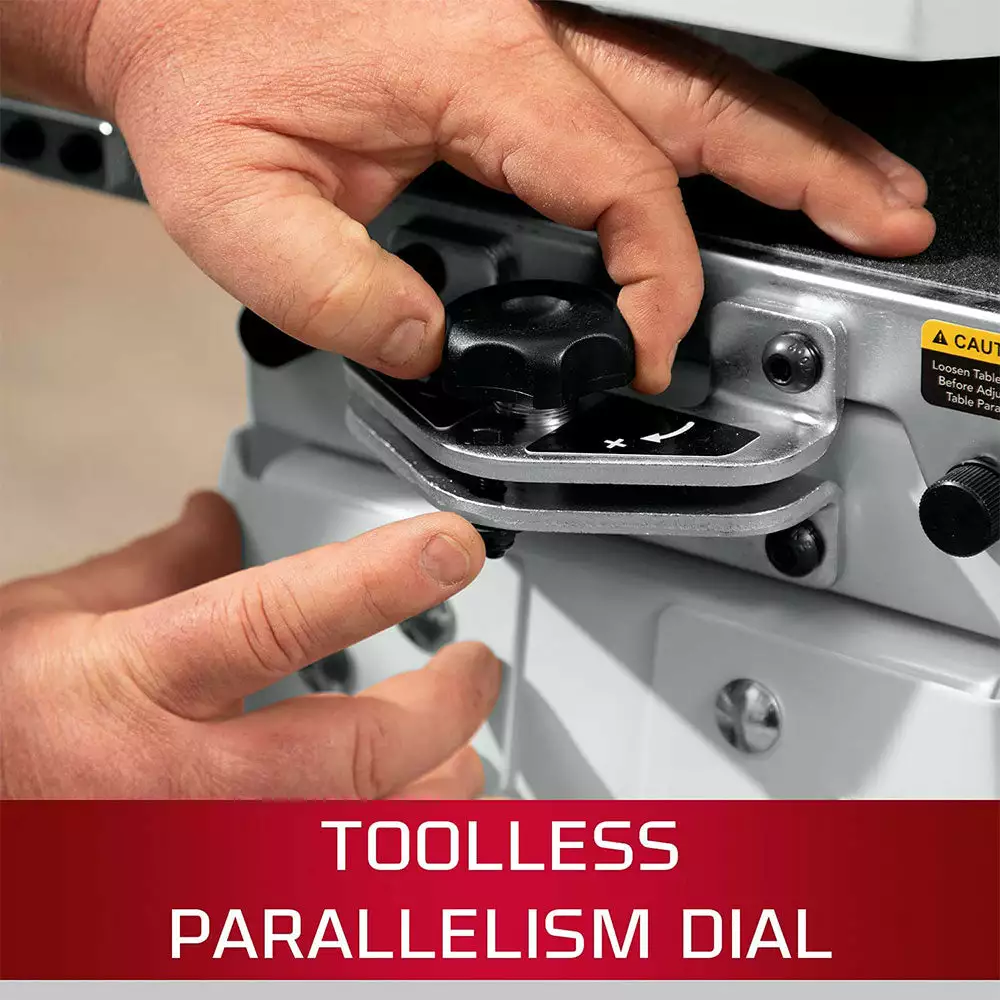

• Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed no tools require
• Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

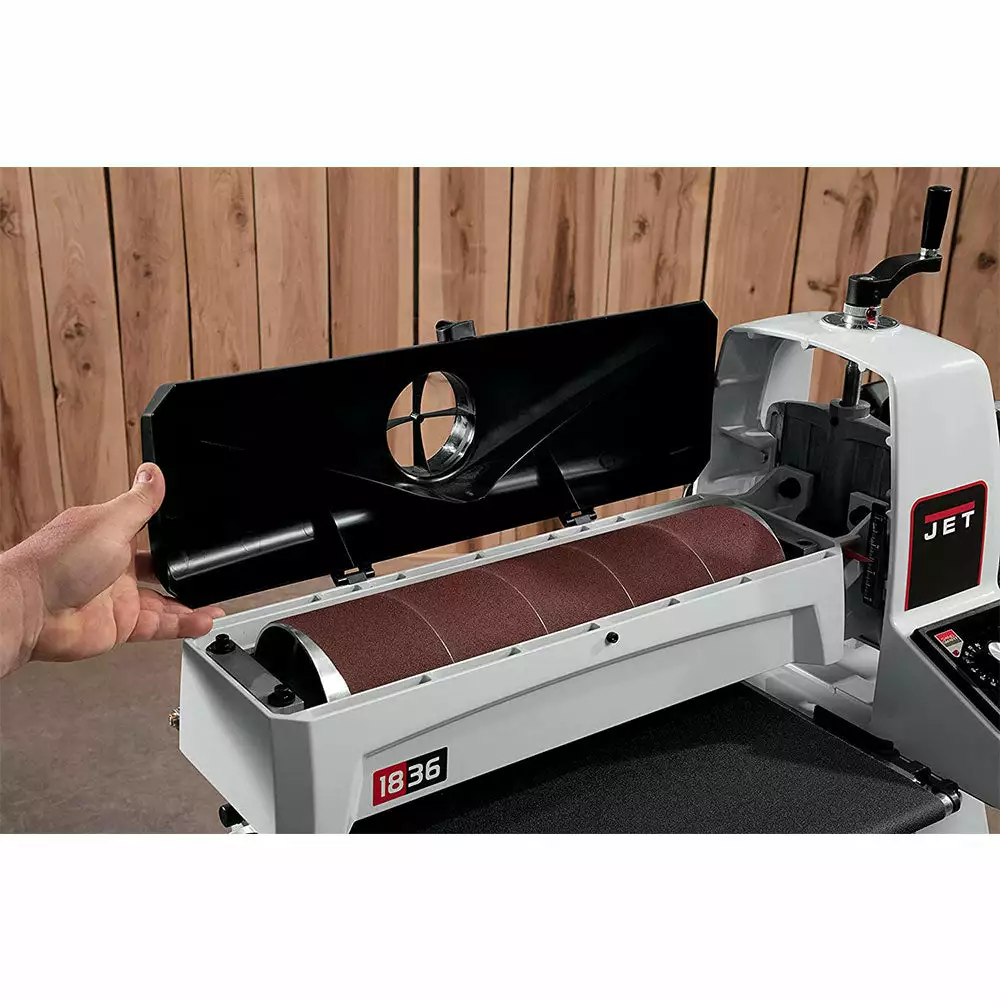

• Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 inch collection port

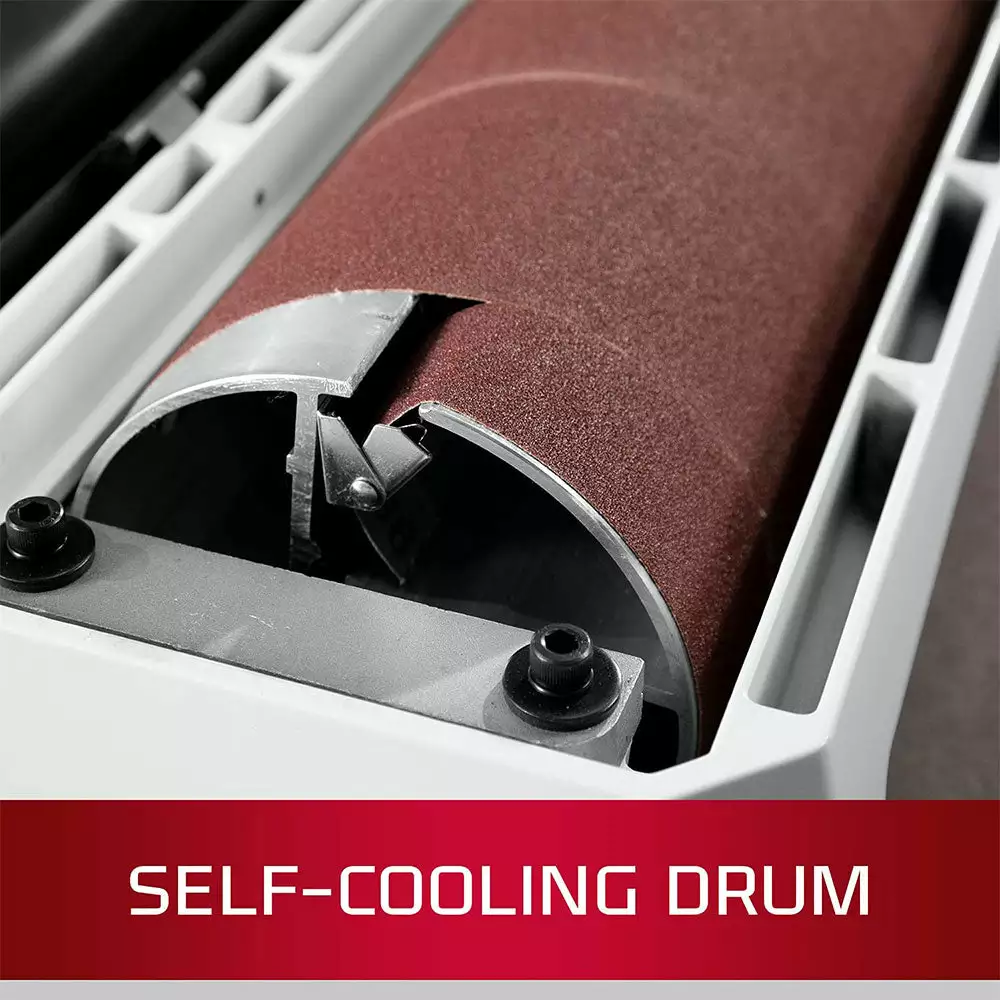

• Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
• Precision-flattened reinforced steel conveyor bed
• Redesigned conveyor system pulls the workpiece through the sander instead of pushing

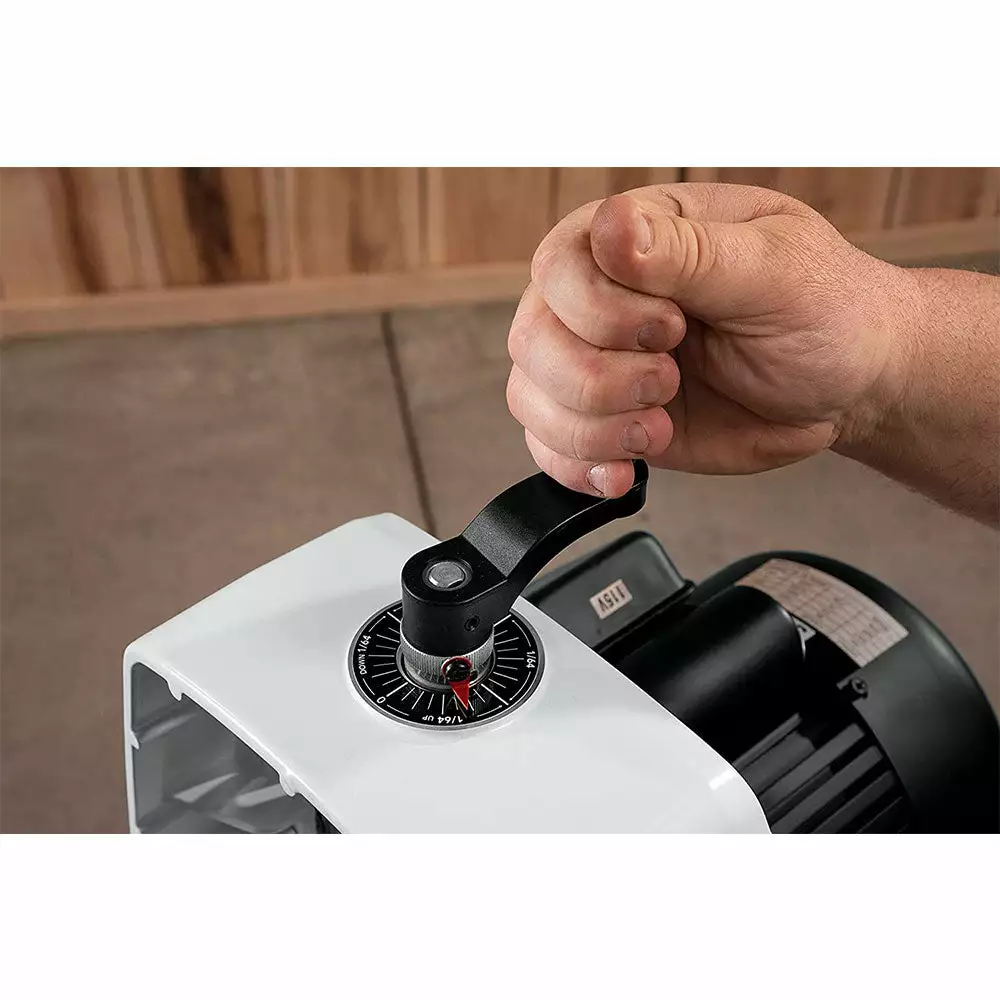

• One rotation of the top-position handwheel adjusts the drum height by 1/16 inch
• The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
• Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
• Toolless abrasive take-up clips make changing abrasives quick and easy
• Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
• Separate feed and drum motors provide independent control, optimizing the performance of the sander
• Conveyor belt Trackers reduce the need for manual belt adjustments
• Integrated on/off switch and variable speed control knob are conveniently located

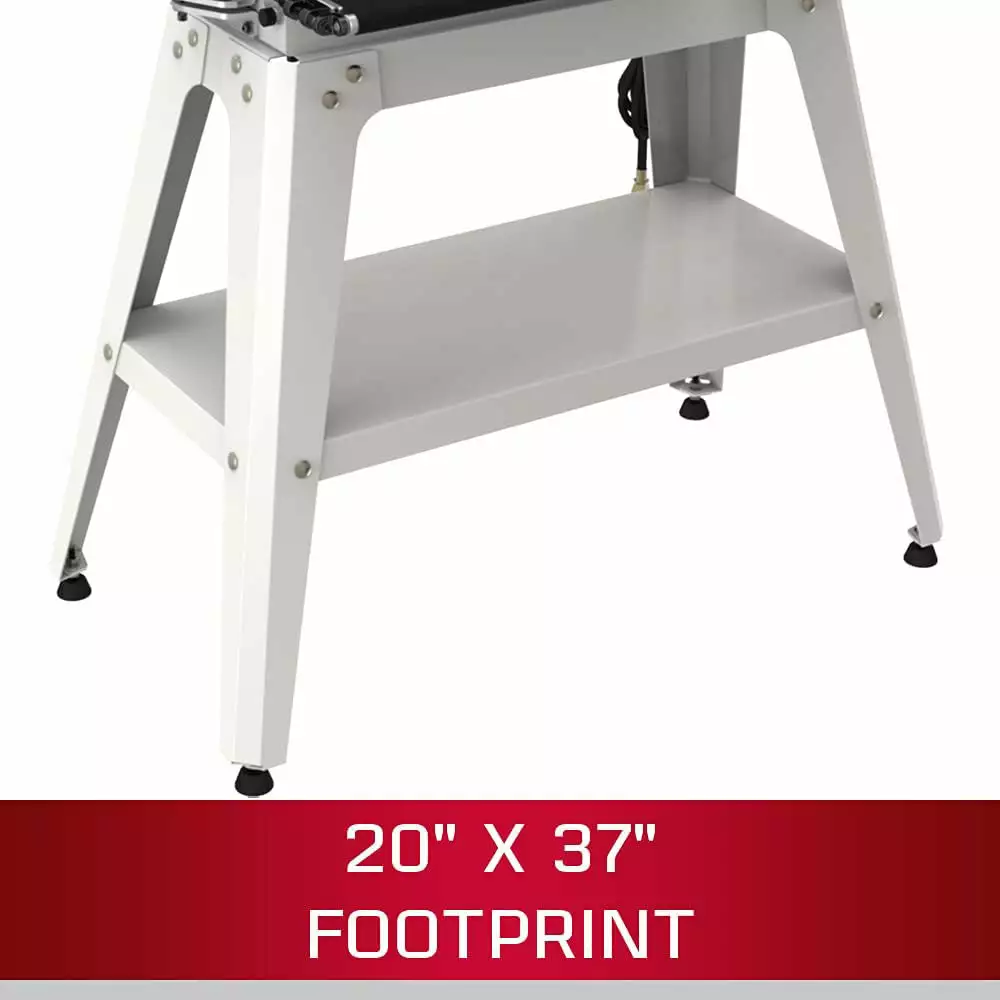

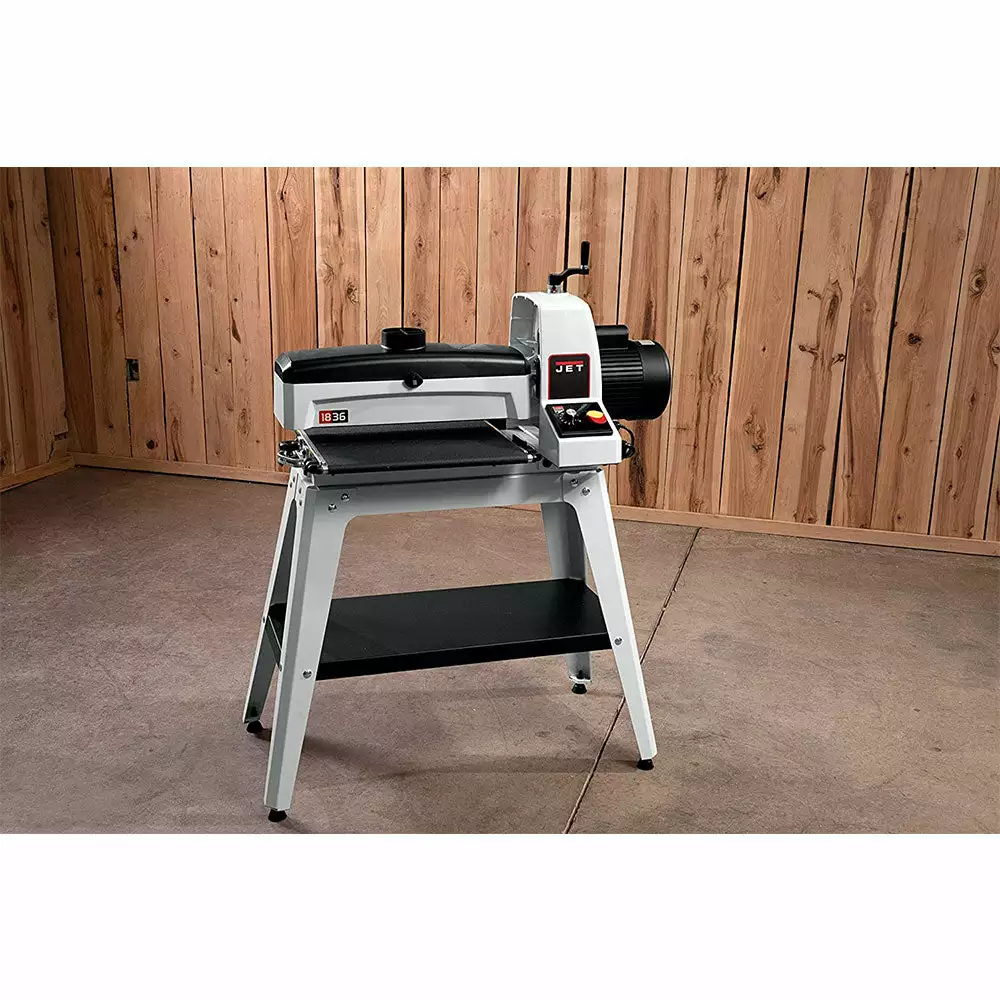

• Stand features a 20 inch x 37 inch footprint to increase stability and has a storage shelf and pre-drilled holes for casters

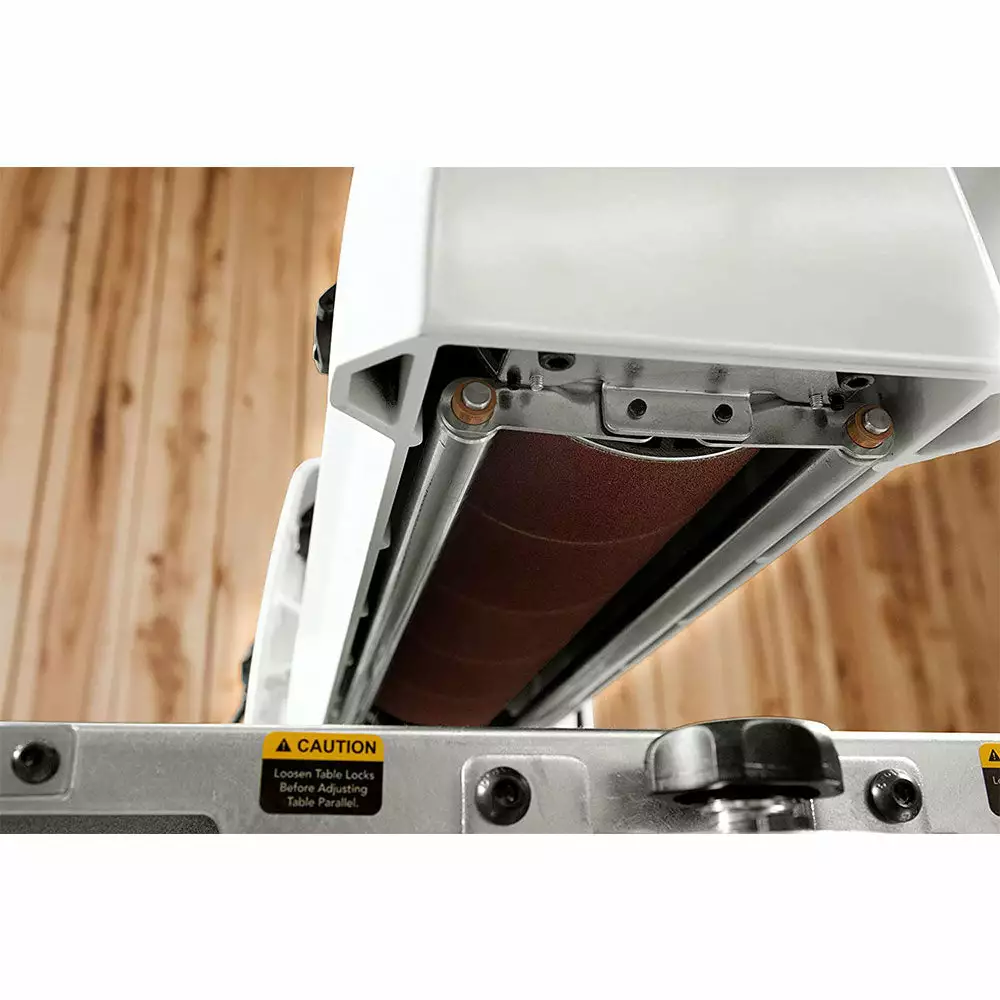

• Drum is easily removable
• Drum utilizes sealed and permanently lubricated ball bearings for longer life

What’s in The Box

• Drum Sander with Stand – 723530K
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	723530K
Brand	Jet
Horsepower	1.75 HP
Motor Phase	1 Ph
Motor Voltage	115V
Motor Amps	15 Amps
Recommended Circuit Size	20 Amps
Drum Length	18 in.
Number of Sanding Drums	1
Drum Speed	1720 RPM
Drum Diameter	5in.
Drum Bearing Diameter	1in.
Conveyor Motor	43 inch-lbs. torque, direct drive, dc
Conveyor Speed	10 FPM
Maximum Board Thickness	3 in.
Maximum Board Width	36 in. (two passes)
Minimum Board Length	2-3/8 in.
Minimum Board Thickness	1/32 in.
Dust Collection Minimum CFM Required	500 CFM
Dust Port Outside Diameter	4 in.
Weight	164 lbs.
