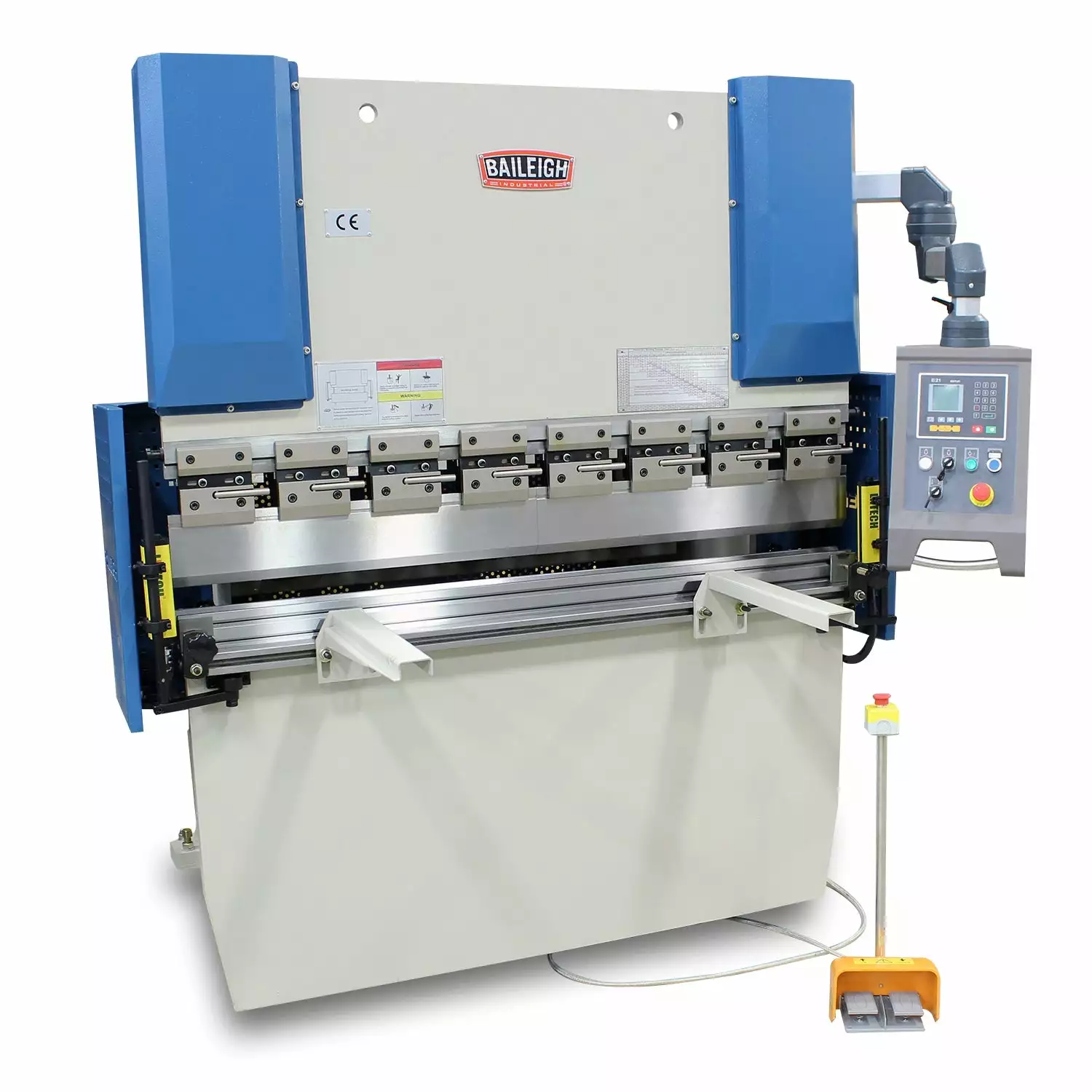

Tools & Equipment Baileigh 1020680 BP-3305CNC 33 Ton 63″ 2 Axis CNC Press Brake

Features

• BP-3305CNC delivers 33 tons of pressure across its 63” table.
• Runs on 220-volt 3-phase power.

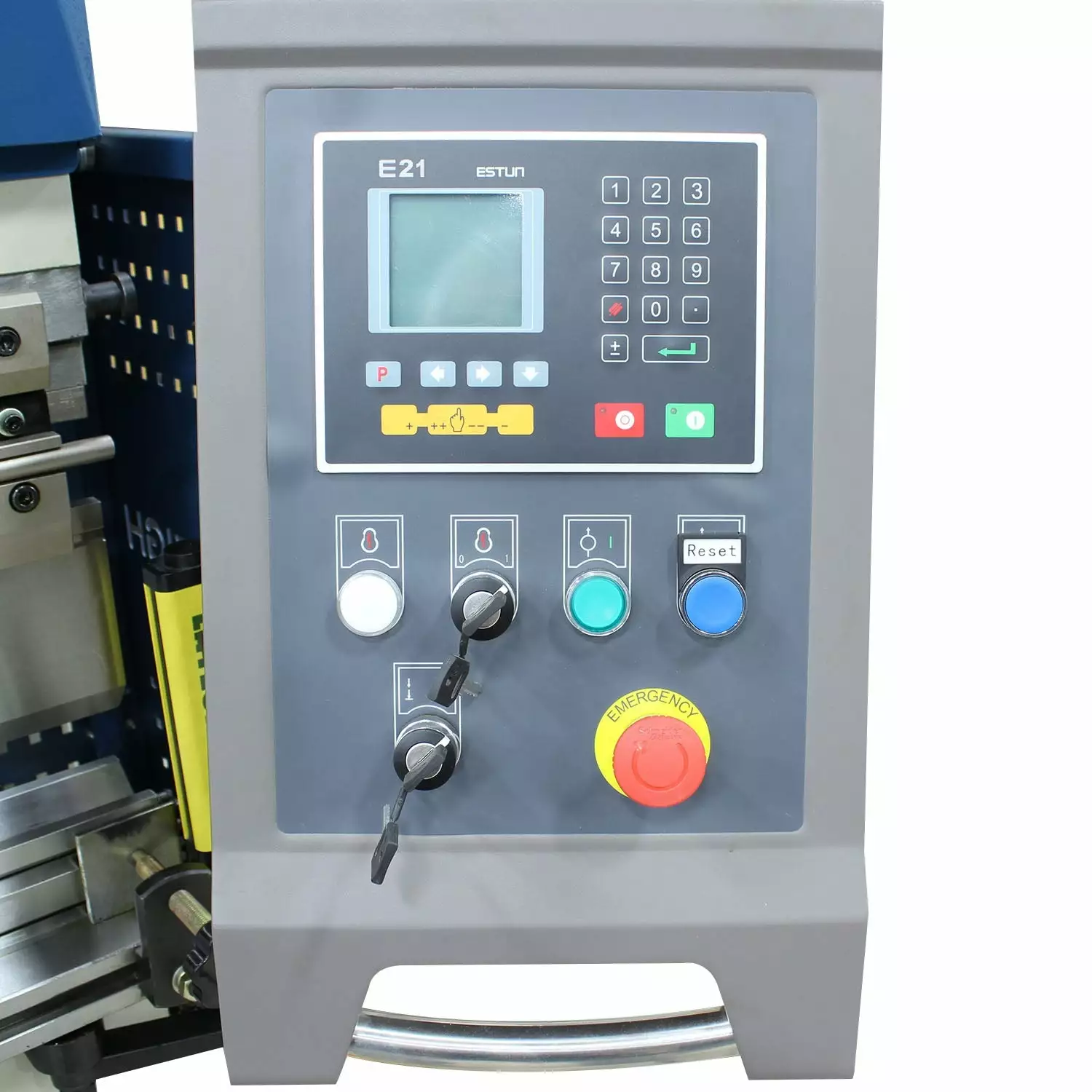

• Easy-to-use programmable 2-axis Estun E21 controller is integrated right from the factory.
• Internal memory can hold 40 programs, each with its own unique number for easy identification.
• Controller will keep a piece count for large production runs.
• Made with NOK, Siemens, and Omron components.
• Foot pedal lets you control all bending functions, whether on full auto or jog mode.
• Fully welded steel plate frame minimizes deflection and maintains rigidity.
• Gooseneck punch and a 4 sided multi-V bottom die come standard.

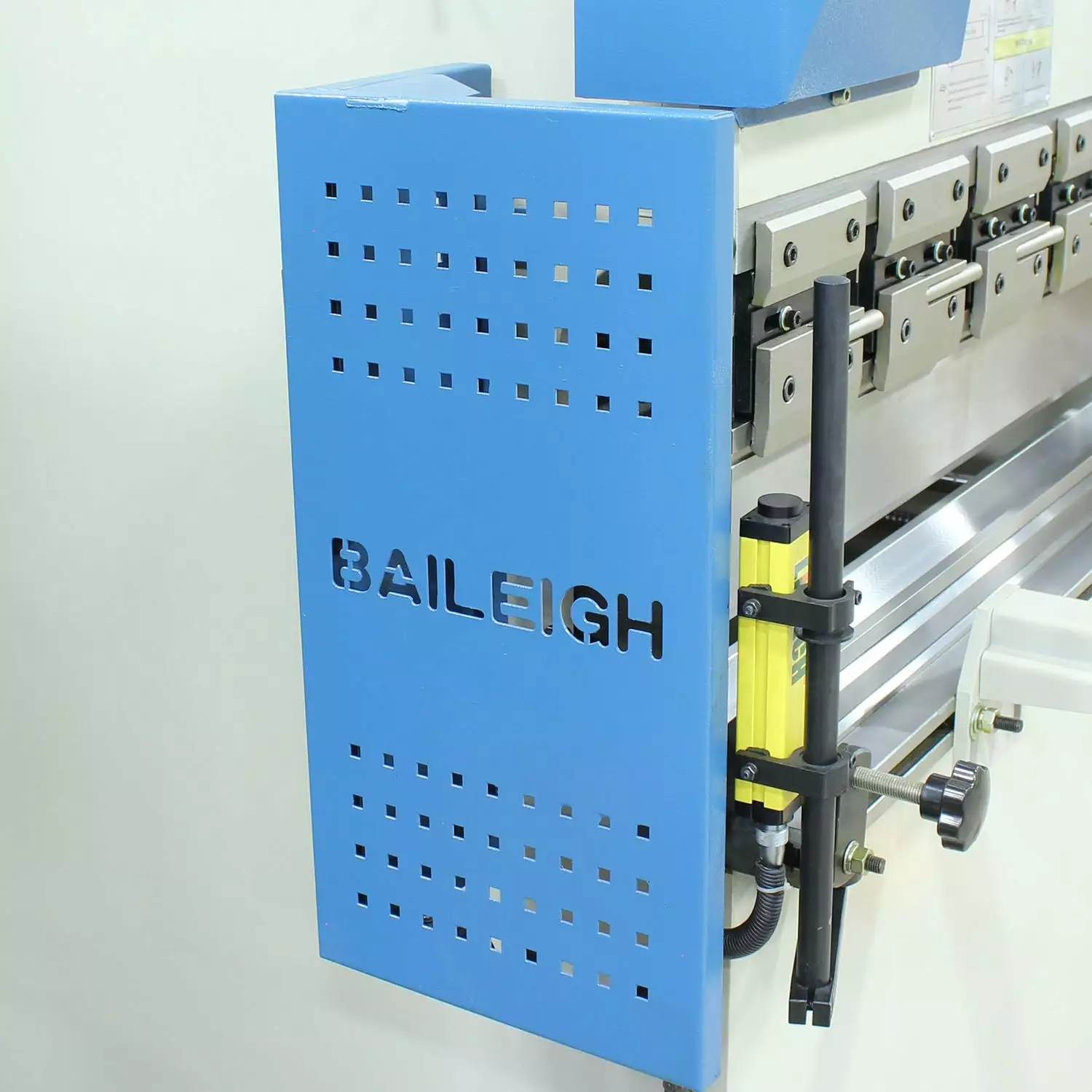

• Integrated safety light curtains help prevent accidents.
• We keep parts in stock at our Wisconsin headquarters so we can ship them to you quickly.
• Covered by a 1-year parts warranty.

What’s in The Box

• BP-3305CNC – CNC Press Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BP-3305CNC
Power	220V / 3-phase
Main Motor	7.5 hp
Table Size	63″ x 7″
Programming	40 Programs/ 25 Steps per Program

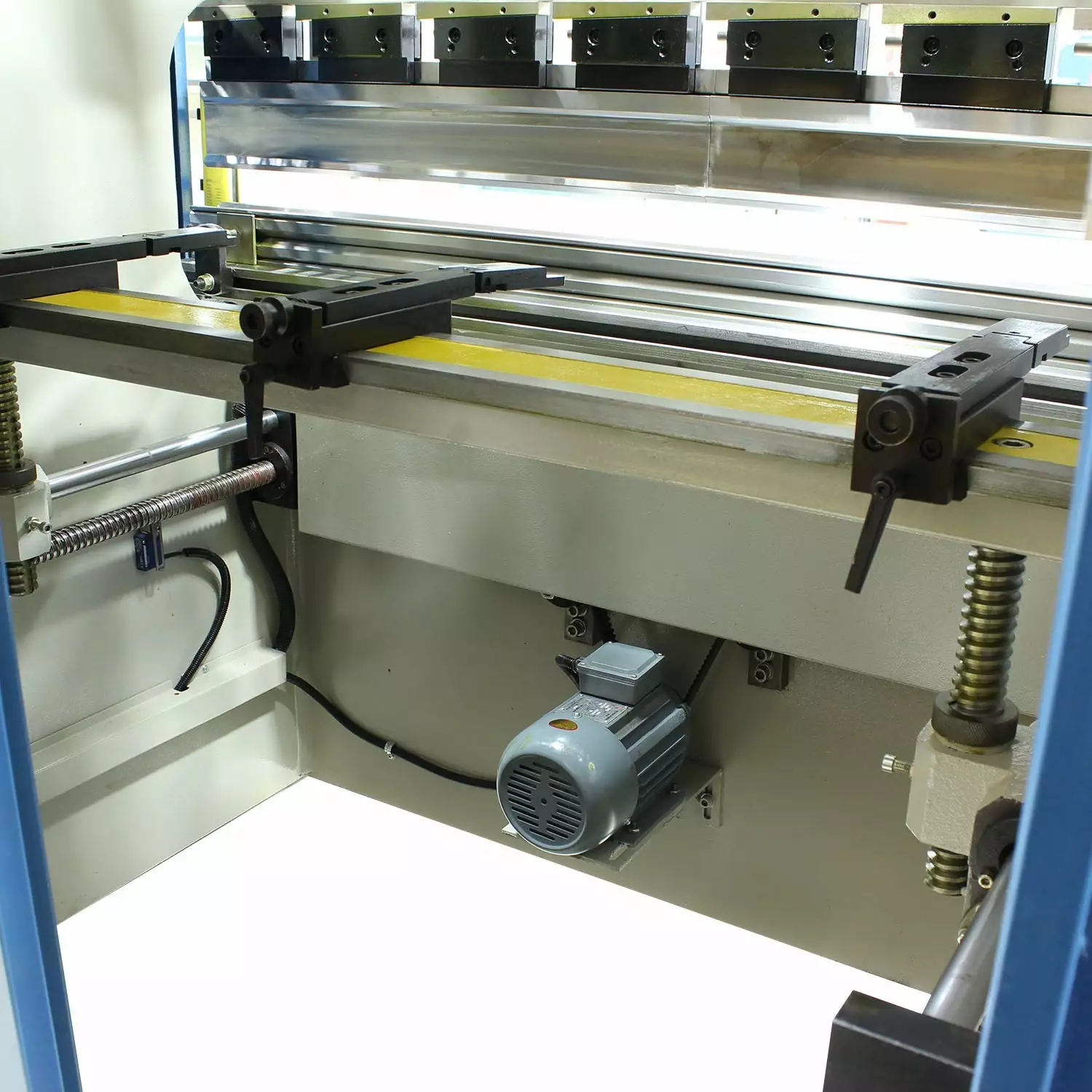

Back Gauge Length	21.5″
Return Speed	3.3″ / sec.
Pressure	33 Tons
Included Tooling	78 degree Gooseneck & Multi-Vee Die (5/16″, .39″, .47″, 5/8″, .94″, 1-1/4″, 2″)
Throat Depth	8″
Stroke Distance	3.15″
Approach Speed	3.5″ / sec

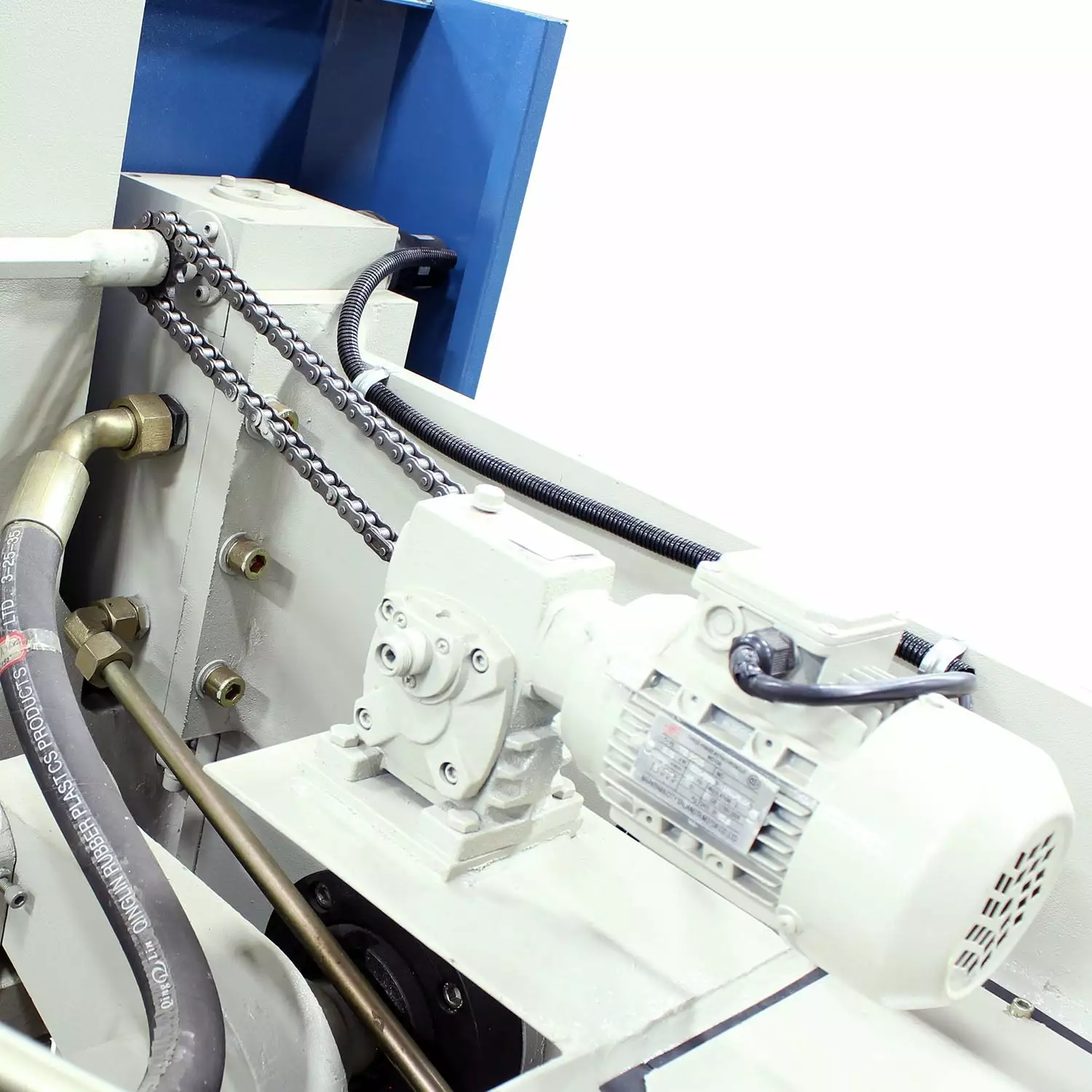

Back Gauge Motor	1/2 hp
Bending Speed	.394″ / sec.
Distance Between Housings	51.25″
Distance From Table To Ram	13.325″
Dimensions (Inches)	91x56x87
Weight	5050 lbs.
