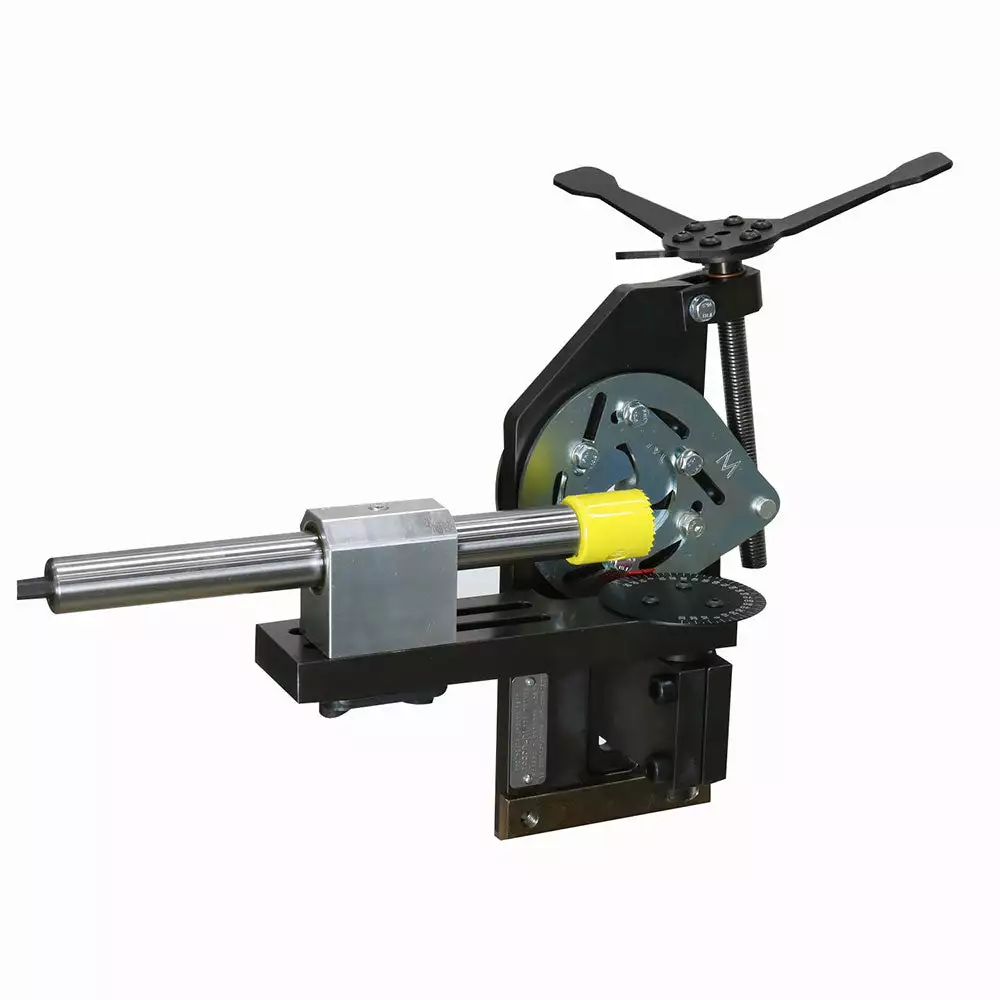

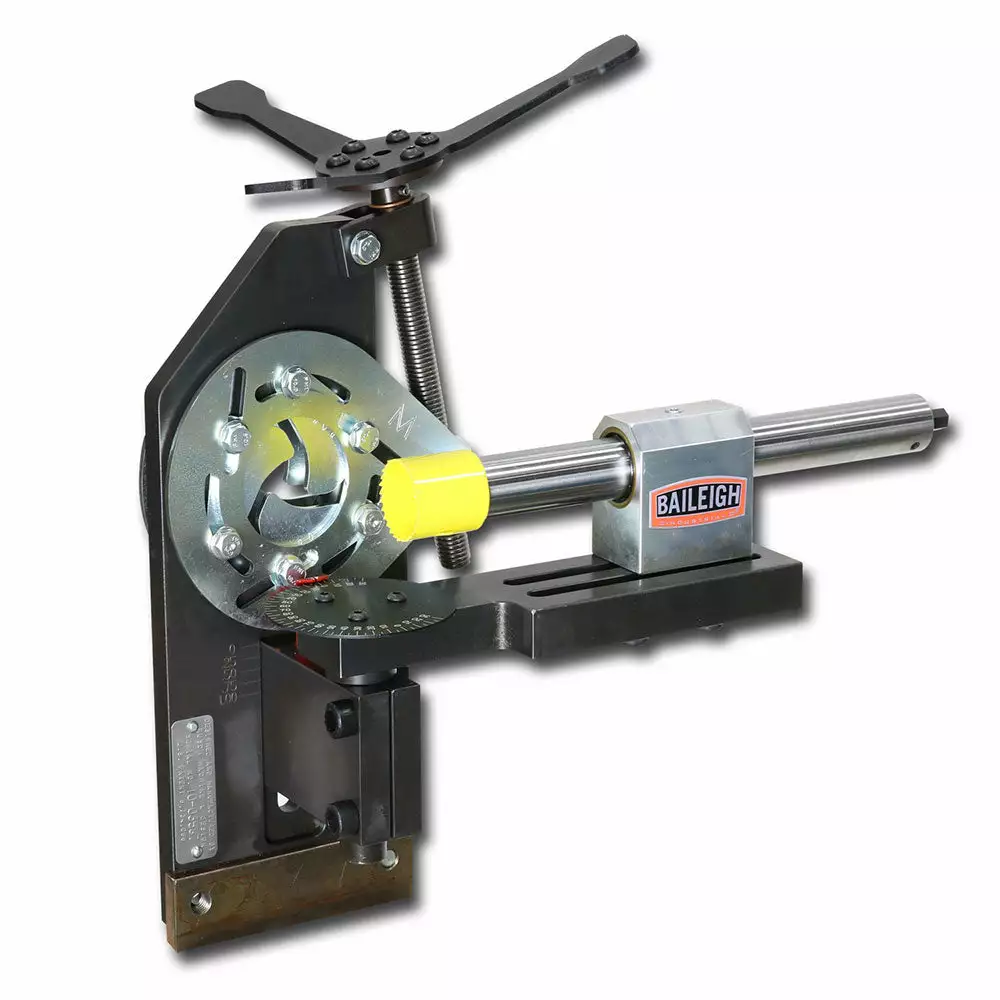

Tools & Equipment Baileigh 1008041 TN-250 Tube / Pipe Notcher

Features

• Notches up to 2.5” OD.

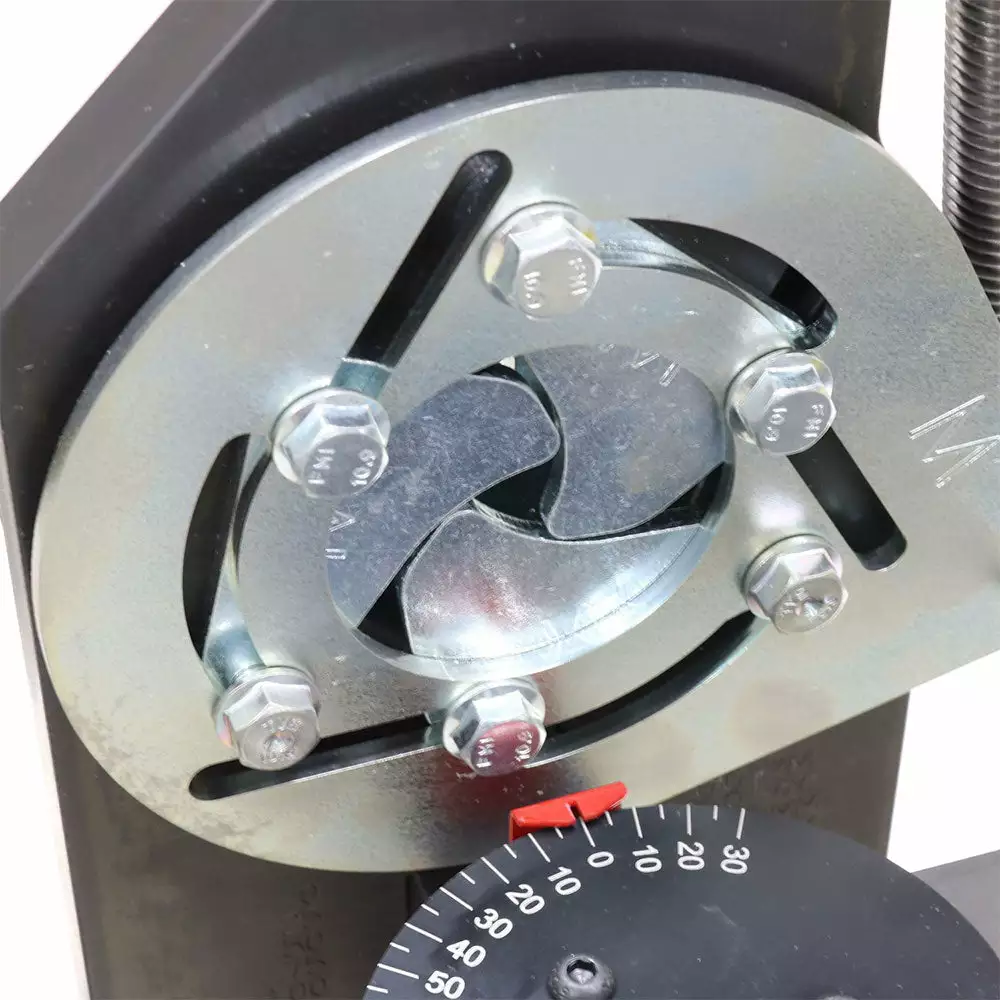

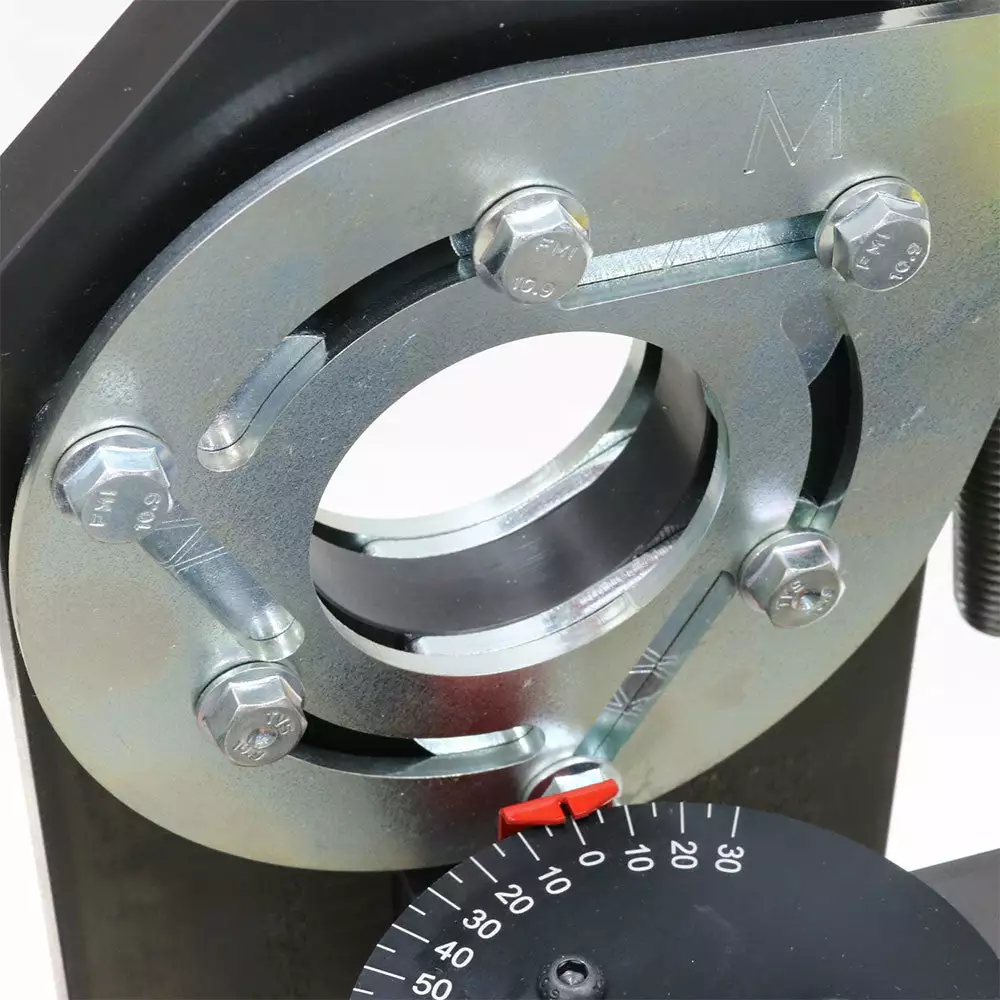

• Our patented self-centering vise can clamp down anywhere on tube, including the middle of bends.
• Fully-adjustable axis accommodates almost any notch combination.
• Carriage pivots up to 220° left to right, so you can come from the “back side” of the notch.
• 2 slotted mounting rails move up and down with scales for offset notches up to 1” and allow for almost any position of the bearing block.

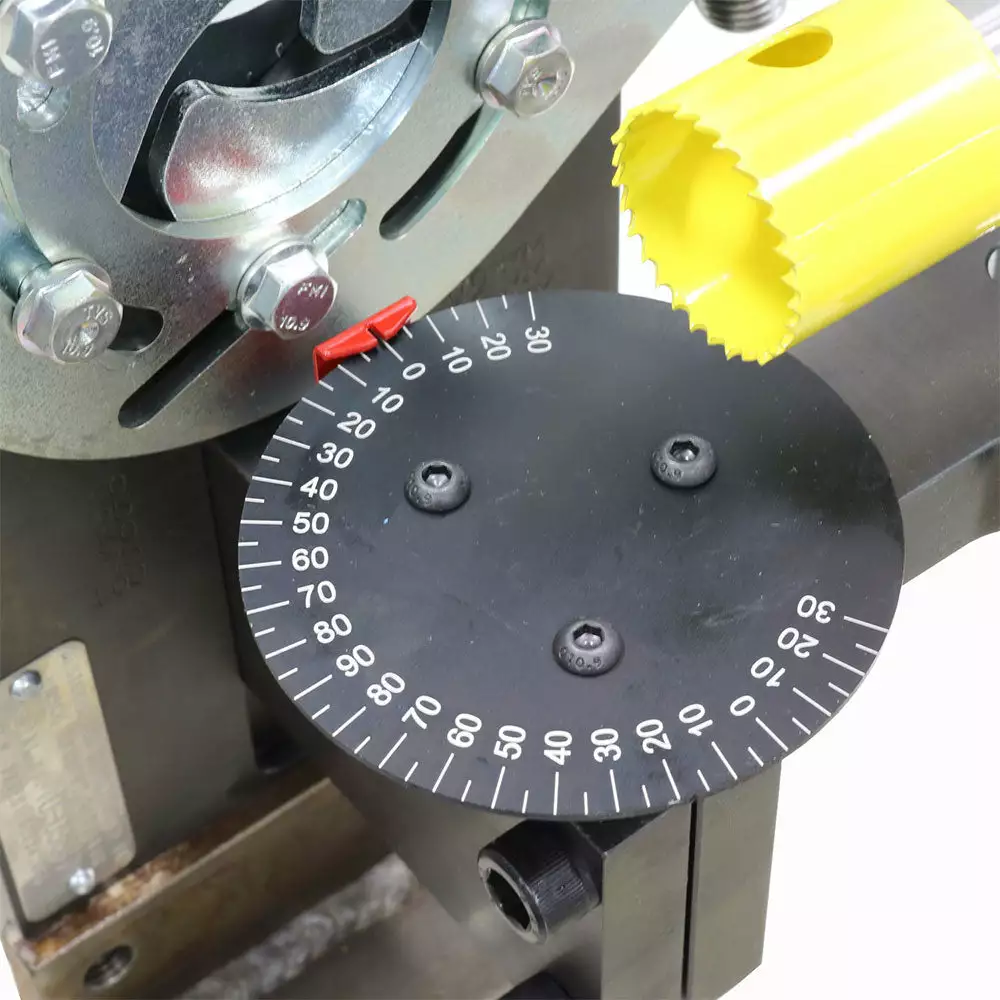

• Large engraved degree dial (or angle-finder) helps you get those back-side notches lined up.

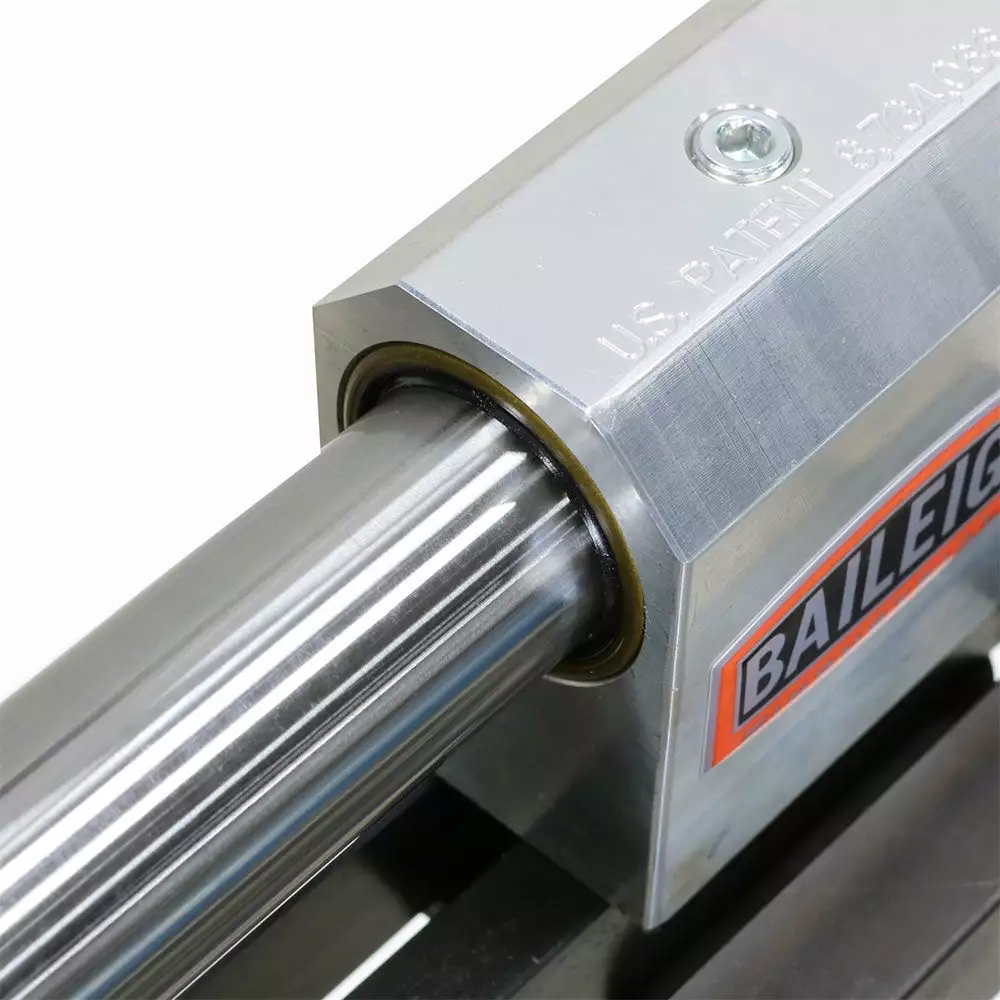

• 1.25” Thompson® shaft rides in sealed and oiled needle bearings for smooth performance.
• Both ends of the shaft are completely replaceable to save you time and money.
• Heavy-duty .75” steel plate backbone and all-interlocking components create a rigid platform that reduces vibration and prolongs the life of the hole saws.
• All slots include caps to last longer.

What’s in The Box

• TN-250 – Tube Notcher
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	TN-250
Country of Manufacture	United States
Notching Capacity (OD)	1/2″ – 2 1/2″
Angle Adjustment	0 – 220°
Power	1/2″ (12.7 mm) Hand Drill
Dimensions (Inches)	19 x 11 x 14
Weight	43 lbs
