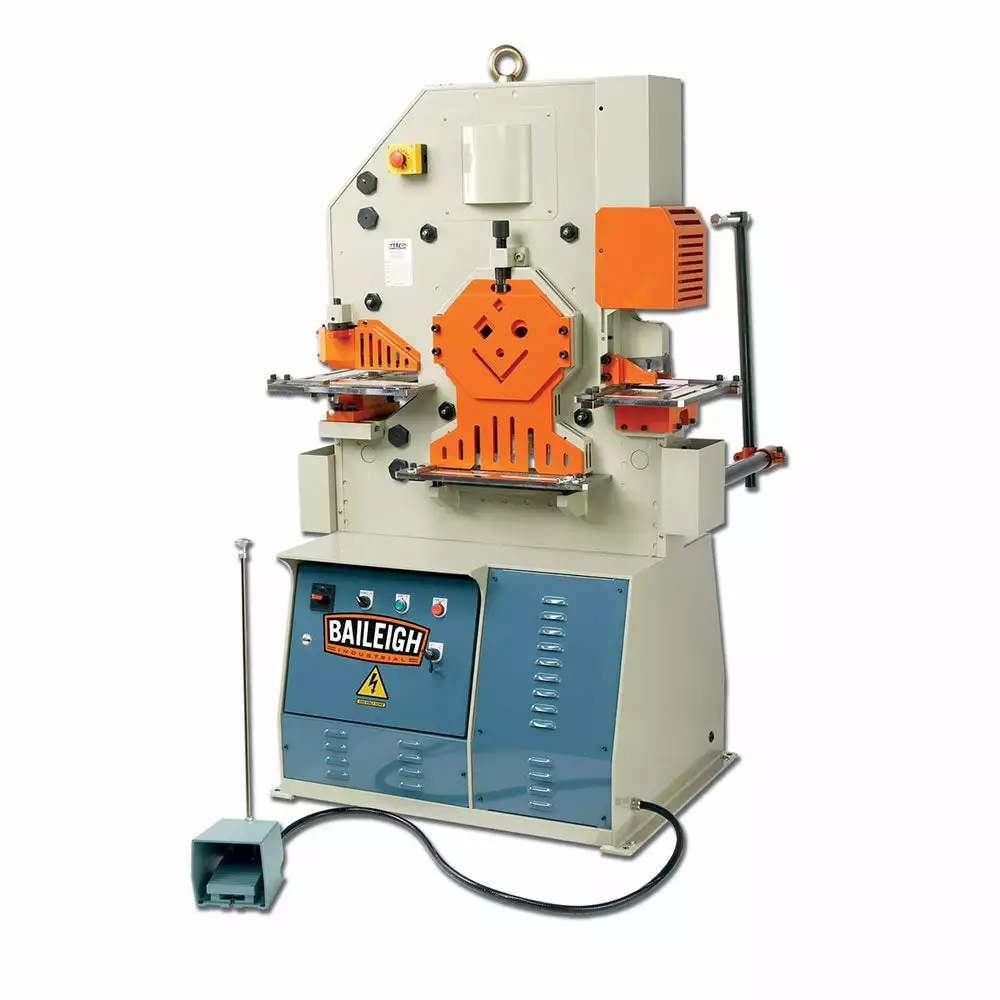

Tools & Equipment Baileigh 1007812 230V 3PH 62 Ton Ironworker W/ 5 Integrated Stations

Features

• Runs on 220-volt 3-phase power.

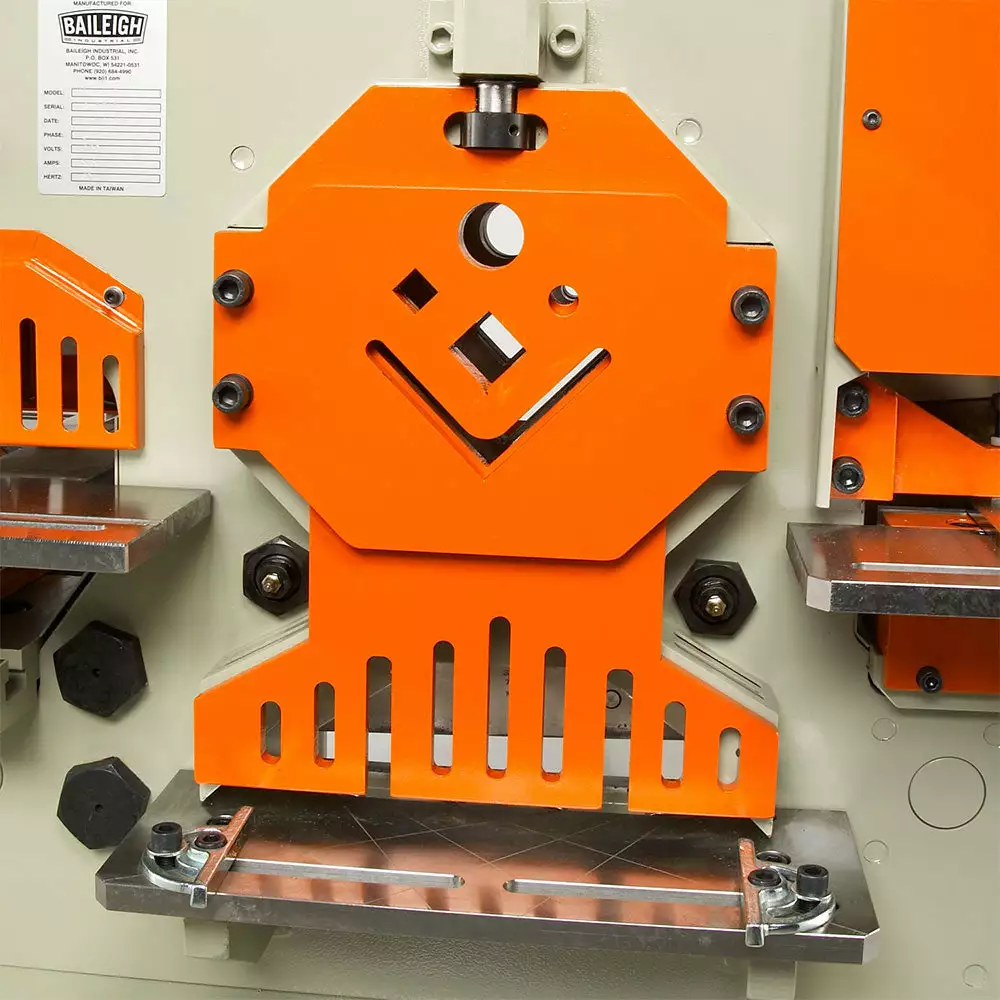

• Delivers a robust 62 tons of pressure at all 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
• Pure vertical hydraulic movement at each station produces exceptionally clean cuts, notches, and holes in seconds.

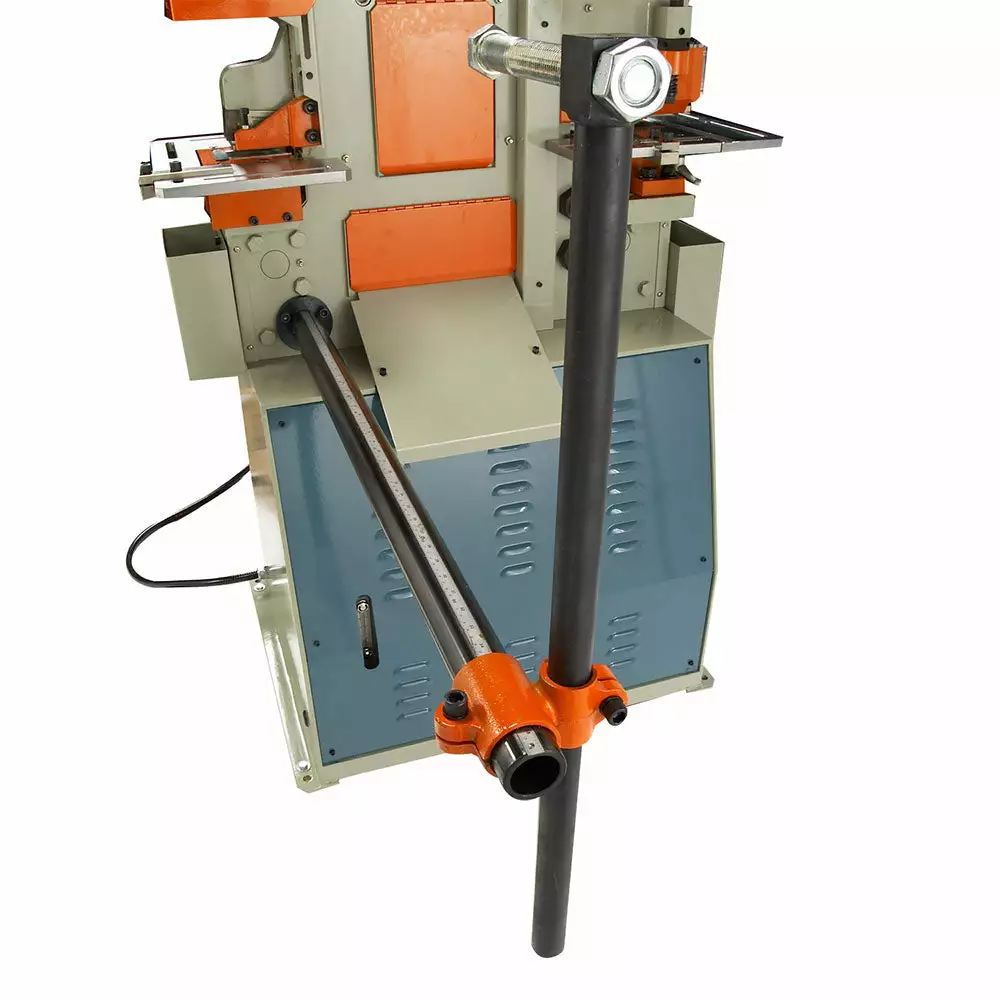

• You can set the backgauge and material stops to save time and ensure repeatability for production runs.

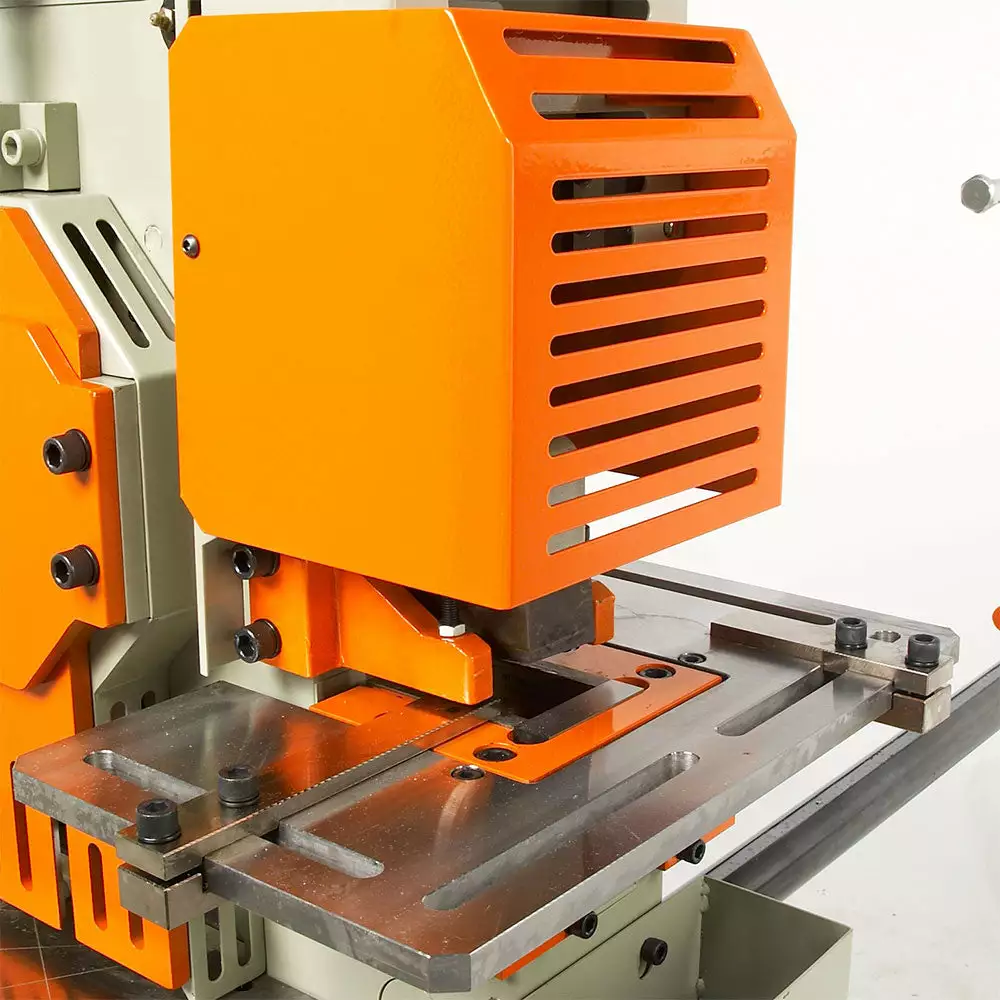

• Large 2-piece worktables, equipped with handy meter guides, pull out from the machine to fit oversized or awkwardly shaped materials.
• Downward and upward adjustable stroke controls minimize unnecessary machine motion, decreasing energy usage as well as wear and tear.

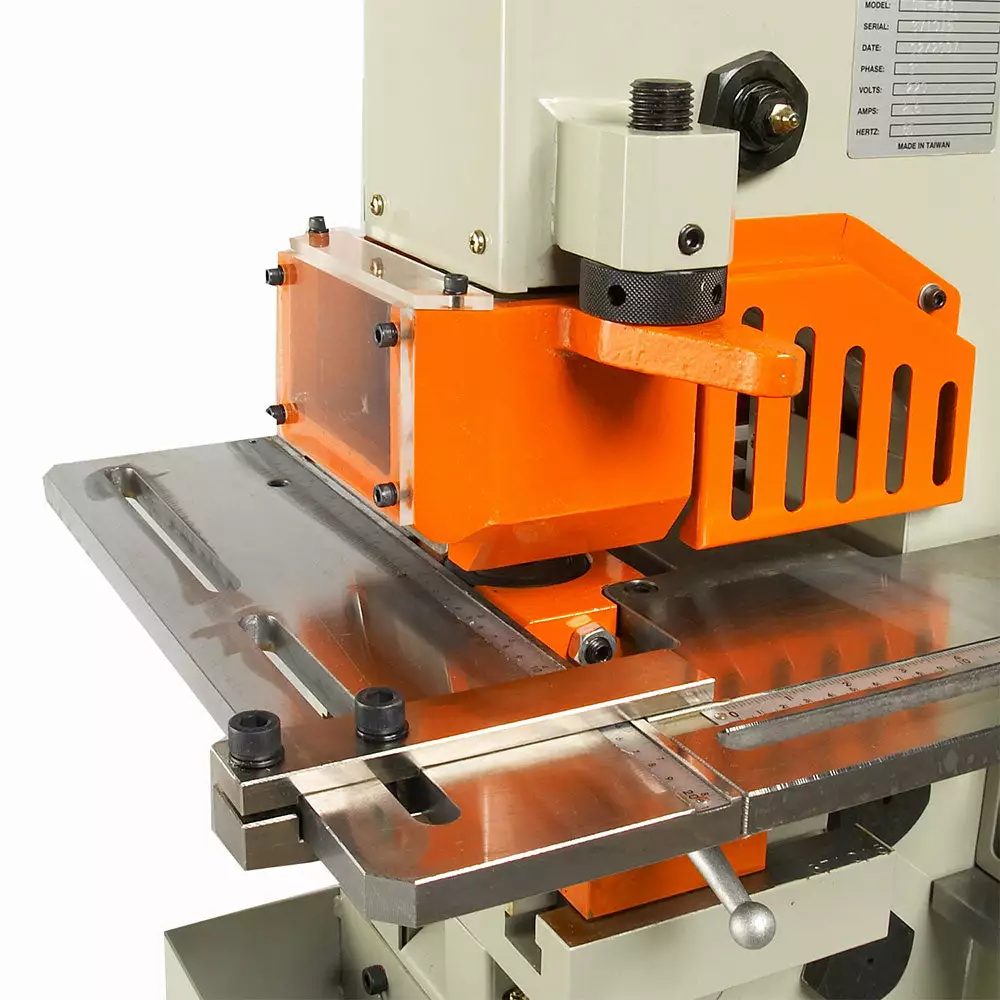

• Knurled handle located at the top of the notching station lets you adjust the material hold-down to deliver crisp shears and punched holes.
• Our patented swing-away material stripper lets you change tooling in seconds.

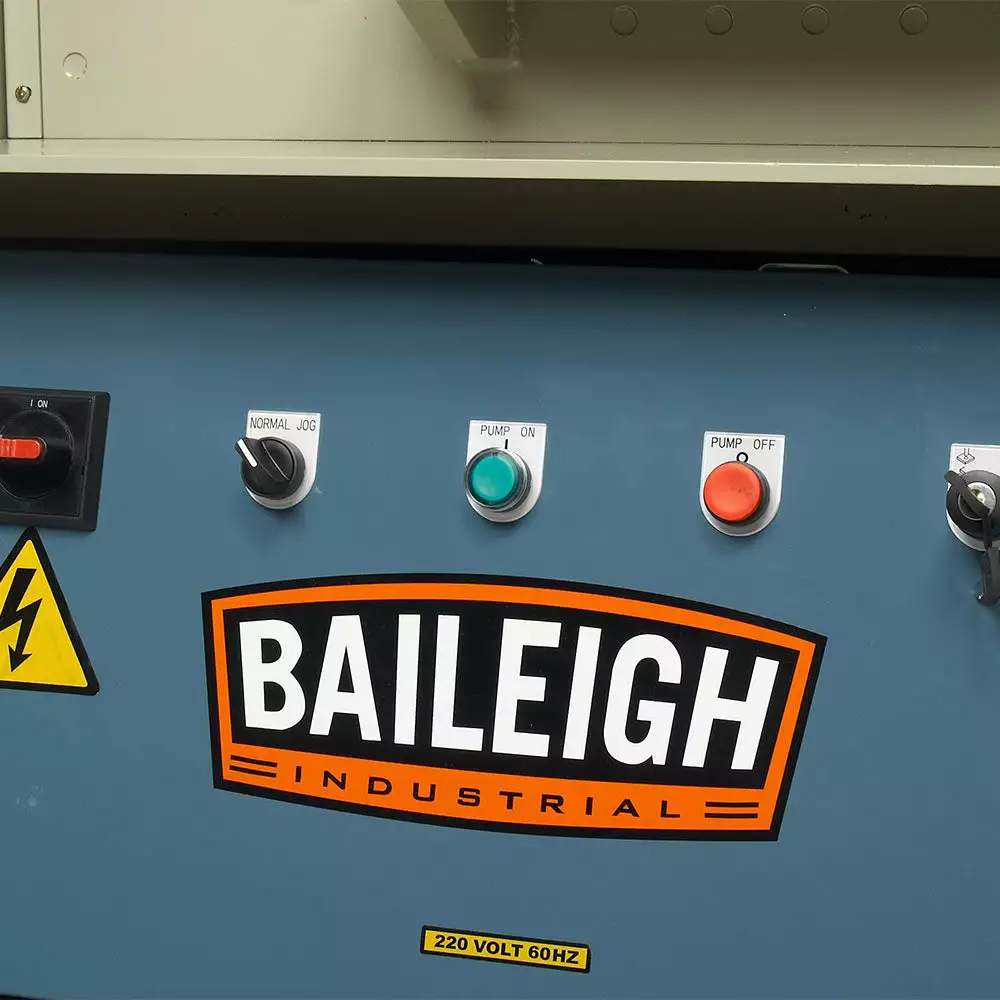

• Specify tooling alignment with a turn of the jog dial for increased safety.
• Comes standard with 7 punch and die sets, ready to handle a variety of materials and profiles.
• Accepts durable tooling options from Baileigh, such as press brake or pipe notching attachments, that make the SW-623’s even more useful.
• Rigid steel plate construction strengthens the machine and maintains accuracy.

What’s in The Box

• SW-623 – Hydraulic Ironworker
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	SW-623
Power	5 HP – 220V 3-Phase
Round Bar Shear	1.5″
Rectangle Notcher W x D x T	2″ x 3.5″ x .312″
Single Vee Press Brake L x T	6.312″ x .312″*
Punch Capacity	1.125″ x .625″
Punching Pressure	62 Tons
Pipe Notching	2.5″
Multi Vee Press Brake L x T	9.875″ x .156″*
Notching Working Height	40″
Throat Depth	8″
Vee Notcher Side x Side x T	3.5″ x 3.5″ x .312″*
Working Height	39.5″
Square Bar Shear	1.5″ x 1.5″
Channel Shear	4″*
Bar Shearing Working Height	44″
Angle Shearing Working Height	40″
Angle Shearing at 90°	4″ x 4″ x .375″
Angle Bending	2.5″ x .312″*
Angle Flange Trim	4″
Blade Length	14.125″
I Beam Shear	4″*
Max. Stroke Length	2″
Cycles / Min.	28 @ 15 mm
Flat Bar Shearing	13.50″ x .5″
Flat Shearing Working Height	31.5″
Shipping Dimensions (Inches)	60x48x78
Weight	2465 lbs
