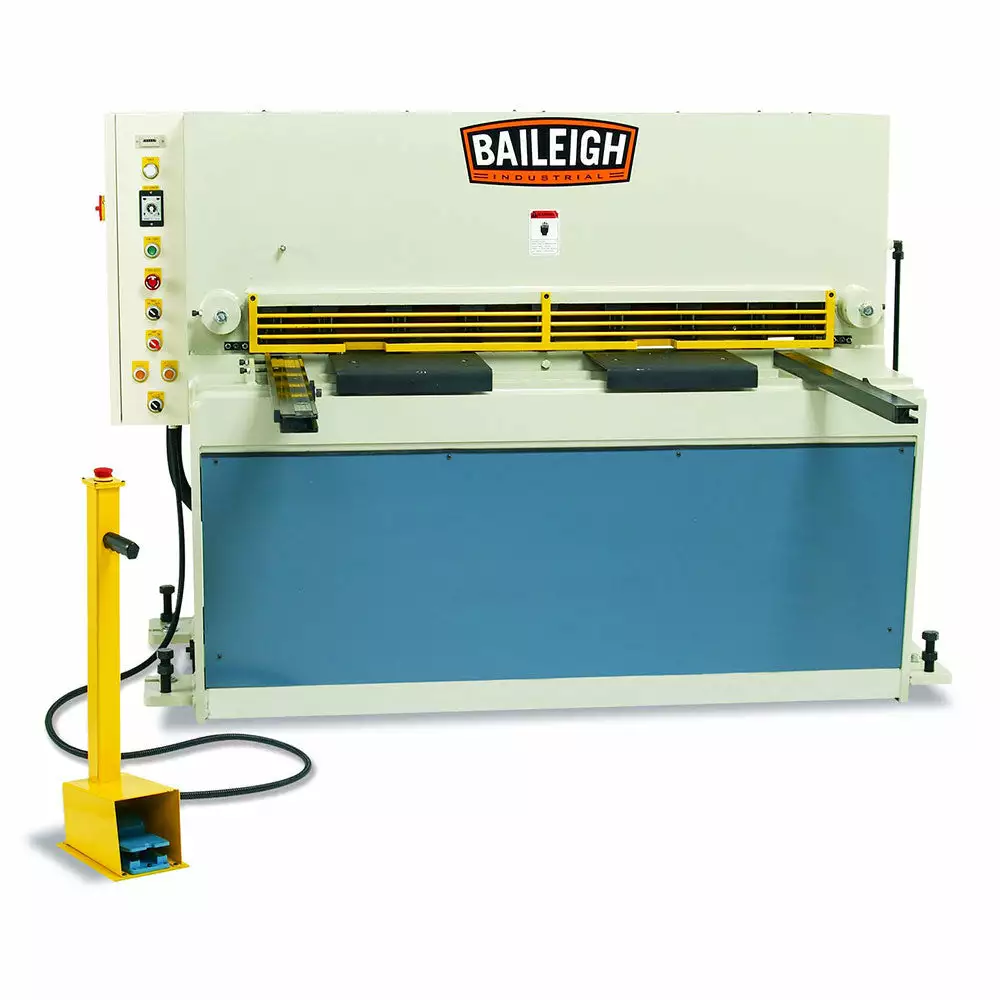

Tools & Equipment Baileigh 1007122 SH-5210-HD Hydraulic Sheet Metal Shear W/ 52″ X 10 Ga Capacity

Features

• 52” length.
• 10 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.

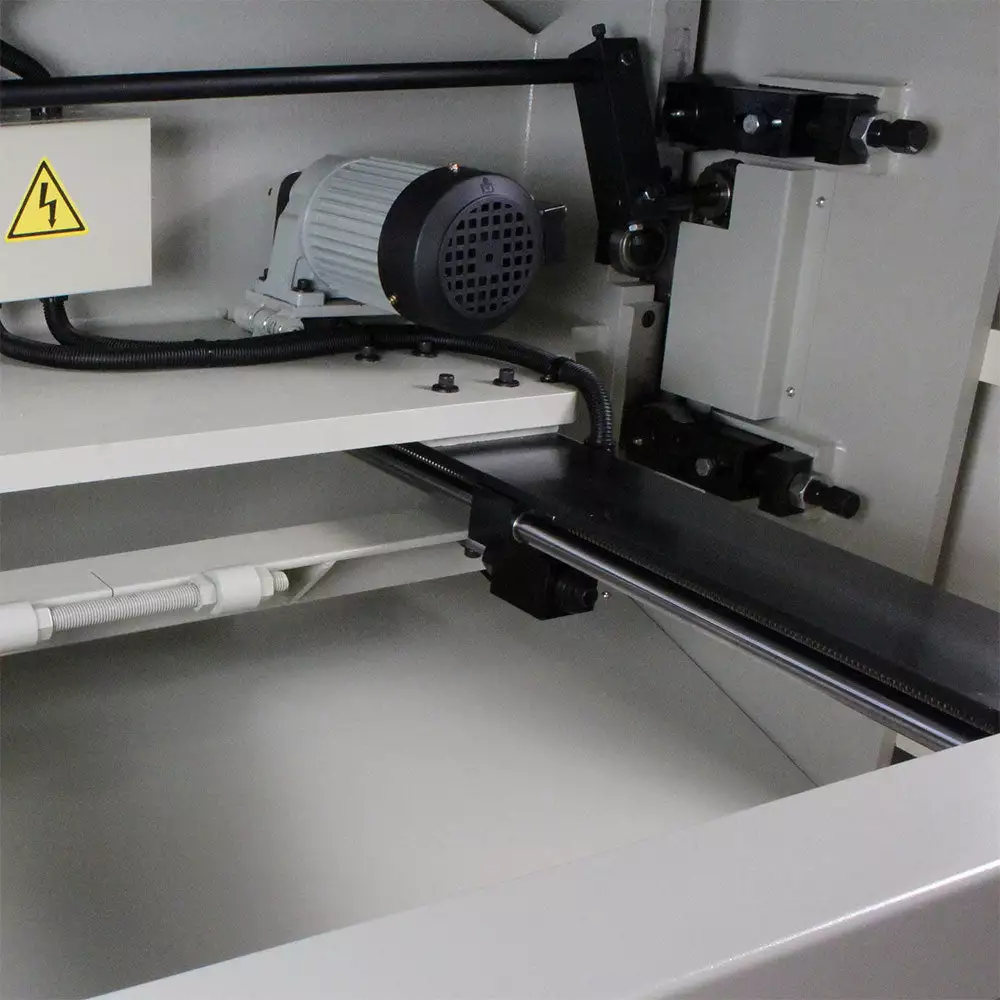

• 7.5 hp motor runs on 220-volt 3-phase power.

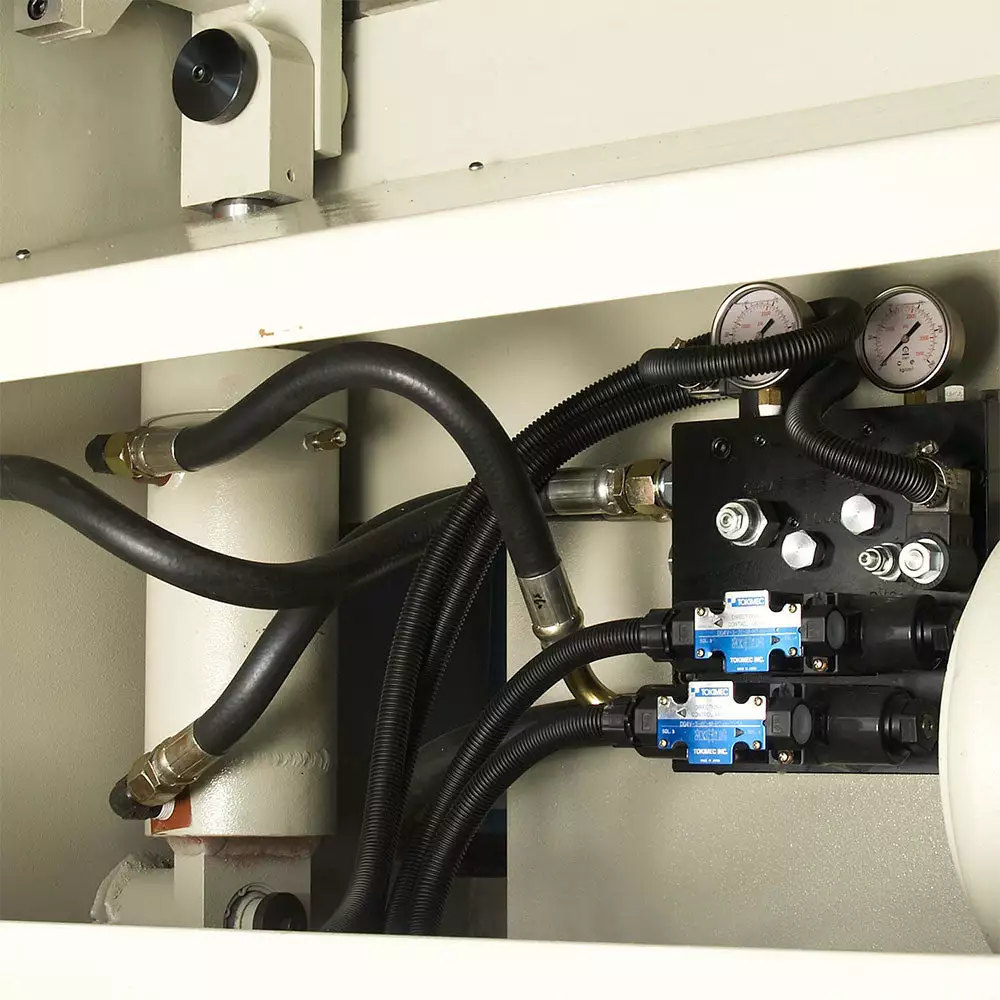

• Industrial-grade hydraulic system is located in the front for easy fluid changes.
• 35 to 47 strokes per minute for speedy production.

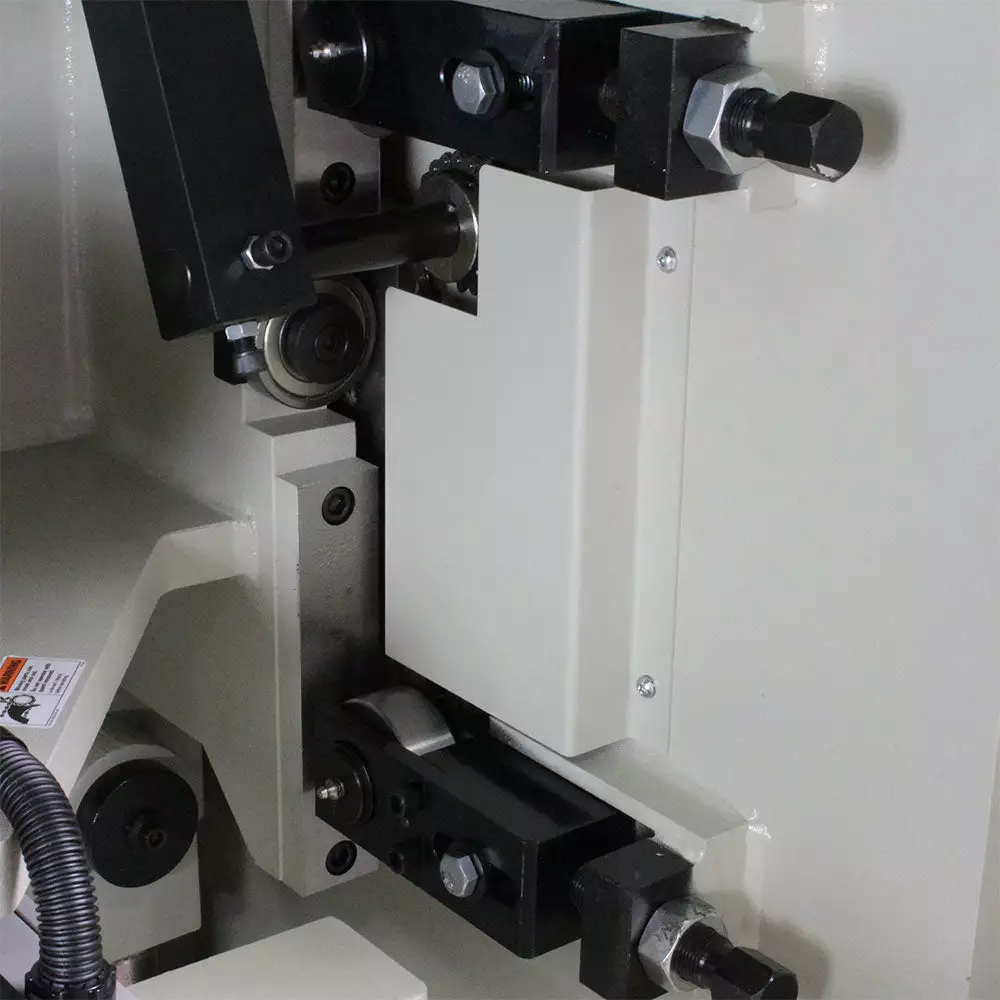

• Shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction.
• Manually adjustable 23.62” backgauge ensures precise repeatability.

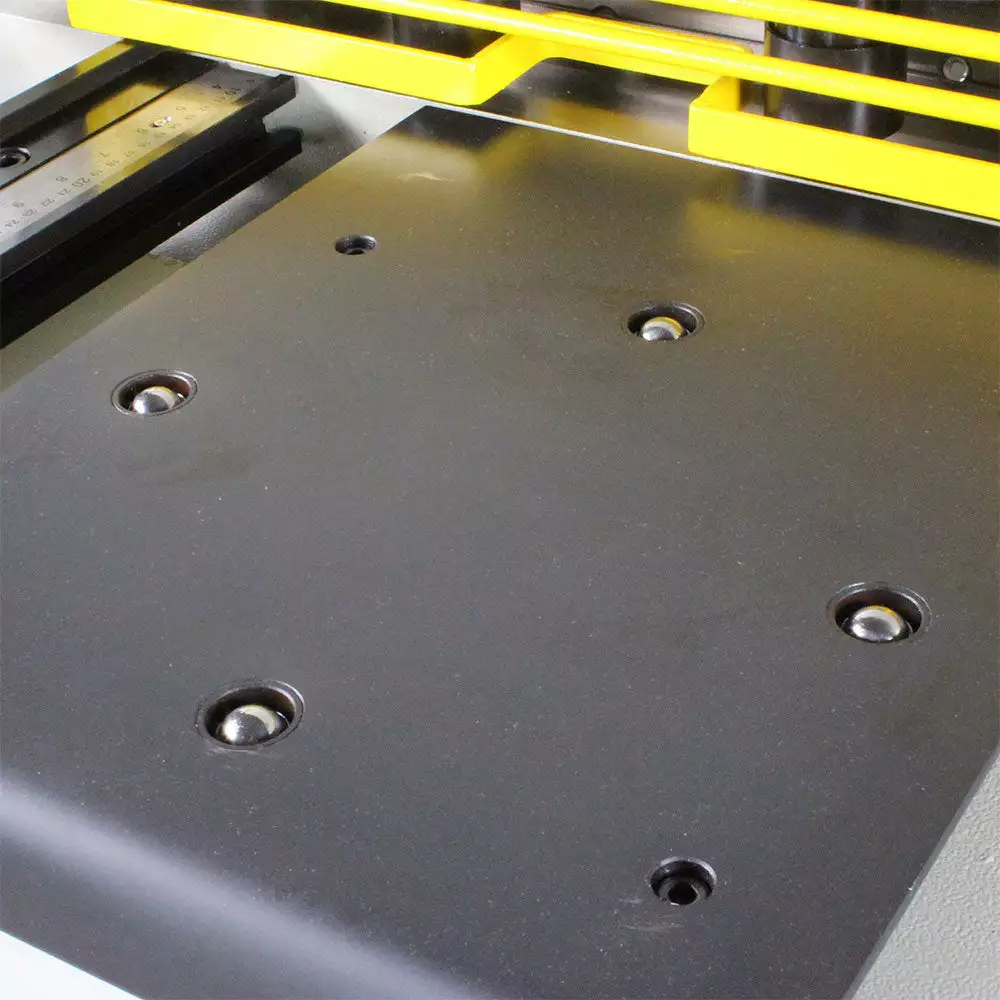

• Heavy duty table with roller bars slides material into the machine more easily.
• Side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material.
• Switch between 3 modes as needed:
• Jog mode: Inching the blade down to the material.
• Single cycle mode: One cut for one pedal push.
• Automatic cycling mode: Continuously cutting for production runs.

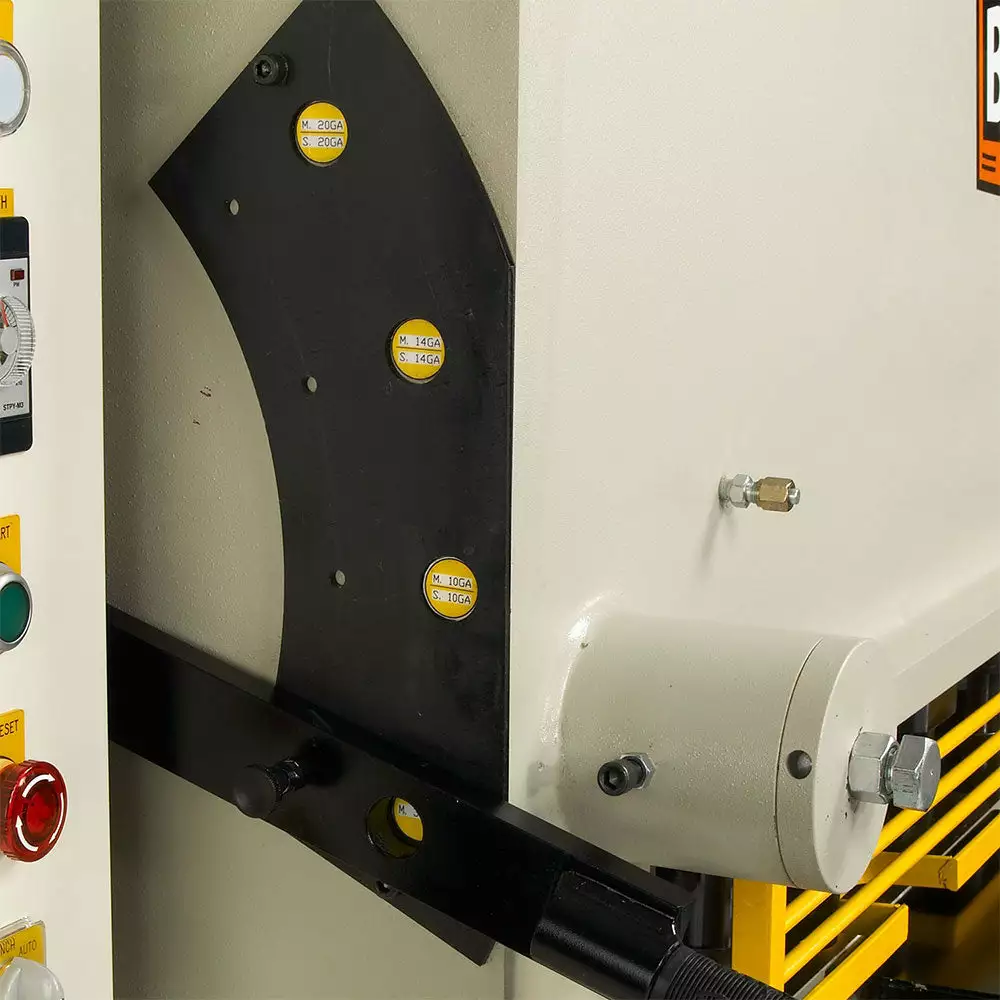

• Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics.
• Convenient blade gap adjustment lets you eliminate folding and twisting.
• Comes standard with high carbon chromium blades.
• 2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
• Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.

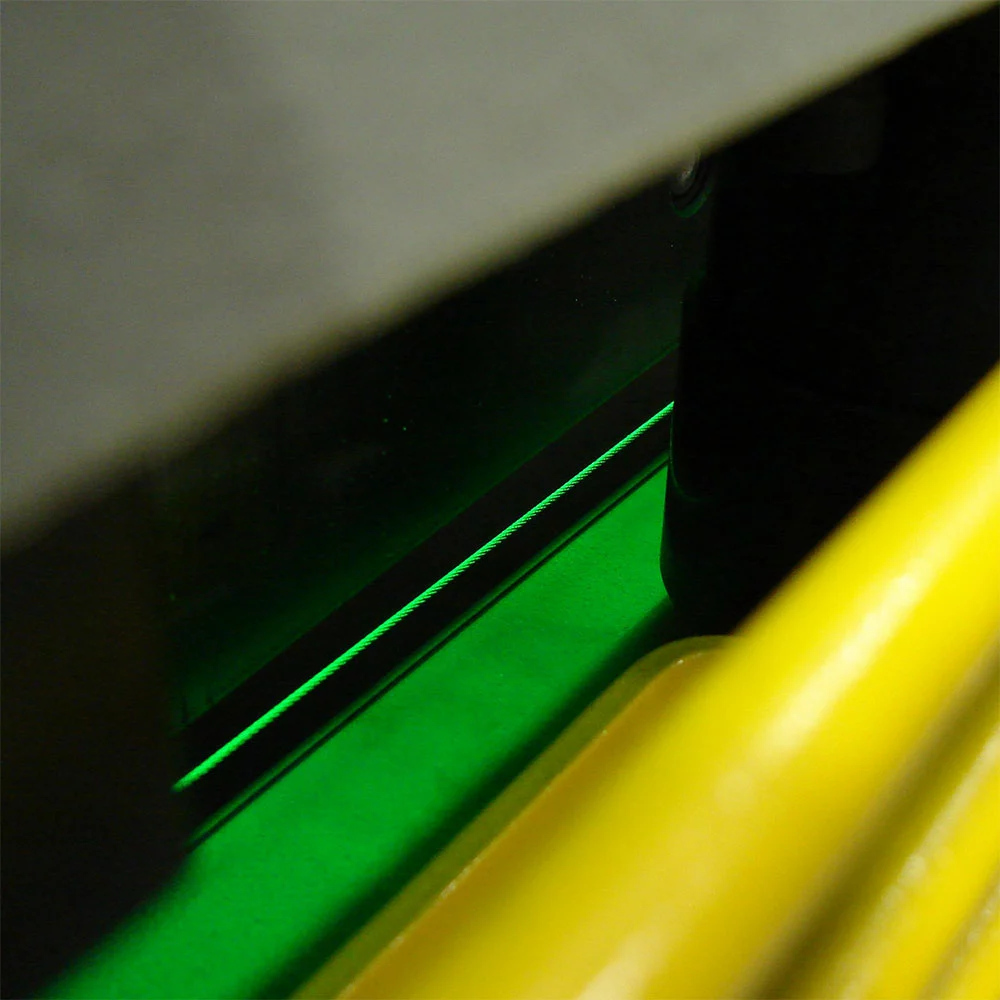

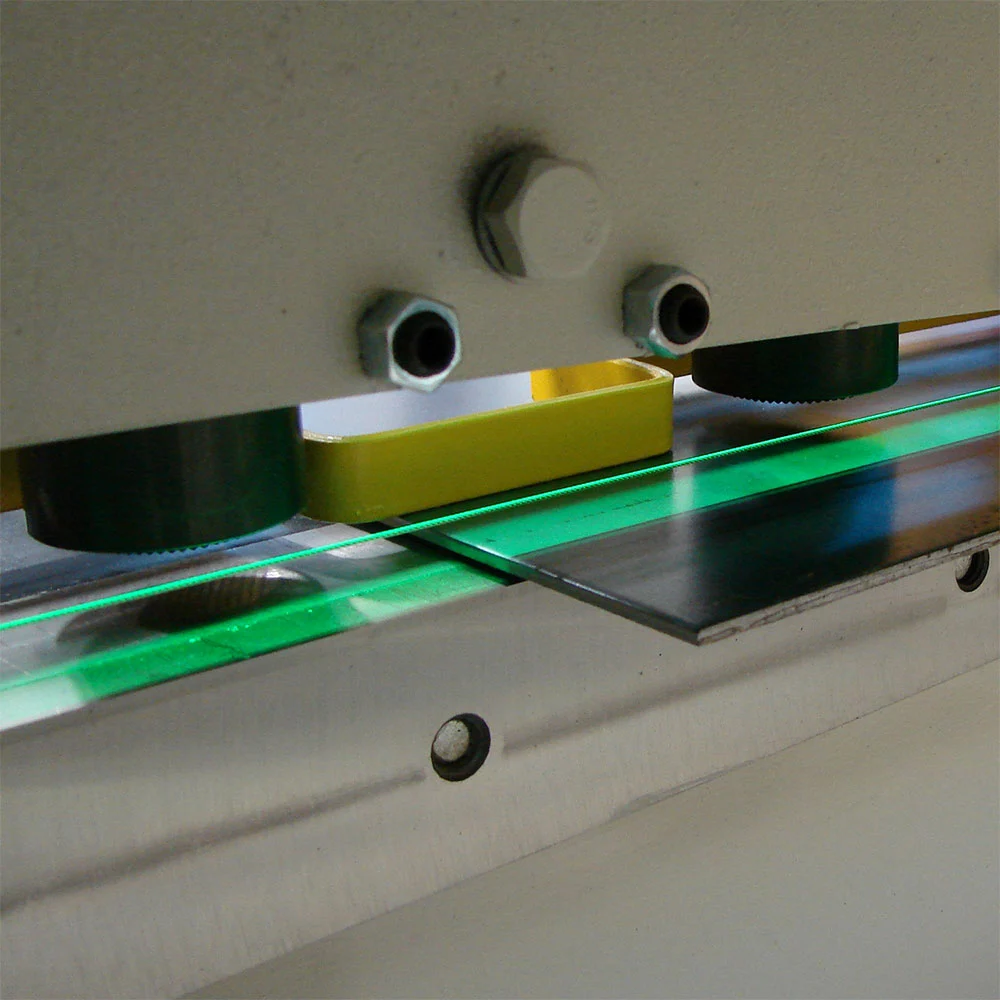

• Shadow line creates a reference line on the material so you know exactly where the cut will be.
• The SH-5210-HD plate shear is covered by a 1-year parts warranty.

What’s in The Box

• SH-5210-HD – Heavy Duty Hydraulic Sheet Metal Shear
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	SH-5210-HD
Power	220V / 3-phase
Blade Rake Angle	.5 to 2.0 degrees
Back Gauge Length	23.62″
Shear Length	52″
Motor	7.5 hp
Thickness (SS)	10 ga. (13 ga.)
Strokes Per Minute	35 – 47
Front Gauge Length	39.37″
Blade Angle	1/2° – 2° Adjustable
Blade Gap Adjustment	Manual, Lever Acuated
Minimum Material Thickness	24ga
Shipping Dimensions (Inches)	88 x 45 x 66
Weight	4200 lbs
