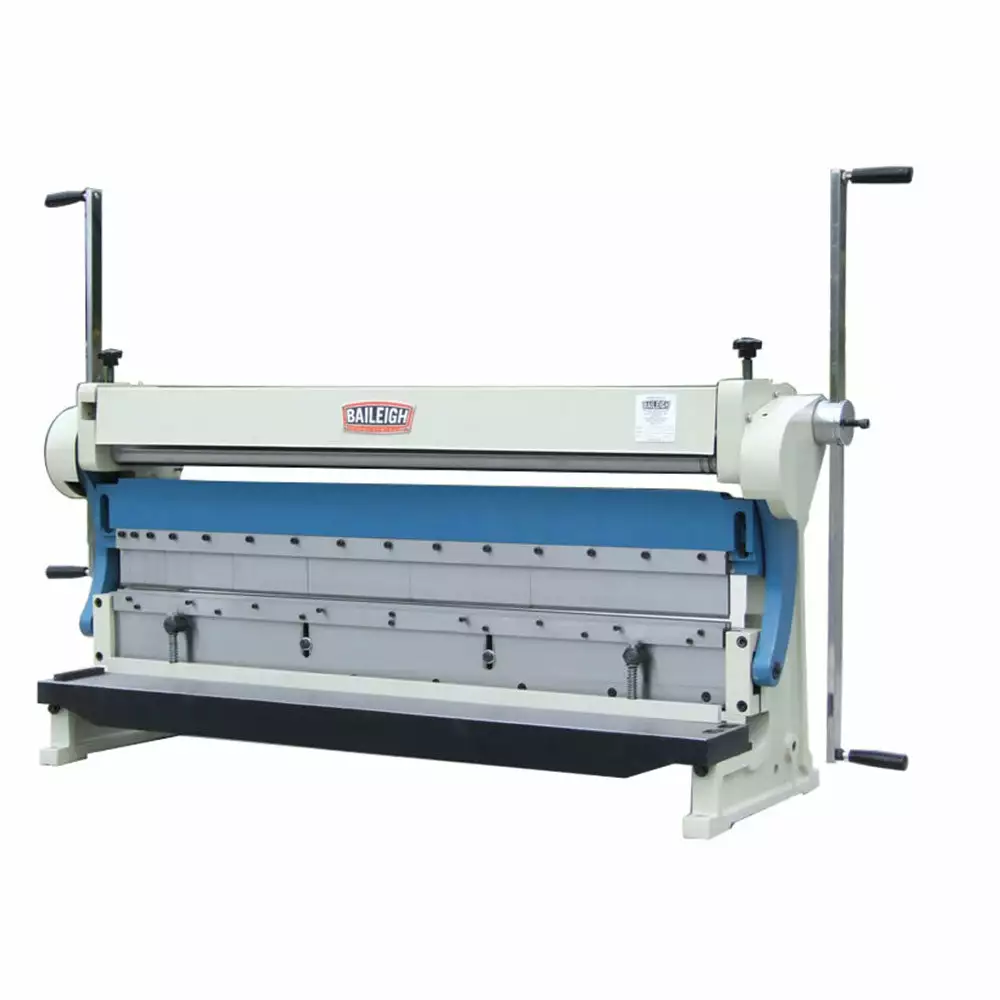

Tools & Equipment Baileigh 1006972 SBR-5216 52″ X 16 Gauge Mild Steel Shear Brake Roll

Features

• 52” width lets you roll, bend, and shear 4’ x 8’ sheets.

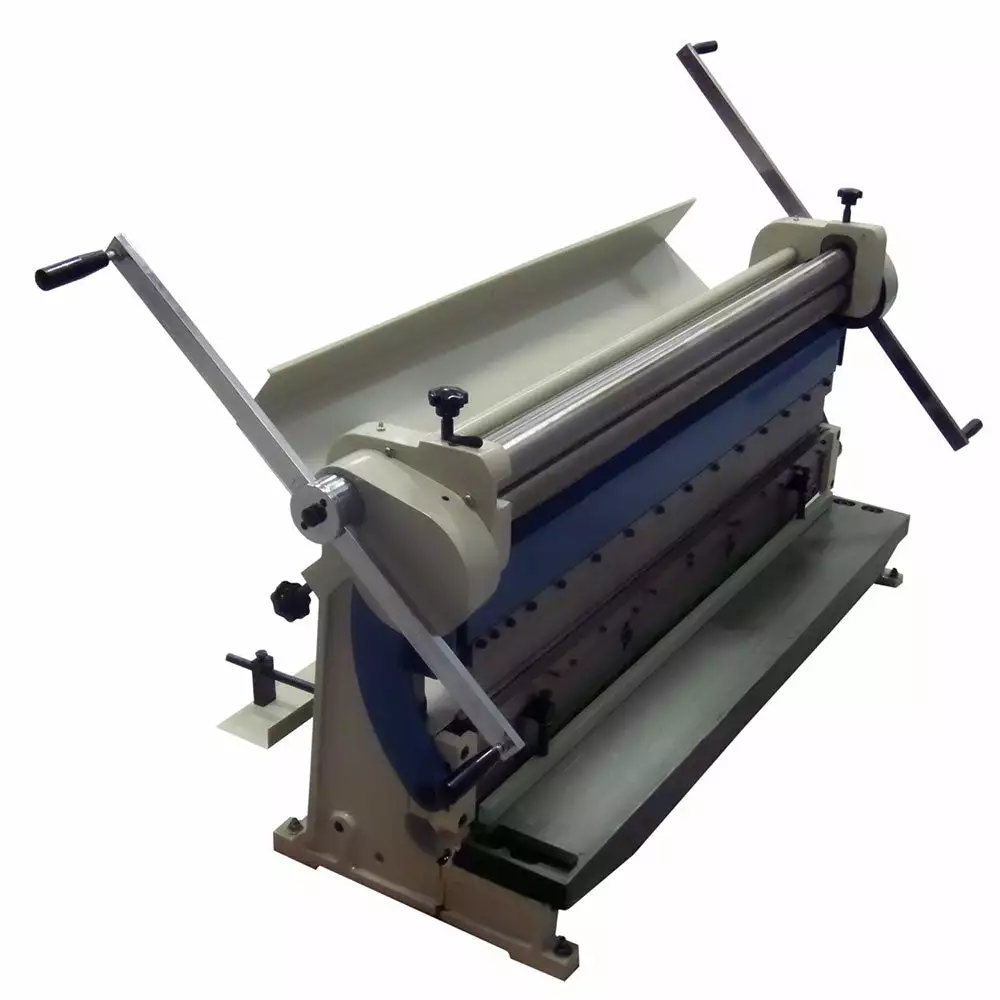

• Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom.
• 1.70” minimum rolling diameter.

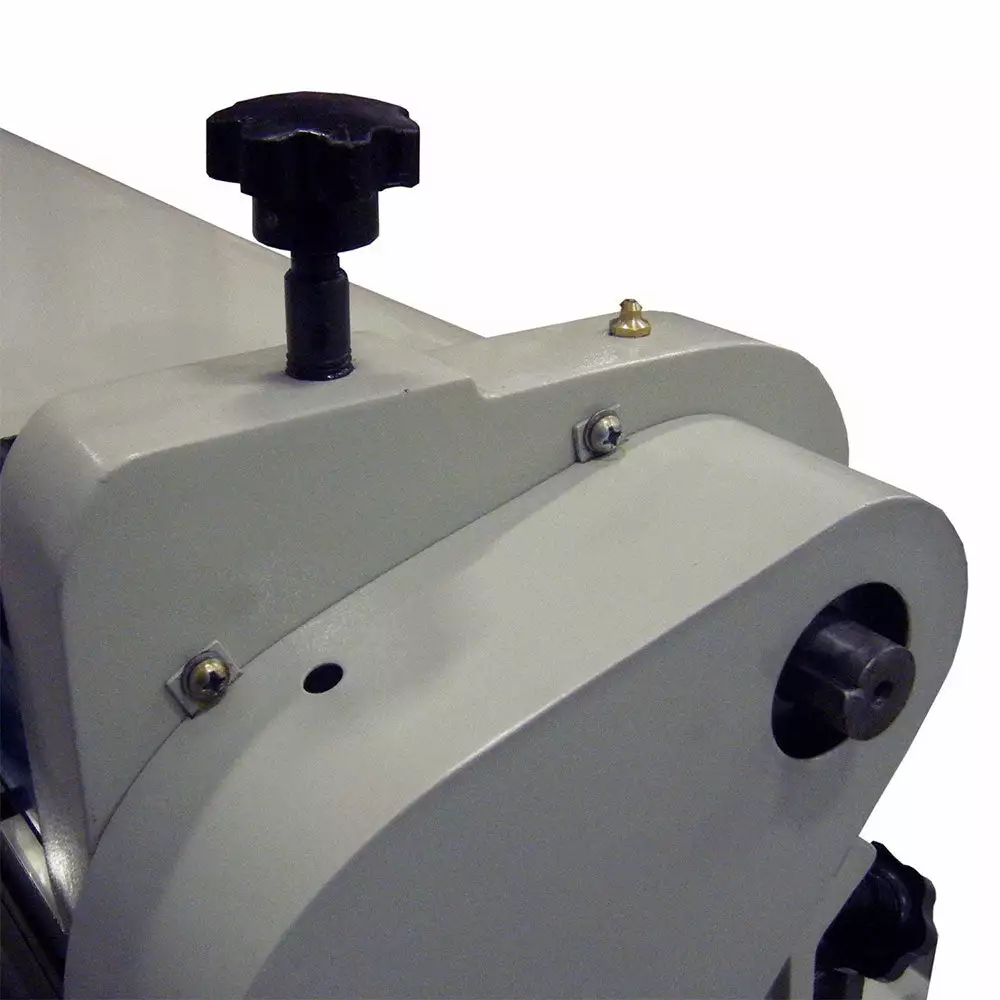

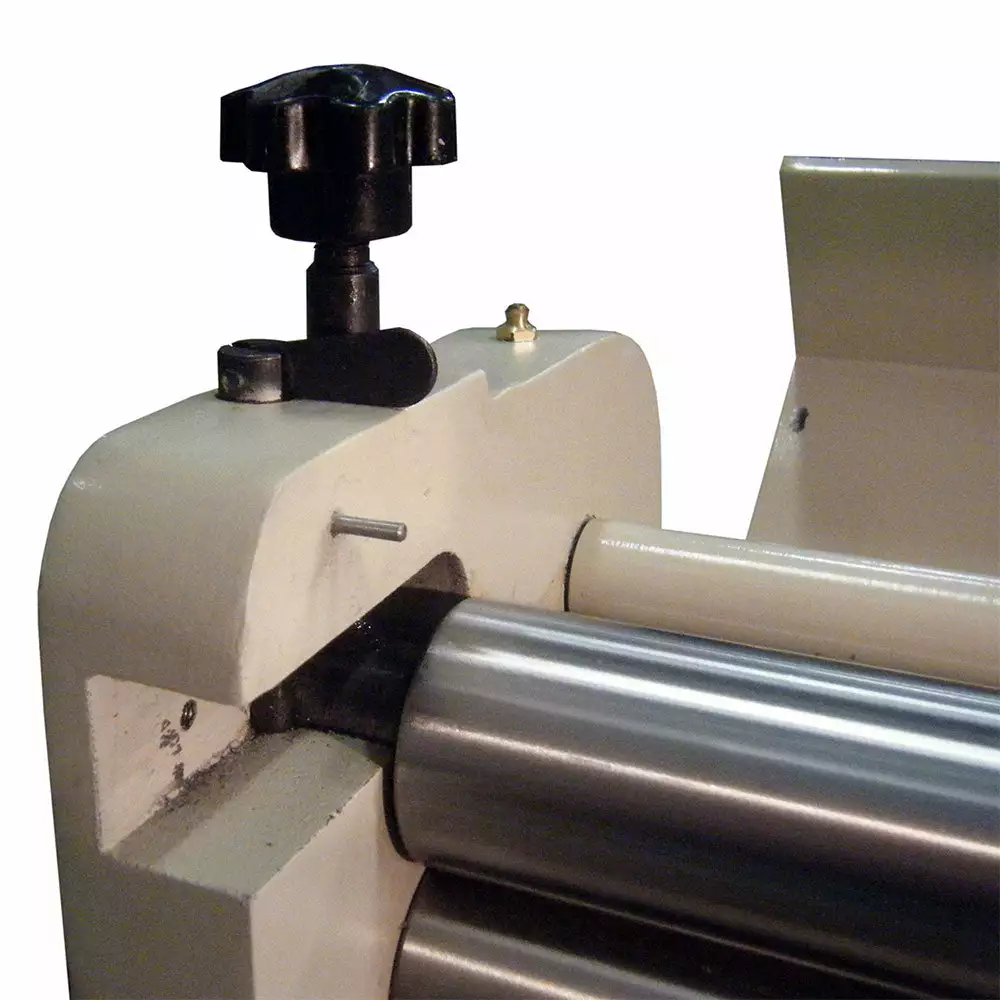

• Hardened, adjustable back and top rolls can form different thicknesses.

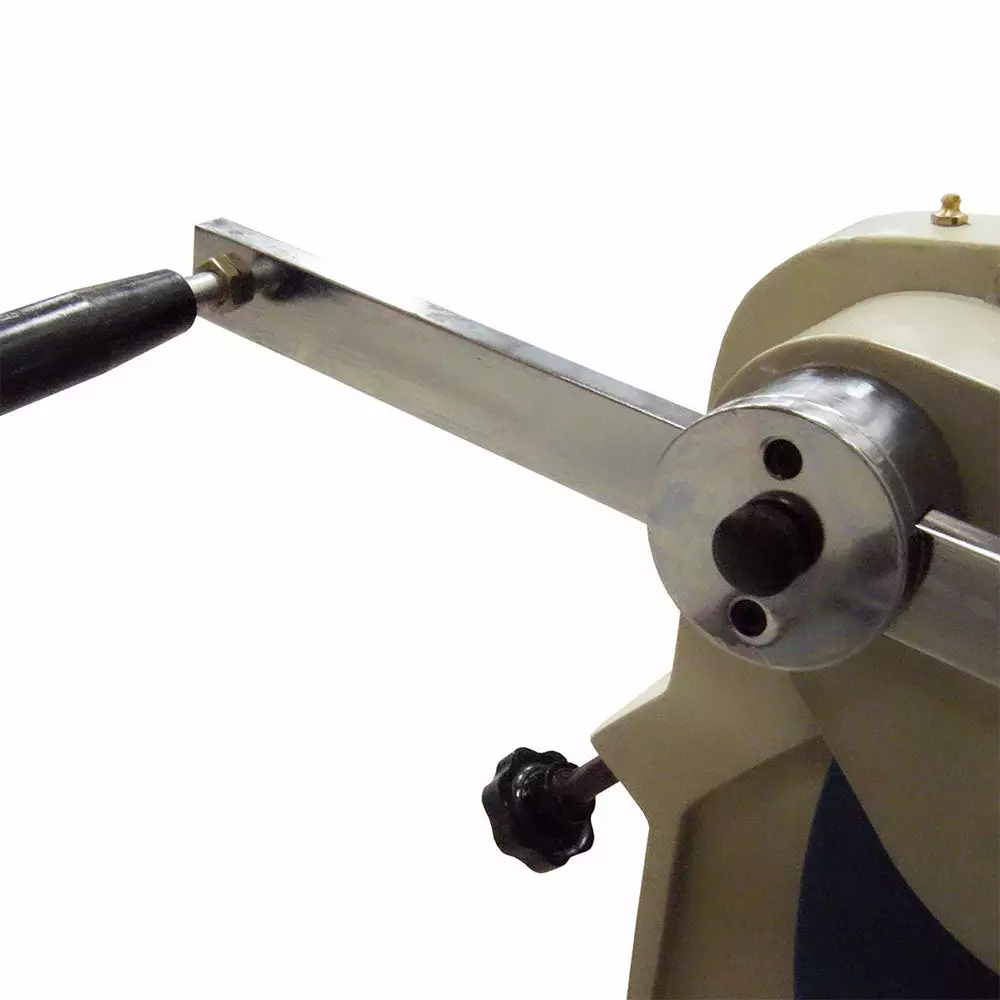

• Top roll can swing away from the machine for convenient material removal.

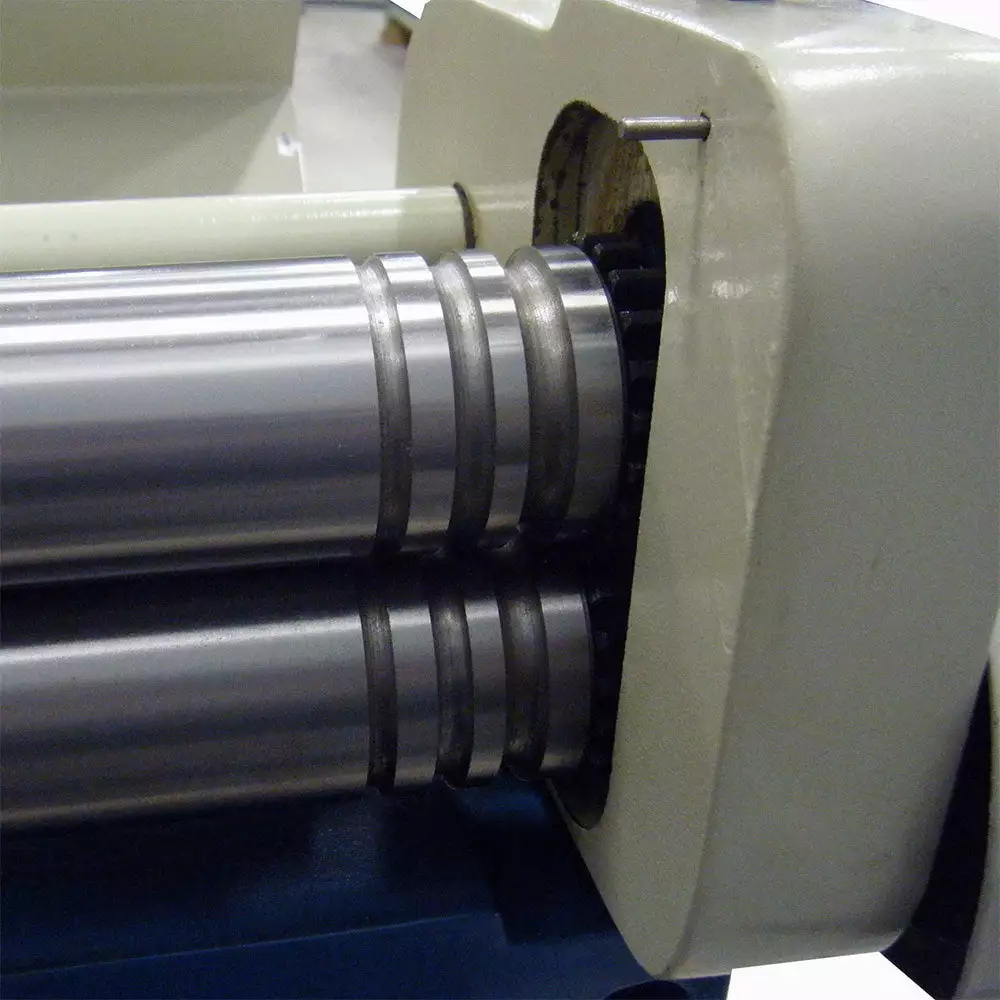

• 3 grooves on the roll can form wire or round rod.
• Manual press brake section comes with a fixed bottom V-block die.
• The SBR-5216 combination shear brake roller bends up to 90°, so you can make perfect corners.
• 9 movable fingers on the top beam can make many sizes of boxes and pans.
• Crowning feature adjusts the camber of press brake tooling to make consistent bends across your material.
• Shear portion includes a spring-loaded clamp or hold-down to keep the material from lifting up, extend blade life, improve cut quality.
• You can adjust the blade gap to fit different gauges of sheet metal.

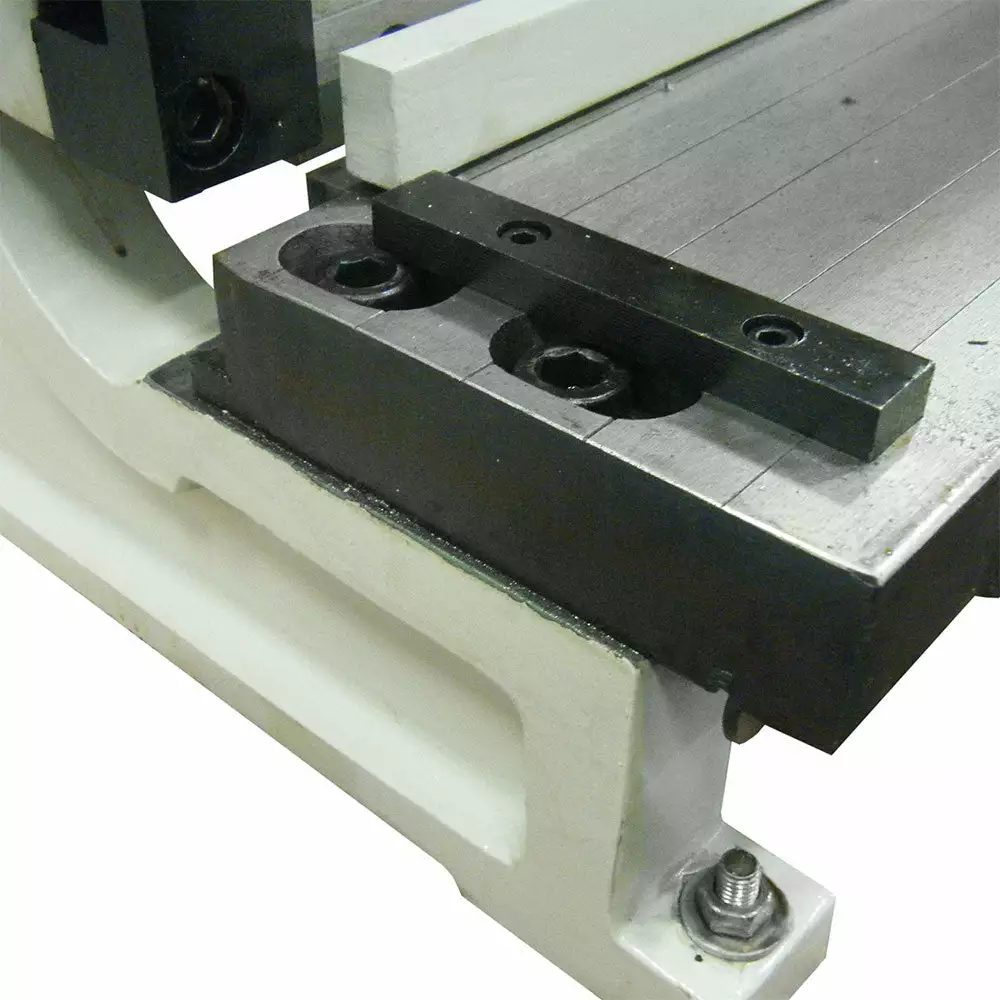

• Includes a material guide.
• Hardened, reversible blades stay sharp.

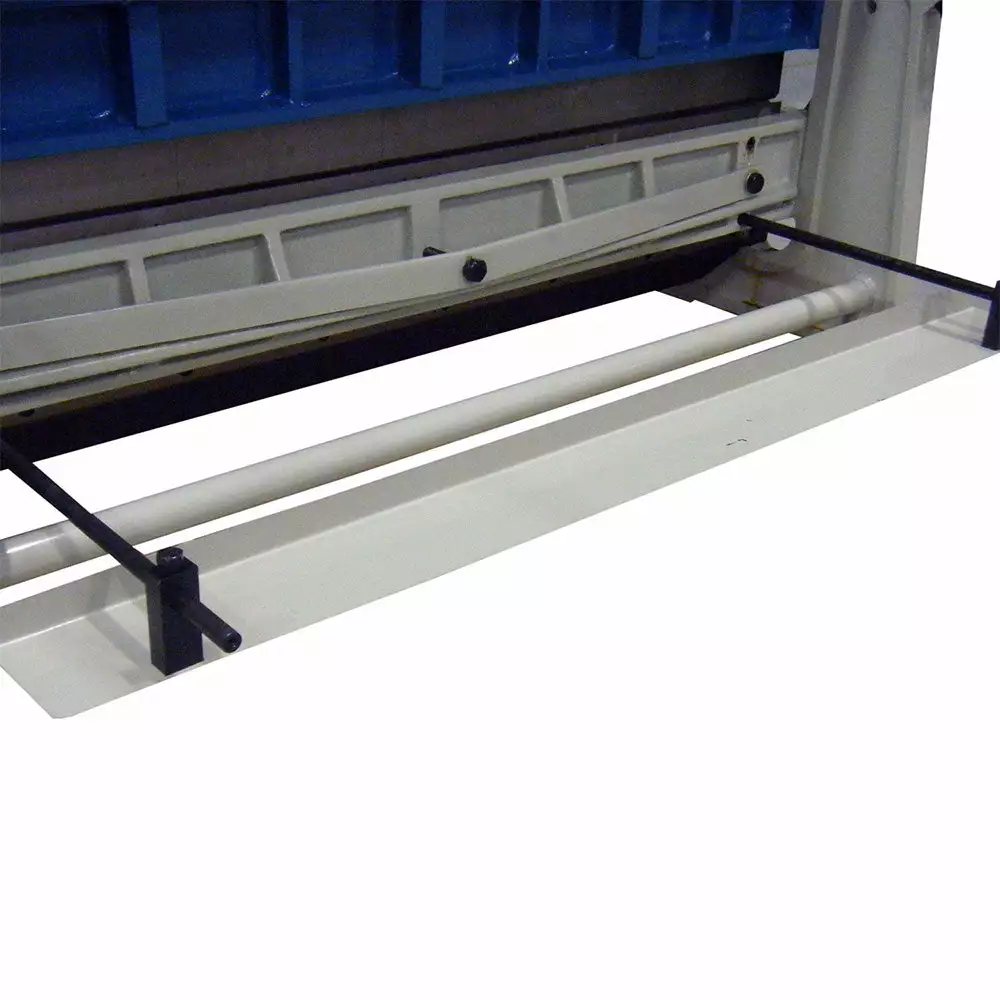

• Manual back gauge helps you easily produce repeatable parts.
• Heavy steel construction, weighing 1,200 lbs., gives this combo machine the power to deliver accurate results for many years.

What’s in The Box

• SBR-5216 – Shear Brake Roll
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	SBR-5216
Power	Manual
Top Roll Dia.	2.38″
Rolling Capacity	16 ga. (.060”)
Shear Capacity	16 ga. (.060”)
Min. Rolling Dia.	3.57”
Included Accesories	Included Accesories
Bed Width	52″
Bending Capacity	16 ga. (.060”)
Max. Bend Angle	90 deg.
Dimensions (Inches)	71 x 24 x 37
Weight	1200 lbs
