Tools & Equipment Baileigh 1001521 BS-330SA Semi-Automatic Horizontal Band Saw

Features

• Maximum capacity of 13” OD round at 90°.
• Accepts a 1.25” blade, a large size for greater accuracy and speed.
• Variable blade speed ranges from 82 to 270 fpm.

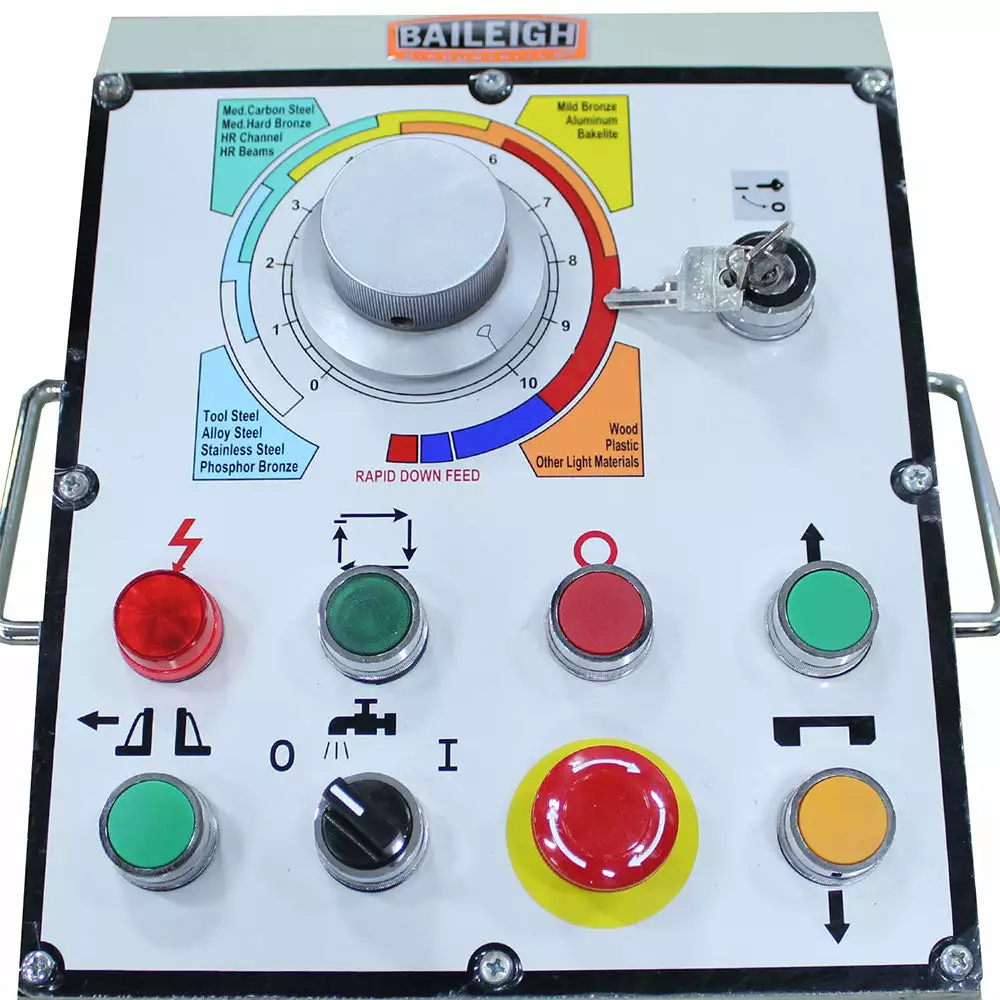

• You can adjust the dial to set the speed at the perfect fpm for your material.
• 3 hp motor runs on 220-volt three-phase power.
• Gear-driven transmission makes the machine more reliable. No belts to break and replace.
• Saw head miters up to 45°.

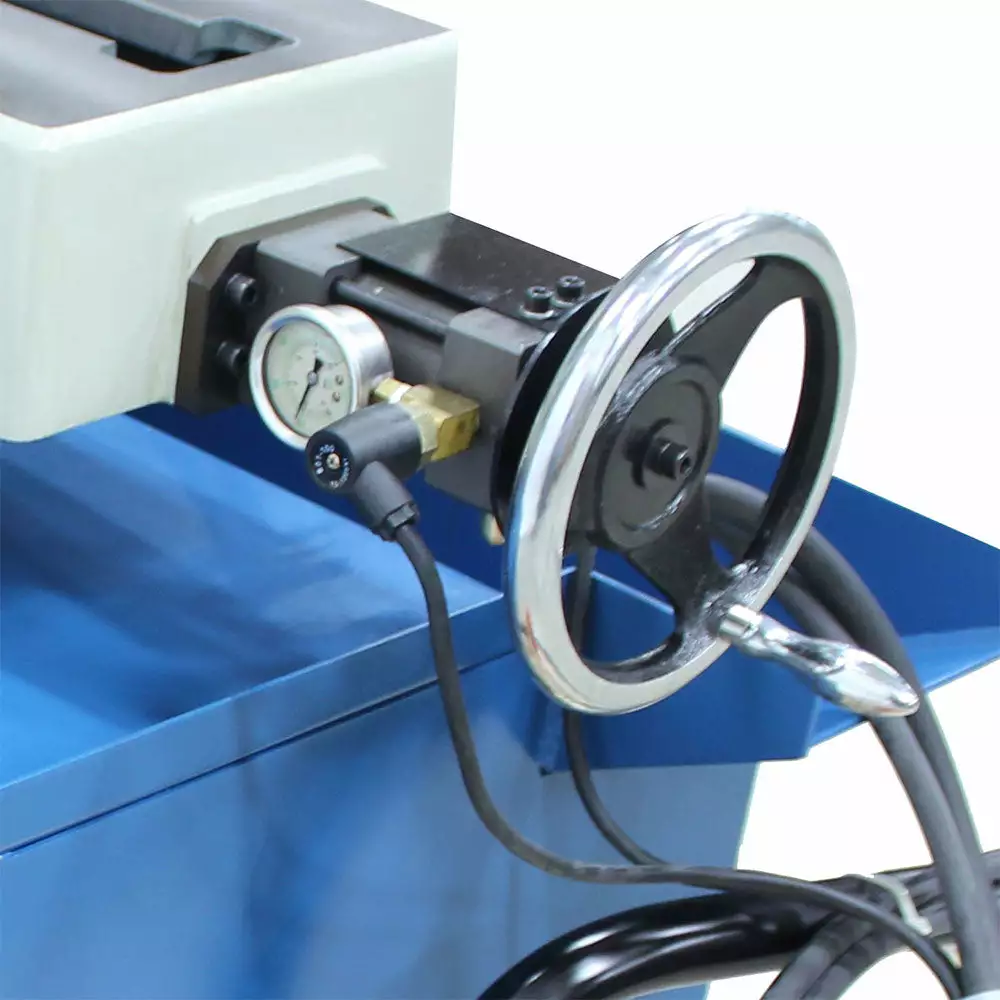

• Industrial-grade hydraulic system clamps the vise, lowers the head, then raises the head back up after the cut is done.
• Cast iron mitering head and bow reduce vibrations when cutting.
• Tungsten carbide blade guides get as close as possible to the material to produce a clean, high-quality cut.
• Laser pointer guide lets you see where the cut will be, for more accurate work.

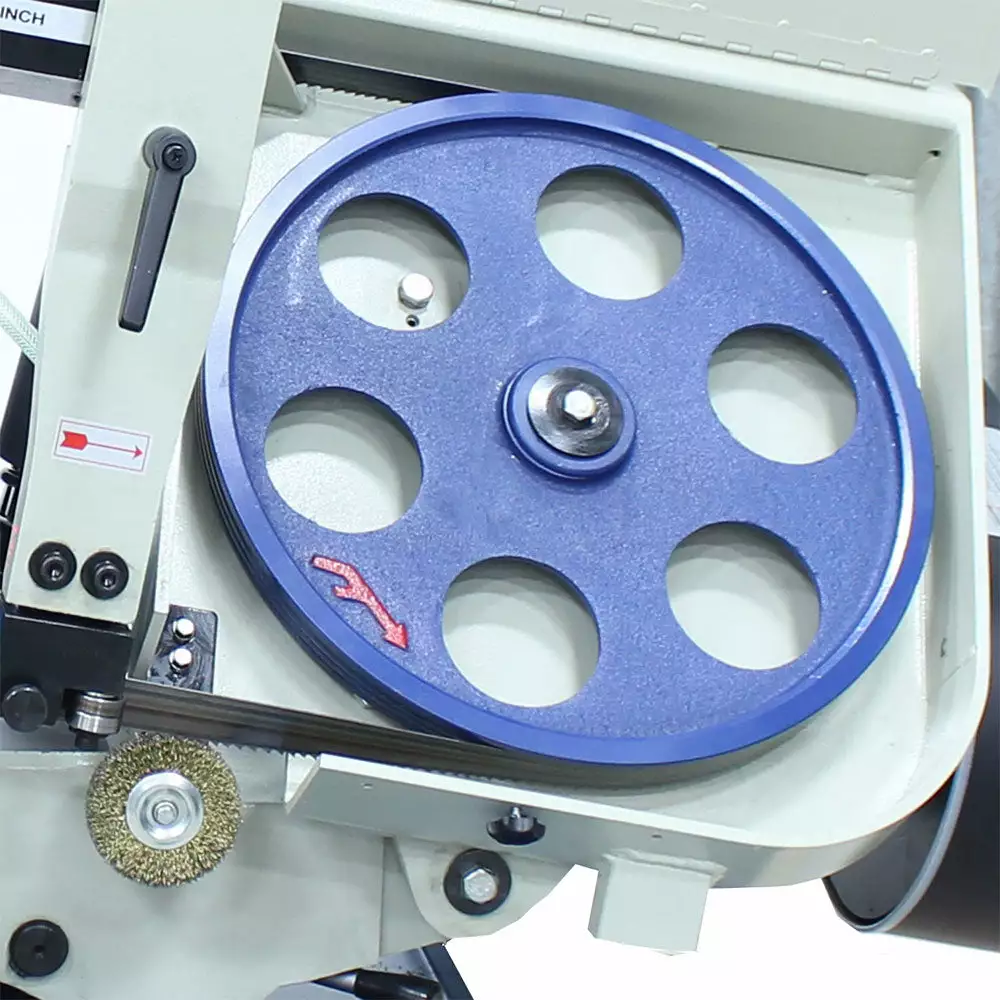

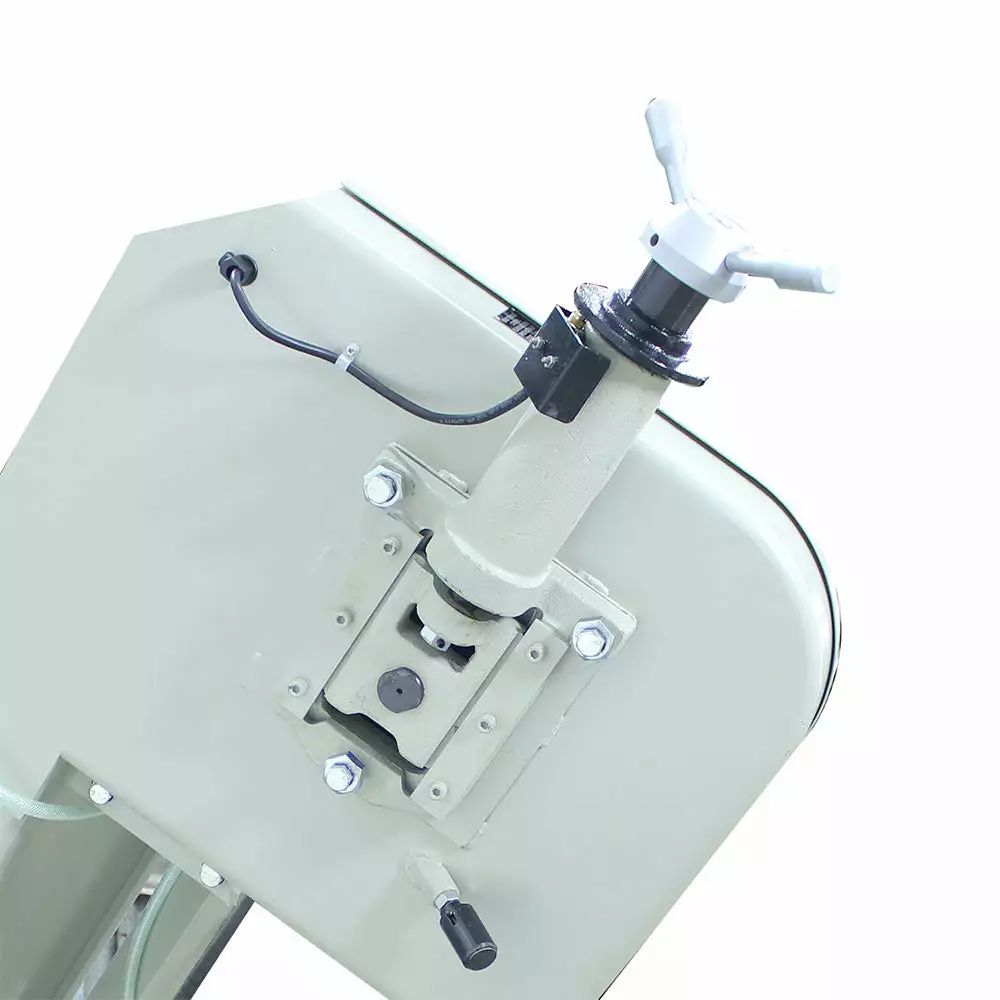

• Patented blade tensioning gauge makes it simple to get the tension right. Simply adjust until the black arrow is lined up with the liquid-filled green area.
• Electro-welded steel construction keeps the machine stable for more accurate cutting.

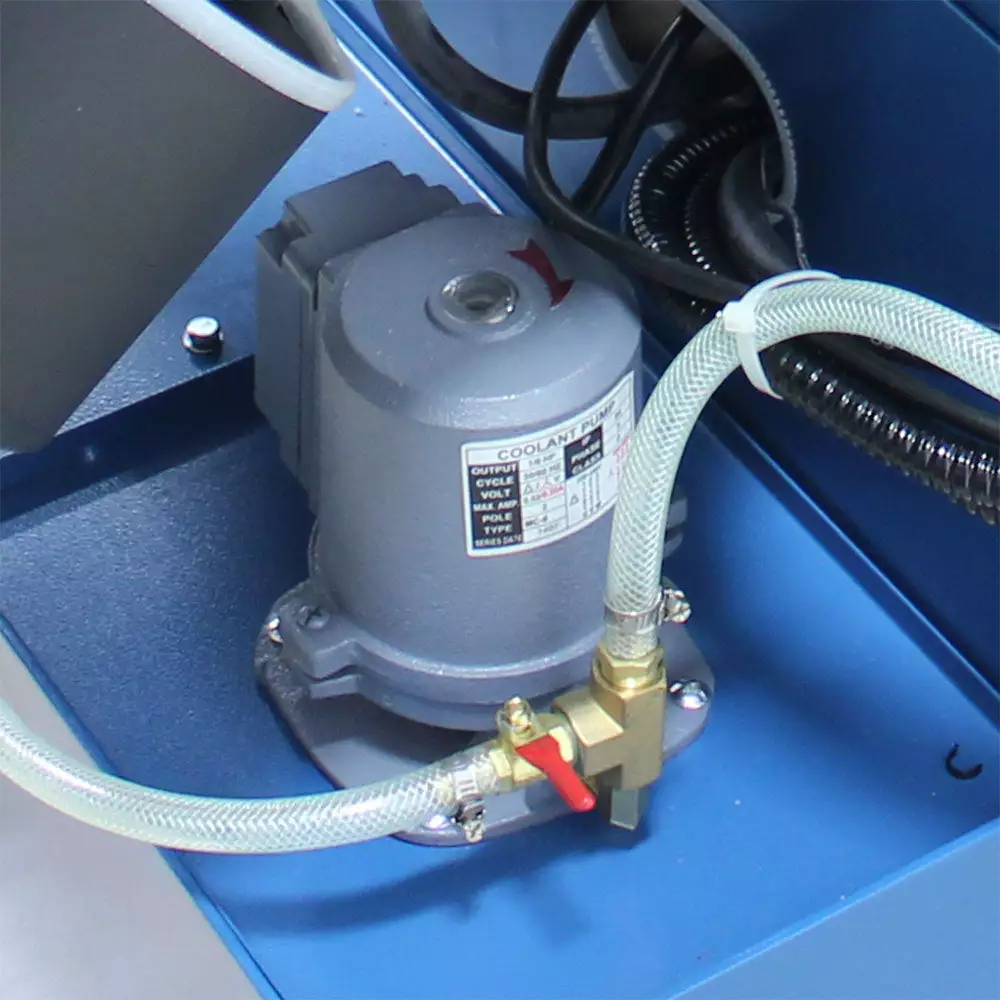

• Large-capacity flood coolant system washes away metal chips and helps blades last longer.
• You can get replacement parts quickly. We stock them at our headquarters in Wisconsin.
• Covered by a 1-year parts warranty.

What’s in The Box

• BS-330SA – Semi-Automatic Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-330SA
Power	220V / 3-phase
Return	Hydraulic
Miter Adjustment	Swivel Head and Vise
Miter Angle	0 – 45°
Motor	3 hp
Capacity Rectangular 90 x 45 x 45L	13″ x 18.9″ x 11″ x 10.04″
Capacity Round 90° x 45°	13″ x 8.86″
Capacity Square 90° x 45°	13″ x 8.86″
Table Height	30.5″
Blade Guide	Carbide x Roller
Blade Size	1.3″ x .043″ x 161.4″
Blade Speed (fpm)	82 – 270
Descent Control	Pressure Assist Hydraulic
Drive	Belt x Pulley
Shipping Dimensions (Inches)	90x38x60
Weight	1800 lbs
