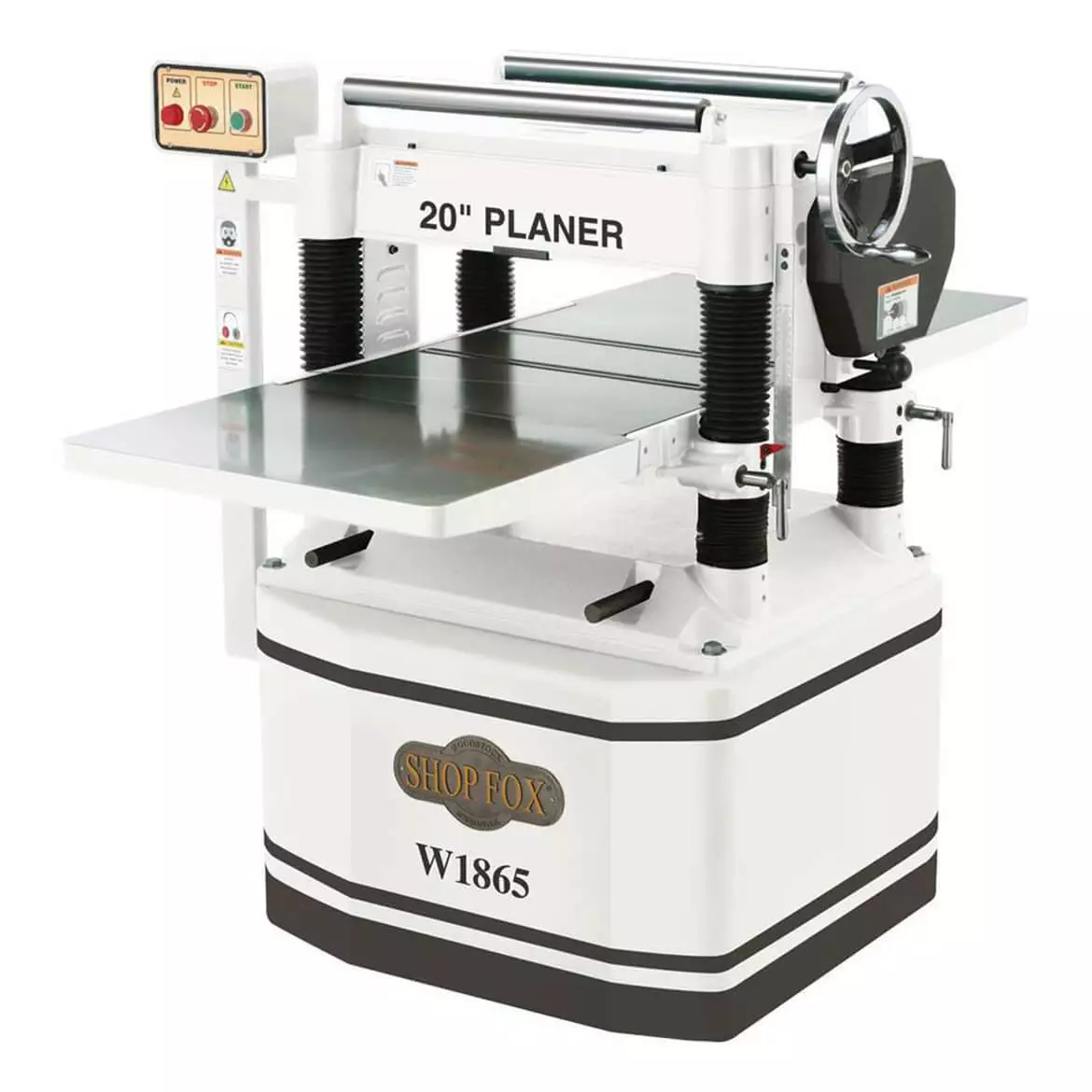

Shop Fox W1865 20-Inch 5-Hp 240-Volt Belt Driven Spiral Cutterhead Planer Tools & Equipment

Features

• Spiral cutterhead with triple V-belt drive
• 2-speed chain-driven automatic feed rollers
• Hardened anti-kickback fingers
• Precision-ground cast-iron table and extension wings
• Locking table
• Magnetic switch overload protection
• Ball bearing return rollers
• Depth scales in both inch and metric
• Pedestal mounted control panel

What’s in The Box

• 20-Inch 5-Hp Spiral Cutterhead Planer
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	W1865
Brand	Shop Fox
Horsepower	5 Hp
Voltage	240V
Phase	Single
Table Size w/ Wings	56 in. x 20 in.
Max. Cutting Width	20 in.
Max. Cutting Height	8-5/8 in.
Max. Cutting Depth	1/8 in.
Min. Length of Stock	7 in.
Min. Stock Thickness	1/4 in.
Feed Rates	16 and 20 Fpm
Outfeed Roller	Serrated Steel
Cutterhead Diamter	3-1/4 in.
Cutterhead Speed	5,000 Rpm
Length w/ Wings	56 in.
Width	39 in.
Height	41 in.
Product Weight	882 lbs.
