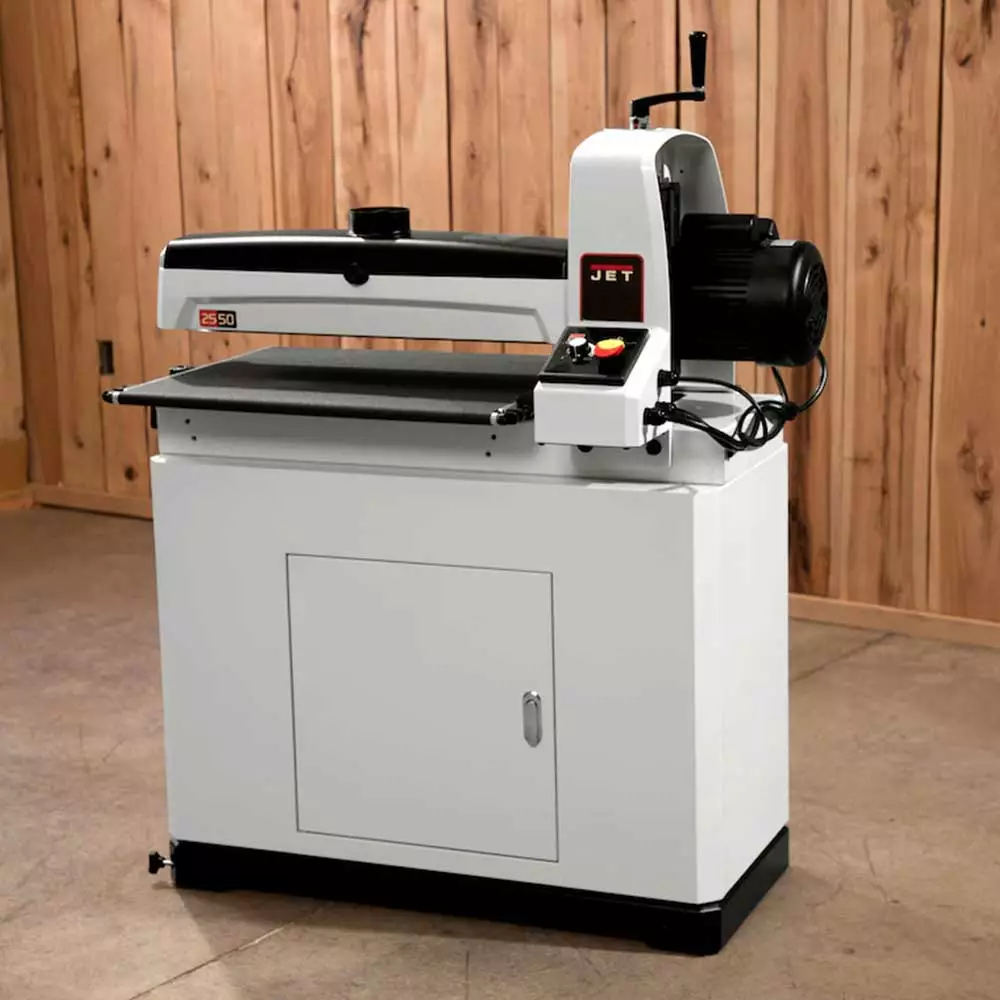

Sanders Jet JWDS-2550 115-Volt 5-Inch X 25-Inch Drum Sander W/ Closed Stand – 723544CSK

Features

• Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
• Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed – no tools required
• Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

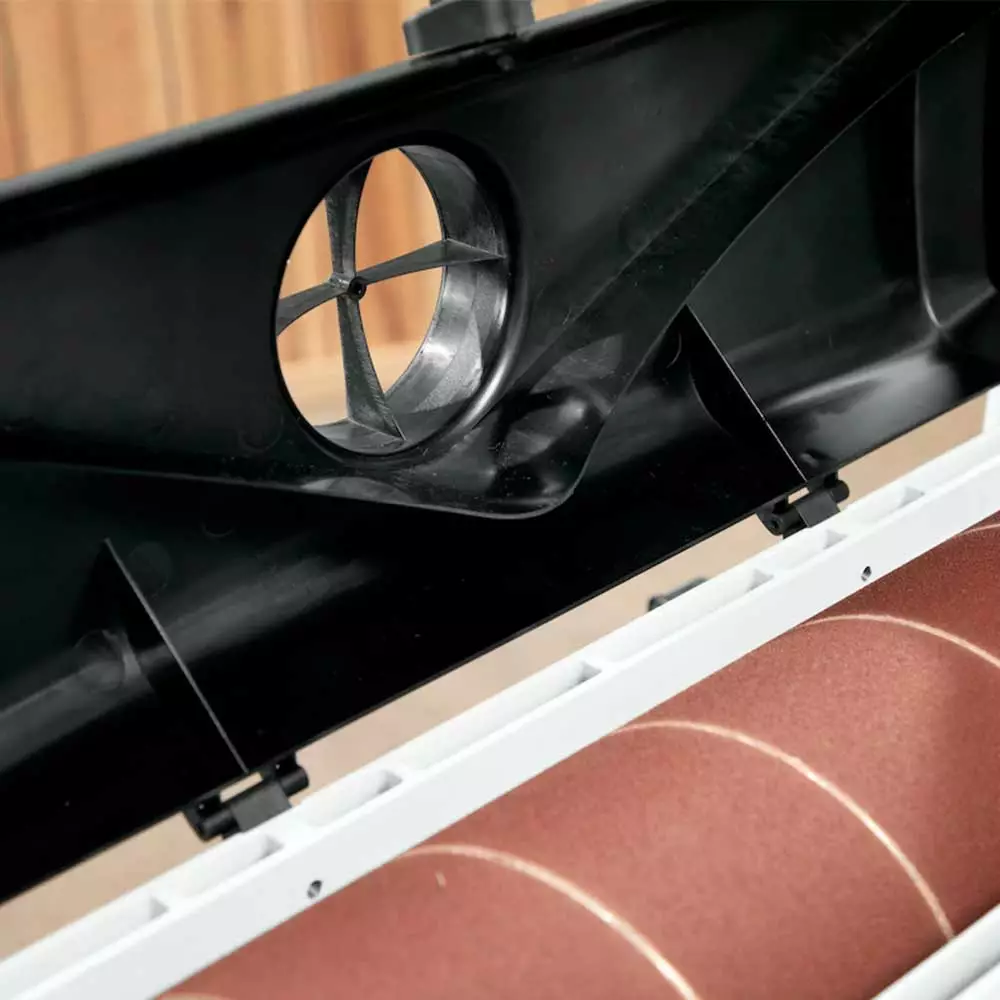

• Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 collection port
• Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
• Precision-flattened reinforced steel conveyor bed
• Redesigned conveyor system pulls the workpiece through the sander instead of pushing

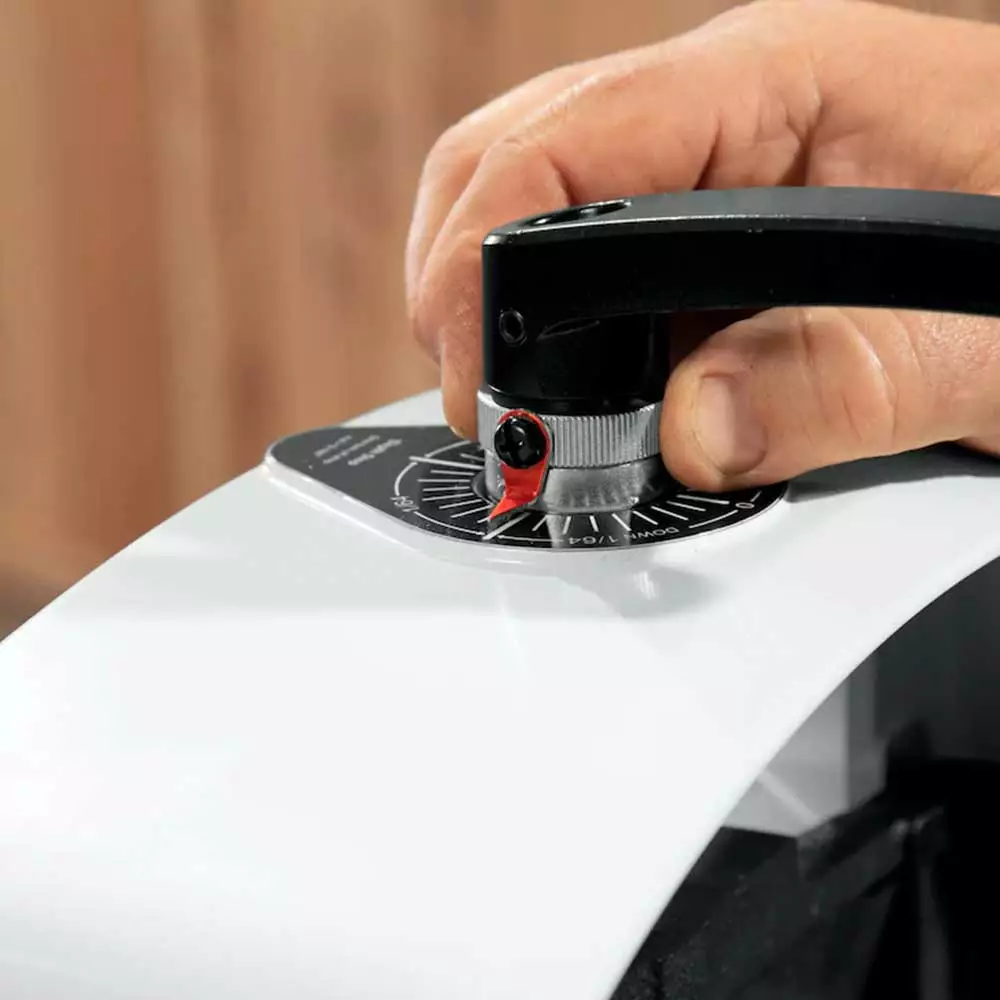

• One rotation of the top-position handwheel adjusts the drum height by 1/16
• The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
• Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
• Toolless abrasive take-up clips make changing abrasives quick and easy
• Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
• Separate feed and drum motors provide independent control, optimizing the performance of the sander
• Conveyor belt TRACKERS reduce the need for manual belt adjustments
• Integrated on/off switch and variable speed control knob are conveniently located
• Closed Stand features a 17-1/2 x 38-1/2 footprint to increase stability and has a solid door for access to closed storage and has integrated wheels for mobility
• Drum is easily removable
• Drum utilizes sealed and permanently lubricated ball bearings for longer life
• Dust hose hanger for added ease of use

What’s in The Box

• 5-Inch x 25-Inch Stationary Drum Sander w/ Closed Stand
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	723544CSK
Model	JWDS-2550
Brand	Jet
Voltage	115V
Horsepower	1-3/4 Hp
Phase	Single
Amperage	15A
Drum Diameter	5 in.
Drum Length	25 in.
No Load Speed	1,720 Rpm
Conveyor Motor	43 in-lbs. Torque Direct-Drive
Conveyor Speed	0 – 10 Fpm
Min. Board Length	2-3/8 in.
Min. Board Thickness	1/32 in.
Max. Board Thickness	4 in.
Max. Board Width	50 in. (Two Passes)
Dust Port Outside Diameter	4 in.
Length	51.81 in.
Width	27 in.
Height	54.31 in.
Product Weight	302 lbs.
