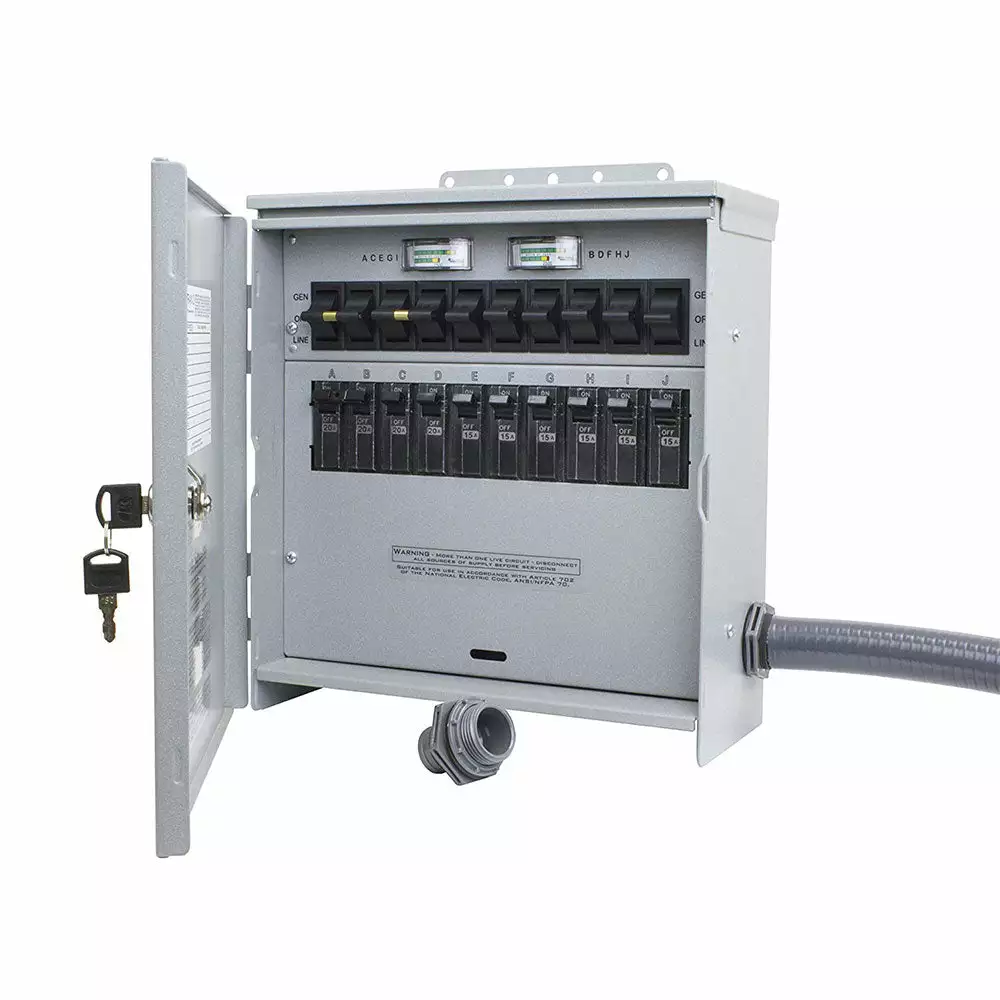

Reliance R510A 120/240V 50 Amp 10 Circuit Pro/Tran-2 Outdoor Transfer Switch Transfer Switches

Features

• Pro/Tran 2 50A 10-Circuit 120/240V Outdoor Manual Transfer Switch
• The next generation of Load side manual transfer switches
• Non-Defeat able (Break-Before-Make) Double-Throw Switch
• Eliminates dangerous back feeds and electrical overloads
• 10 Total Circuits (1″) Interchangeable Style)
• (1) 20A 2-pole, (2) 20A 1-pole and (6) 15A 1-pole
• NEW Color-Coded Built-In Analog Wattmeter
• Helps you balance and manage generator load

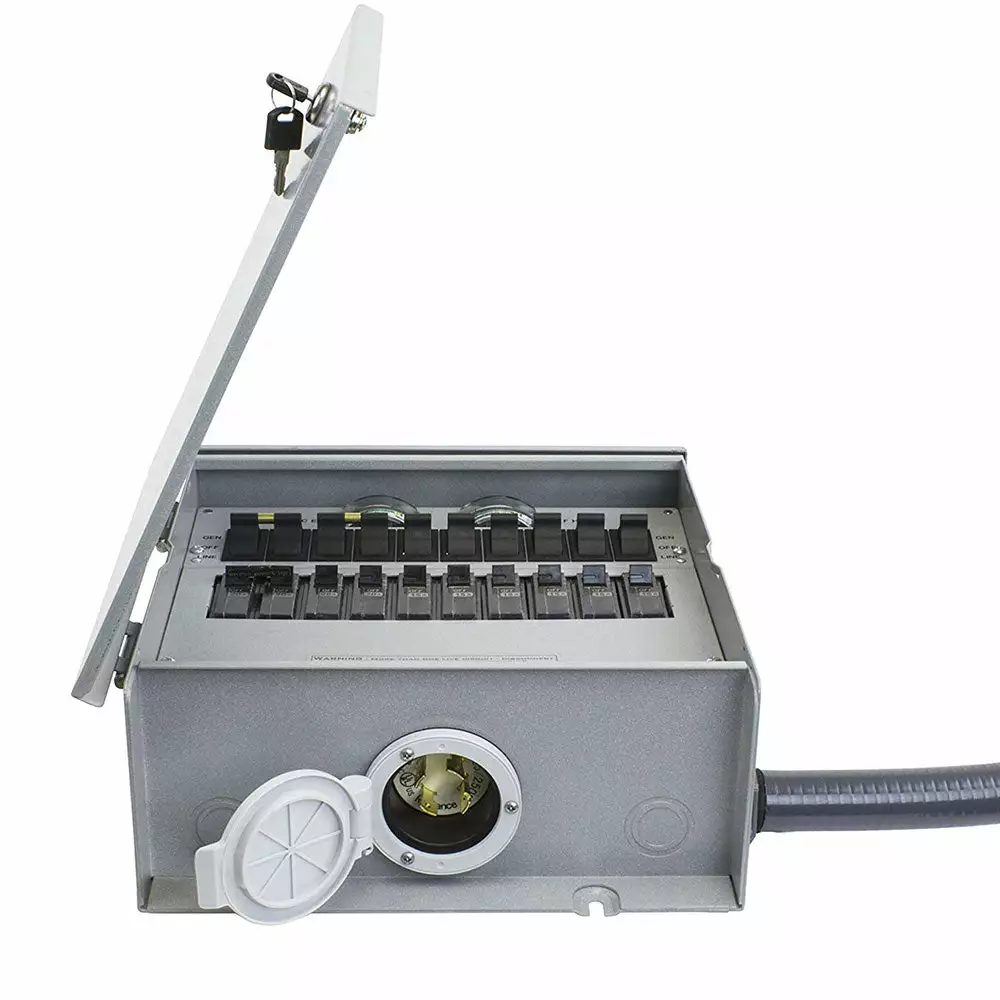

• Factory Installed 50-Amp (CS6375) Power Inlet w/ Flip-Lid
• Easily connect your generator cord on bottom of switch
• NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
• Gasketed design, provides liquid tight protection in all seasons
• Key lockable door prevents tampering and unauthorized use
• 16″ Flexible, Non-Metallic Liquid-Tight Conduit (1″) w/ Fittings
• (5) Combination 1/2″ and 3/4″ knockouts for easier installation
• Factory-marked, color-coded wires simplifies installation
• Safety and Certifications
• Certified for use by Underwriter Laboratories to UL Standard 1008
• Meets all requirements of article 702 of the NEC ANSI/NFPA 70

What’s in The Box

• Reliance Pro/Tran-2 50 Amp 120/240V 10 Circuit Outdoor Transfer Switch – R510A
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	R510A
Brand	Reliance
Product Specs
Model	Pro/Tran-2
Voltage	120/240V single phase
Rated Watts	12500 Watts
Rated Amps	50
Enclosure	NEMA 3R
Conduit Length	16
Number of Circuit Breakers	10
UL Listed	Yes
Transfer Switch Circuits
15A 120V	6
20A 120V	2
20A 240V	1
Circuit Breaker Protection	Each Circuit
Overview
Length	13 in
Width	12 in
Height	5 in
Weight	18 lbs
