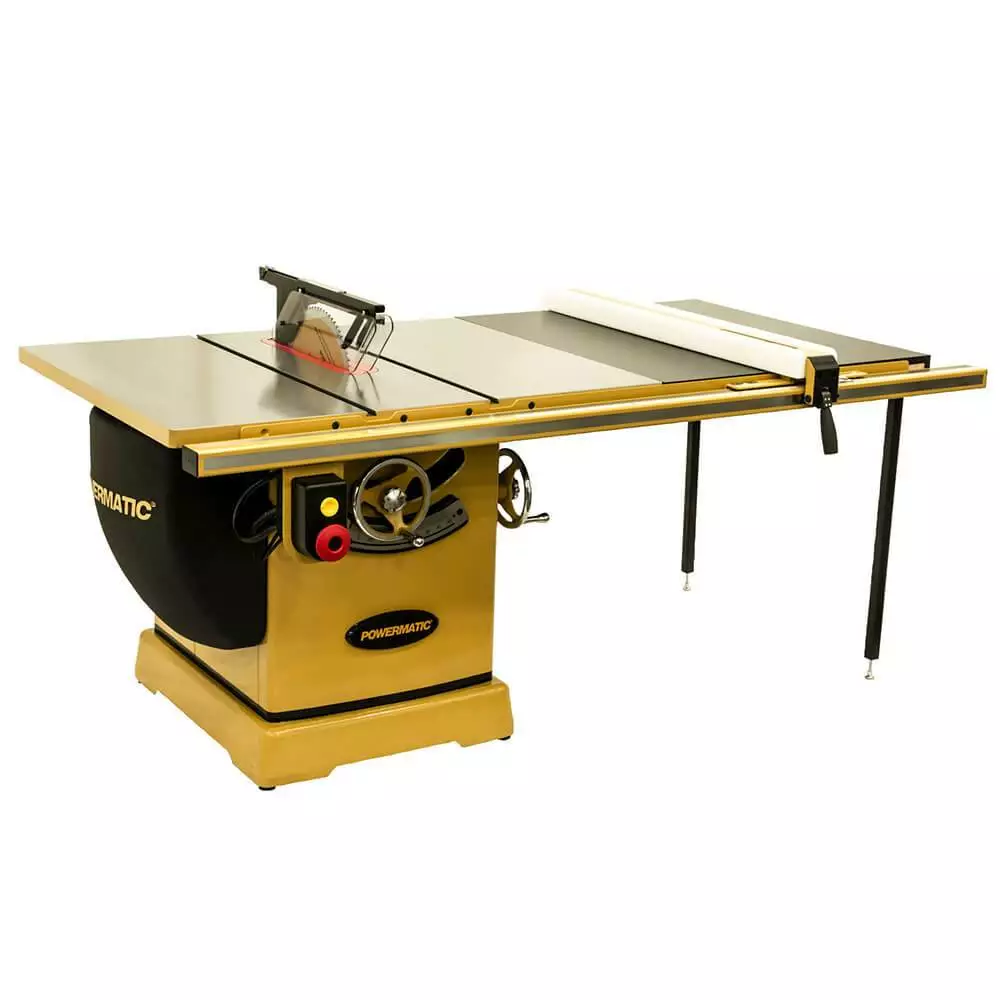

Powermatic PM375350K 230/460V 50-Inch 7.5 HP 3-Phase RIP Table Saw W/ ACCU-FENCE

Features

• Integrated Digital Read Out for precise bevel cuts.

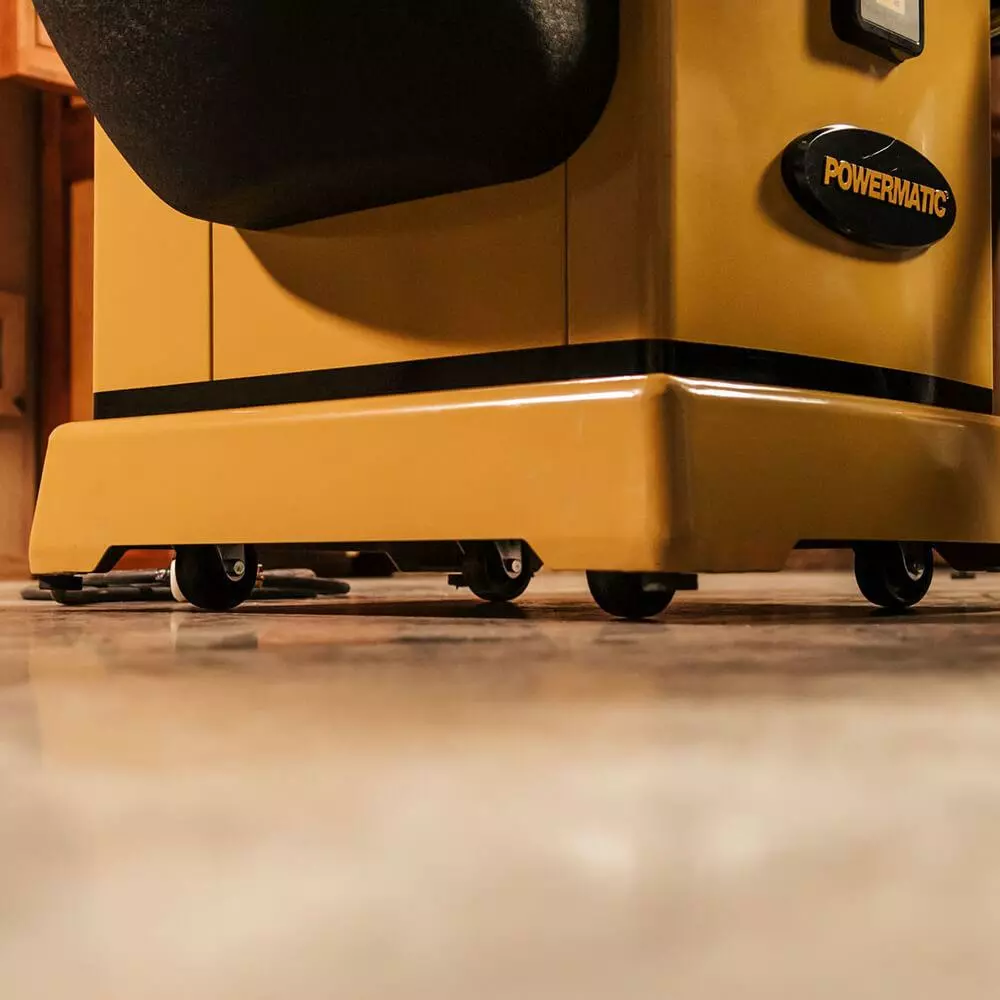

• Newly designed integrated hydraulic castor system with greater travel than previous model.
• Matching beveled edge between table and extension wings.
• Newly designed Arbor lock for quick and easy blade changes.
• Improved dust collection inside and outside of the cabinet.
• Quick release riving knife lever for hassle free riving knife changes.
• Wider stance, box trunnion design.
• Newly designed Accu-Fence system for precision cuts.

What’s in The Box

• Powermatic 230/460V 50-Inch 7.5 HP 3-Phase RIP Table Saw – PM375350K
• ACCU-FENCE
• Owner’s Manual

Warranty

• 5-Year on Woodworking machinery
• 2-Year on Industrial or commercial woodworking machinery
• 1-Year on Motors
• 30 Day Satisfaction Guaranteed

Specifications

Sku	PM375350K
Brand	Powermatic
Motor Voltage	230/460V
Motor Current (Amp)	18.4/9.2 Amp
Recommended Circuit Size (Amp)	20 Amp
Motor Power (HP)	7.5 HP
Motor Phase	3
Dust Collection (Cfm)	600 Cfm
Dust Port Outside Diameter (In.)	4 In.
Style (Type)	Cabinet
Blade Diameter (In.)	14 In.
Arbor Diameter (In.)	1 In.
Arbor Speed (Rpm)	4500 Rpm
Maximum Depth of Cut at 90 Degrees (In.)	5-1/8 In.
Maximum Depth of Cut at 45 Degrees (In.)	3-1/2 In.
Maximum Diameter of Dado (In.)	8 In.
Maximum Width of Dado (In.)	13/16 In.
Table in Front of Saw Blade at Maximum Depth of Cut (In.)	11-1/4 In.
Maximum Rip Right of Blade (In.)	50 In.
Maximum Rip Left of Blade (In.)	14 In.
Table Type	Cast Iron
Table Height from Floor (In.)	35-1/4 In.
Table Size (In.)	26 x 38 In.
Table Size with Extensions (In.)	48 x 38 In.
Table T-Slot (In.)	3/4 x 3/8 In.
Shipping Weight (lbs)	831 lbs
