Powermatic PM-2x4SPK 230V 2′ X 4′ Liquid Cooled Electro Spindle CNC Kit Tools & Equipment

$91.99

Fast, friendly, always here to help.

Sustainable materials, for a better tomorrow.

Nature-friendly materials, for a better planet.

Control the delivery date and try to deliver it in the fastest time

Heavy-duty welded steel frame provides rigidity and maintains accuracy
The extruded aluminum table delivers a large, sturdy surface while the integrated T-slots allow the hold-down clamps to be positioned in any location
An MDF spoil board protects the table from damage and can be quickly resurfaced using the pre-loaded program
Exclusive, heavy-duty gantry supports are made of gravity cast aluminum
Precision ball screws with recirculating ball bearings allow for rapid movement on each axis while maintaining precise spindle placement

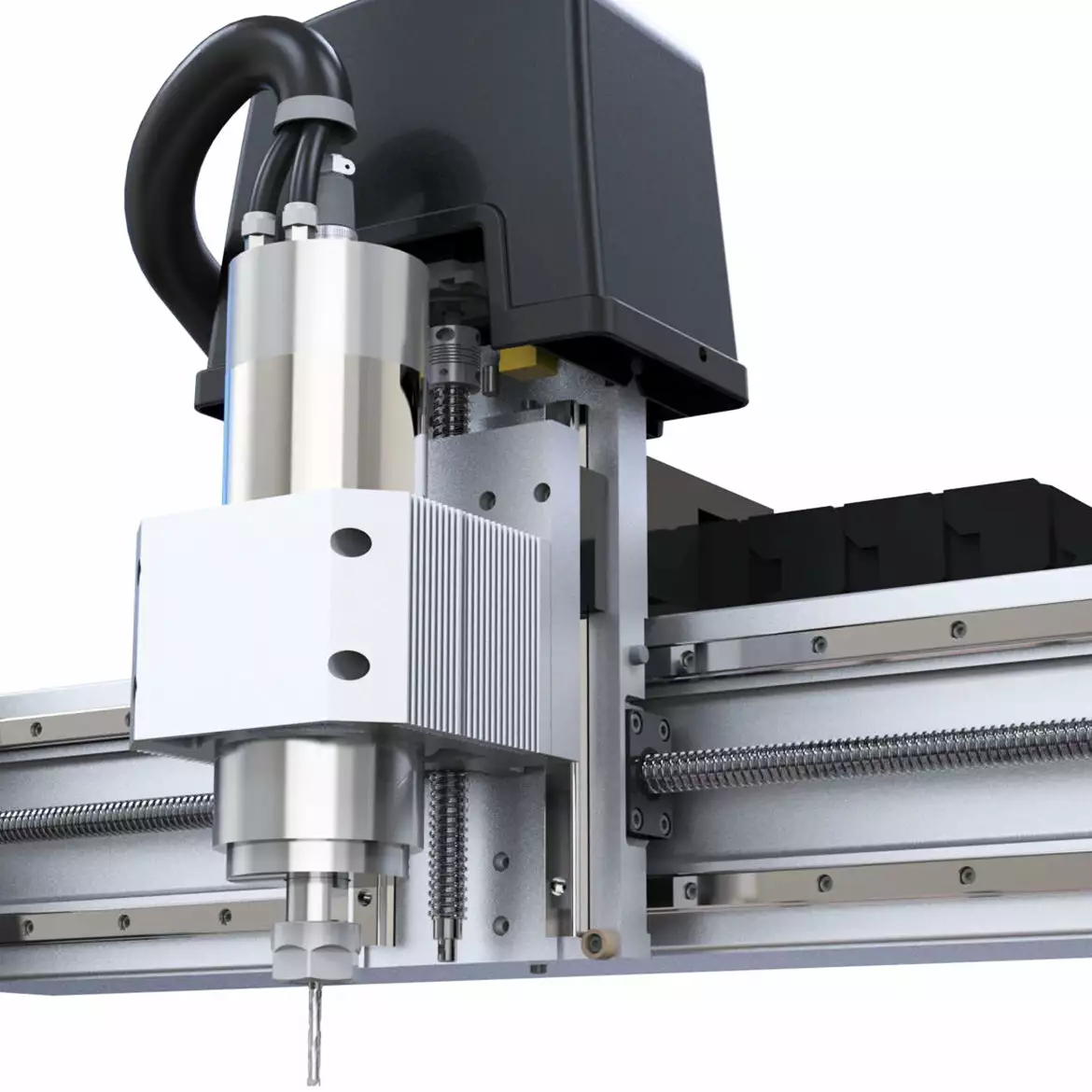

The electro spindle is liquid cooled by a system that pushes coolant through the spindle while a radiator and fan assembly dissipate the heat
Linear guideways with recirculating ball bearings ensure precise and accurate positioning of the tool bit
The handheld controller attaches to the DSP control box via a 8 foot cable that makes it easy to oversee any project from a variety of positions
Flexible nylon track chains protect all cables preventing rubbing and stress
High-torque stepper motors control each axis, providing fast, quiet and precise movement
The included puck allows you to quickly and easily re-zero your Z-axis with the push of a button on your controller
Enclosed steel stand features drawers for storage, casters for mobility and independent leveling feet
Hold down clamps have a 5/16″ T-bolt with a 1-1/8″ wide by 5-1/4″ aluminum arm – 4 hold down clamps included with CNC kit

Sku	1797024K
Brand	Powermatic
Voltage	230v
Horsepower	3 Hp
Motor Phase	Single
Style (Type)	Spindle
X-Axis Travel	24 in.
Y-Axis Travel	48 in.
Z-Axis Travel	6 in.
Precision Ball Screw Axis	X / Y / Z
Precision Linear Guide Axis	X / Y / Z
Rapid Feed Rate	200 Ipm
Router	Spindle
Collet	ER-20
Spindle Speed	0 – 24,000 Rpm
Touch Off Puck	Included
Recommended Circuit Size	10A
Floor Space Required	52 in. x 69 in.
Dust Collection Minimum CFM Required	300 Cfm
Product Weight	748 lbs.
Shipping Weight	750 lbs.
