Powermatic 31A 6″x48″ Belt/12″ Disc Sander 1.5HP 1PH 115/230V – 1791291K

Features

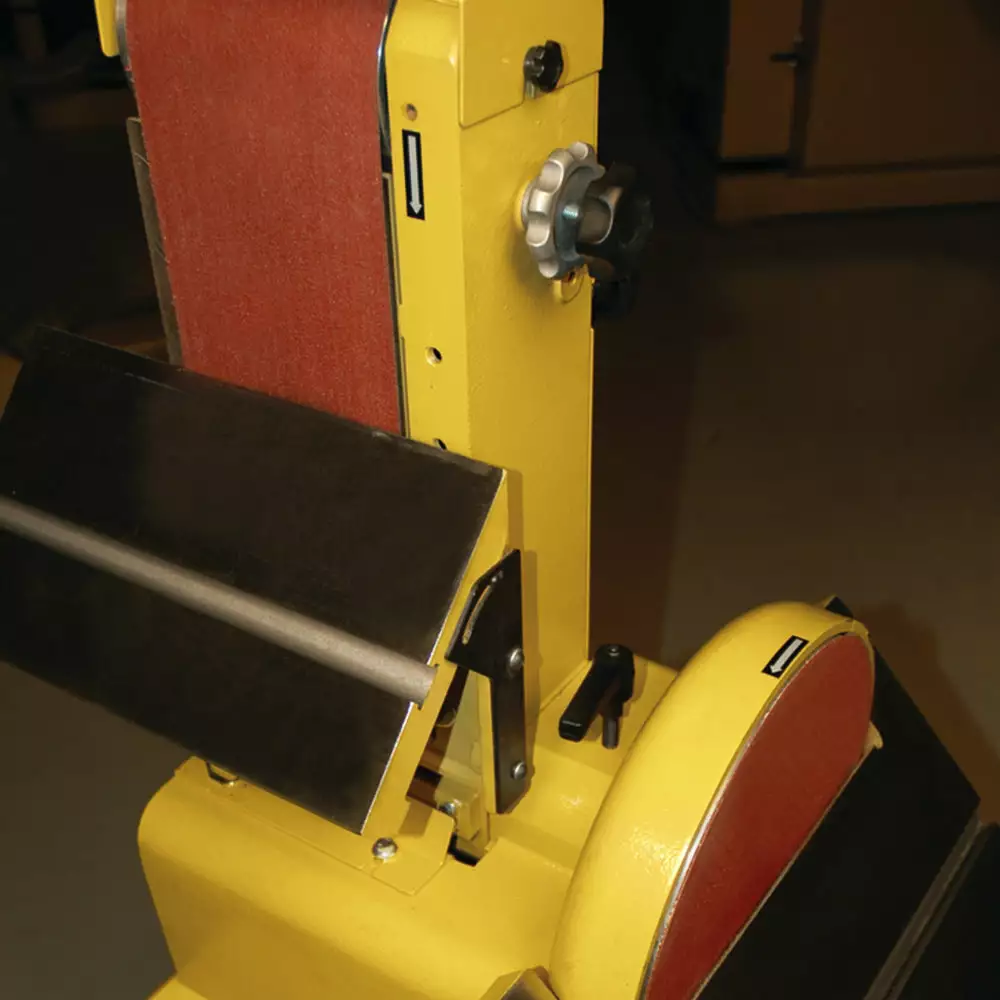

• Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops

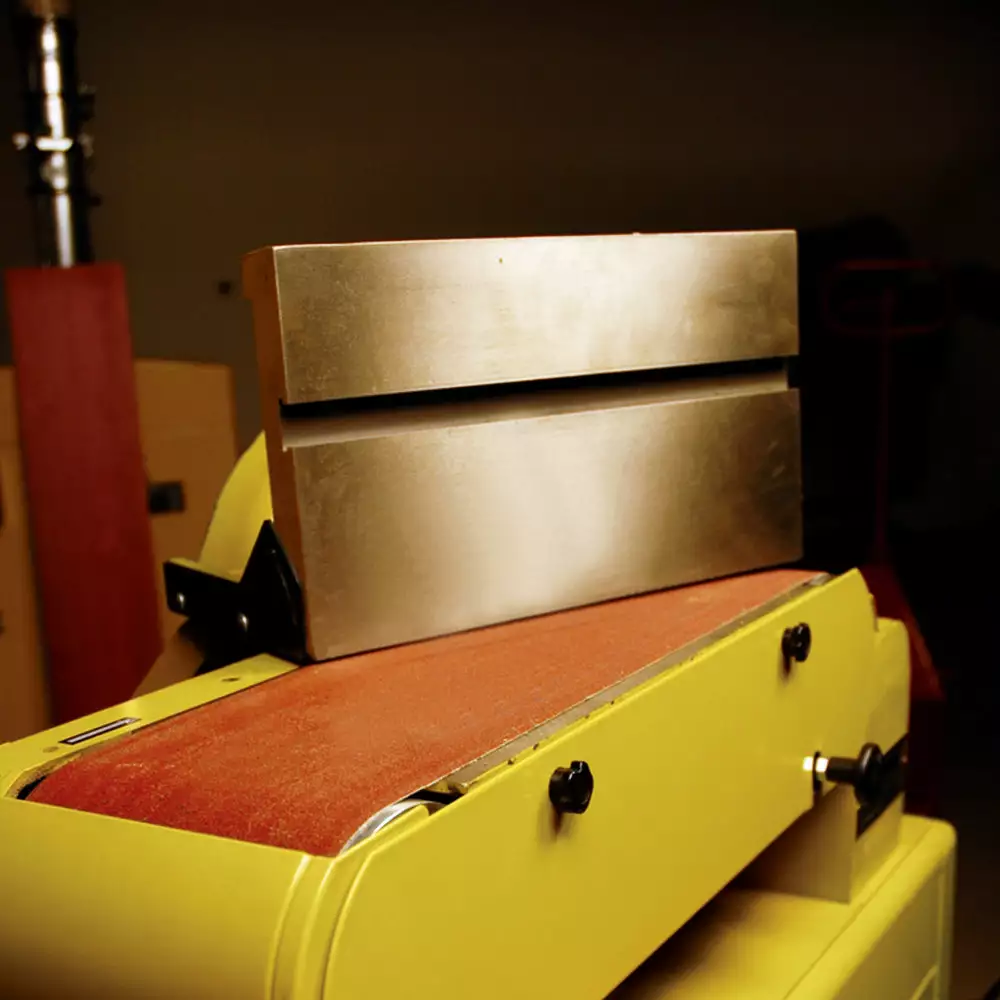

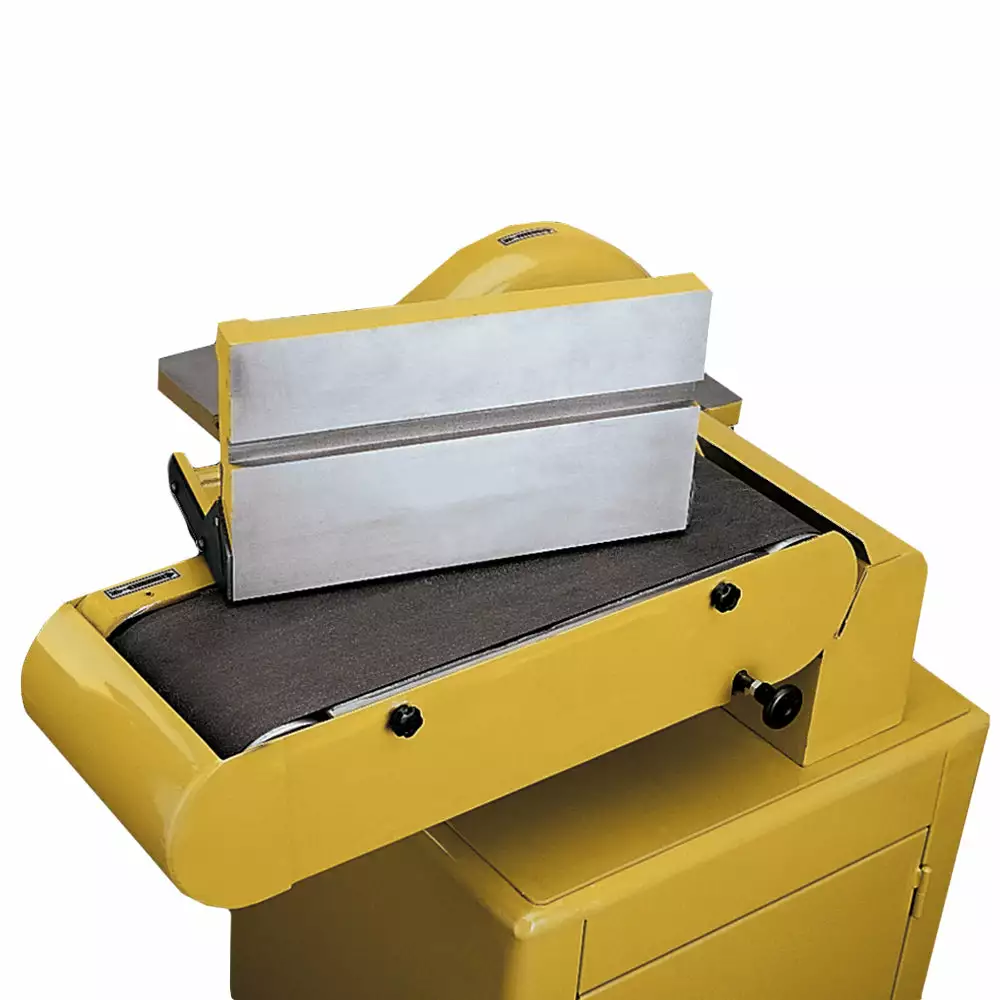

• Belt and disc tables are precision ground cast iron with miter slots
• Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding
• Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
• 12″ disc is balanced for flat, even coverage

What’s in The Box

• Powermatic 31A Belt/Disc Sander, 6″x48″, 12″, 1.5HP 1PH 115/230V Manual Switch
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or
  repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1791291K
UPC	662755485480
Style (Type)	Combination Belt/Disc
Disc Diameter (In.)	12
Disc Speed (RPM)	2,375
Disc Table Tilt (Deg.)	15 Up, 45 Down
Disc Table Size (L x W) (In.)	17-1/4 x 9
Sanding Belt Size (L x W) (In.)	48 x 6
Belt Speed (RPM)	2,410
Belt Table Tilt (Deg.)	45 Down
Belt Table Size (L x W) (In.)	13-1/4 x 7-1/2
Sanding Arm Locking Positions	0, 45, 90
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1-1/2
Motor Phase	115, 230
Motor Voltage (V.)	115, 230
Prewired Voltage (V.)	115
Wiring Remarks	Push Button Switch
Motor Current (Amps)	14, 7
