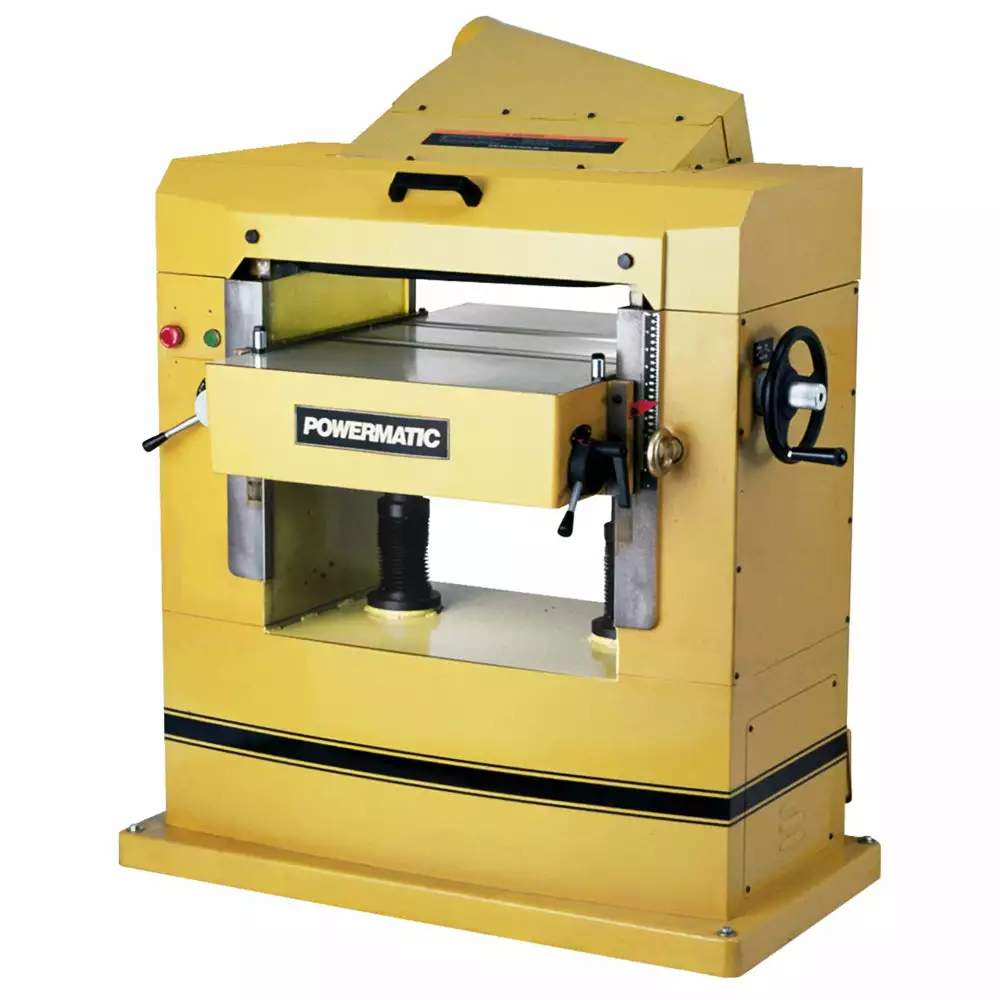

Powermatic 201HH 7-1/2-Hp 230V 22″ Heavy Duty Cast Iron Planer W/ Helical Head

Features

• Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• Cast iron 1300 lb. construction for solid performance without vibration
• 2 feed speeds – 20/30 fpm – accommodates rough and fine finish work
• Segmented infeed roller with sectional chipbreaker allows multiple board planing
• Roller bearing-mounted feed rollers for long life
• Adjustable bed rollers allow smooth feeding of rough or finished workpieces
• Oversized cast iron table travels on 2 large lead screws for heavy duty support
• Dust collection port
• Adjustable foot pads

What’s in The Box

• Powermatic 201HH, 22″ Planner, 7.5HP 3PH 230V, Helical Head
• Tool kit
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories.
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1791268
UPC	662755955860
Style (Type)	Planer
Cutterhead Speed (RPM)	4,800
Cutterhead Diameter (In.)	3-1/4
Number of Knives	150 Four-Sided Inserts
Maximum Depth of Cut (In.)	3/16
Maximum Planing Width (In.)	22
Maximum Planing Thickness (In.)	9-1/4
Minimum Planing Length (In.)	10
Feed Rate (FPM)	20, 30
Number of Speeds	2
Infeed Roller Diameter (In.)	3
Segmented Infeed Roller Diameter (In.)	3
Outfeed Roller Diameter (In.)	3
Bed Rollers Adjustable from Front	2
Maximum Height of Rollers Parallel to Tabletop (In.)	0.05
Table Size (L x W) (In.)	32-1/4 x 24
Table Support	2 Column
Column Diameter (In.)	2-1/2
Dust Collection Minimum CFM Required (CFM)	900
Dust Port Outside Diameter (In.)	5
Motor Power (HP)	7-1/2
Motor Phase	3
Motor Voltage (V.)	230
