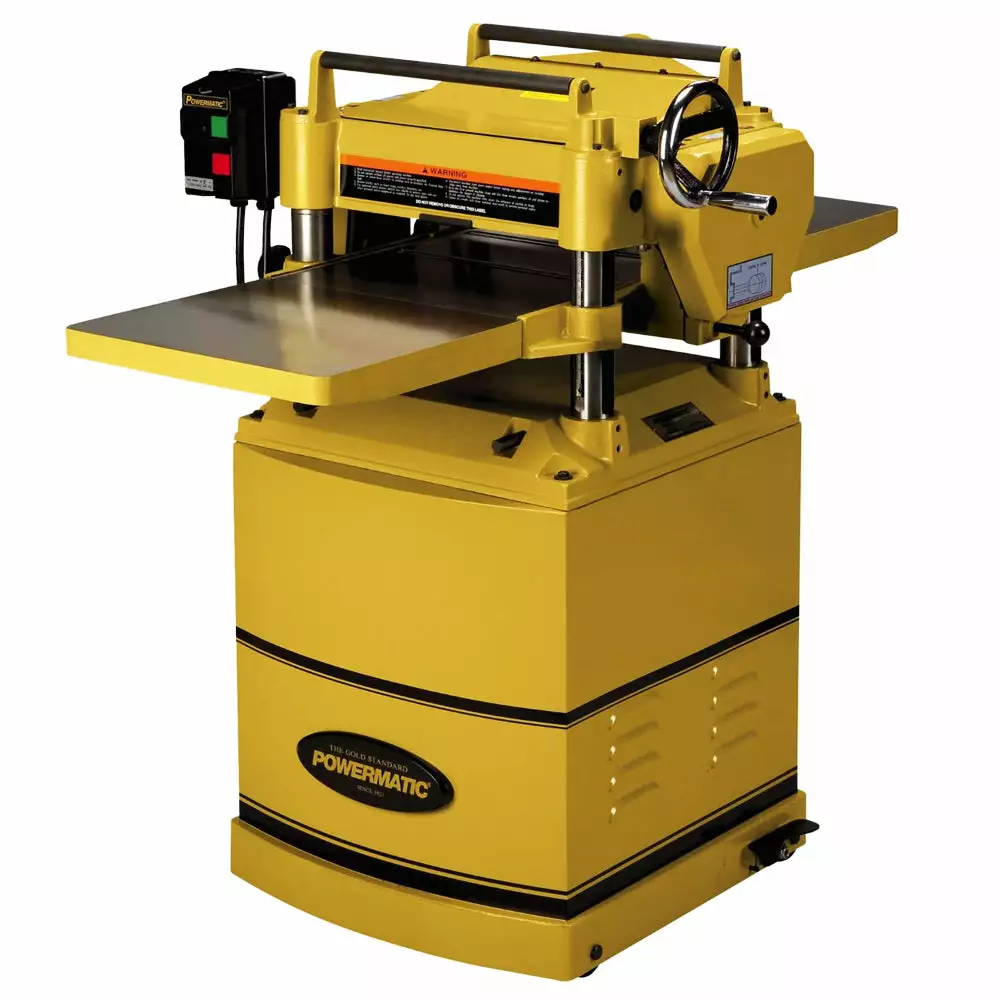

Powermatic 15HH 15″ Planer Byrd Shelix Cutterhead 3HP 1PH 230V No DRO – 1791213

Features

• The Byrd helical cutterhead with 74 four-sided knife inserts provides smoother, quieter cutting and finer finish
  than conventional systems
• Powerful 3HP TEFC motor controlled with a magnetic switch for safety
• Three V-belts transfer maximum power to the cutterhead
• Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8″ maximum depth of cut and trouble
  free operation
• Large cast iron handwheel positions table quickly and easily
• Large, precision ground cast iron table and extensions provide maximum workpiece support
• Two speed gearbox features automatic chain tensioner
• One-piece welded steel stand has built-in lockable casters
• Steel top-mounted return rollers speed repetitive cuts
• Angled dust chute with 4″ port positions collection hose away from the work area while providing efficient chip
  and dust collection
• Table locks firmly in place, preventing movement during cutting
• Closed stand with built-in casters
• 3HP TEFC motor with magnetic controls

What’s in The Box

• Powermatic 15HH Planner, 3HP 1PH 230V Byrd Shelix Head, No Dro
• Byrdr helical cutterhead with inserts
• Cast iron extension tables
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or
  repair, please contact us for further warranty information.
• 1 Year – Motors, Machine Accessories.
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1791213
UPC	662755915413
Style (Type)	Planer
Cutterhead Speed (RPM)	4,500
Cutterhead Diameter (In.)	2-7/8
Number of Knives	74 Four-Sided Inserts
Maximum Depth of Cut (In.)	1/4
Maximum Full Width Depth of Cut (In.)	1/8
Maximum Planing Width (In.)	14-7/8
Maximum Planing Thickness (In.)	6
Minimum Planing Length (In.)	8
Infeed Roller Diameter (In.)	2.07
Segmented Infeed Roller Diameter (In.)	2.07
Outfeed Roller Diameter (In.)	2.07
Bed Rollers Adjustable from Front	N.A.
Table Size with Extensions (L x W) (In.)	15 x 48
Table Support	4 Column
Column Diameter (In.)	2-3/16

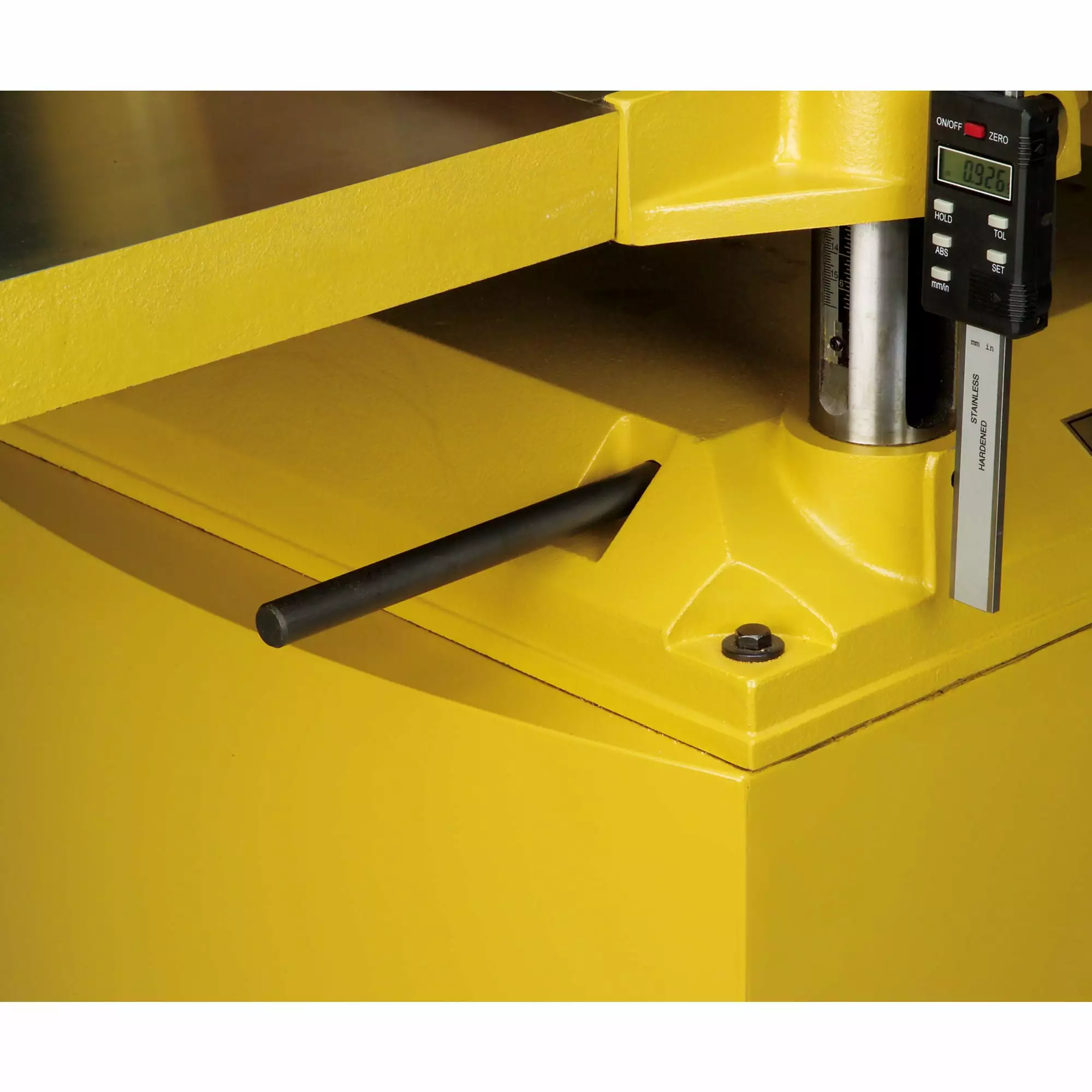

Digital Readout	Inch / Metric
Dust Collection Minimum CFM Required (CFM)	800
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	3
Motor Phase	1
Motor Voltage (V.)	230
