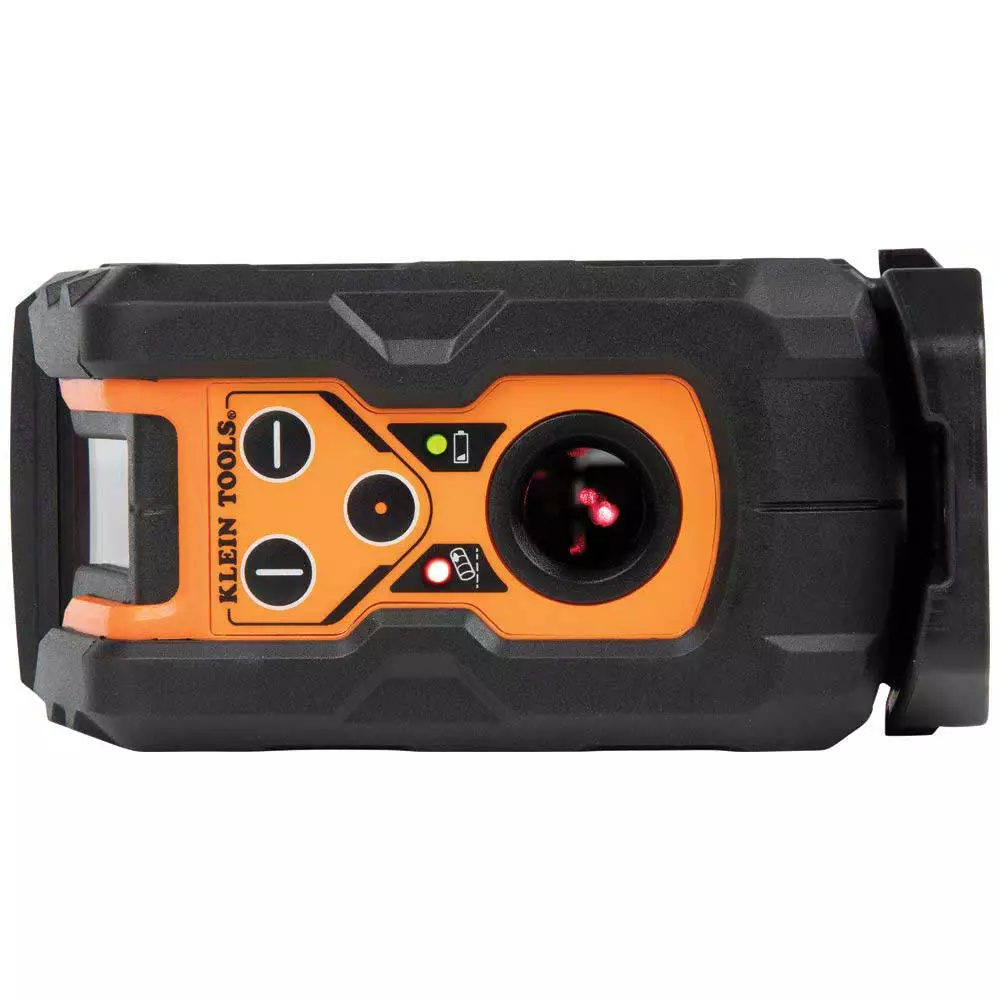

Klein 93LCLG Self Leveling Green Cross Line Laser Level W/ Red Plumb Spot

Features

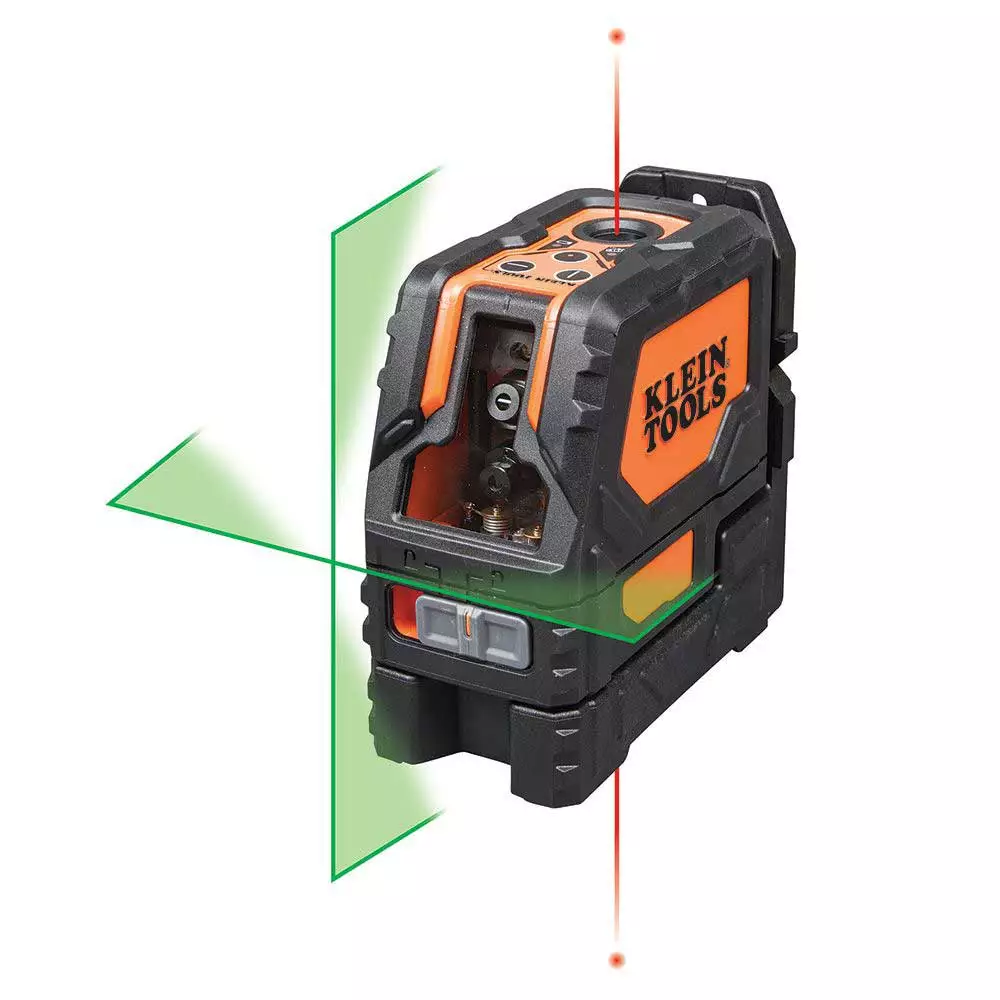

• The self-leveling laser level is easy-to-read with green horizontal and vertical laser lines and red plumb spot lasers
• Projects horizontal and vertical lines independently or together to address various alignment tasks
• Integrated magnetic 360-Degree mounting bracket with 1/4-Inch and 5/8-Inch tripod mounting threads

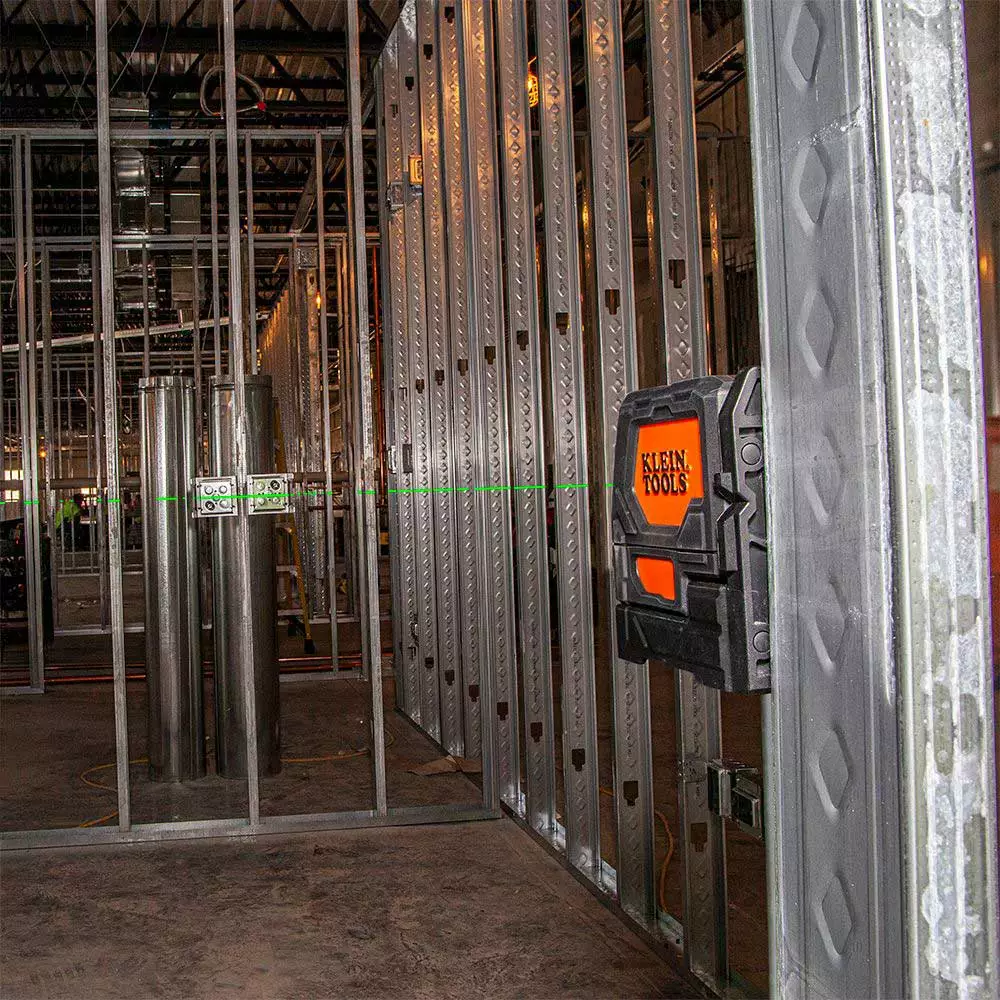

• Magnetic bracket facilitates attachment to ferromagnetic objects such as steel studs, doors, beams or electrical panels
• Additional mounting clamp attachment for use on ceiling grid applications
• Low battery indicator and easily accessible battery compartment
• Water and dust resistance (IP54)
• Hard plastic carrying case included

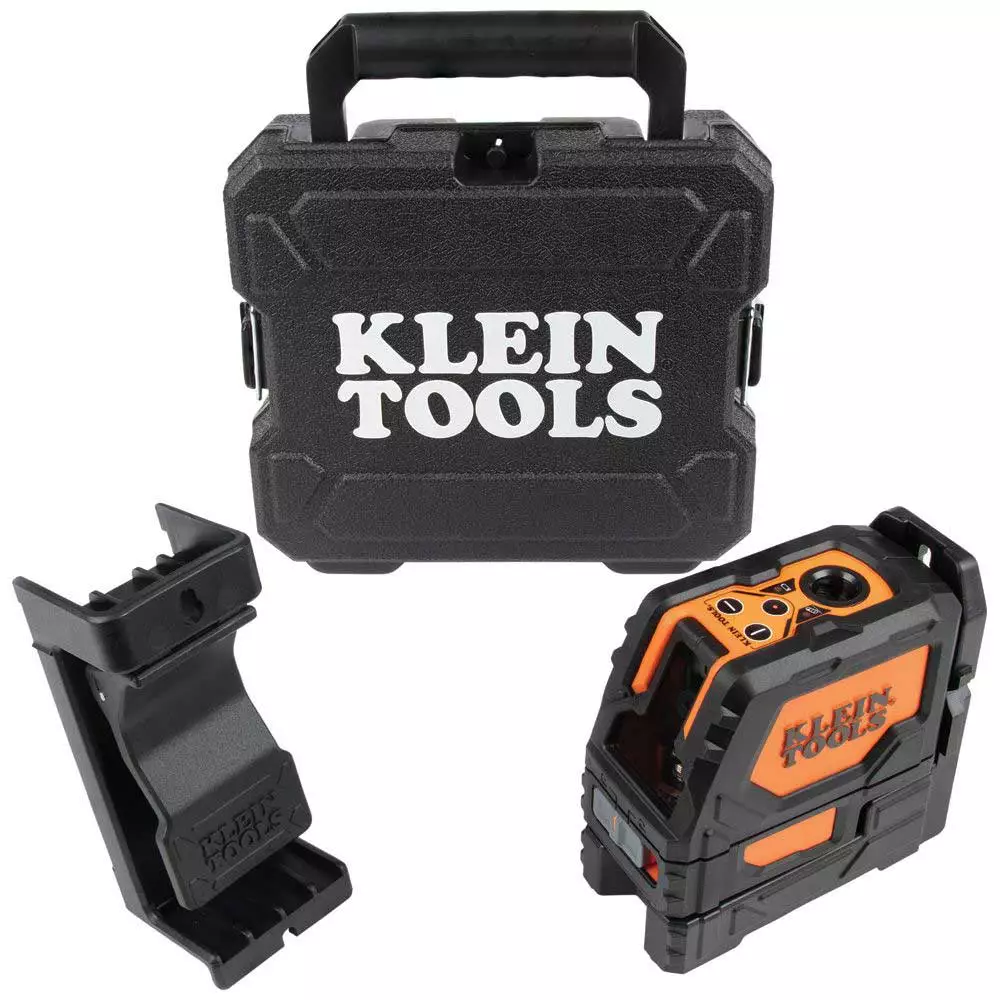

What’s in The Box

• Laser Level
• Hard Carrying Case
• Mounting Clamp
• 3 x AA 1.5V Alkaline Batteries
• Owner’s Manual

Warranty

• Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	93LCLG
Brand	Klein
Type	Laser
Magnet Type	Permanent Rare Earth
Application	Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines, and/or Plumb Spots
Special Features	Integrated Magnetic 360 degree Mounting Bracket with 1/4” and 5/8” Tripod Mounting Threads/ Mounting Clamp Attachment; Excessive Tilt Indicator
Ingress Protection	IP54 / Water and Dust Resistant
Transit Locking Mechanism	Yes
Accuracy	±3/32” per 33′ (+/-2 mm per 10 m) Vertical and Horizontal Beams, +/-1/8” per 33′ (+/-3 mm per 10 m) Plum Spot
Batteries	3 x AA
Low Battery Indicator	Yes
Material	ABS Housing and Electronic Components
Standard	EN61326-1, EN60825-1, 21 CFR 1040.10 and 1040.11
Bag or Case	Hard Carrying Case
Laser Wavelength	515-530 nm (Cross-Lines), 630-680 nm (Plum Spots)
Laser Safety	<1mW Each Beam, Class 2 Laser Product
Number of Beams	Four Horizontal, Vertical, Plumb Up, Plumb Down
Laser Color	Cross Line/ Green, Plumb/ Red
Plumb Laser	Yes
Outdoor Range	65 ft
Max Distance	70 ft
Length	5.3 in
Width	2.6 in
Height	5 in
Weight	1.5 lbs
