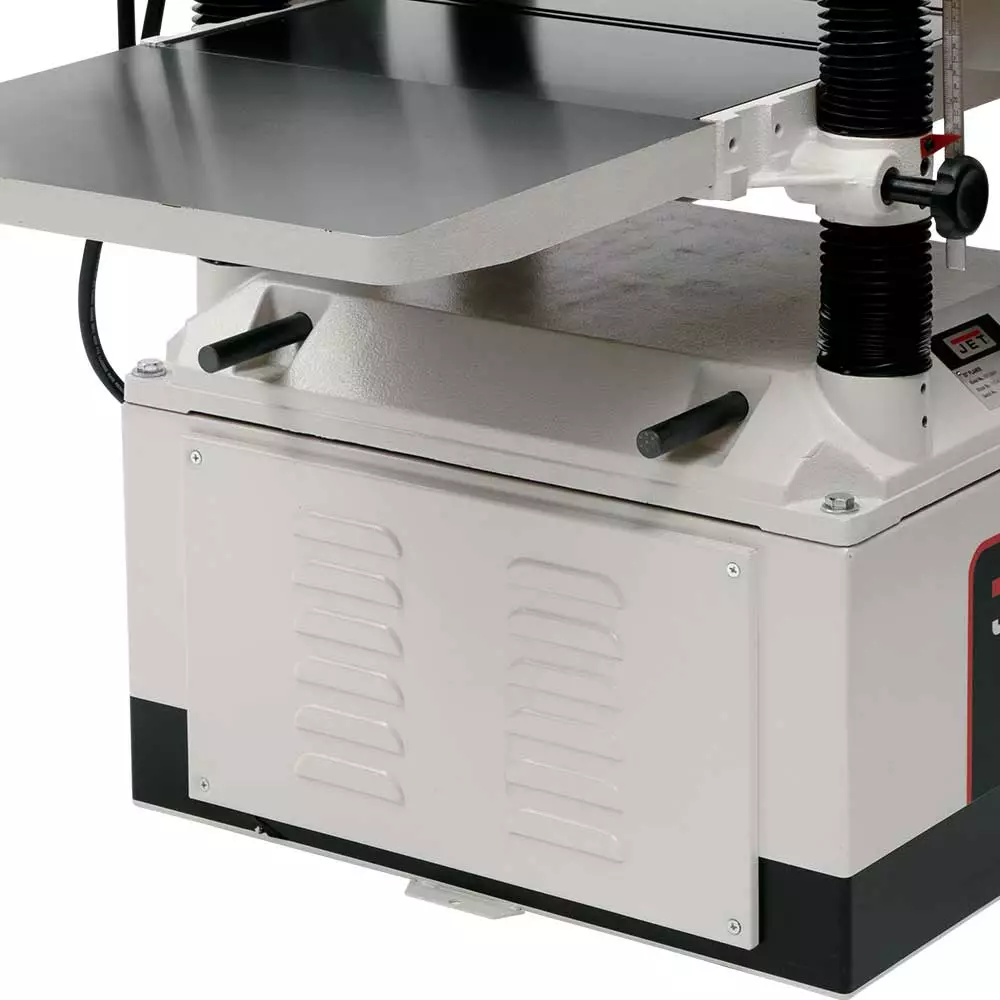

Jet JWP-208HH, 20″ Planer 5HP 1Ph, Helical Head 708544

$92.99

Fast, friendly, always here to help.

Sustainable materials, for a better tomorrow.

Nature-friendly materials, for a better planet.

Control the delivery date and try to deliver it in the fastest time

Features

Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
Heavy-duty cast iron and steel construction for added strength and durability
Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
Large, cast iron, precision ground table for precise workpiece support
Powerful 5 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
Positive gear drive moves table quickly and accurately
Cast iron infeed and outfeed tables come with the machine
Large handwheel with positive gear drive allows for quick and accurately table adjustments
1/16 increment height scale lets you make the most precise adjustments for fine cuts
5 dust port provides efficient chip and dust collection
One-piece welded steel base offers solid support and stability
Magnetic controls provide long life and reliability

What’s in The Box

JWP-208HH, 20 Planer 5HP 1Ph, Helical Head 708544

Warranty

JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Planer
Cutterhead Speed (RPM)	5000
Cutterhead Diameter (In.)	3-3/16
Number of Knives	92 Four-Sided Inserts
Maximum Full Width Depth of Cut (In.)	3/32
Maximum Planing Width (In.)	20
Maximum Planing Thickness (In.)	8
Minimum Planing Length (In.)	6-3/4
Feed Rate (FPM)	24/31
Number of Speeds	2
Table Size (L x W) (In.)	25-3/4 x 20
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	5
Motor Power (HP)	5
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	27
