Features
- Innovative JET – Precision Air Strut System (PASS) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
- Helical Cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut
- Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
- Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
- Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
- Maximum depth of cut 1/8, 6 cutting height and 15 width capacity
- Large cast Iron precision ground infeed/outfeed tables provide support for large work pieces

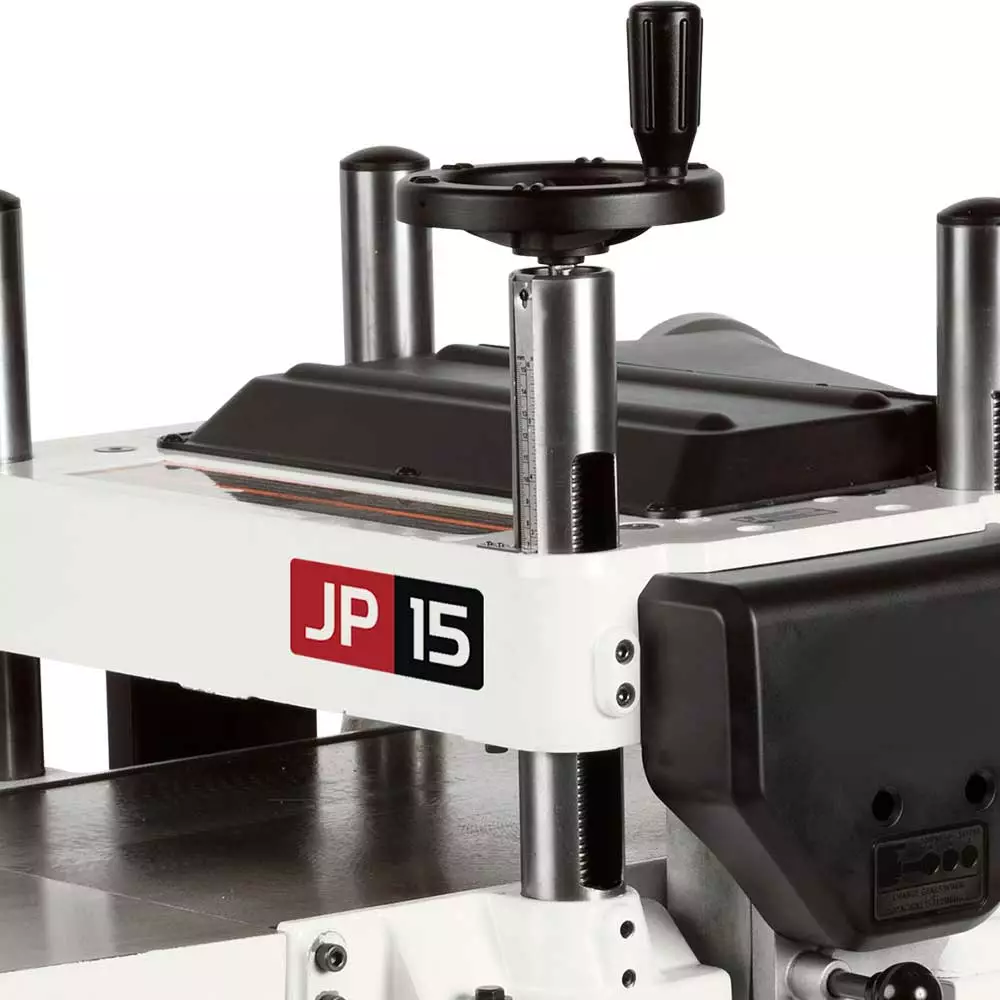

- Large hand wheel with positive gear drive easily moves the head to the desired board thickness

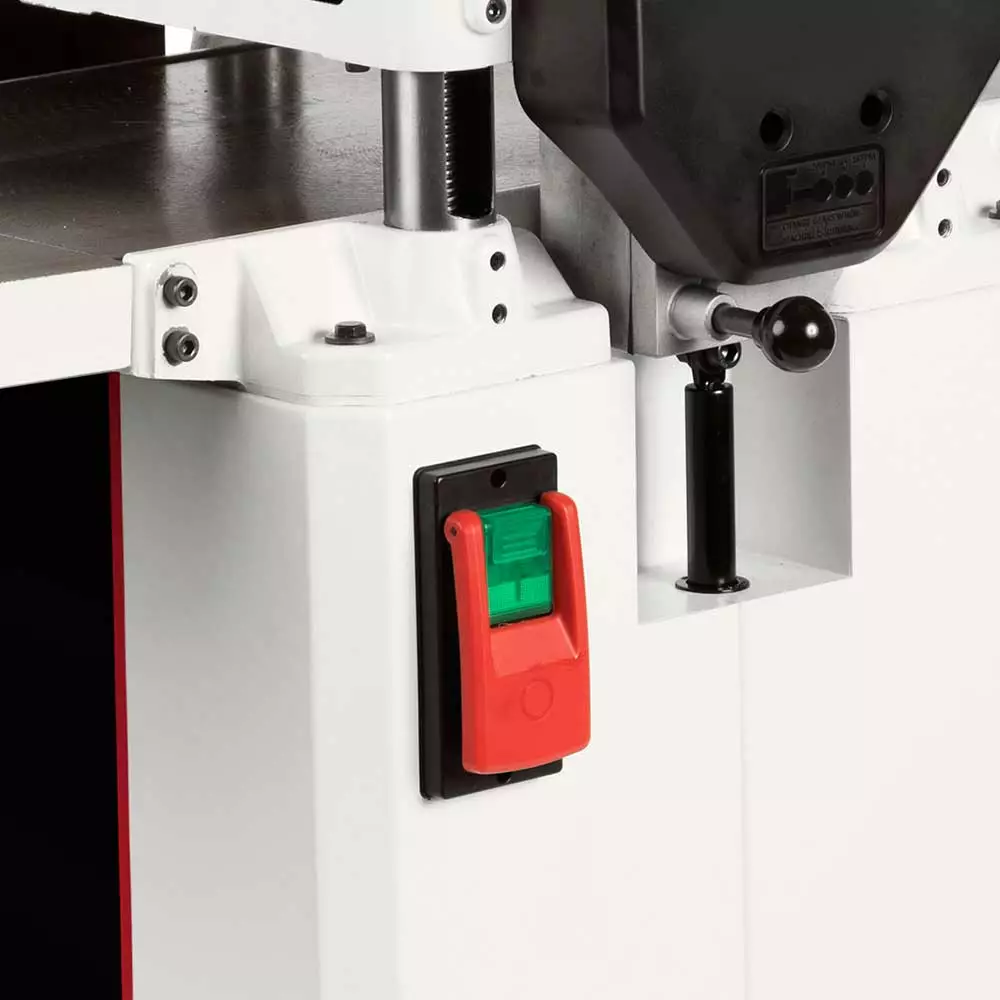

- Magnetic Switch with green safety light illuminates when powered
- 4 Dust Port hooks up to dust management system and helps keep shop clean
What’s in The Box
- 240-Volt 15-Inch Helical Cutterhead Planer
- Owner’s Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | 722155 |
| Model | JWP-15BHH |
| Brand | Jet |
| Voltage | 240V |
| Amperage | 15A |
| Horsepower | 3 Hp |
| Phase | 1 |
| Cutterhead Diameter | 2-5/8 in. |
| Cutterhead Speed | 5,200 Rpm |
| Number of Knives | 48 |
| Max. Depth of Cut | 1/8 in. |
| Max. Full Width Depth of Cut | 1/8 in. |
| Max. Planing Width | 15 in. |
| Max. Planing Thickness | 6 in. |
| Min. Planing Length | 5.6 in. |
| Feed Rate | 16 and 20 Fpm |
| Number of Speeds | 2 |
| Type of Cutterhead | Helical Head |
| Style (Type) | Floorstanding Model |
| Dust Port Outside Diameter | 4 in. |
| Table Size (L x W) | 15 in. x 46.5 in. |
| Shipping Weight | 352 lbs. |
