Features
- 16″ Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 27-1/4″ x 20″ precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking
- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
- Cast iron trunnion for maximum support and stability
- Slotted table allows for front blade removal
- Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
- Round table insert features leveling screws for precise adjustment
- Conveniently located dual 4″ dust collection ports catch dust and chips at the source
- Table tilts 5Degree left and 45Degree right to accommodate a wide variety of cuts
What’s in The Box

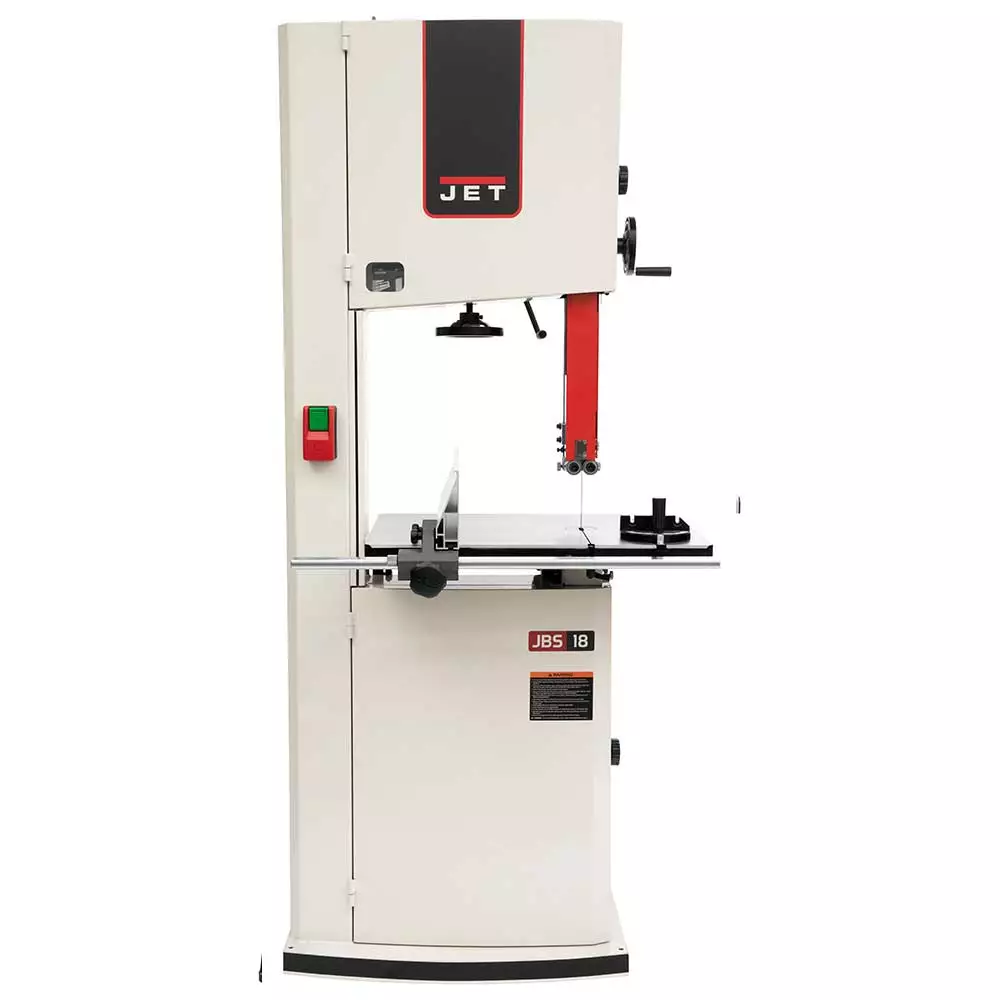

- 18-Inch 230-Volt 3-Hp Stationary Bandsaw
- Owner’s Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | 714750 |
| Brand | Jet |
| Model | JWBS-18-3 |
| Voltage | 230V |
| Horsepower | 3 Hp |
| Phase | 1 |
| Recommended Circuit Size | 30A |
| Band Saw Size | 18-1/2 in. |
| Cutting Capacity Width | 18 in. |
| Cutting capacity Height | 16 in. |
| Blade Length | 150 in. |
| Blade Speed | 2,300 / 3,800 Sfpm |
| Table Size (L x W) | 27-1/4 in. x 20 in. x 1-5/8 in. |
| Blade Width | 3/4 in. x 6 tpi |
| Max. Saw Blade Width | 1-1/4 in. |
| Min. Saw Blade Width | 1/8 in. |
| Table Tilt | -5-Degrees, 45-Degrees |
| Table Height From Floor | 37 in. |
| Dust Collection Minimum Cfm Required | 400 Cfm |
| Dust Port Outside Diameter | (2) 4 n. |
