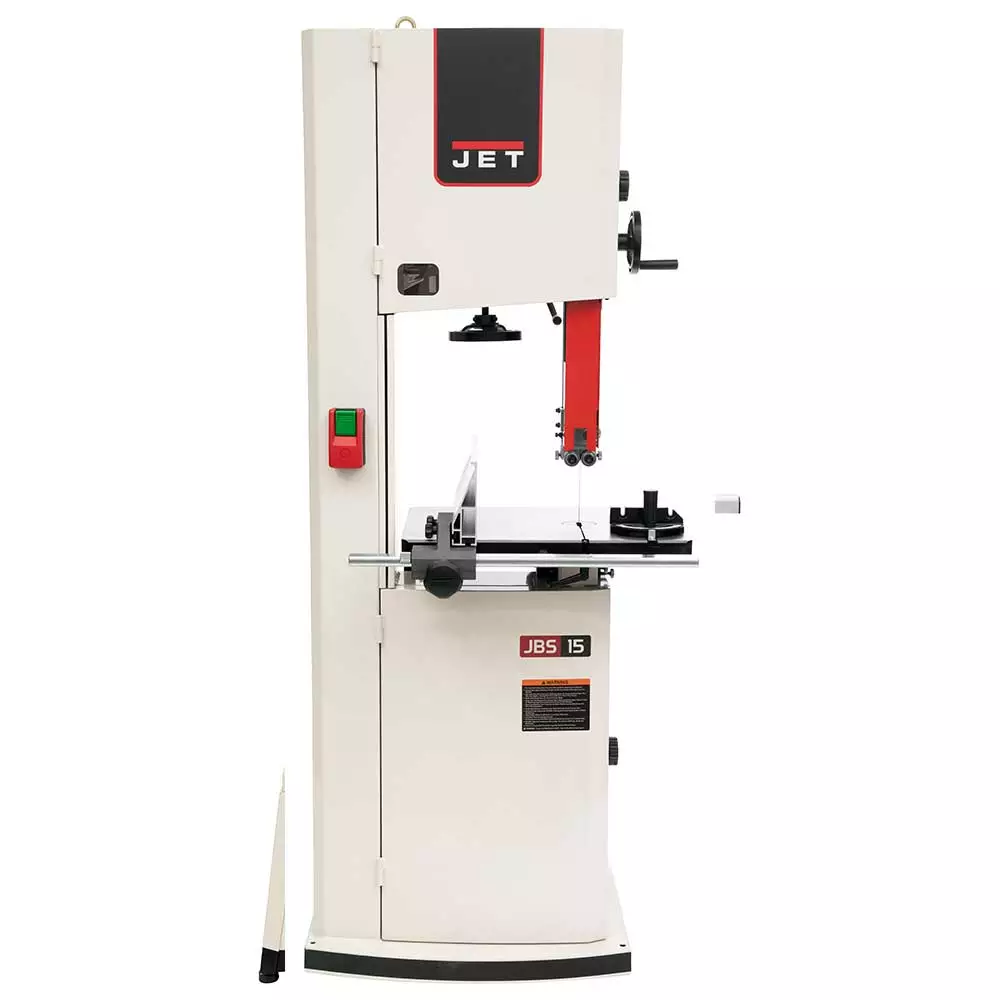

JET JWBS-15 1.75-Hp 115/230V 15″ Heavy Duty Bandsaw W/ Cast Iron Fence System

Features

• 14″ Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
• 21-1/2″ x 16″ precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides
• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking
• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
• Cast iron trunnion for maximum support and stability
• Slotted table allows for front blade removal
• Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
• Round table insert features leveling screws for precise adjustment
• Conveniently located dual 4″ dust collection ports catch dust and chips at the source
• Table tilts 5-Degrees left and 45-Degrees right to accommodate a wide variety of cuts

What’s in The Box

• 15-Inch 1-3/4-Hp 115/230-Volt Statonary Bandsaw
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	714600
Brand	Jet
Model	JWBS-15
Motor Voltage	115/230V
Prewired Voltage	115V
Amperage	15A / 7.5A
Recommended Circuit Size	20A
Band Saw Size	14-3/4 in.
Cutting Capacity Width	14-1/8 in.
Ctting Capacity Height	14 in.
Blade Length	113 in.
Blade Speed	3,000 Sfpm
Table Size	21-1/2 in. x 16 in. x 2 in.
Blade Width	1/2 in. x 6 Tpi
Max. Saw Blade Width	1 in.
Min. Saw Blade Width	1/8 in.
Table Tilt	-5-Degrees, 45-Degrees
Table Height from Floor	35 in.
Dust Collection Cfm Required	400 Cfm
Dust Port Outside Diameter	(2) 4 in.
