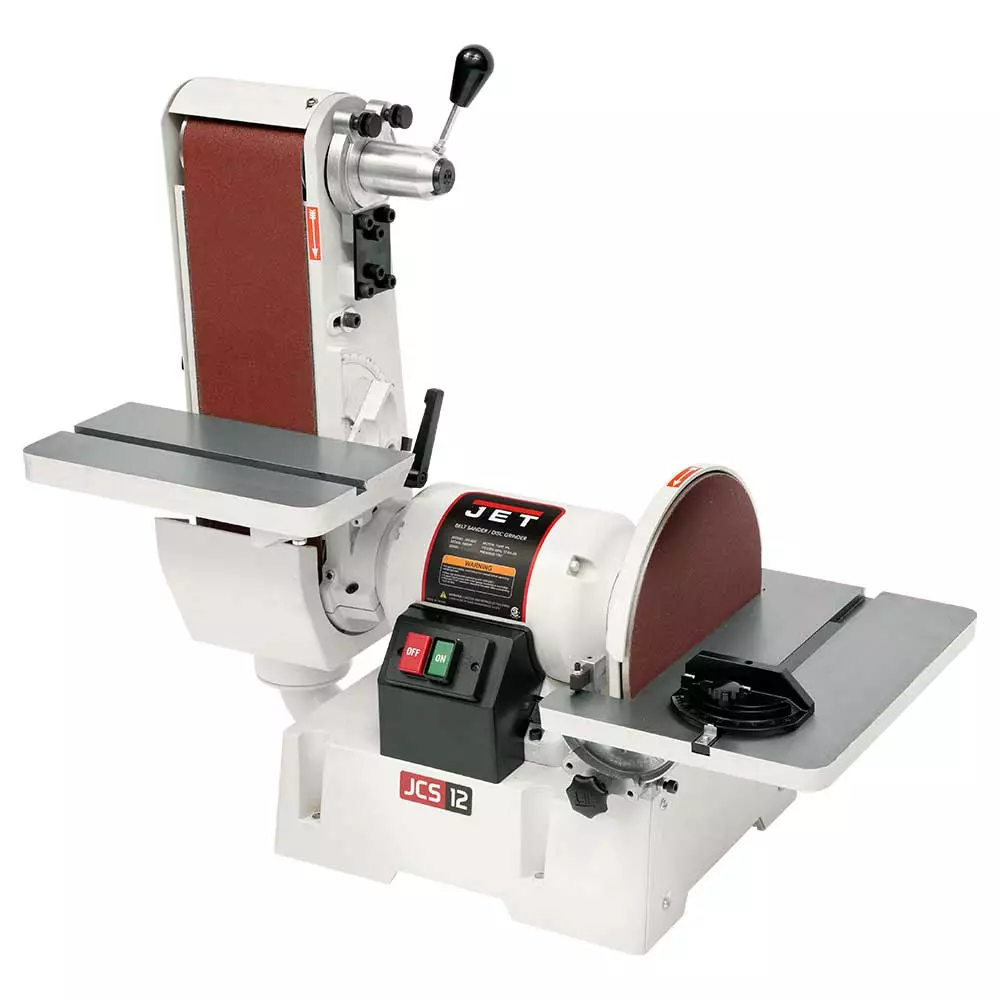

Jet JSG-6DC 115/230V 1-1/2HP, 1Ph 6″ X 48″ Belt / 12″ Disc Sander – 708599

Features

• Two precision-ground cast iron tables have positive stops at 90Degree and 45Degree for sanding flat pieces or mitered angles; allows belt sander to be used vertically, horizontally or anywhere in-between
• Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
• Graphite covered steel platen runs cooler increasing machine and belt life
• Specially designed belt guard allows full use of the 6 belt width and length
• Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
• Tracking adjustment knob with quick-lock handle keeps belt on track during use
• Quick-release belt tension lever makes belt changes fast and easy
• Quick-lock dust cover allows fast disc changes
• Single 4 dust port on the back of the base collects dust effectively from both the belt and disc
• Powerful 1-1/2HP motor easily handles the toughest sanding operations
• Built-in handles for easier portability

What’s in The Box

• JSG-6DC, 6 x 48 Belt / 12 Disc Sander, 1-1/2HP, 1Ph 115/230V 708599

Warranty

• JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
• 30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Benchtop
Disc Diameter (In.)	12
Disc Speed (RPM)	1725
Disc Table Tilt (Deg.)	25 Up, 45 Down
Disc Table Size (L x W) (In.)	16-1/2 x 10
Sanding Belt Size (L x W) (In.)	48 x 6
Belt Speed (RPM)	2500
Belt Table Tilt (Deg.)	20 Up, 45 Down
Belt Table Size (L x W) (In.)	12-1/2 x 7
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1-1/2
Motor Phase (PH)	1
Motor Voltage (V)	115/230
Prewired Voltage (V)	115
Motor Amps	12/6
