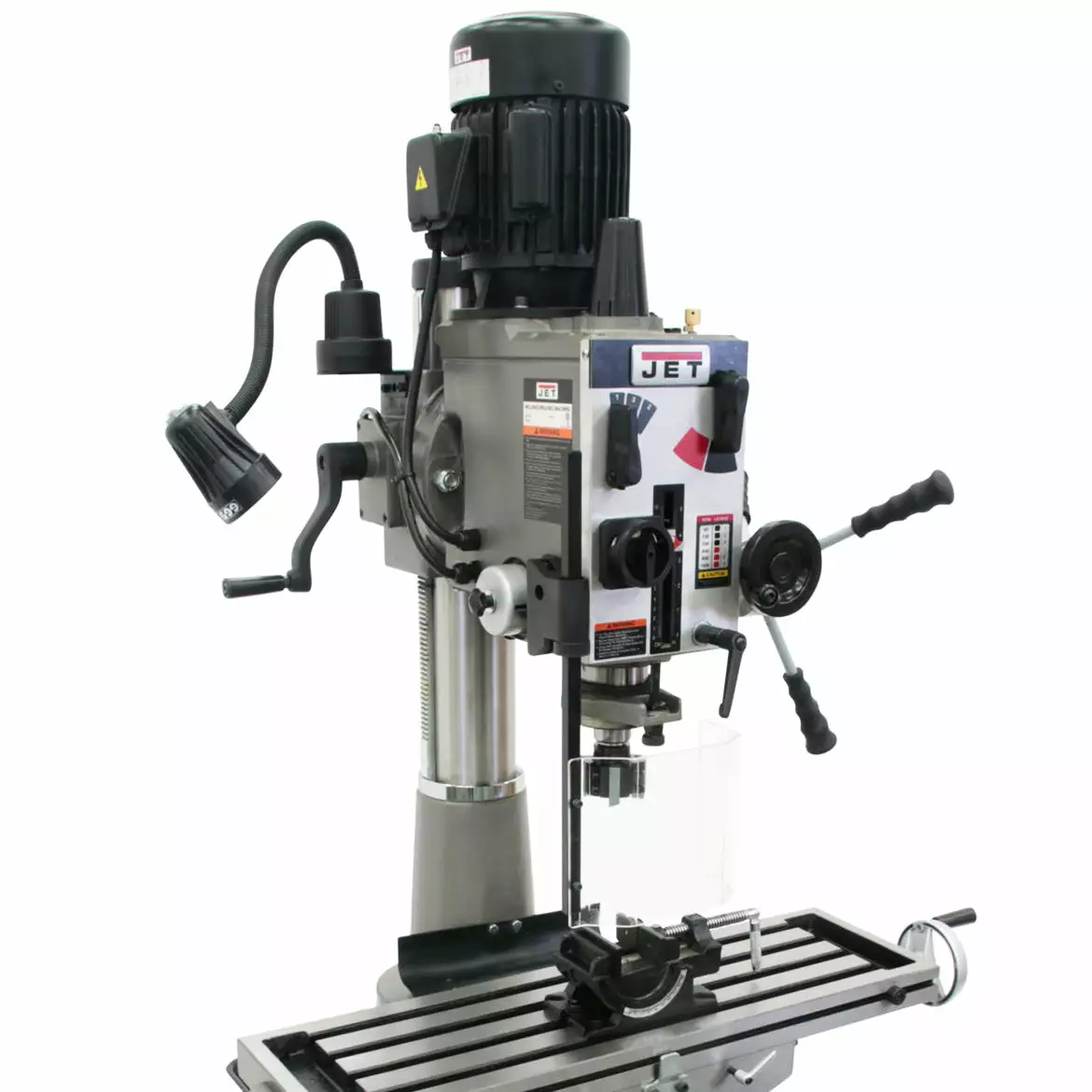

JET JMD-40GH 1-1/2-Hp 115/230V Round Column Geared Head Mill Drill

Features

• Heavy-duty design allows for a variety of precision drilling applications
• Full power to the cutting tools through 6 speed geared head
• CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
• Spindle guard
• Work Lamp
• Calibrated fine down feed built in
• Easy to read internal depth gauge
• Head tilts left and right 90-Degrees
• Rapid spindle speed changes through quick-select gear shift levers
• Forward/reverse switch
• Milling table allows for movement
• R8 spindle allows use of all mill tooling

What’s in The Box

• 1-1/2-Inch Geared Head Mill/Drill
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	351040
Brand	Jet
Voltage	115/230v
Horsepower	1-1/2 Hp
Phase	1-Phase
Drilling Capacity	1-1/2 in. Mild Steel
Face Mill Capacity	4 in.
End Mill Capacity	3/4 in.
Swing	21 in.
Max. Distance Spindle to Table	15-3/4 in.
Spindle Taper	R-8 in. x tpi
Spindle Travel	5 in.
Quill Diameter	4-1/2 in.
Number of Spindle Speeds	6
Range of Spindle Speed	65, 130, 220, 480, 925, and 1,550 Rpm
Table Size (L x W)	32-1/4 in. x 9-1/2 in.
Table Longitudinal Travel	20-1/2 in.
T-Slots Number and Size	4 and 5 in. x 1 in.
Base Dimensions	24-1/4 in. x 15-15/16
Length	28 in.
Width	39-1/4 in.
Height	42-1/2 in.
Product Weight	628 lbs.
Shipping Weight	628 lbs.
