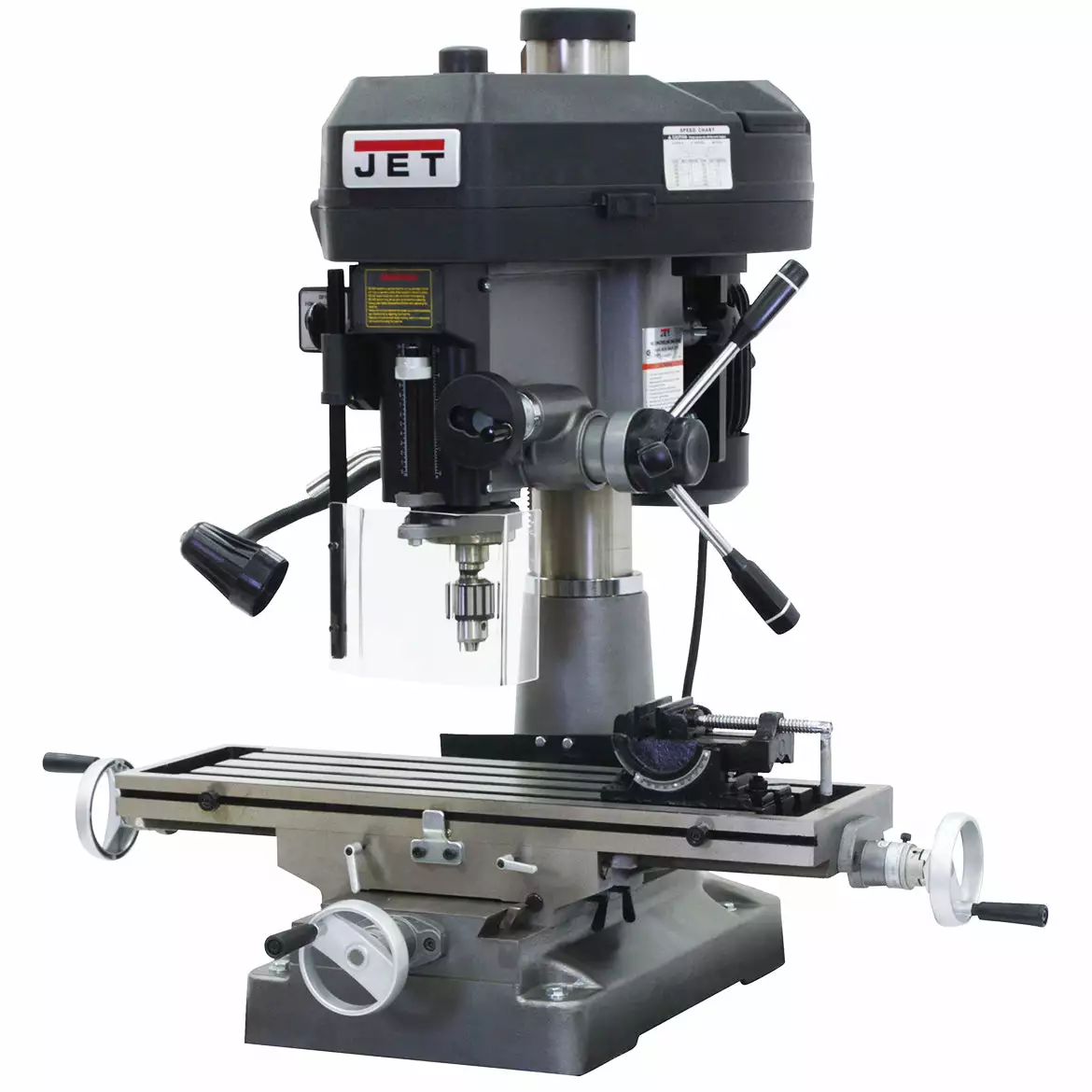

JET JMD-18 115/230V 1PH 1HP Mill/Drill W/ R-8 Taper – 350018 Tools & Equipment

Features

• One-piece cast iron column for added support
• Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
• Base taper allows for easier clean up
• Larger hand wheel knobs
• Drill Press angle vise
• UL Listed motor
• Extra large worktable
• Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
• 360 degree head swivel
• Work lamp
• Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
• 1/2 drill chuck, chuck arbor
• Draw bar
• Drill Chuck Guard
• Adjustable Carbide facemill

What’s in The Box

• JET JMD-18 Mill/Drill w/ R-8 Taper 115/230V 1PH

Warranty

• JET Red Assurance 2-Year Warranty
• JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
• 30 Day Satisfaction Guaranteed

Specifications

Model:	350018
UPC:	662755103902
Drilling Capacity (In.)	1-1/4
Face Mill Capacity (In.)	3
End Mill Capacity (In.)	3/4
Swing (In.)	15-7/8
Max Distance Spindle to Table (In.)	18
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5
Quill Diameter (In.)	3
Column Diameter (In.)	4-1/2
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	150 – 3,000
Table Size (L x W) (In.)	9-1/2 x 32-1/4
Table Longitudinal Travel (In.)	20-1/2
Work Table Weight Capacity (Lbs.)	400
T-Slots Number and Size (In.)	4, 5/8
T-Slot Centers (In.)	1-13/16
Base Dimensions (In.)	15-3/4 x 23-3/4
Motor (HP)	2 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)	47 x 40 x 51
Weight (Lbs.)	660
