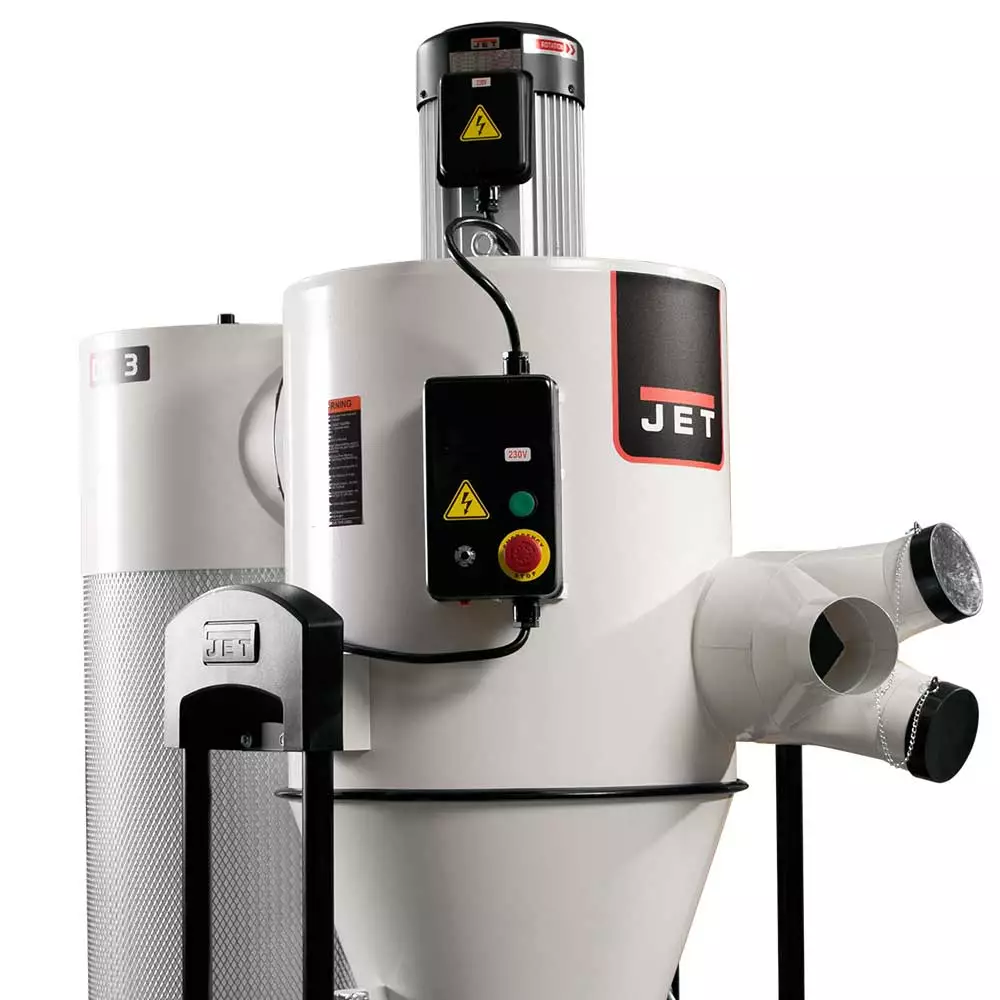

Jet JCDC-3 230-Volt 3-Hp Single Phase Cyclone Dust Collector – 717530K

Features

• Two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below

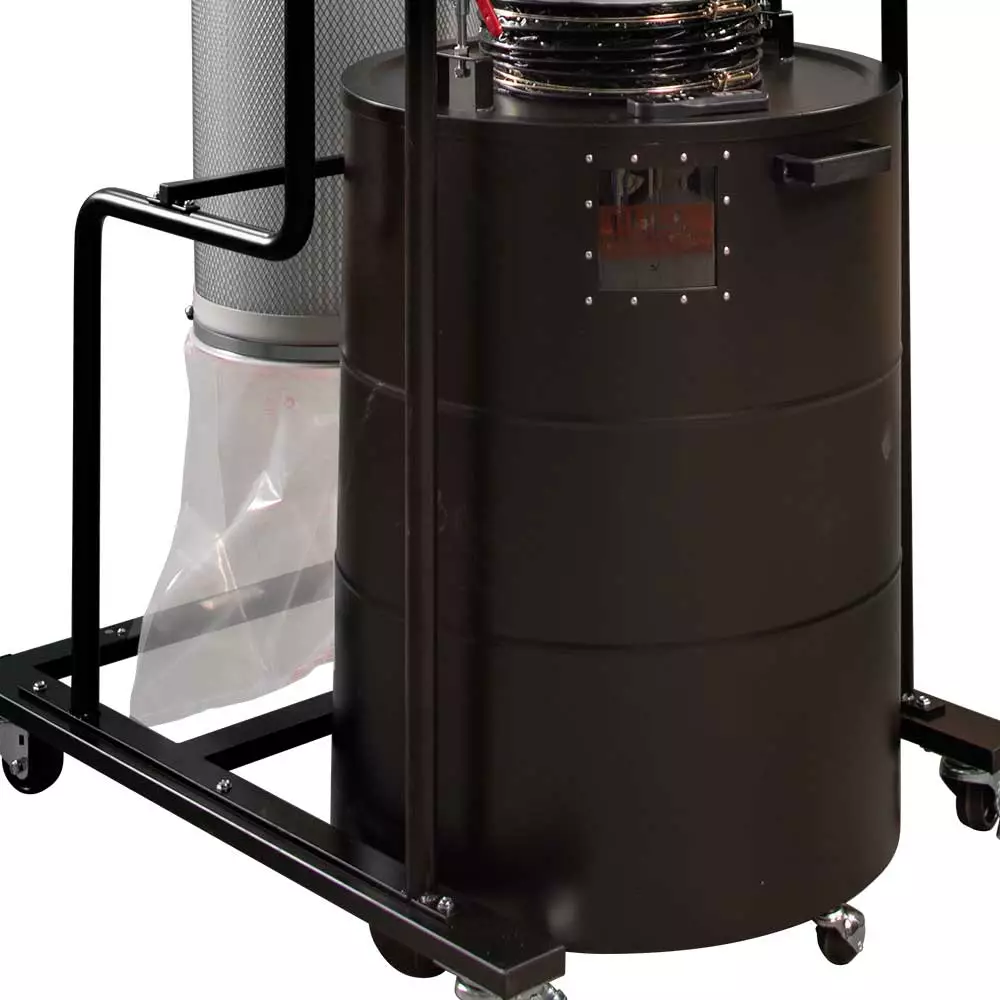

• Heavy debris is captured in a 66 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away

What’s in The Box

• JCDC-3 230-Volt 3-Hp Single Phase Cyclone Dust Collector – 717530K
• Owner’s Manual

Warranty

• 5 Year aa‚a Woodworking Machinery
• 2 Year aa‚a Woodworking Machinery used for industrial or commercial purposes
• 90 Days aa‚a On Parts; Consumable items
• 30 Day Satisfaction Guaranteed

Specifications

Model	JCDC-3
Sku	717530K
Brand	Powermatic
Length (in.)	30.44
Width (in.)	57
Height (in.)	88
Weight (lbs.)	242
Amps	13A
Bag Diameter (in.)	38-9/16 x 47-1/4
Blower Wheel Diameter (in.)	15
Capacity (Gallons)	66
Filter Bag Length (in.)	23-5/8 x 19-11/16
Footprint (in.)	57 x 30-7/16
Horsepower	3
Hose Connection Diameter (3 Hoses) (in.)	(1) 8 , (2) 4
Impeller Material	Steel
Motor Phase	1
Separator Tank Diameter (in.)	14-9/16
Separator Tank Height (in.)	38-3/8
Sound Rating	76 Db
Static Pressure	8.9 Wc
Voltage	230
