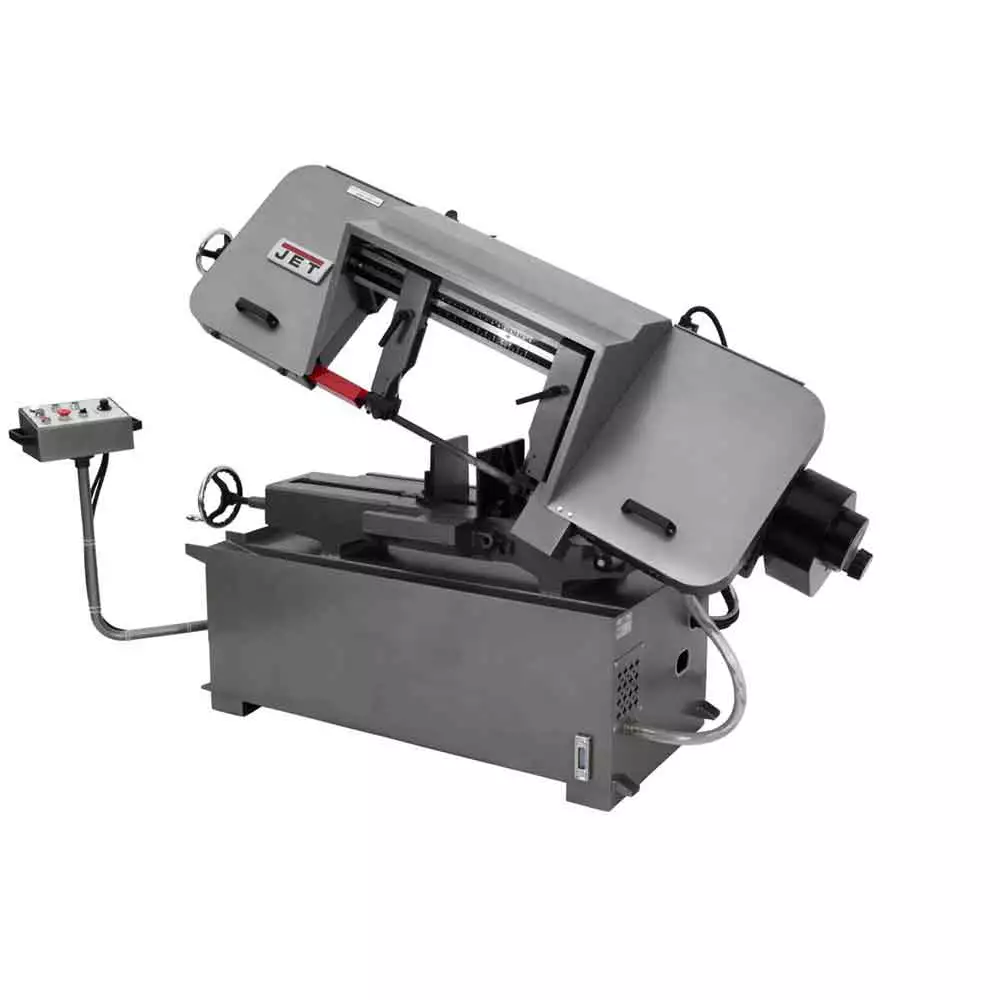

JET J-7060 3-Hp 460V 12″ X 20″ Heavy Duty Semi-Automatic Horizontal Bandsaw Tools & Equipment

Features

• Swing away control panel houses major saw controls
• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
• Saw head raises hydraulically after each cut
• Variable speed drive system allows the operator to easily fine tune the blade speed
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Cast Iron blade wheels
• Patented 3-Jaw vise with rapid action moveable jaw for faster set up
• Coolant system
• Adjustable material stop
• 1″ Bi-Metal blade

What’s in The Box

• JET J-7060 12″ x 20″ Semi-Automatic Horizontal Bandsaw 230V 3PH
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	414476
UPC	662756090997
Cutting Capacity (W x D) (In.)	12 x 20
Round at 90 Degrees (In.)	12
Round at 45 Degrees (In.)	12
Rectangle at 90 Degrees (In.)	12 x 20
Rectangle at 45 Degrees (In.)	12 x 12
Vise Swivels (Deg.)	45°
Blade Speeds (SFPM)	82 – 262
Blade Wheel Diameter (In.)	17
Blade Length (In.)	156
Blade Size (In.)	1 x .035 x 156
Bed Height (In.)	26-1/4
Motor (HP)	3 HP, 230/460V, 3Ph
Weight (Lbs.)	1,456
Overall Dimensions (L x W x H) (In.)	87 x 37-1/2 x 53
