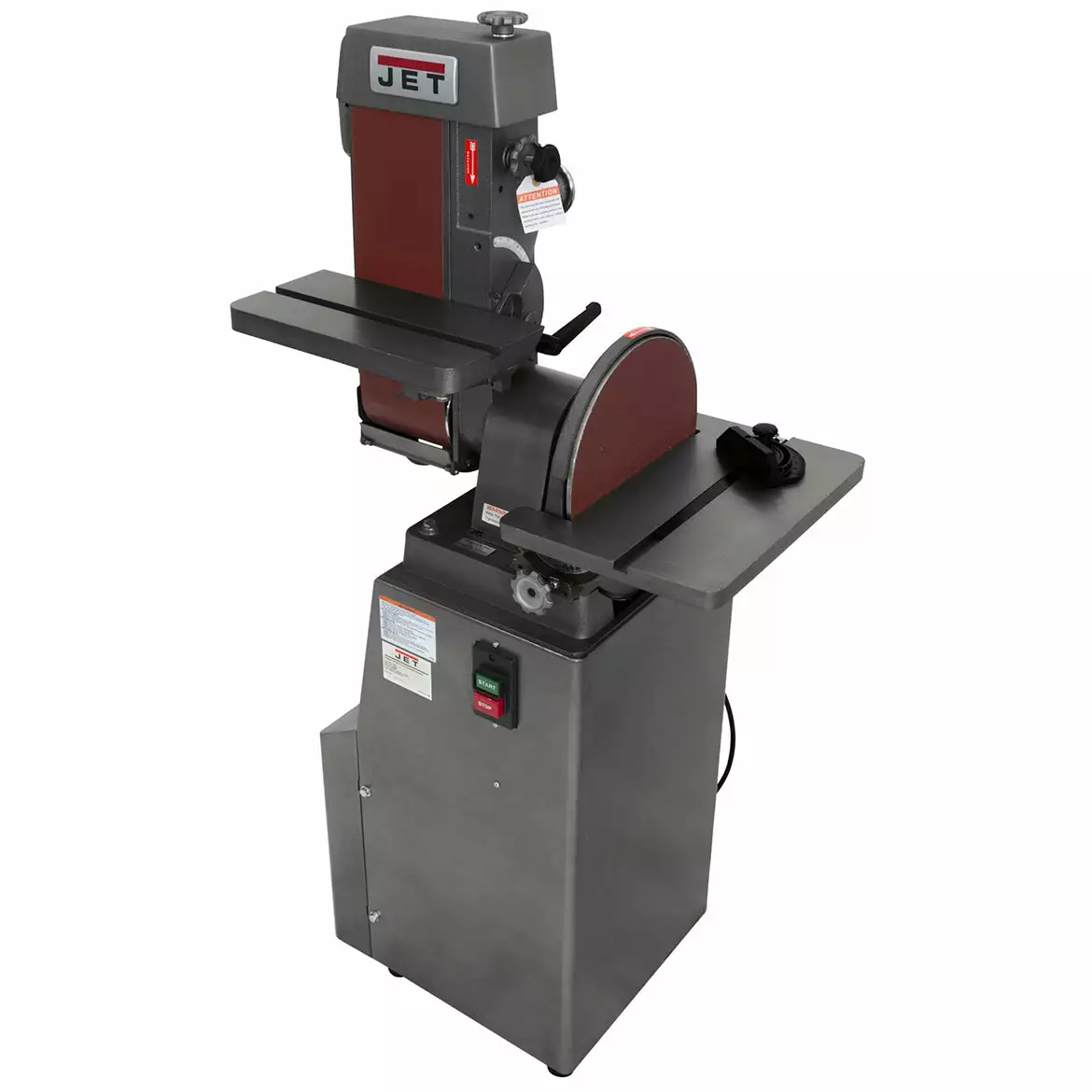

JET J-4200A-2 1-1/2-Hp 230V 6″ X 48″ Industrial Combo Belt/Disc Machine

Features

• For added safety, the motor and electrics follow strict guidelines and electrical requirements to be certified by CSA Group
• Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge
• Fully machined, balanced disc
• Belt operates at any angle
• Removable upper belt guard for contour finishing
• Completely enclosed drums and guarded sanding belt
• Adjustable heavy-duty cast iron removable platen
• Variable position locks

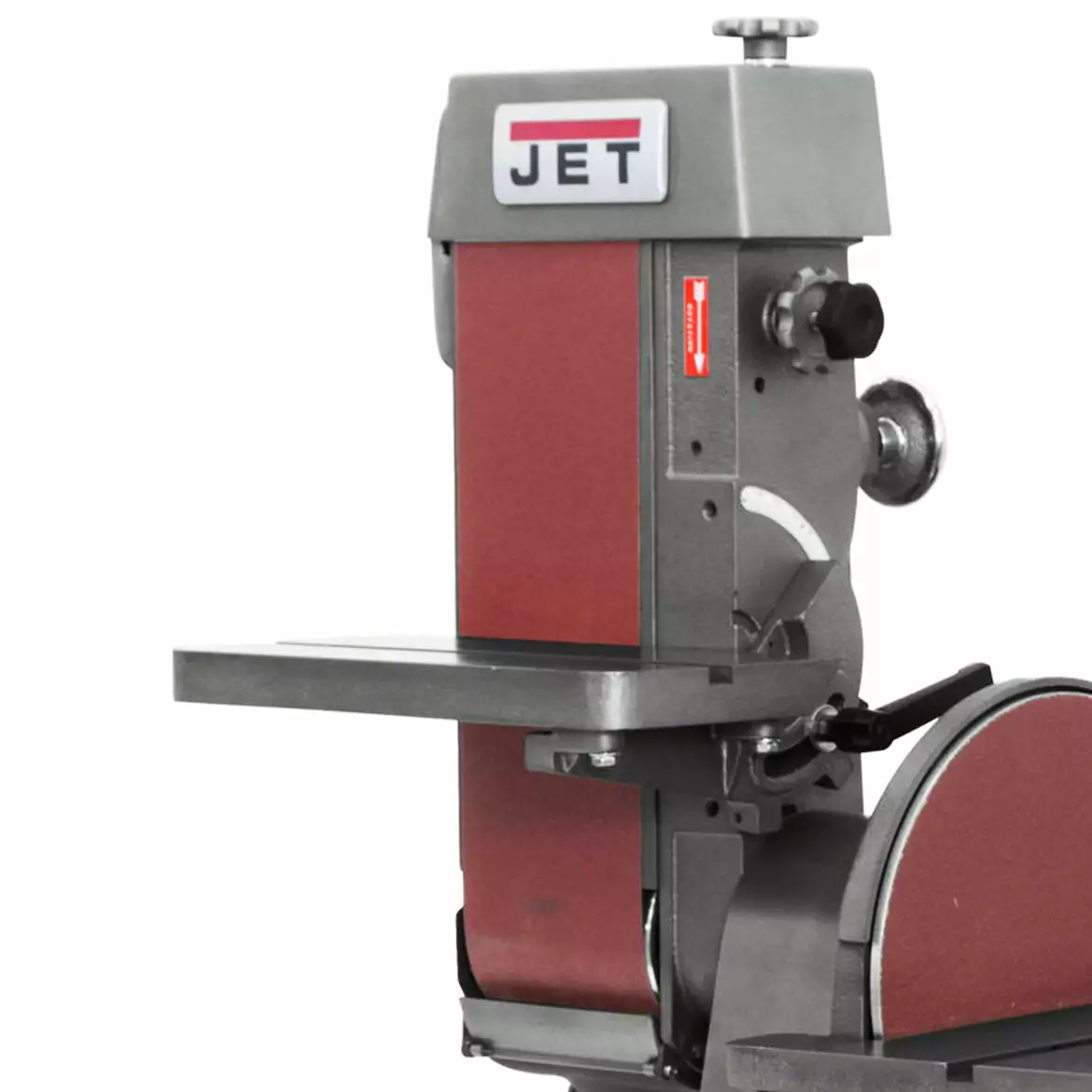

• Belt head adjusts vertically and horizontally
• Large cast iron slotted table
• Adjustable dust collector and dust chute

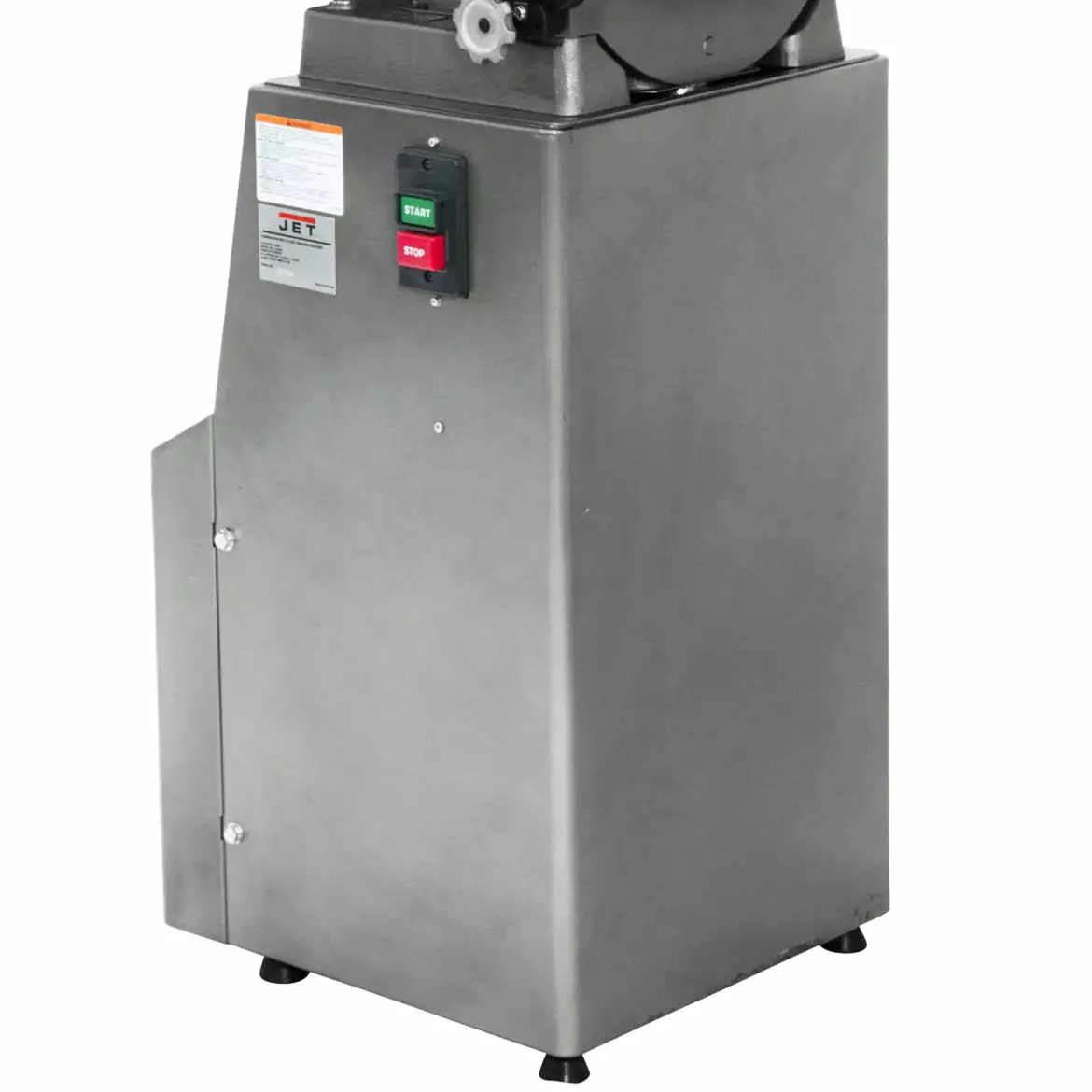

• Heavy-duty one-piece steel stand
• 60 grit belt and disc standard on machine
• Miter gauge included

What’s in The Box

• JET J-4200A-2, 6″ x 48″ Industrial Combination Belt and Disc Finishing Machine 230V 1PH
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	414552
UPC	662755111358
Disc Diameter (In.)	12
Disc Speed (RPM)	1,960
Belt Size (W x L) (In.)	6 x 48
Belt Speed (SFPM)	2,850
Disc Table Size (L x W) (In.)	12 x 16-3/8
Disc Table Tilt (Deg.)	45 Out, 20 In
Table Slots (In.)	3/8, 3/4
Belt Table Tilt (Deg.)	45 Out, 20 In
Belt Table Size (In.)	7-3/8 x 14-3/4
Motor (HP)	1-1/2 HP, 230V, 1 Ph
Overall Dimensions (L x W x H) (In.)	29 x 19 x 58
Weight (Lbs.)	250
