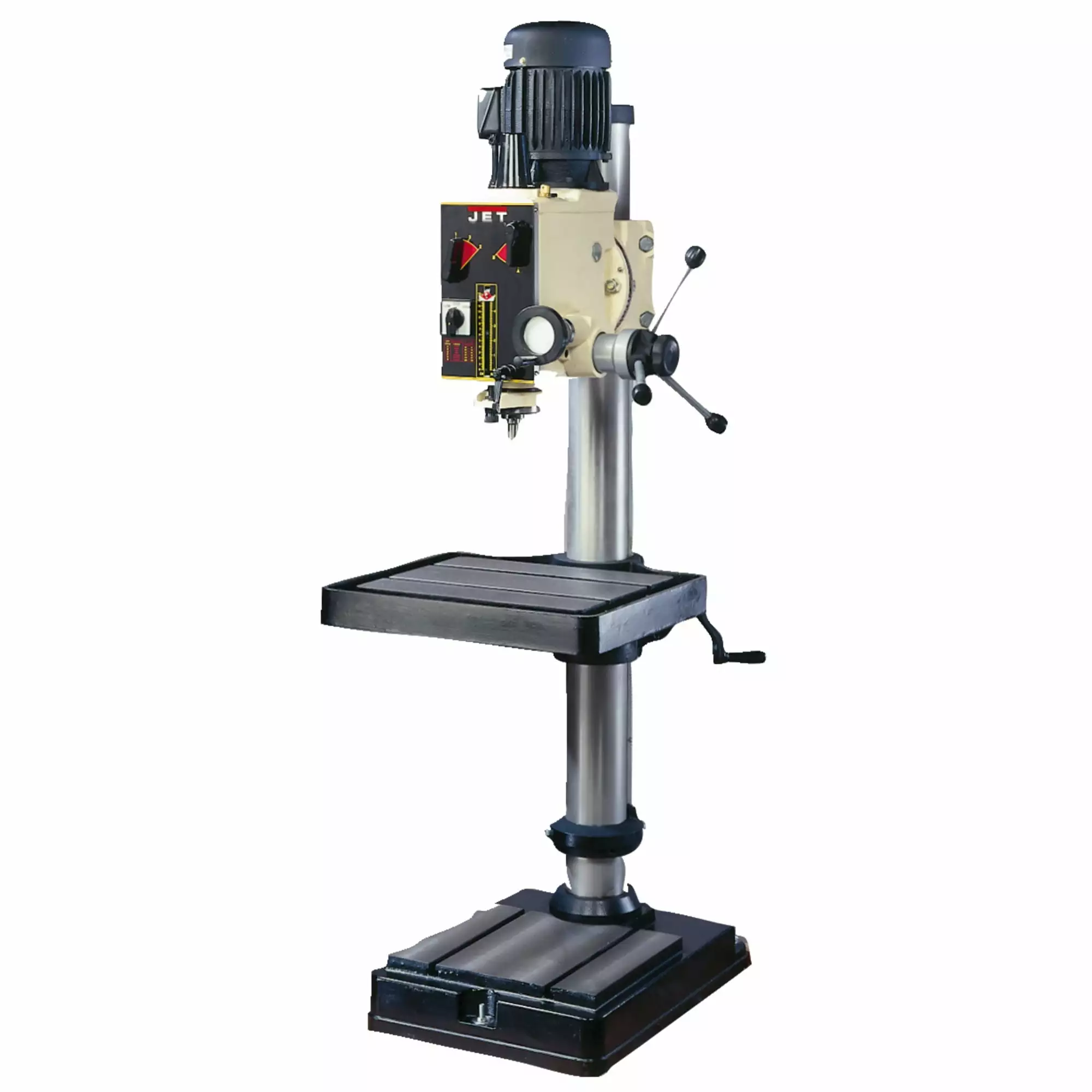

JET GHD-20 2-Hp 230V 20″ Smooth Quiet Geared Head Drill Press W/ Metric Gauge

Features

• Heavy-duty design allows a variety of precision drilling applications
• Large production table and T-slotted base
• Easy-to-read internal depth gauge
• Three power downfeed rates
• Calibrated fine downfeed built in
• TEFC motor
• Built-in spindle lock
• Head tilts left or right
• Easily accessible table raiser
• Drill chuck arbor
• Draw bar

What’s in The Box

• JET GHD-20, 20″ Gear Head Drill Press 230V 3PH
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	354020
UPC	662755803840
Style (Type)	Geared Head
Drills to Center of Circle (In.)	20
Drilling Capacity Cast Iron (In.)	1-1/2
Drilling Capacity Mild Steel (In.)	1-1/4
Column Diameter (In.)	4-1/2
Distance Column to Spindle (In.)	10
Range of Spindle Speeds (RPM)	Low – 60, 130, 230, 450, 800, 1500; High 120, 260, 460, 900, 1600, 3000
Spindle Taper (In. x TPI)	MT-3
Spindle Travel (In.)	5
Spindle Distance to Base (In.)	44-15/16
Spindle Distance to Table (Max.) (In.)	30-1/2
Table Size (L x W) (In.)	21-3/4 x 19-1/2
Table Travel (In.)	25-1/2
T-Slots Number and Size (In.)	2 and 5/8
T-Slot Centers (In.)	9
Work Table Weight Capacity (Lbs.)	275
Base Dimensions (In.)	26 x 18
Base Work Table (In.)	15-1/4 x 13
Base Slots Number and Size (In.)	2 and 5/8
Motor (HP)	2 HP (2 Speed) , 230V, 3Ph
Prewired (V.)	230
Overall Dimensions (L x W x H) (In.)	32 x 24 x 71
Weight (Lbs.)	660
