Jet DC-1100VX-CK Dust Collector 1.5HP 1PH Filter Kit 708659K Tools & Equipment

Features

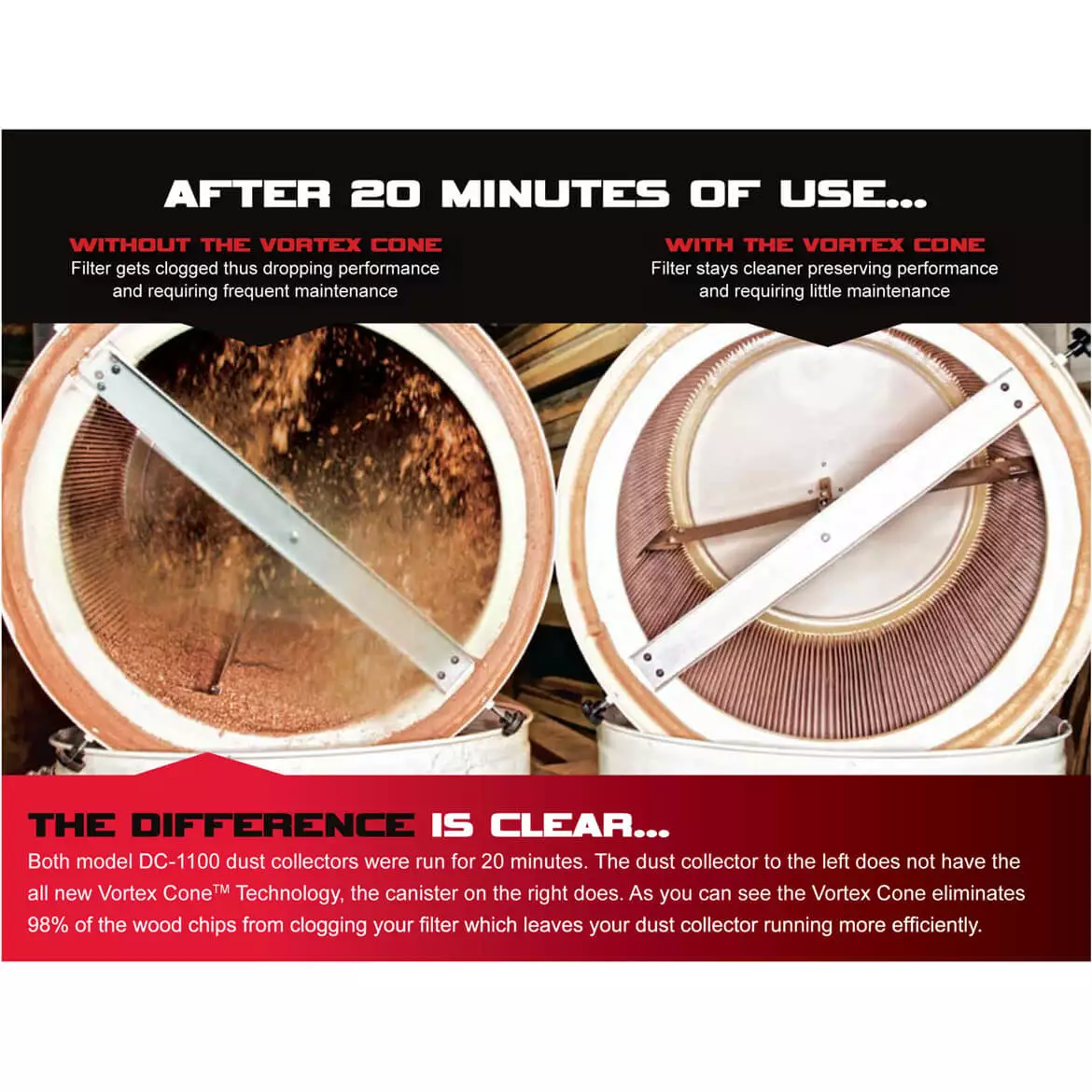

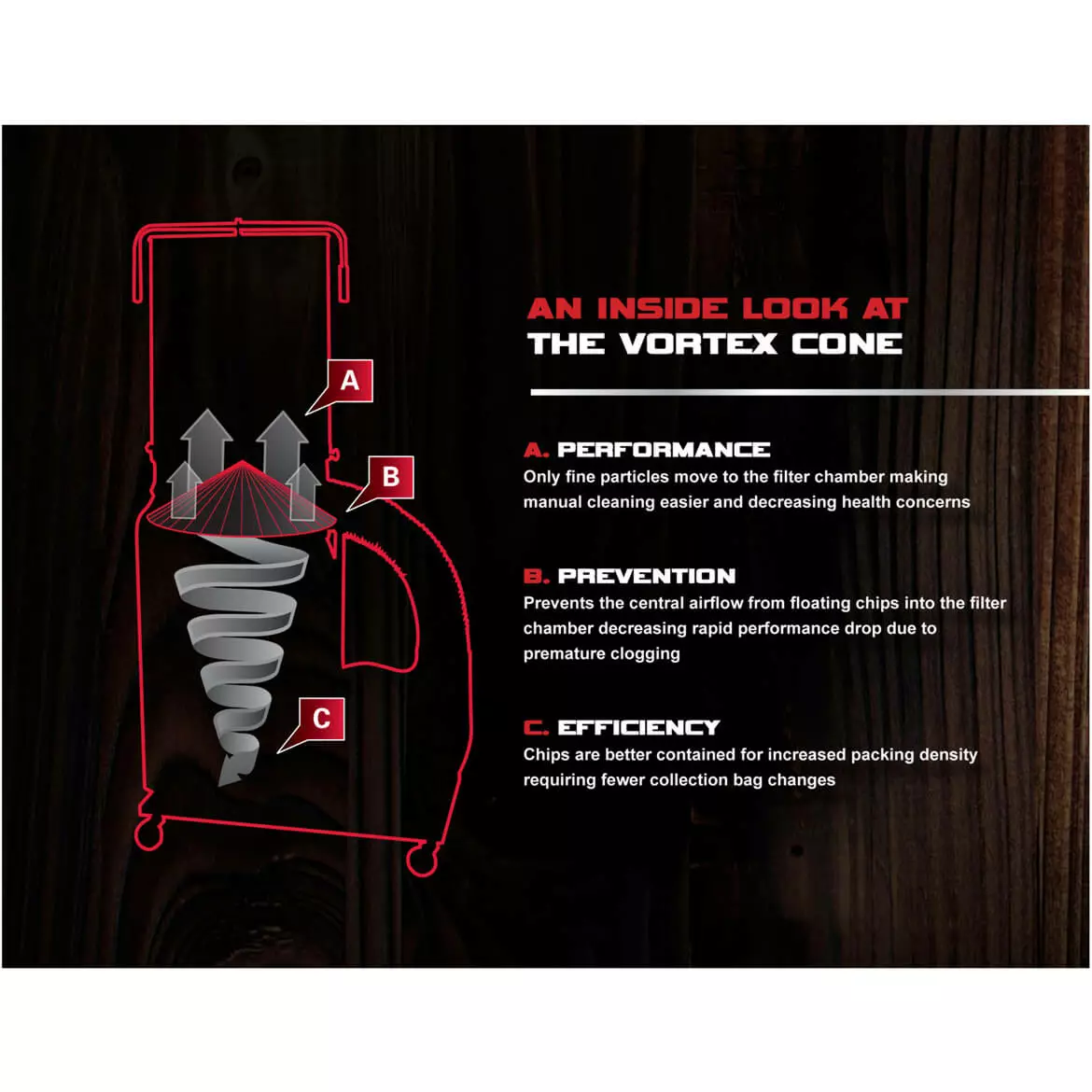

• Vortex Cone improves chip separation and collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability

What’s in The Box

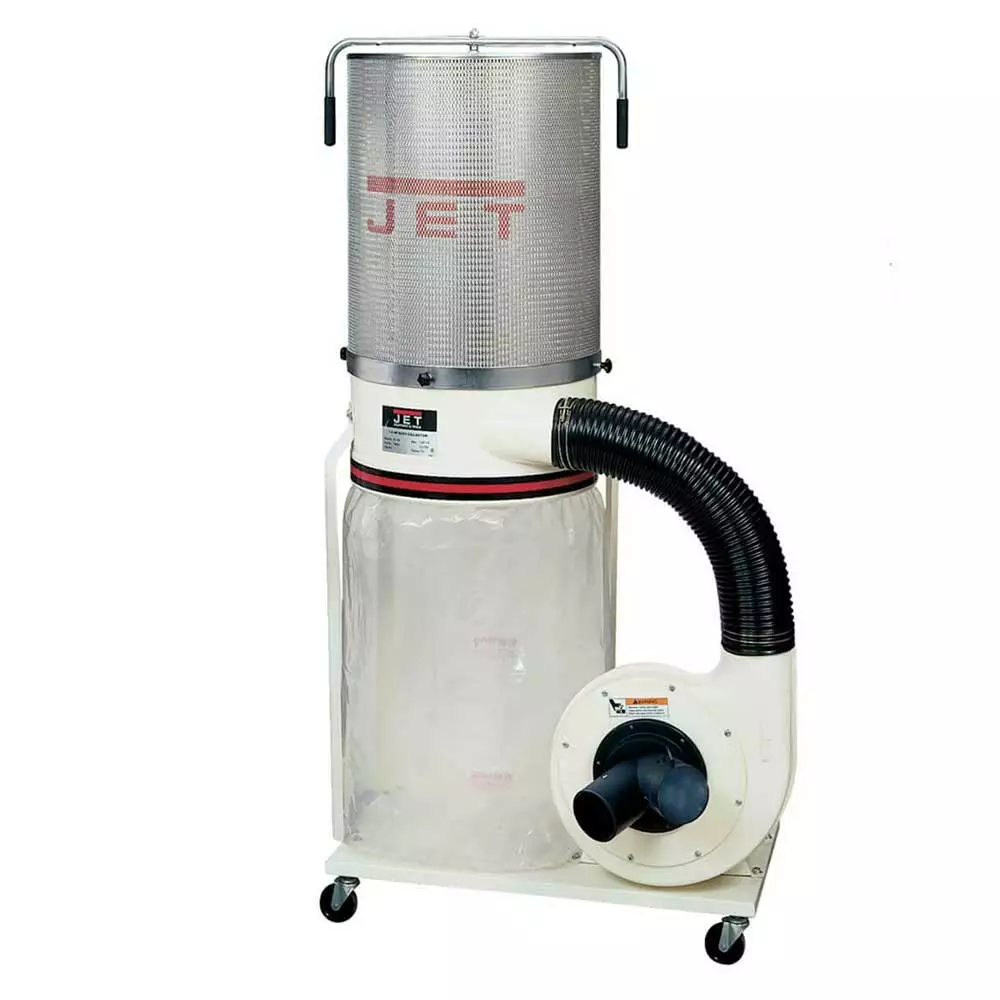

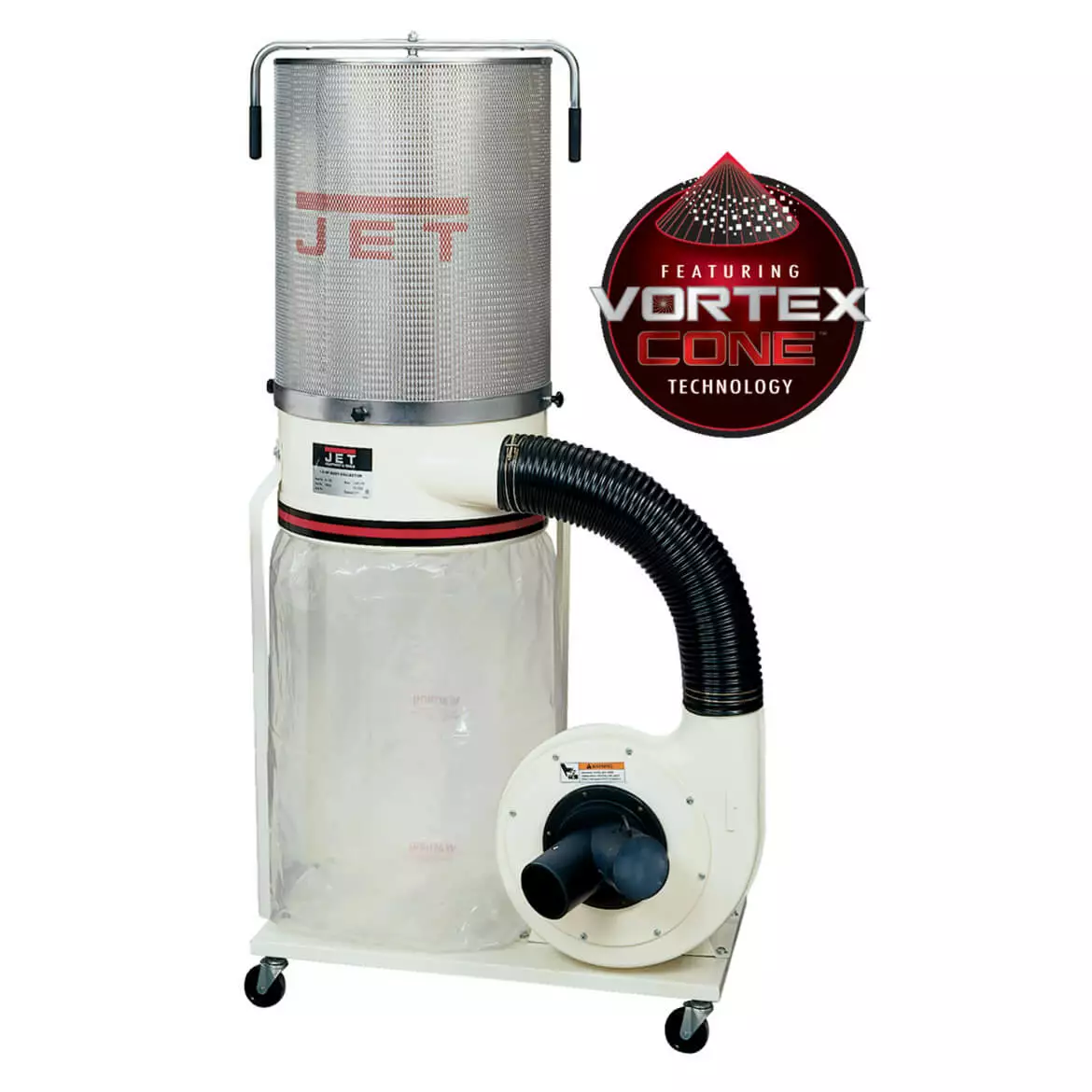

• DC-1100VX-CK Dust Collector, 1.5HP 1PH 115/230V, 2-Micron Canister Kit 708659K

Warranty

• JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
• 30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Canister
Air Flow @ 4 (CFM)	1100
Number of Air Inlets	1 at 6, 2 at 4
Efficiency (Micron)	2
Static Pressure (Wc.)	10-1/2
Sound Rating (Db.)	70 – 80
Bag Diameter (In.)	20
Collection Bag Capacity (Cu. Ft.)	5-3/10
Collection Bag Length (In.)	29
Filter Bag/Canister Length (In.)	25
Impeller Diameter (In.)	11
Impeller Material	Steel
Velocity @ 4 (CFM)	12,571
1-Hose Connection Diameter (In.)	6
2-Hoses Connection Diameter (In.)	4
Motor Power (HP)	1-1/2
Motor Phase (PH)	1
Motor Voltage (V.)	115/230
Prewired Voltage (V.)	115
Motor Amps	11/5.5
