JET 708595 JSG-96 3/4HP 1PH 115V Benchtop 6″ X 48″ Belt / 9″ Disc Sander

Features

• Large cast iron table has preset stops at 90 degree and 45 degree to let you use the belt sander vertically, horizontally or anywhere in between
• Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
• Graphite covered steel platen runs cooler increasing machine and belt life
• Specially designed belt guard allows full use of the 6″ belt width and length
• Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
• Tracking adjustment knob with quick-lock handle keeps belt on track during use
• Quick-release belt tension lever makes belt changes fast and easy

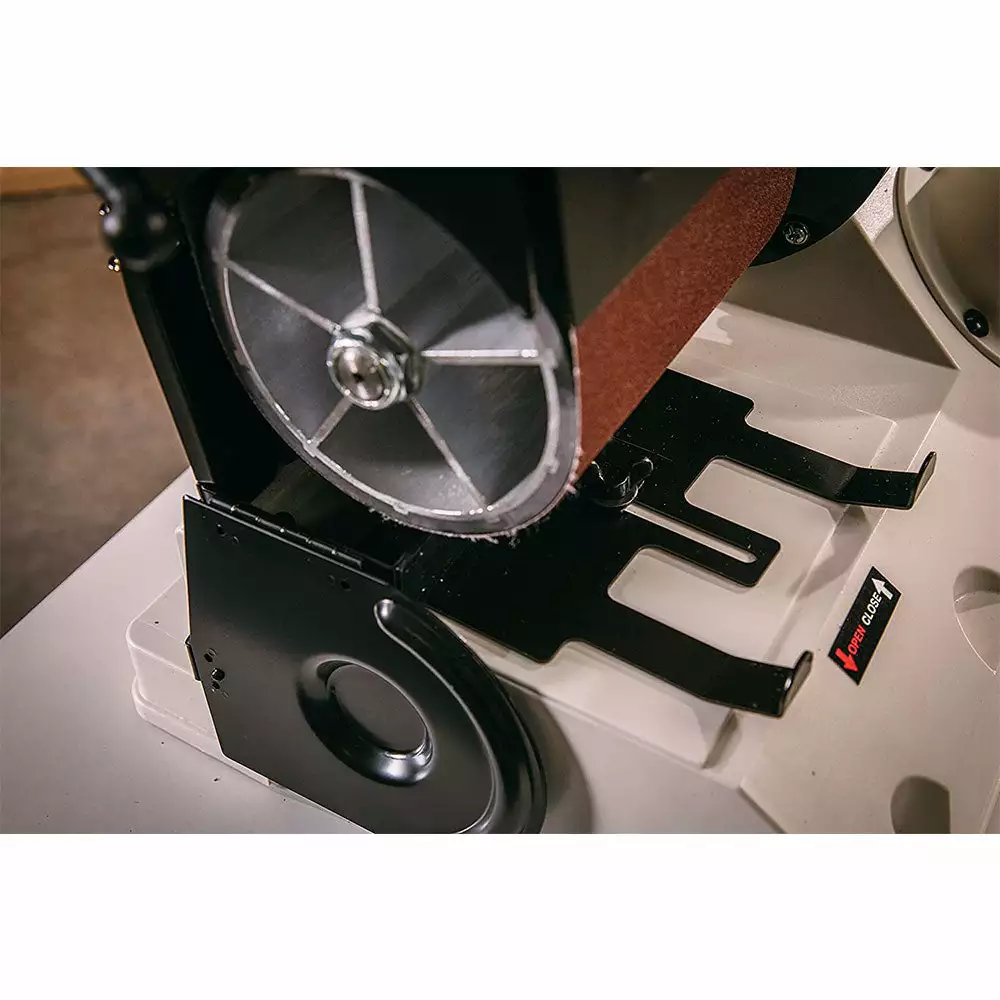

• Quick-lock dust cover allows fast disc changes
• Single 4″ dust port on the back of the base collects dust effectively from both the belt and disc
• Powerful 3/4HP motor easily handles the toughest sanding operations
• Built-in handles for easier portability

What’s in The Box

• Benchtop 6″ x 48″ Belt / 9″ Disc Sander – 708595
• Owner’s Manual

Warranty

• Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	708595
Brand	Jet
Motor Power	3/4 HP
Motor Phase	1
Motor Voltage	115V
Prewired Voltage	115V
Motor Amps	11
Type	Benchtop
Disc Diameter	9 in.
Disc Speed (RPM)	1725
Disc Table Tilt Degree	10 Up, 45 Down
Disc Table Size (L x W)	12 x 7-1/2 in.
Sanding Belt Size (L x W)	48 x 6 in.
Belt Speed (RPM)	2258
Belt Table Tilt Degree	10 Up, 45 Down
Belt Table Size (L x W)	11 x 5-1/2 in.
Dust Port Outside Diameter	4 in.
Height	16.1 in.
Length	28.2 in.
Width	24.9 in.
Weight	100 lbs
