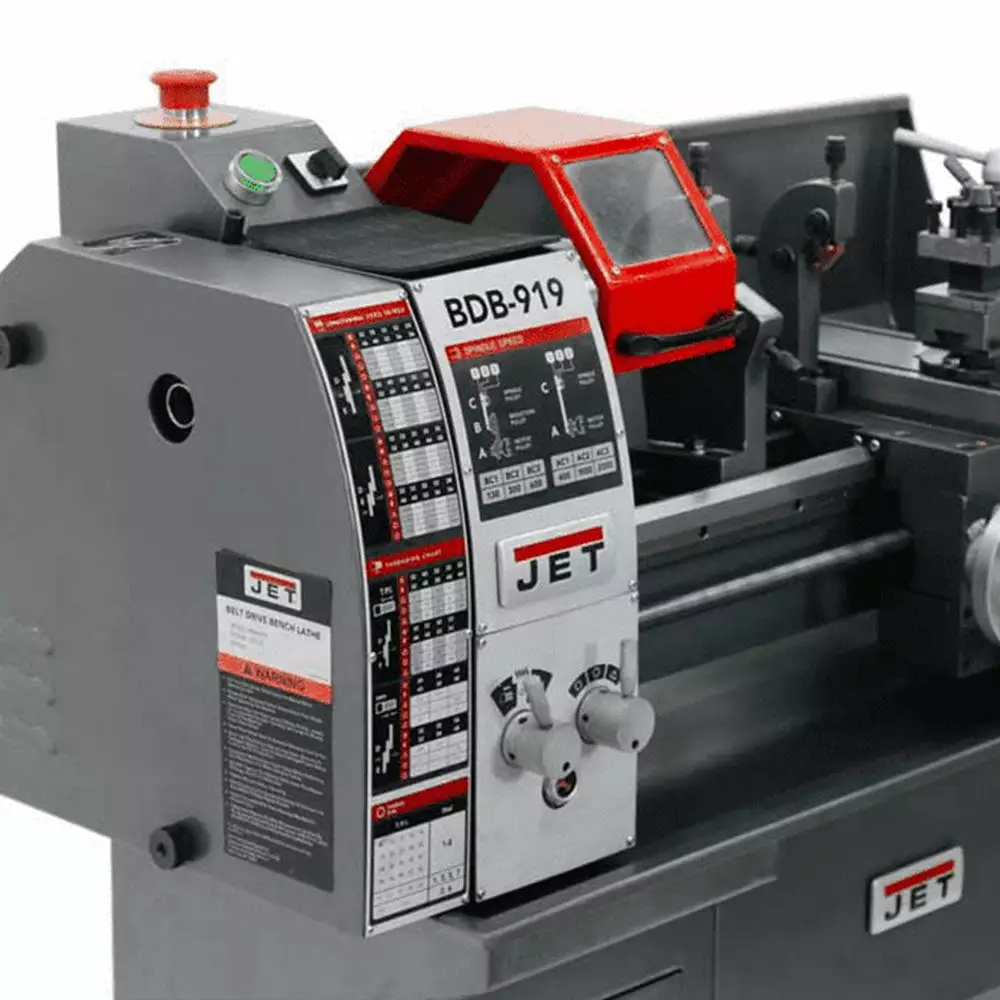

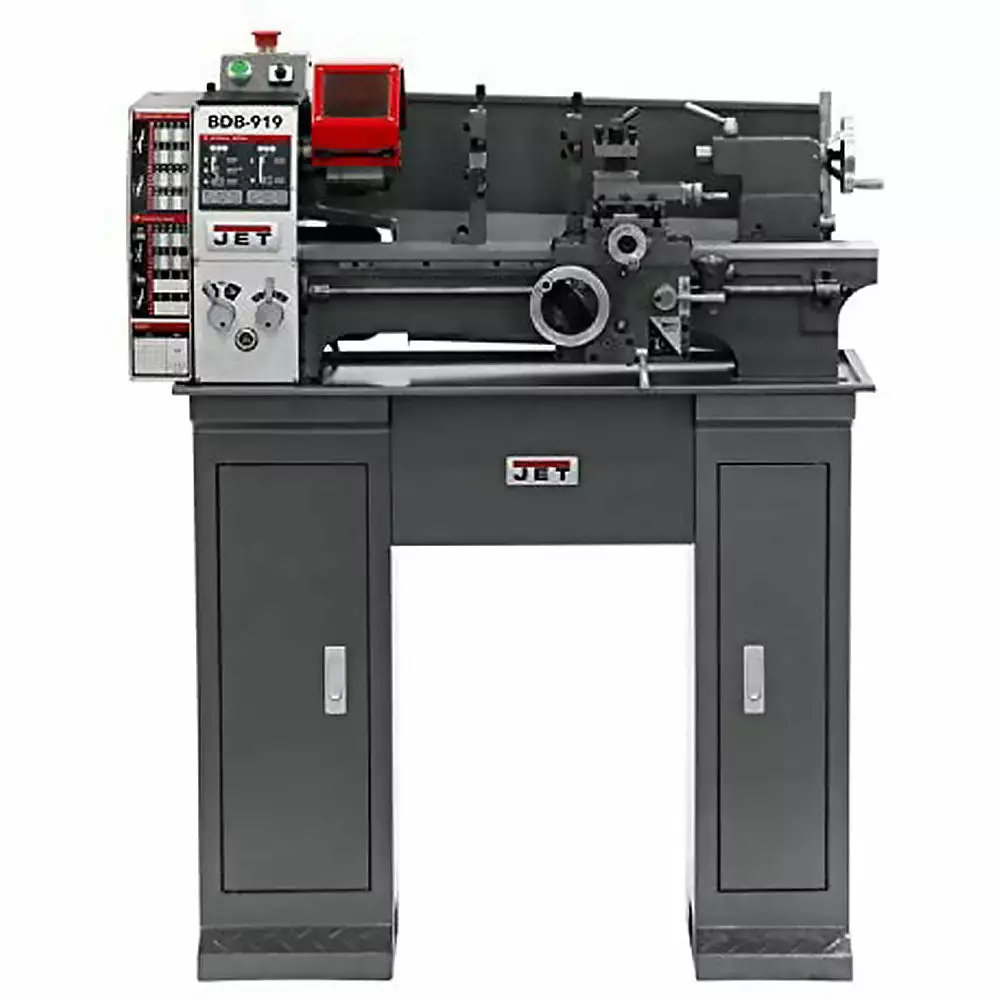

JET 321370K BDB-919 115V 3/4 HP Belt Drive Bench Lathe W/ Stand

Features

• Induction hardened and ground bed way
• Spindle supported by precision tapered roller bearings
• Safety on/off switch
• Emergency Stop within easy reach of the Operator
• Chuck Guard
• Quick change gearbox provides wide range of inch and metric threads
• Power longitudinal feed allows threading and reverse threading
• Quick locking tailstock
• Standard 1-1/2″ x 8 TPI spindle mount allows for many aftermarket accessories
• Reversing switch for added versatility
• Full length splash guard
• Backlash adjustments provided throughout the carriage

What’s in The Box

• 4″ 3-Jaw Chuck
• 7-1/2″ 4-Jaw Chuck
• 7″ Face Plate
• Steady and Follow Rest
• 4-Way Tool-post
• Set of Tools
• MT-2 and MT-3 Centers
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	321370K
Brand	JET
Horsepower	3/4
Volts	115V
Motor	Single Phase
Swing Over Bed	8-3/4 in
Swing Over Cross Slide	5 in
Distance Between Centers	18 in
Spindle Bore	3/4 in
Spindle Mount	1-1/2 x 8 TPI
Number of Spindle Speeds	6
Range of Spindle Speeds	130-2000
Spindle Taper w/ Sleeve	MT-3
Range of Longitude Feeds	0.0006 – 0.0368
Number of Inch Threads	27 in
Range of Metric Threads	8 – 56
Number of Metric Threads	12
Range of Metric Threads	0.5 – 3.5
Max Tool Size	1/2 in
Compound Slide Travel	1-7/8 in
Cross Slide Travel	4-1/4 in
Carriage Travel	17.5 in
Tailstock Spindle Travel	1-9/16 in
Taper in Tailstock Spindle	MT-2
Follow Rest Capacity	1-3/4 in
Width of Bed	4-1/2 in
Length	41 in
Width	22 in
Height	20 in
Weight	250 lbs
