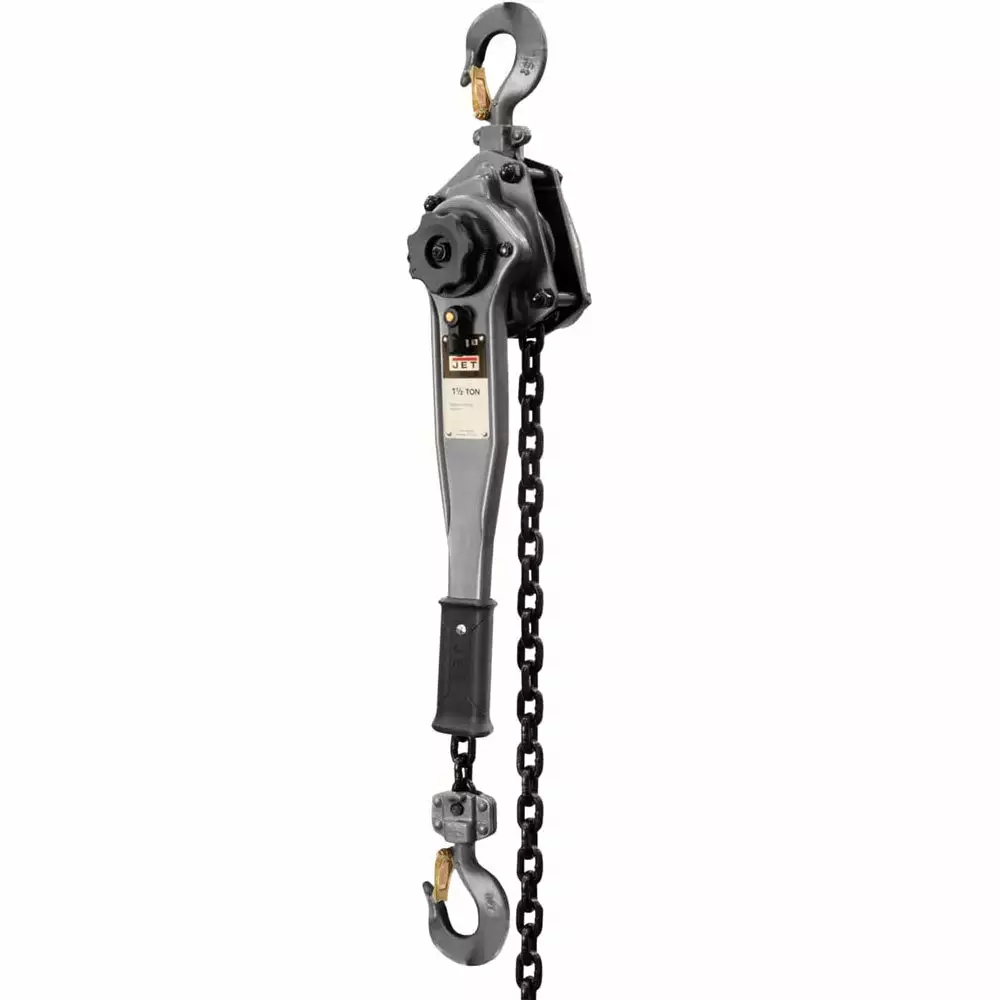

JET 287403 JLP-150A-20 JLP-A Series 1-1/2 Ton 20′ Lift Lever Hoist Tools & Equipment

Features

• Safety
• Patented brake wear indicator provides visual indication when to replace worn friction disks
• Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
• Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Durability
• Cast steel safety latches are secured with Allen screws and lock nuts
• Grade 80 black oxide coated for added durability
• Needle bearing design increases efficiency and promotes smooth operation
• Impact resistant all steel construction for added durability and protection

What’s in The Box

• 1-1/2 Ton 20′ Lift Lever Hoist – 287403
• Owner’s Manual

Warranty

• Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	287403
Brand	Jet
Number of Falls	1
Lift per Turn	7/8 in.
Load Capacity	1-1/2 Tons
Load Chain Dimensions	8 x 24 mm.
Lever Pull Force (LBF)	49
Ship Yard Hooks	SV_1375591258806
Lift	20 ft
Headroom	15 in.
Handle Length	16-1/7 in.
Overload Protection	No
Hook Throat Opening	1-6/7 in.
Overall Width	6-7/9 in.
Weight	39 lbs.
