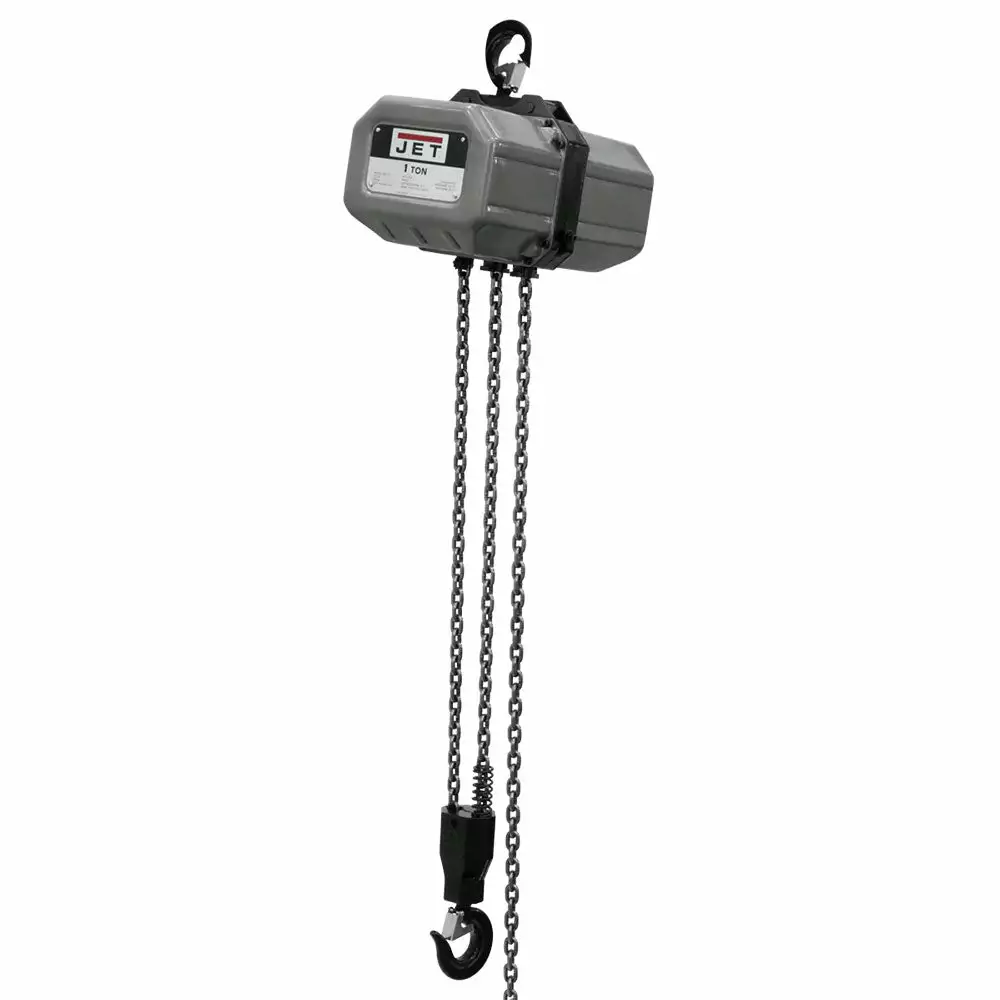

JET 1SS-1C-20 115V/230V 1 Ton 1 Phase Electric Chain Hoist W/ 20′ Lift

Features

• Safety
• Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity
• Thermal Overload Protection- Protects the hoist from overheating in low voltage situations
• DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist
• Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
• Durability
• Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
• Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
• Control Pendant- 24-volt push-button controller with cable strain relief system for durability and reliability in industrial and commercial settings
• All Steel Construction- Fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust, and debris lengthening the life of the hoist
• Performance
• Single Phase:
• Duty Rating- H3
• Duty Cycle- 25 percent
• Standards
• This product complies with ANSI / ASME B30.16 and HST-1 standards
• Certification- Load tested to 125 percent of capacity with certificate
• Controls- NEMA 4X compliant push button control pendants
• JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are NOT rated or designed for outdoor use or wet environments

What’s in The Box

• Electric Chain Hoist
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	1SS-1C-20
Brand	Jet
Volts	115/230
Phase	1
Load Capacity	1 tons
Lift	20 ft
Horsepower	1-3/4 in
Number of Falls	1
Duty Cycle Rating	H3
Duty Cycle	25 percent
Max On Time (Min/Hr)	15
Max Number of Starts (Per Hr)	150
Lifting Speed (FPM)	19
Headroom	24-7/16 in
Weight for Additional 1 ft of Lift (lbs)	1
Load Chain Dimensions (mm.)	8 x 24
Weight	171 lbs
