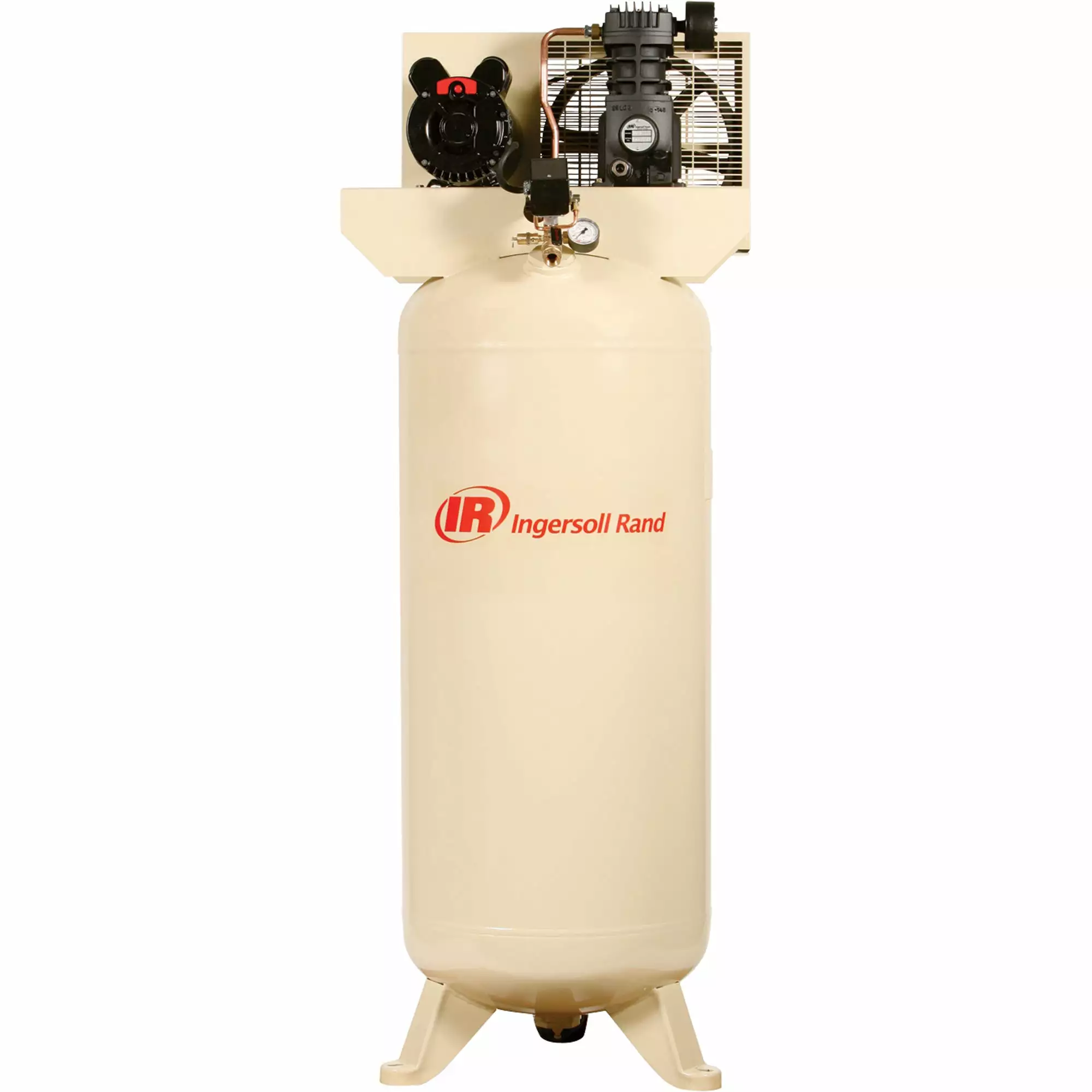

Ingersoll-Rand Tools & Equipment Ingersoll Rand SS5L5 5Hp 60-Gallon Single-Stage Air Compressor 20103172

Features

• High capacity compressor (up to 18.1 cpm) delivers air with the power to do the job right and in less time
• 100% continuous duty for the toughest applications
• Efficient finger valves that are easy to operate, easy to maintain
• Durable cast iron construction
• Long-lasting extended pump life – over 5,000 hours for years of trouble-free service
• High pressure operation, up to 135 psig
• Extended two-year warranty with use of Ingersoll Rand’s All Season Selecta‚a synthetic lubricant
• Standard Features:
• Durable design
• Features 100% cast iron cylinders and frame
• 100% continuous duty cycle
• Provides trouble-free performance in the most demanding conditions
• Safe operation
• Manual thermal overload protection of the motor, no starter required
• Easy to use
• Automatic start/stop pressure switch control with manual on/off lever
• 60 gallon vertical ASME receiver tank
• Includes discharge mounted check valve, pressure gauge, drain valve, service valves and relief valves
• Totally enclosed belt guard
• Provides shield around flywheel, belt and motor for safe operation
• Meets industry standards
• Compliant to OSHA standards and UL/CSA/ASME
• Delivered ready to use
• All units are fully assembled, prewired and thoroughly tested prior to shipment
• Even more features!
• Quiet operation, 230-1-60 voltage and splash lubrication

What’s in The Box

• 5 Hp 220V 60-Gallon Upright (18.5 CFM’s)
• Owner’s Manual

Warranty

• 1-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Motor HP	5 (5 hp running, 11.8 peak hp)
Receiver tank size (gal)	60 Vertical
Voltage	230/1/60
Capacity scfm @ 90 psig/135 psig	18.1/15.5
Maximum pressure psig	135
ACFM @ 40 PSI	11.3
Max PSI	135
NPT Outlet (in)	1/2
Length (in)	20
Width (in)	30
Height (in)	71
Net weight (lbs)	310
