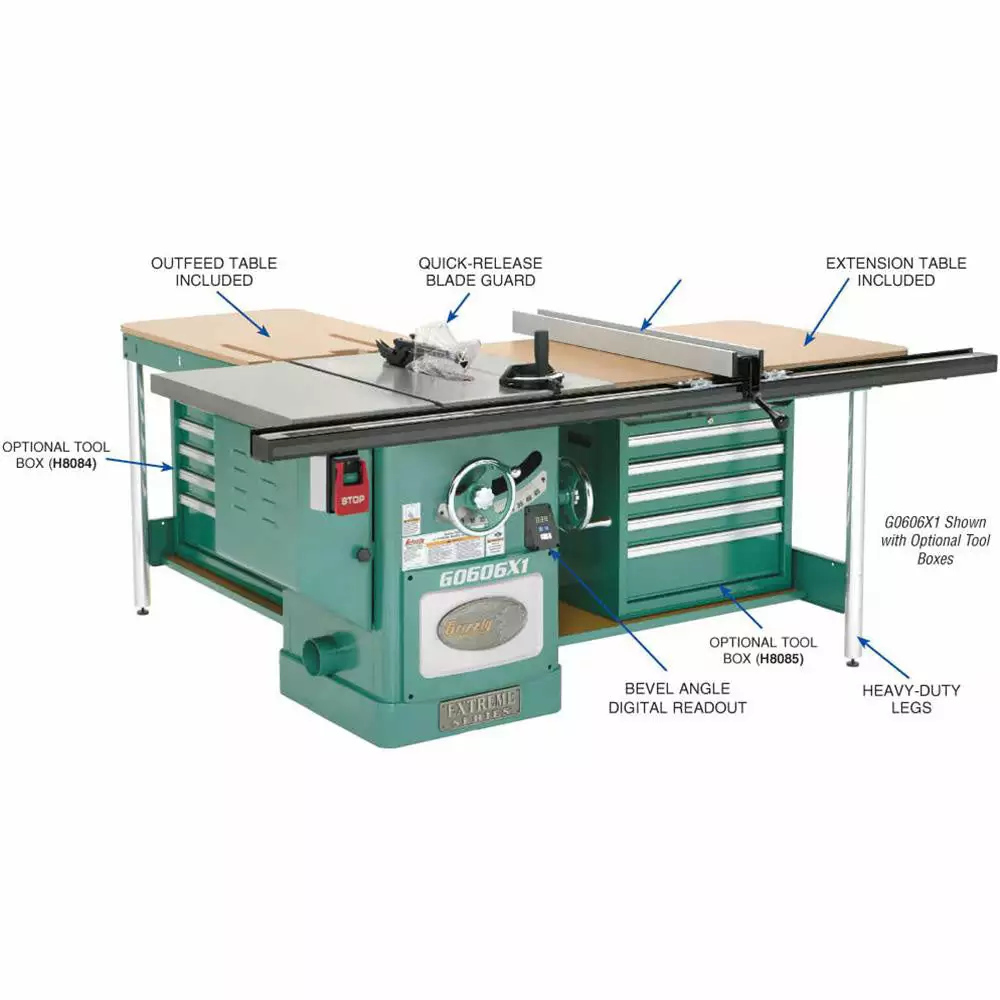

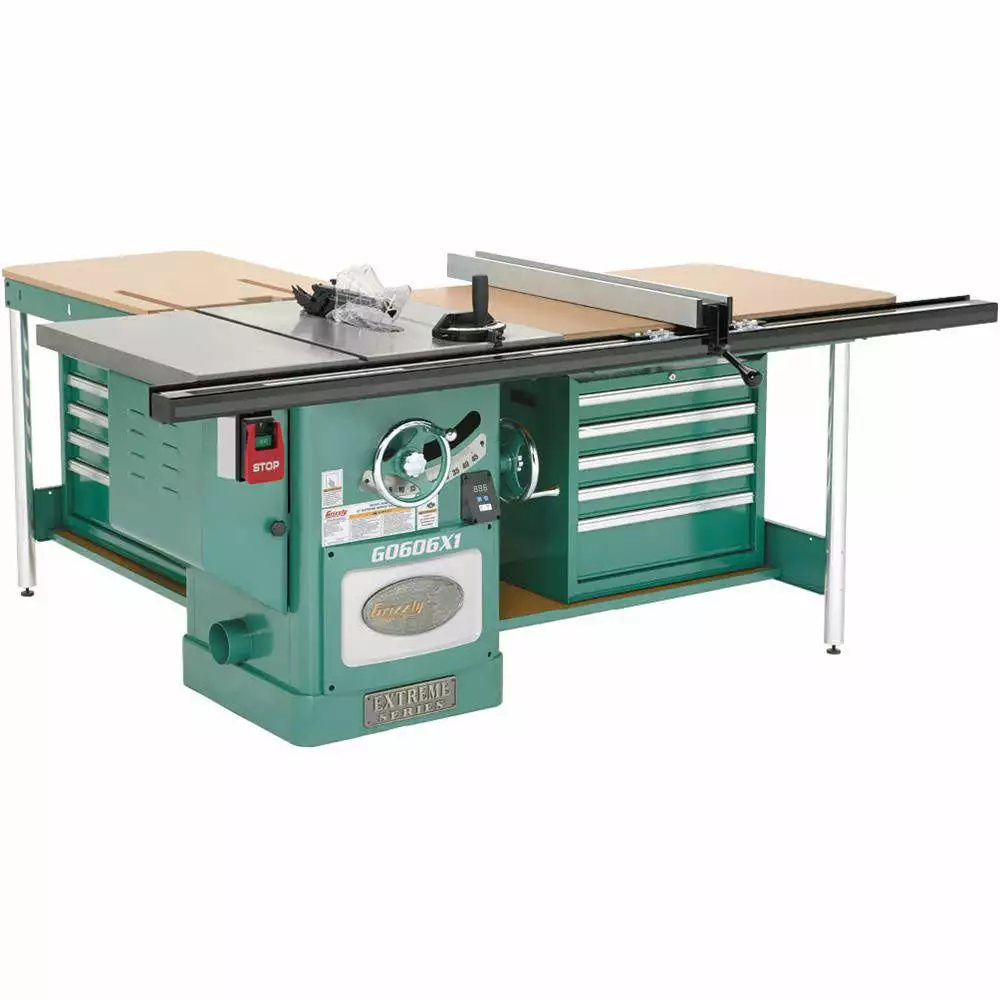

Grizzly G0606X1 220V/440V 12 Inch 7-1/2 HP 3-Phase Extreme Table Saw Tools & Equipment

Features

• Precision-ground cast iron table
• Cast iron trunnions
• 3/8 in x 3/4 in T-slots and miter gauge
• 4 in dust port
• Smooth and quiet Poly-V serpentine belt power transfer

What’s in The Box

• 12 in 7-1/2 HP 3-Phase Extreme Table Saw – G0606X1
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	G0606X1
Brand	Grizzly
Motor	7-1/2 HP, 3-Phase
Volts	220V/440V
Amps	19.5/10
Blade Tilt	Left, 45 Degrees
Table Height from Floor	35-3/4 in
Table Size with Extension	69-1/2 in x 78-3/4 in
Arbor Speed	3600 RPM
Arbor Size	1
Max Dado Width	3/4 in
Max Depth of Cut at 90(degree)	4 in
Max Depth Cut at 45(degree)	2-3/4 in
Max Rip Capacity	52
Item Dimensions(inches)	91-1/2 W x 79-1/2 D x 42-1/2 H
Weight	861 lbs
