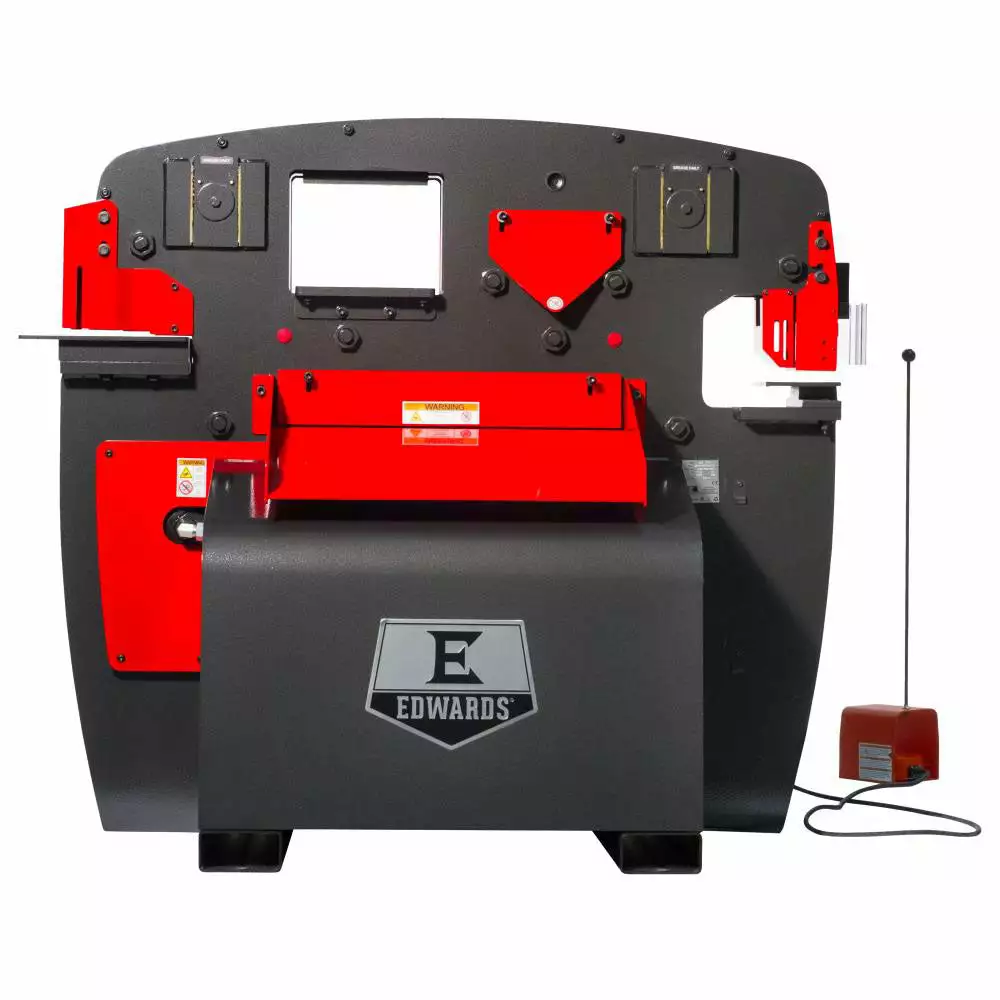

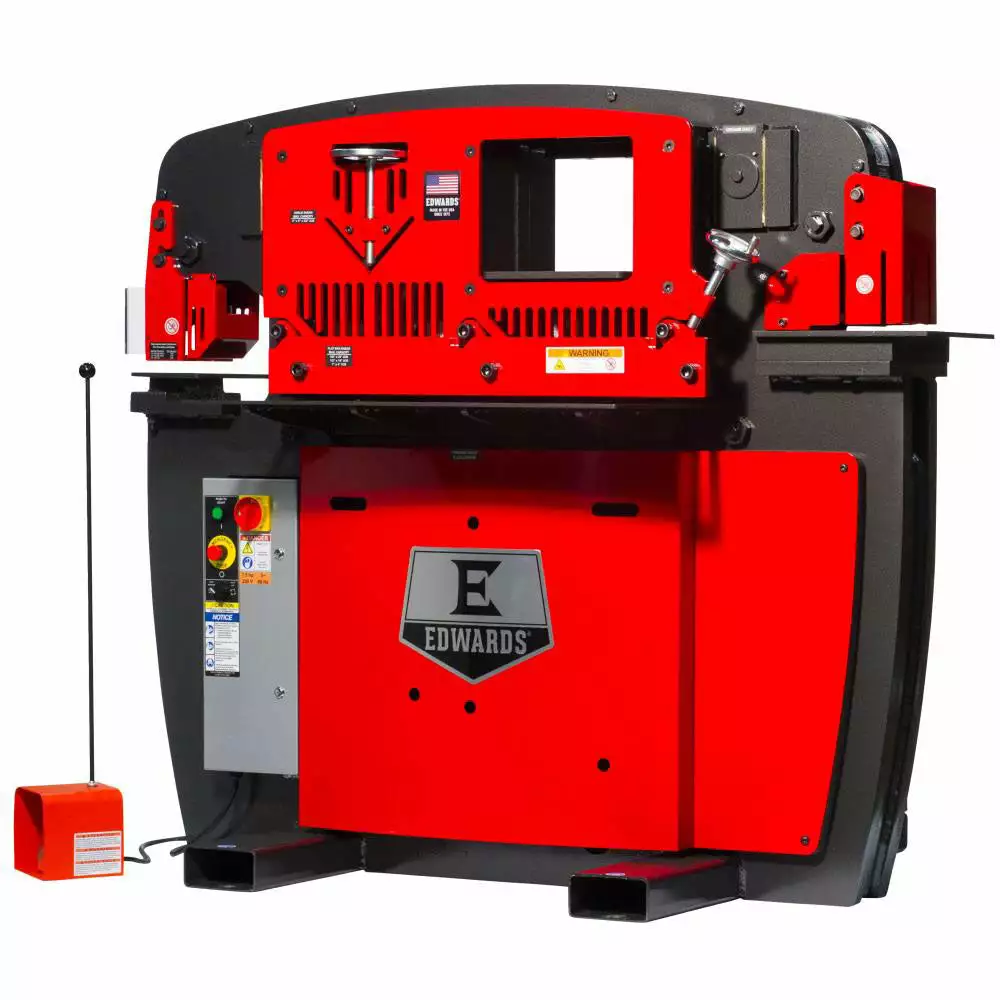

Edwards IW65-1P230-AC700 230V 65 Ton 1 Phase Ironworker W/ PowerLink System Tools & Equipment

Features

• Our most versatile machine
• The PowerLink system allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press
• Five workstations: standard (5) – punch, flat bar shear, angle shear, coper notcher and rod shear
• 10 interchangeable attachments available to tailor the ironworker to your project
• ANSI B11.5 – 1988(02) compliant guarding
• ETL/UL approved controls
• Integrated e-stop, lock-out/tag-out
• Optimized workstation heights for improved efficiency
• Electric foot pedals with integrated jog control
• Adjustable electric stoke control

What’s in The Box

• Ironworker w/ PowerLink System – IW65-1P230-AC700
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	IW65-1P230-AC700
Brand	Edwards
Volts	230V
Power	65 Tons
Amperage	36
Horsepower	7.5
Motor Phase	1
Max RPM	1765
Hydraulic Max GPM	10.5
Valve Pressure	3500 PSI
Max Diameter	1.06 in
Throat Depth	9.7 in
Reservoir Capacity	17 gallons
Length	46 in
Width	69 in
Height	63 in
Weight	4655 lbs
