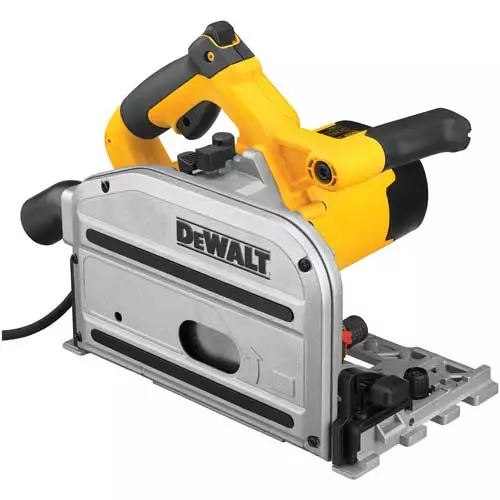

DeWALT DWS520K 6-1/2” Heavy Duty TrackSaw Track Saw Tool Kit Tools & Equipment

Features

• Zero-Clearance Anti-Splinter Edges – Edges indicate actual cut location. Provides splinter free cuts.
• Dual Edge Track System – Provides perfectly straight cuts. Dual edge design works in both directions.
• Straight Plunge Mechanism – Non-pivoting, parallel-ink mechanism for optimal ergonmics.
• Continuous Anti-Kickback – Brevents kickback when engaged.
• Hi-Power Motor – 12A, 1,300 Watts effortlessly cuts hard wood up to 2-1/8?.
• Flat Blade Guard – Low profile blade guard allows saw to be used in confined spaces.
• Dust Management – Universal 1-1/4? dust port gives a 90% dust extraction capability. Compatible with the DeWALT dust management system.

What’s in The Box

• 6-1/2? 48 Tooth Precision Ground Blade (20mm arbor)
• Heavy-Duty Kit Box
• Track Not Included
• Owner’s Manual

Warranty

• 30 Day Satisfaction Guarantee

Specifications

Power Input	1300 Watts
Power Output	690 Watts
No Load Speed	1750-4000 RPM
Blade Diameter	165 mm
Blade Bore	20 mm
Bevel Capacity	47 degrees
Maximum Depth of Cut at 90 degrees	59 mm
Maximum Depth of Cut at 90 degrees (with guide rails)	55 mm
Maximum Depth of Cut at 45 degrees	44 mm
Maximum Depth of Cut at 45 degrees (with guide rails)	40 mm
Length	12.38
Width	18.06
Height	12.13
