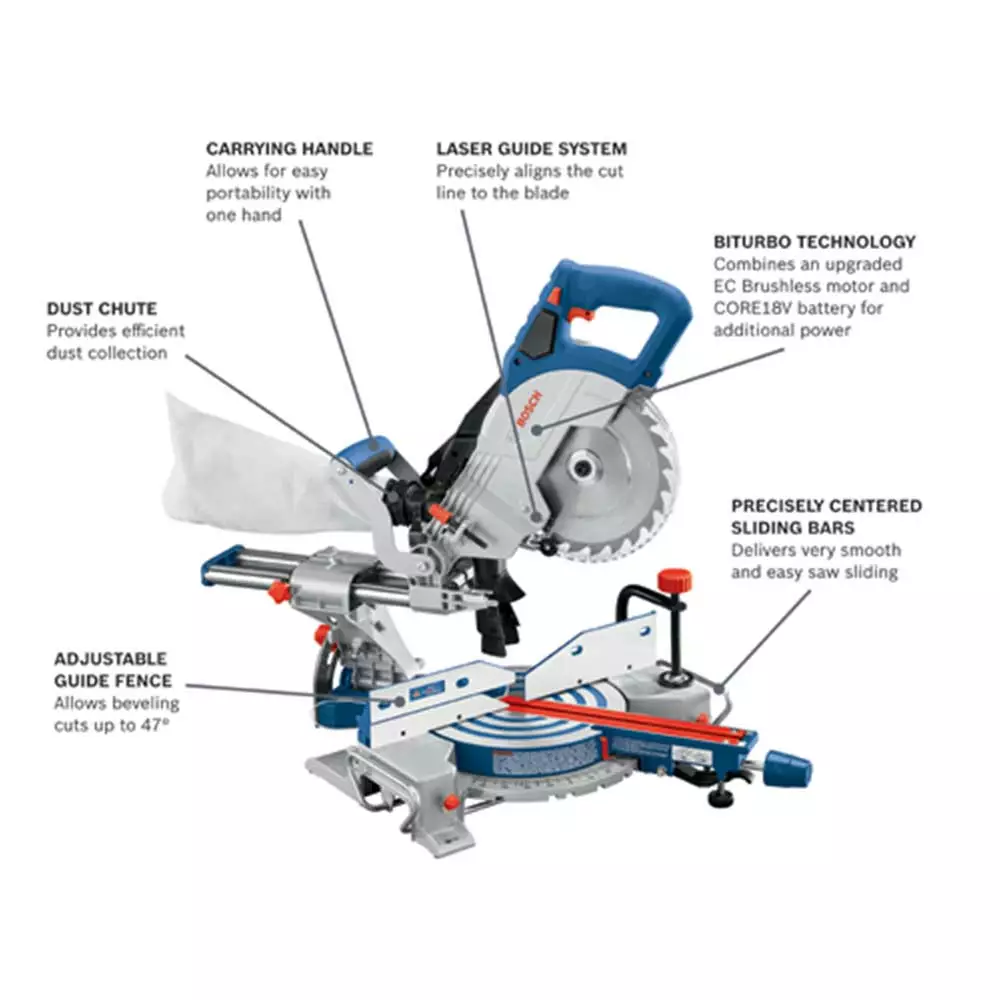

Features
- Portable, powerful 18V miter saw design a truly mobile job site solution, this saw provides lightweight and pro capacity
- Pro capacity delivers 3-5/8 In. nested crown cutting, with 47 degrees left to 47 degrees right cuts against fence and 10-5/8 In. crosscuts
- Convenient portability weighs only 31.5 Lbs. (tool only, not including battery)

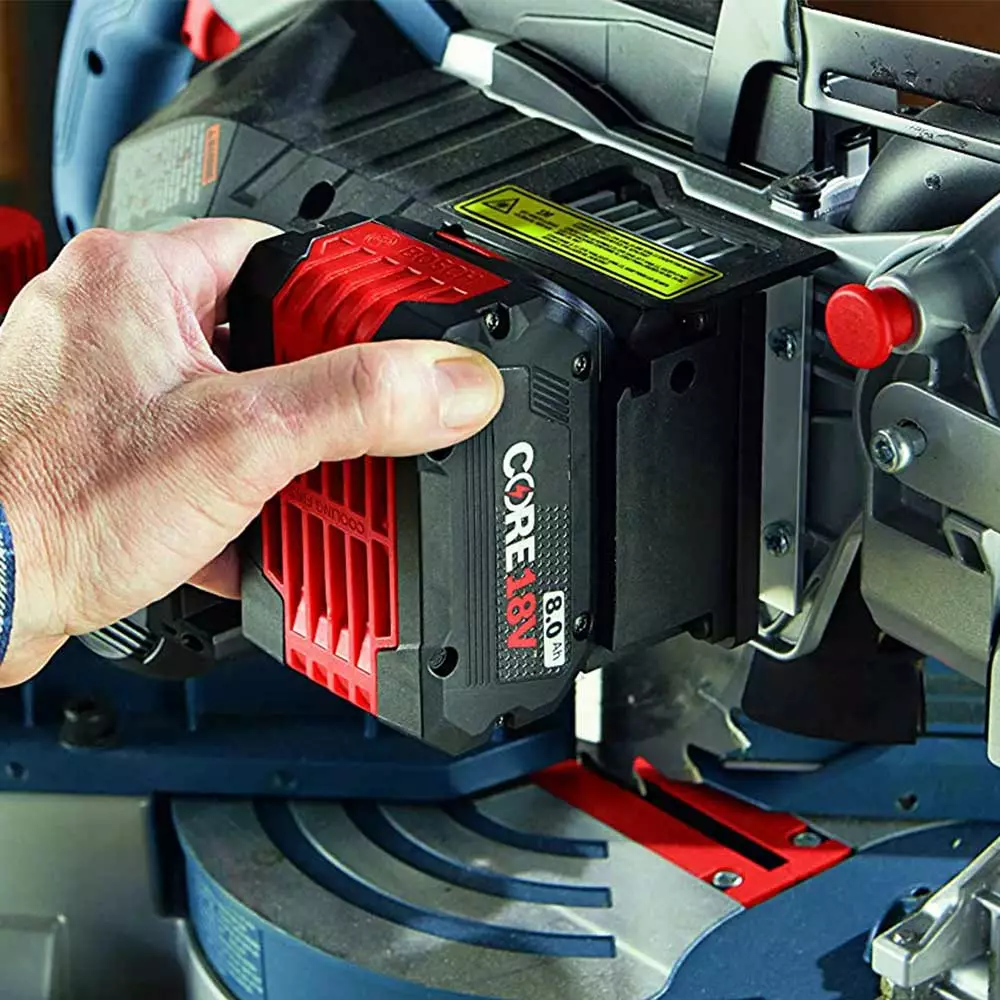

- BITURBO Brushless Technology a Bosch-exclusive brushless high-performance motor and drive-train system engineered to take full advantage of the additional power generated by 8.0 Ah and 12.0 Ah CORE18V batteries (sold separately)

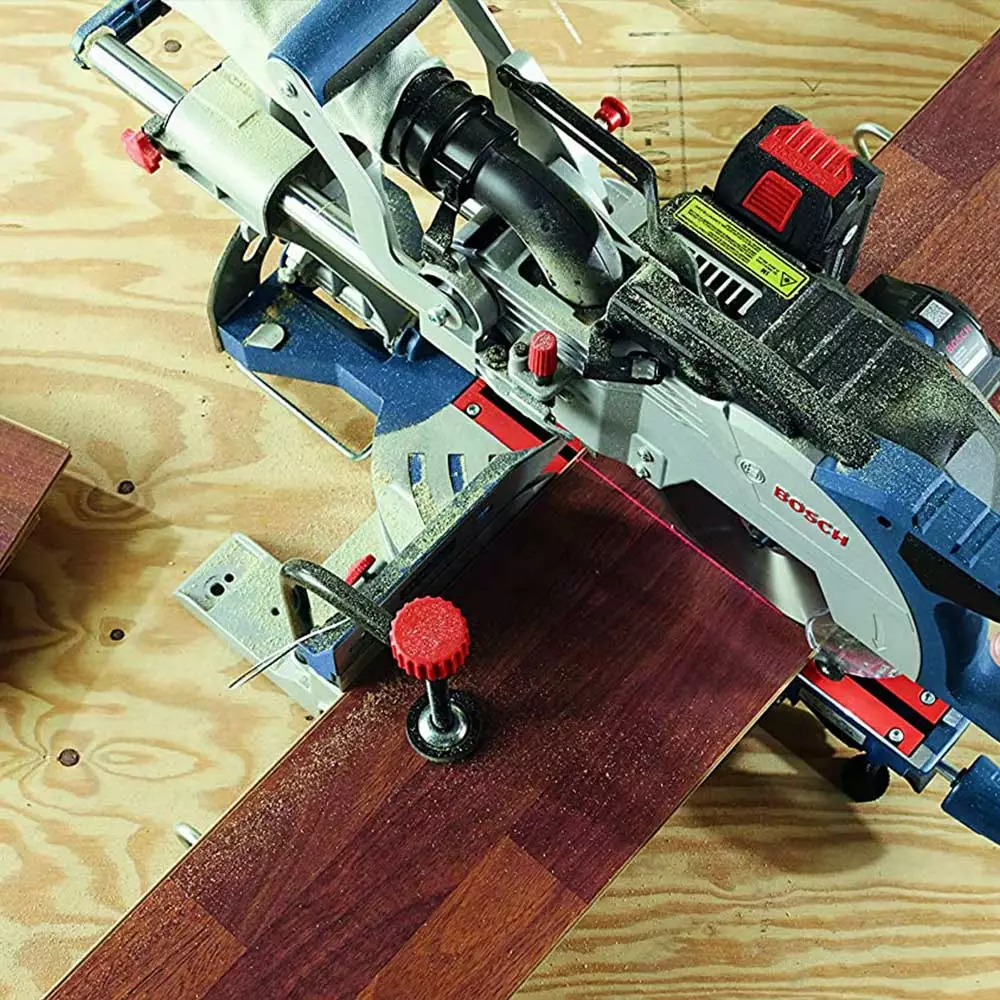

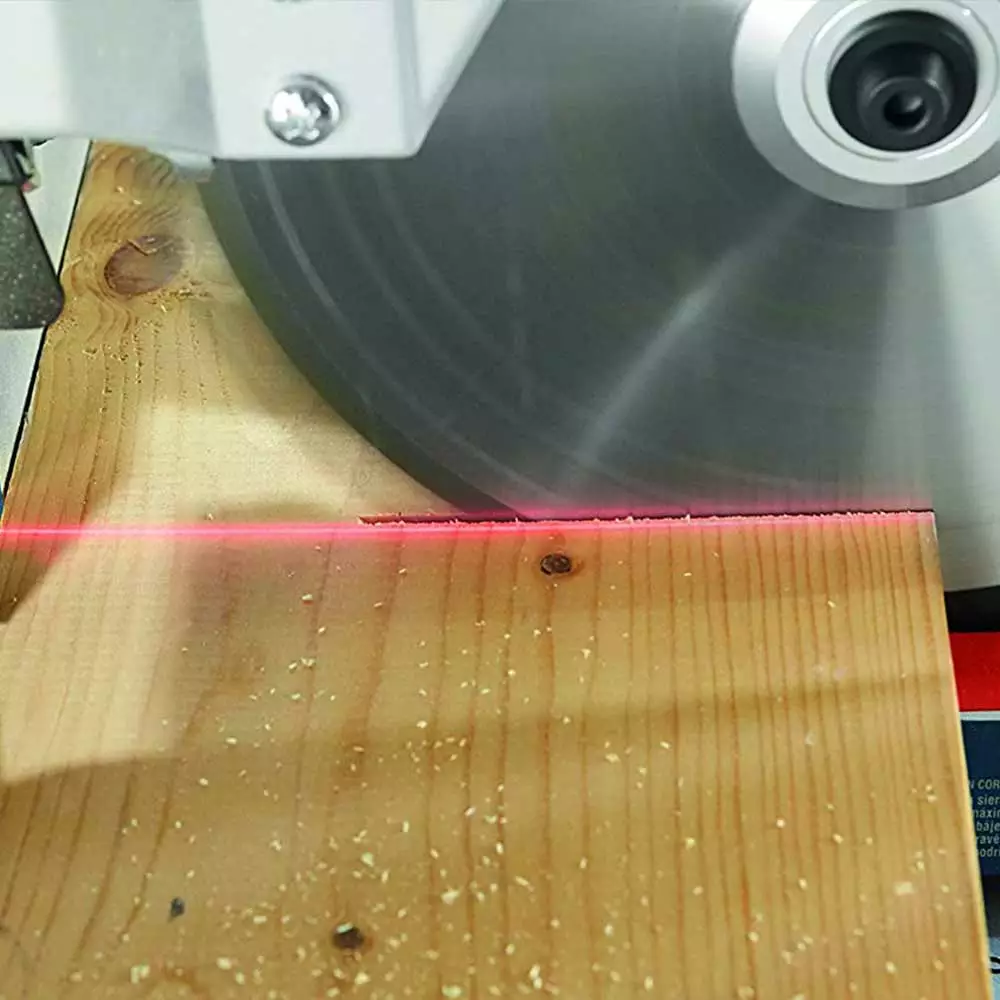

- Accurate laser guide system precisely aligns the cut line to the blade
- Precisely centered sliding bars delivers very smooth and easy saw sliding
- Dust chute and dust bag provides efficient dust collection
What’s in The Box
- GCM18V-08 18V 8-1/2 In. Single-Bevel Slide Miter Saw
- 8-1/2 In. 24-tooth Carbide-Tipped Blade
- Material Clamp
- Wrench
- Dust Bag
- Owner’s Manual
Warranty
- 3 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | GCM18V-08N |
| Brand | Bosch |
| Volts | 18V |
| Bevel Angle Range | 0 to 45 degrees |
| Bevel Stops | 45 degrees |
| Blade Diameter | 8.5 in |
| Blade Size | 8.5 in |
| Max Base Molding Against Fence | 2-3/4 in. |
| Max Crown Molding (38 degrees Spring) Angled Against Fence | 3-5/8 in. |
| Max Crown Molding (45 degrees Spring) Angled Against Fence | 3-3/4 in. |
| Max Cut Capacity – 0 degres Miter 0 degrees Bevel | 2-3/4 in. x 10-5/8 in. |
| Max Cut Capacity – 0 degrees Miter 45 degrees Left Bevel | 1-1/2 in. x 10-5/8 in. |
| Max Cut Capacity – 45 degrees Miter 0 degrees Bevel | 2-3/4 in. x 7-1/2 in. |
| Max Cut Capacity – 45 degrees Miter 45 degrees Left Bevel | 1-1/2 in. x 7-1/2 in. |
| Max Depth at Max Bevel | 1.5 |
| Miter Angle Range | 0 degrees – 47 degrees, Left and Right |
| Miter Detents | 0, 15, 22.5, 45 degrees (Left/Right) |
| Miter Positive Stops | 0, 15, 22.5, 45 degrees (Left/Right) |
| Length | 18.5 in |
| Width | 32 in |
| Height | 18 in |
| Weight | 31.5 lbs |
