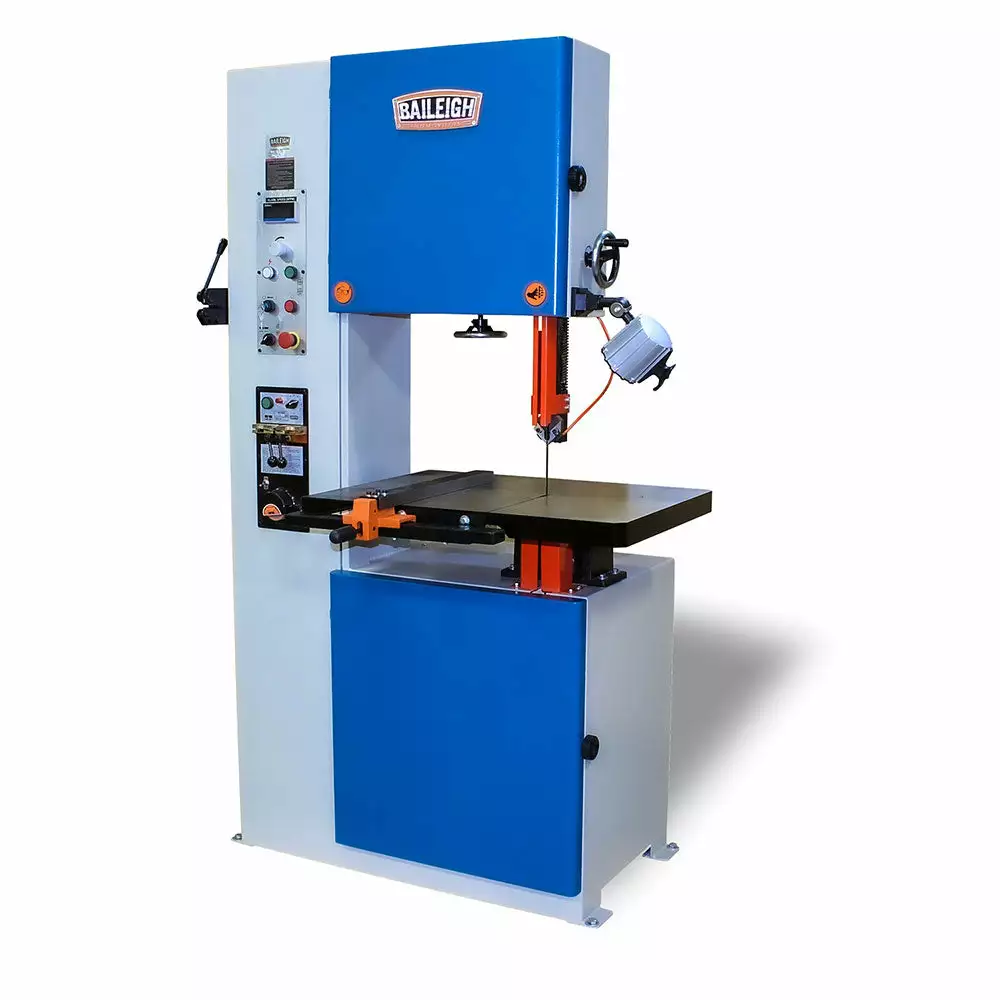

Baileigh 1230390 BSV-20VS-V2 20″ Variable Speed Vertical Band Saw

Features

• 2 hp motor runs on 220-volt single-phase power.
• Wide 19.625″ throat depth.
• 12.59” maximum cutting thickness.
• Accepts standard .11” to .63” blades.

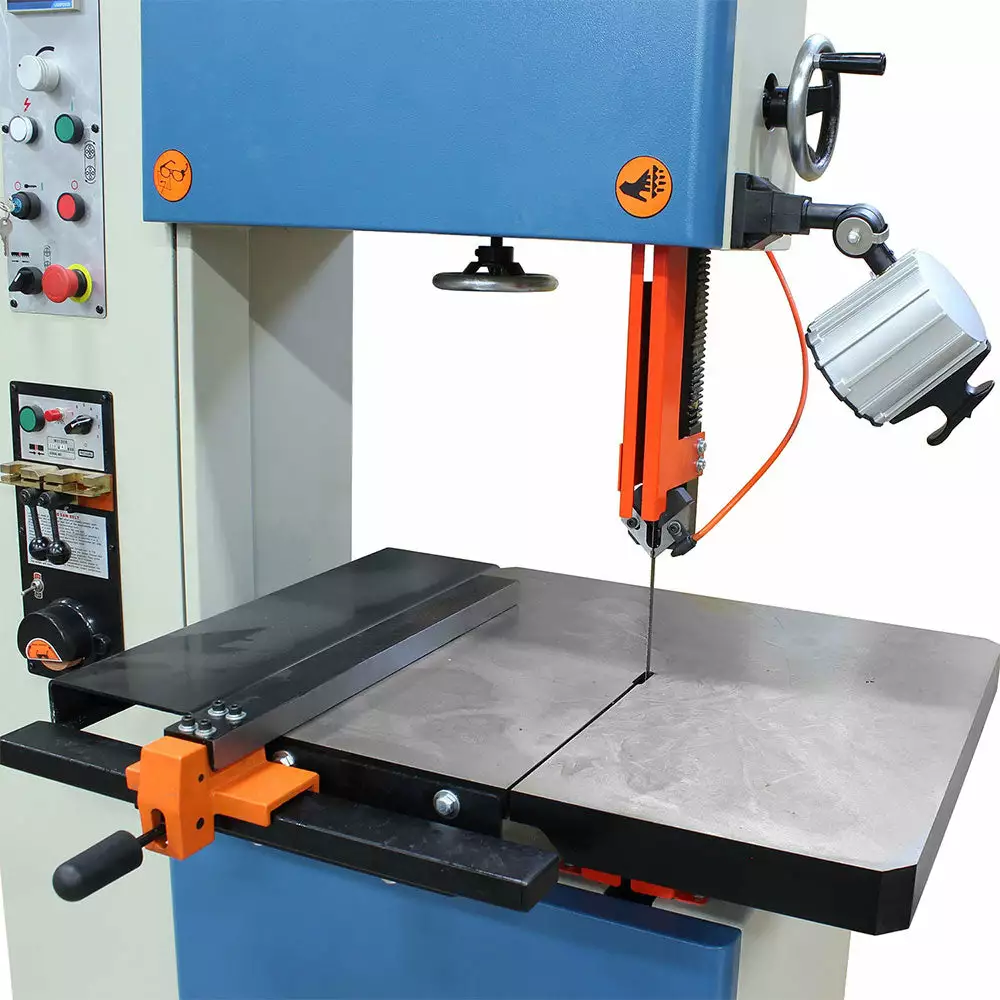

• Cast iron table can pivot left to right.
• Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable.
• Variable speed from 60 to 1650 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
• Change the speed with the hand wheel (just turn right for higher speed, left for lower).

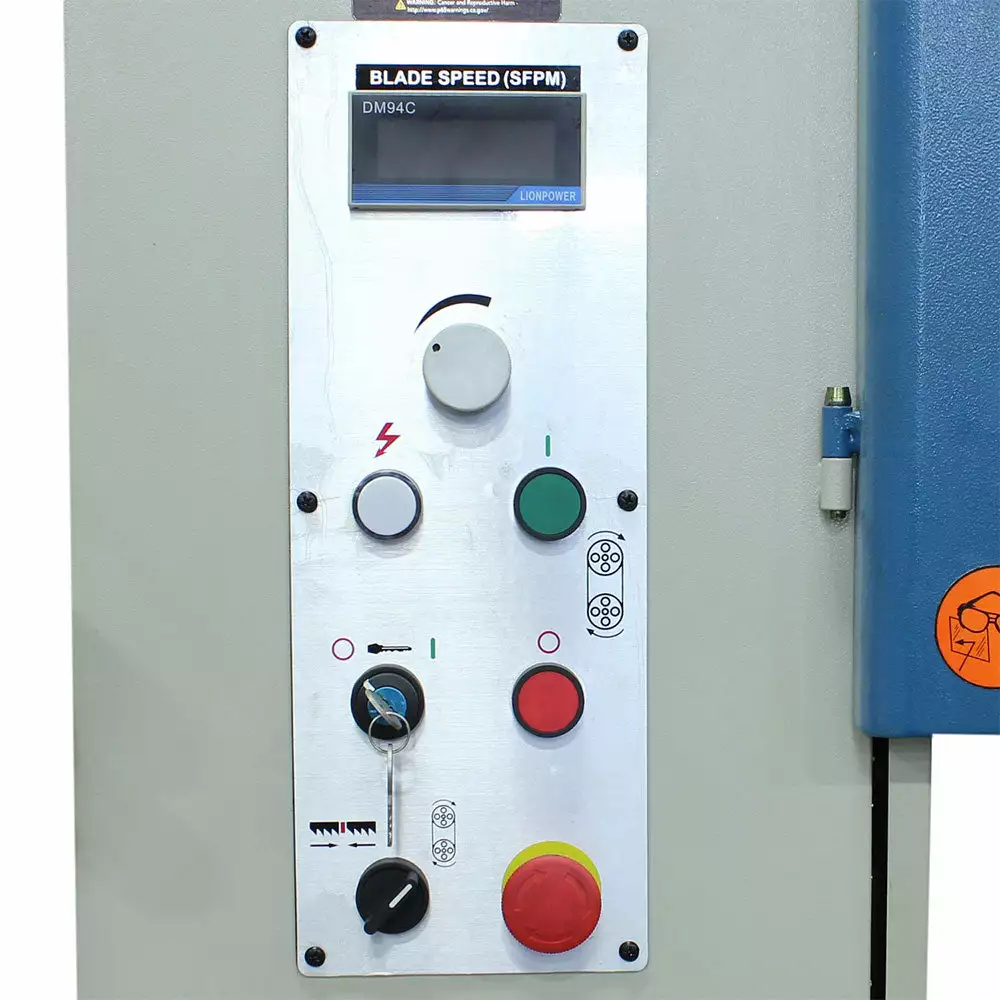

• Digital readout lets you see the exact blade speed, so you can choose the right settings for your material and extend blade life.
• This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.

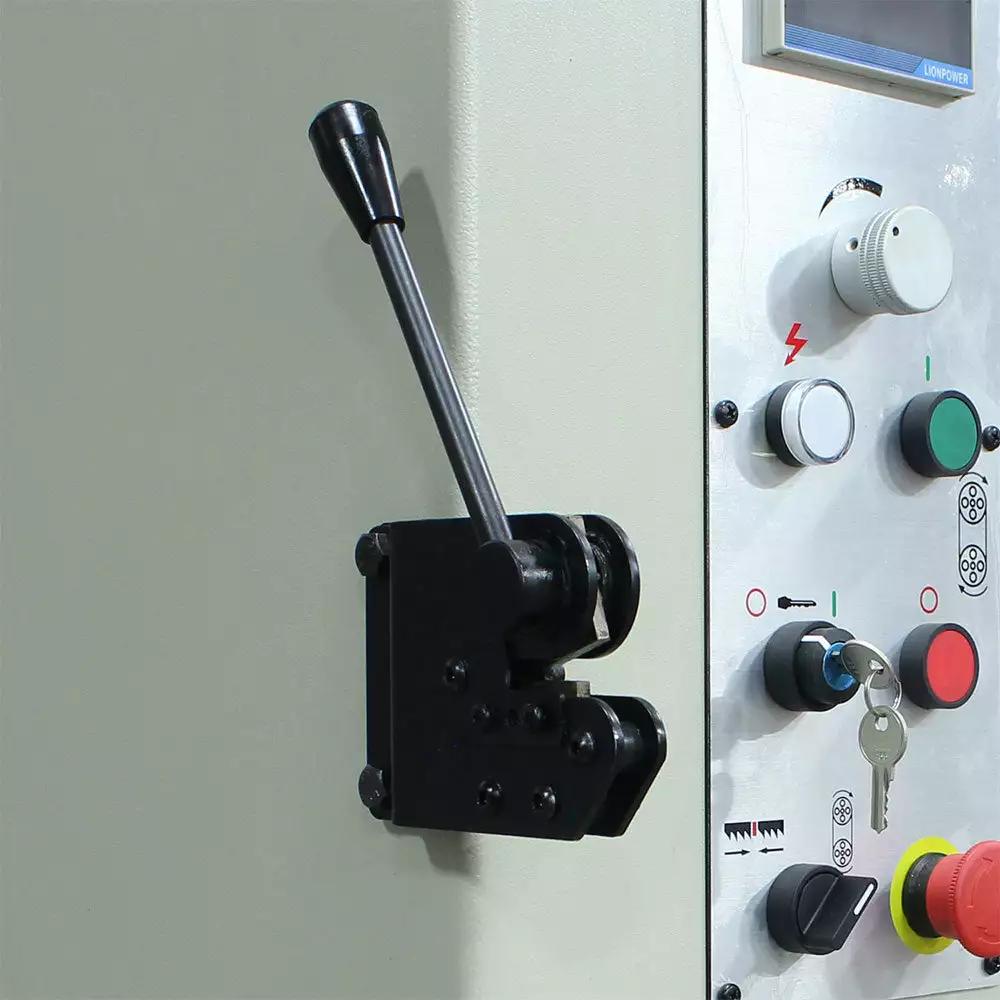

• Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.

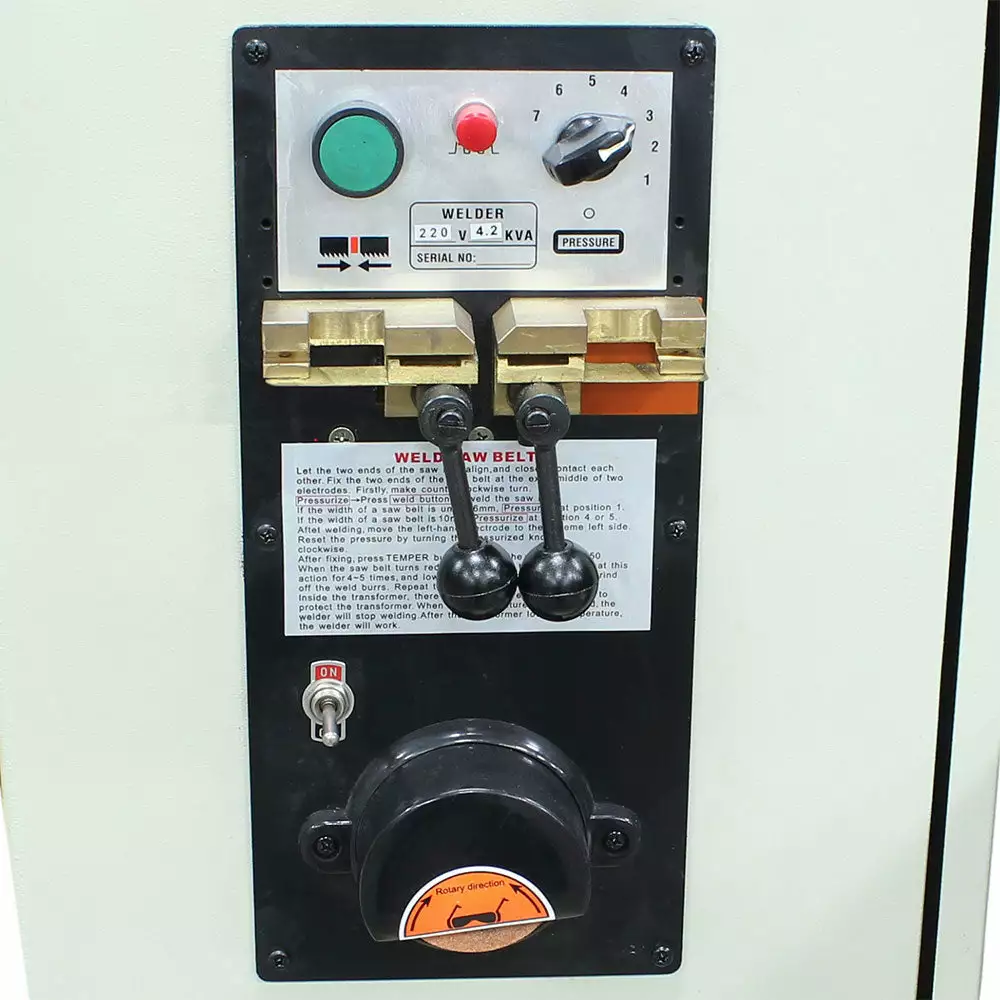

• Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.

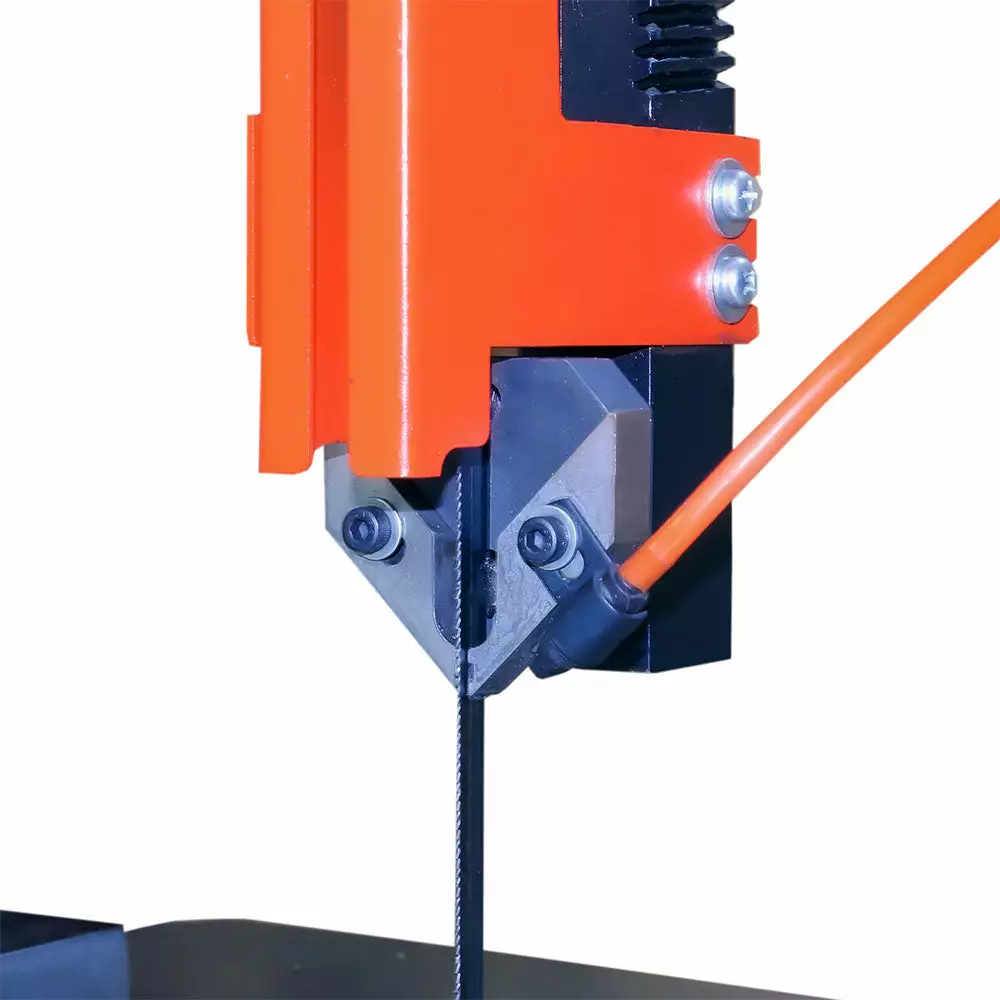

• Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
• Halogen work light lets you see what you’re cutting more clearly.
• Covered by a 1-year parts warranty.

What’s in The Box

• BSV-20VS-V2 – Vertical Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BSV-20VS-V2
Power	220V, 60hz, 1-Phase
Speed Control	Inverter
Table Size	21.65″ x 23.62″ (550 x 600mm)
Butt-Welder Capacity (Blade Width)	.118” – .625” (3 – 16mm)

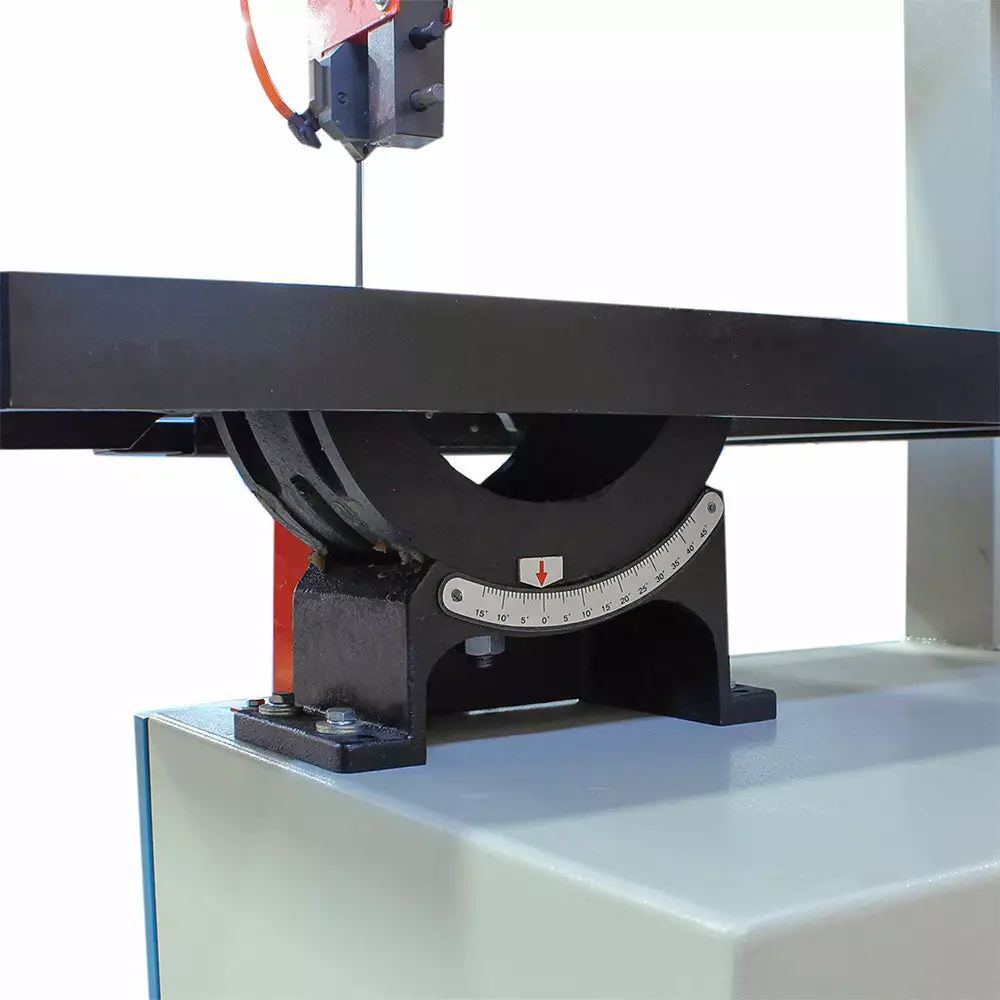

Slant of Table	15° L & 45° R
Motor	2 hp
Maximum Thickness	12.59″
Throat Depth	19.625″
Table Height	38.58″ (980mm)
Blade Length	154.4″ – 157.16″ (3921 – 3991mm)
Blade Speed	60 – 1650 fpm
Blade Thickness	.032″
Included Blade Size	0.23” (6mm) 14T
Shipping Dimensions (Inches)	47.6” x 31.88” x 83.85” (1210 x 810 x 2130mm)
Machine Dimensions (L x W x H)	47.24” x 29.13” x 77.16” (1199 x 739 x 1959mm)
Weight	851 lbs (386kgs)
