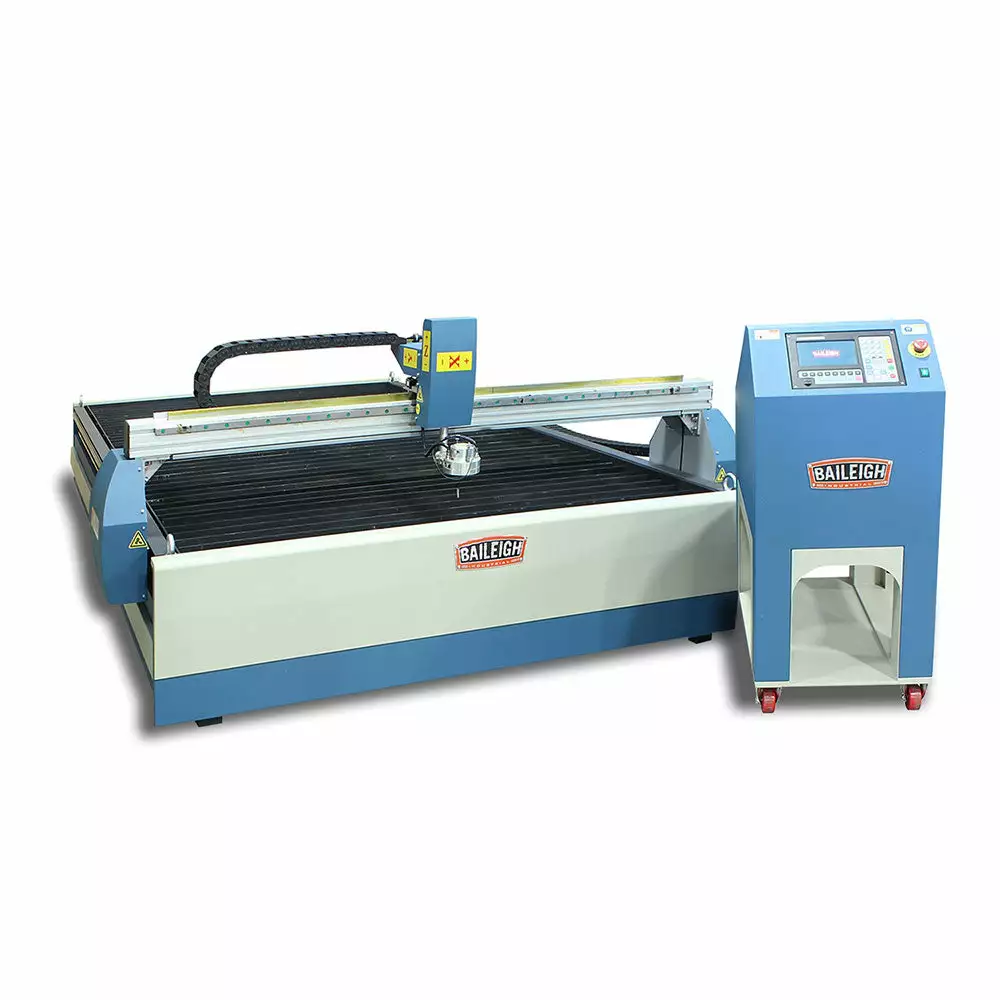

Baileigh 1225308 PT-48AH-W 220V 1ph 4’x8′ CNC Plasma Table Tools & Equipment

Features

• 60″ x 100″ working area.
• Runs on 220-volt single-phase power, so it will work at most sites in North America.
• Customers love the design software package (more details below), which takes just a few minutes to learn.

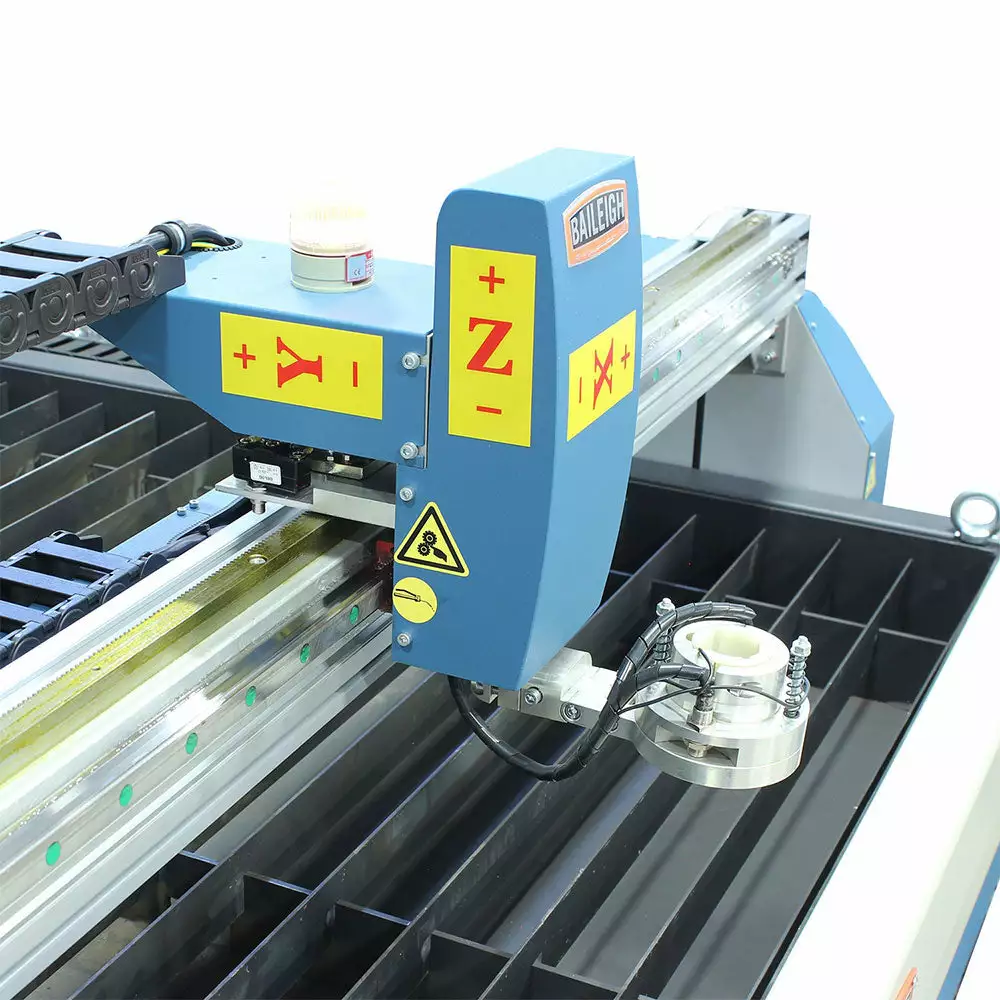

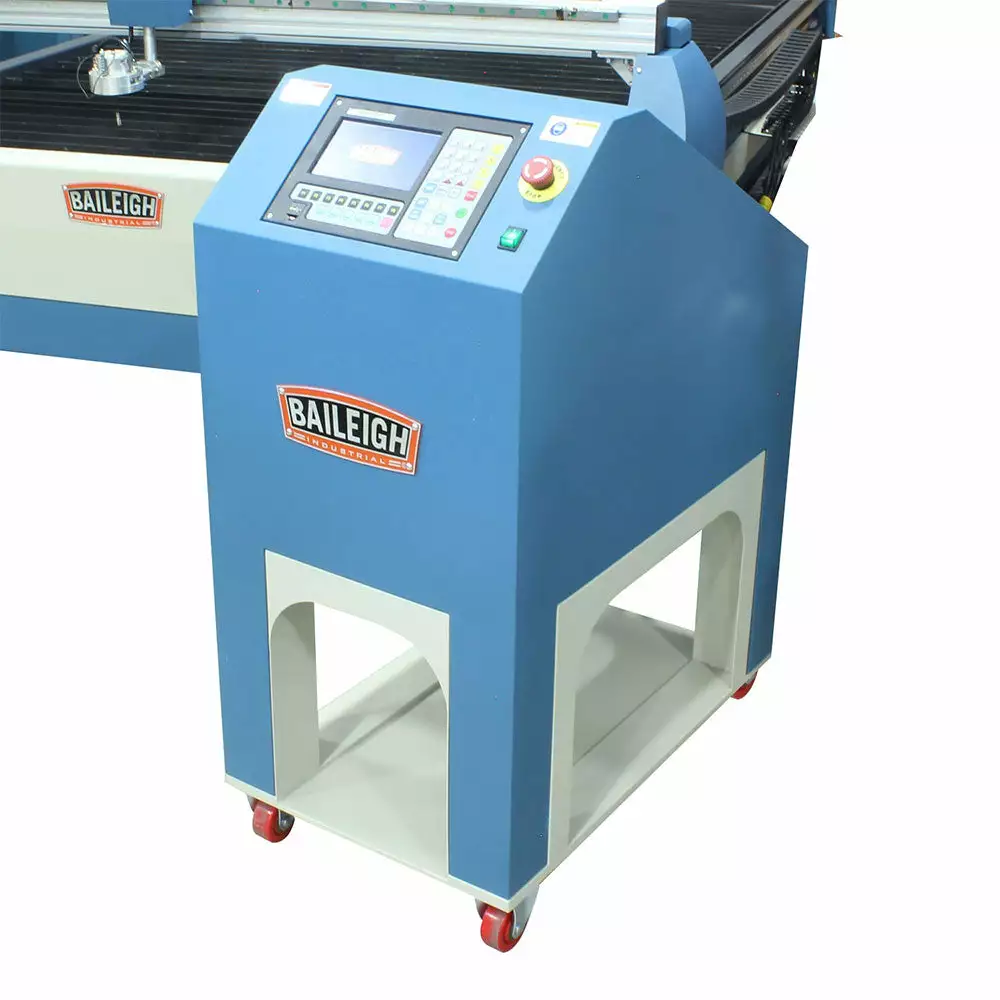

• You can control the X, Y, and Z axes using the integrated panel on the podium.
• Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables.

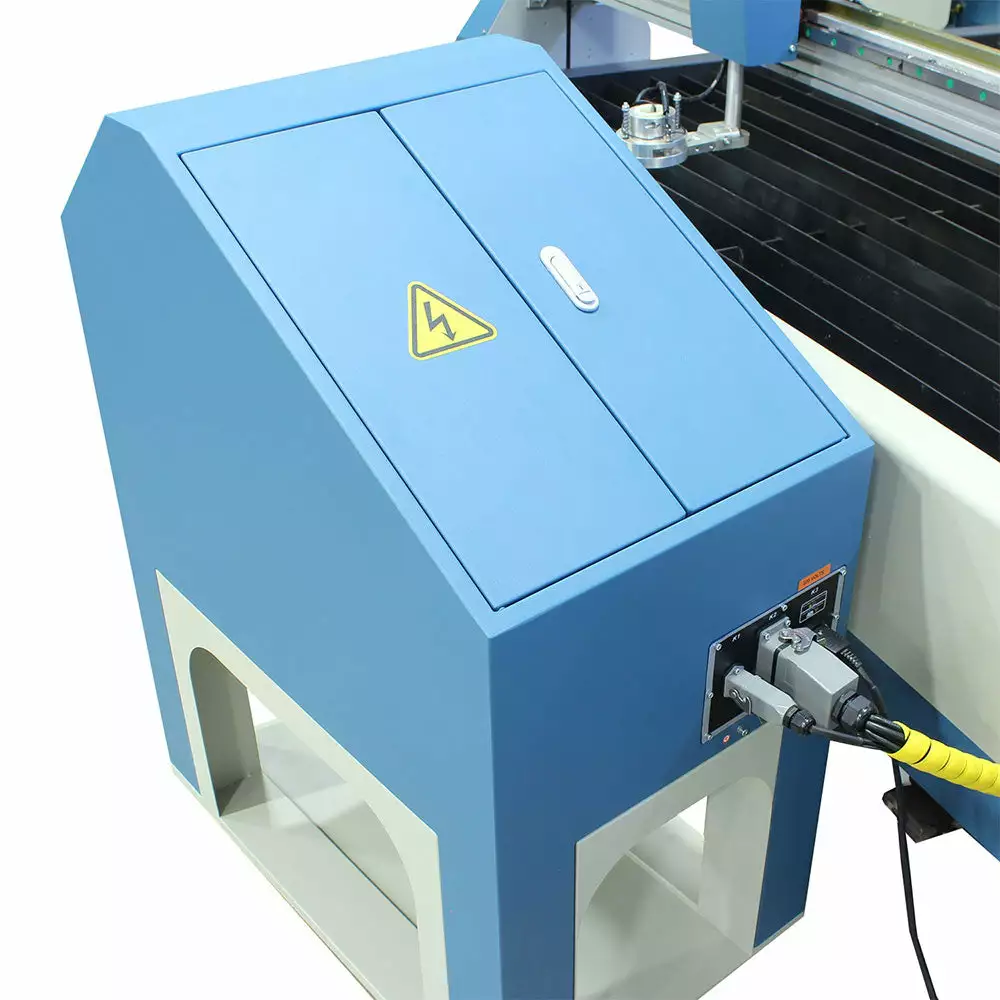

• The operator’s podium provides space for plasma power units even while cutting.

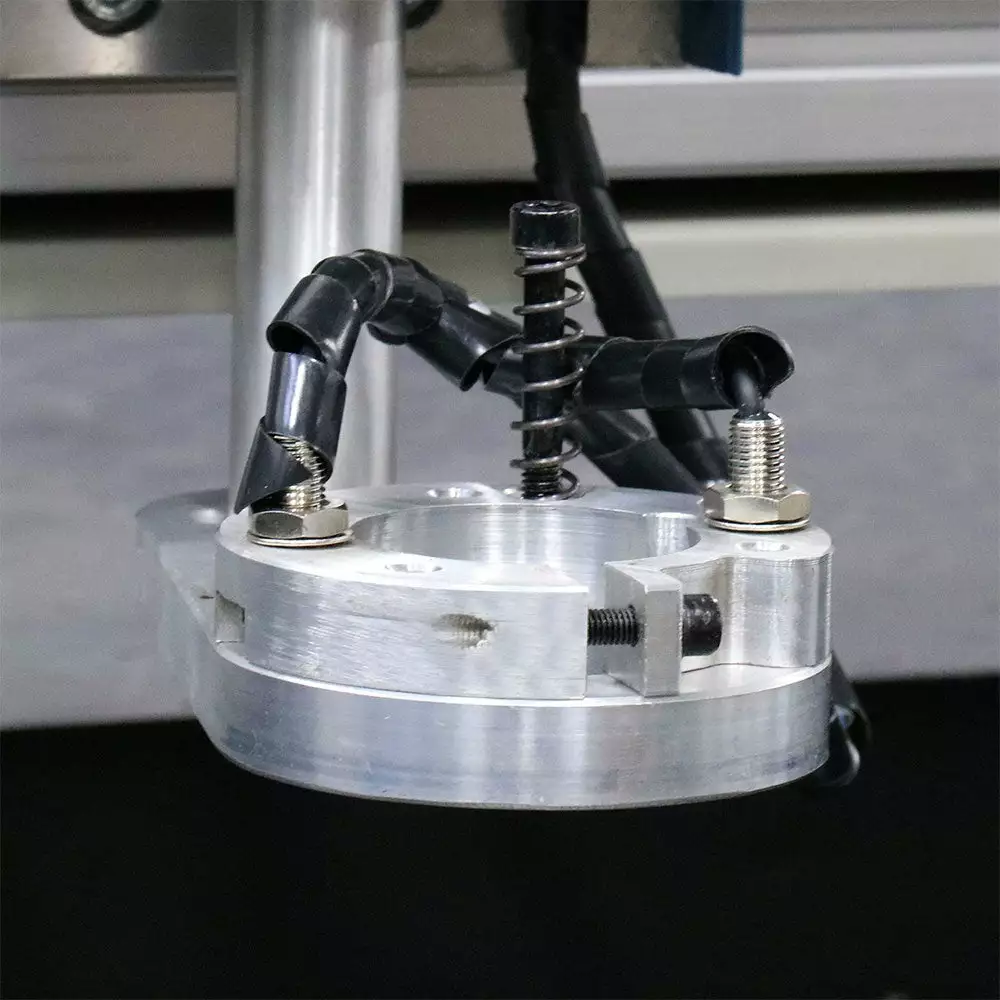

• If the material is uneven or puckers under the heat of the torch, the variable height control will raise or lower in real-time while cutting.

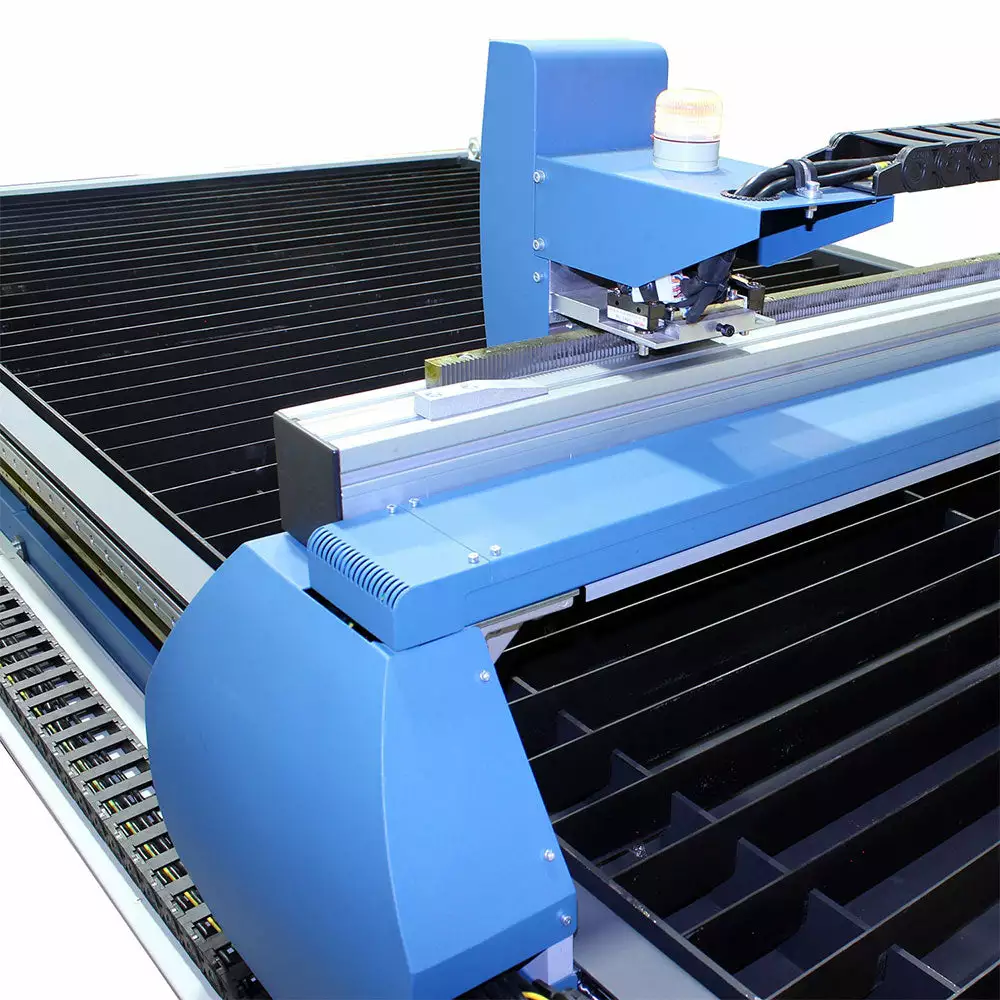

• X, Y, and Z axes are controlled by quality stepper motors, allowing for fast and fluid movement.
• Fully enclosed wires and electronics prevent snags and tangles.
• Made of heavy-gauge boxed steel, this CNC plasma cutting machine can easily support large, thick industrial-sized sheets of metal.
• The steel frame will remain straight and accurate over the years—unlike competing plasma tables with aluminum frames, which will warp from heat.

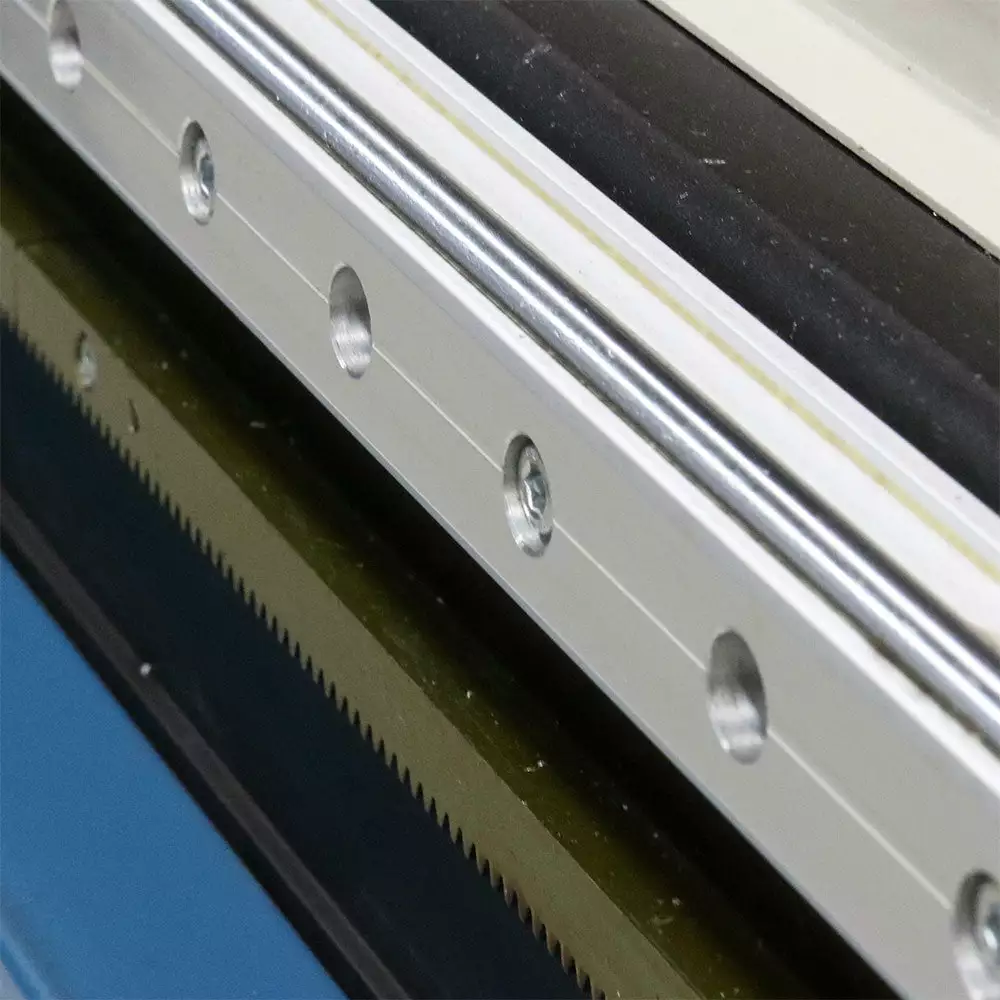

• Ground, hardened, and polished square rails combined with linear orbital bearings add impressive strength to the machine.
• Arrives pre-built at your shop, so you don’t have to spend hours putting it together and risk misalignment.

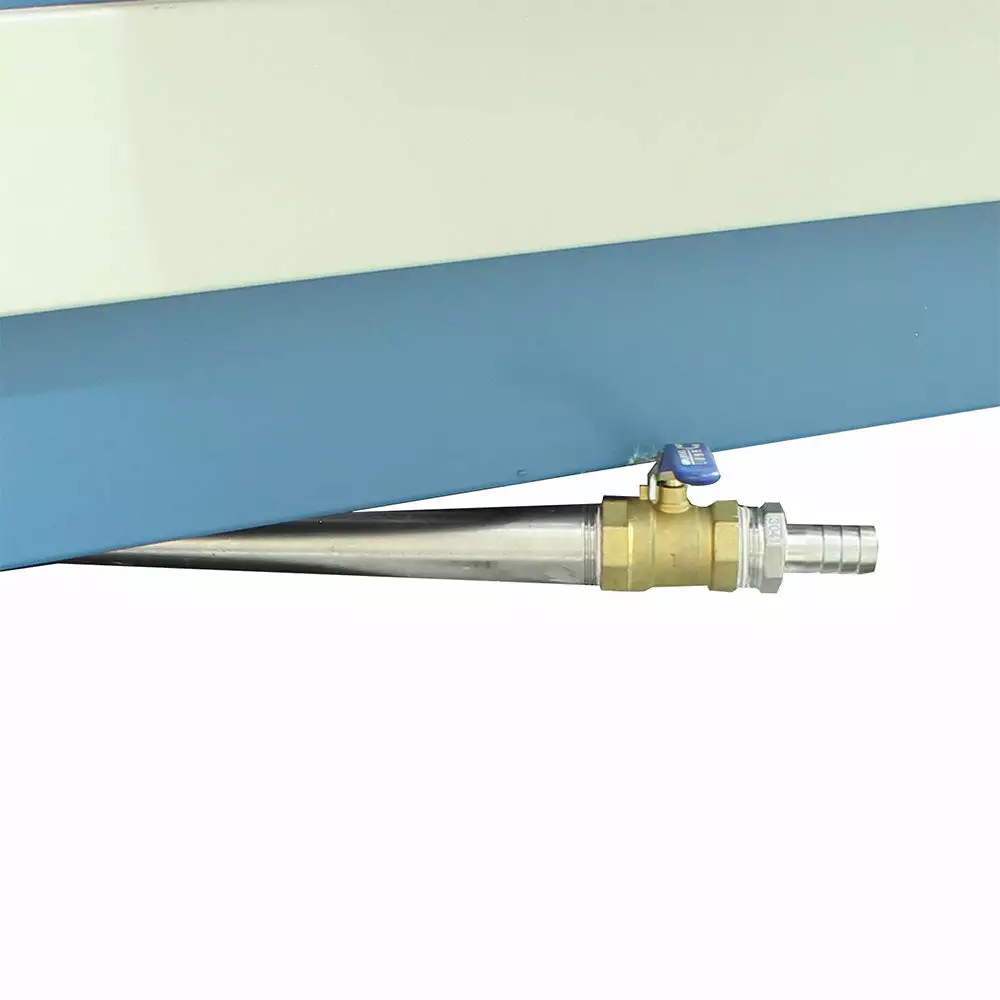

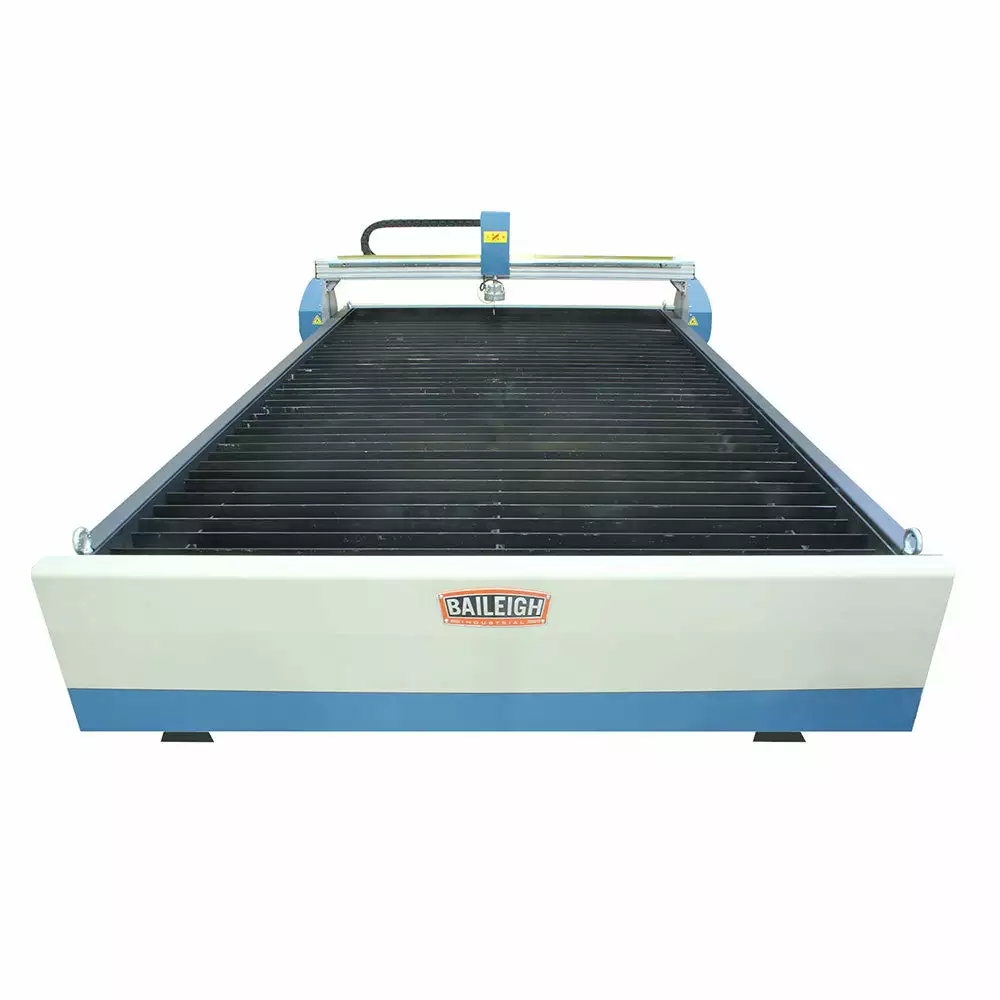

• An integrated water table helps control smoke and dust created while cutting to help keep your shop clean.
• To get started just:
• Uncrate the machine.
• Add a plasma system, power, and a clean, dry air supply.
• Fill the tank with water.
• Industrial plasma cutter Covered by a 1-year parts warranty.

What’s in The Box

• PT-48AH-W – CNC Plasma Table
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	PT-48AH-W
Power	220V / 1-phase
Table Style	Water
Working Table Size	60” x 100” (1524 x 2540mm)
Overall Size	82.75” x 133.5″ x 40” (2015 x 2125 x 1300mm)

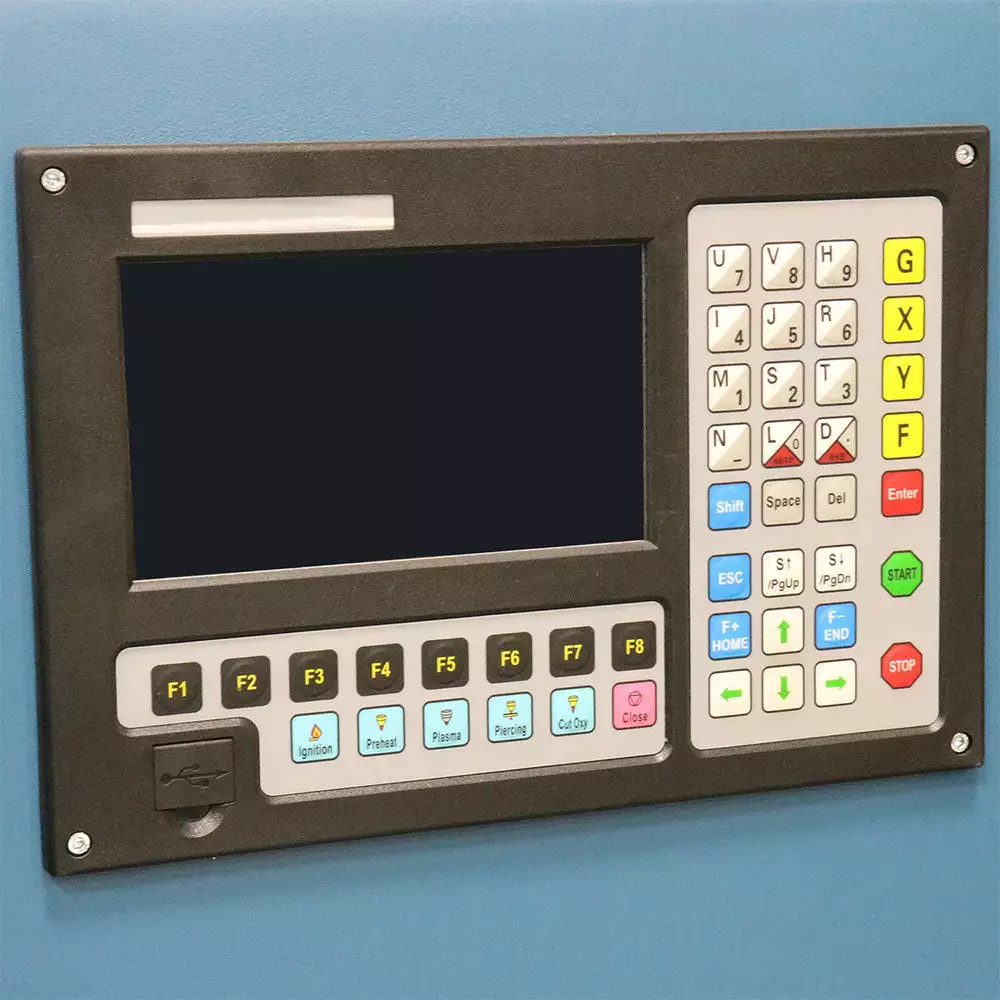

Controller Type	Touch Pad w/7” LCD Screen
Travel Speed	315 Inches Per Minute (8000mm Per Minute)
Table Dimensions	67″ x 120″ (1702 x 3048mm)
Z Axis Travel	3.4” (86mm)
Table Load Capacity	1″ (25.4mm) Mild Steel @ 48” x 96” (1220 x 2440mm)
Capacity	Depends on Plasma System Chosen
Table Height	19.6” (500mm)
Drive	Stepper Motor
Software	BobCAD-Cam Express software included
Things to Know Before Purchase	Does Not come with Plasma System
Dimensions (Inches)	142″ x 90.5” x 52”
Weight	3021 lbs. (1370kg)
