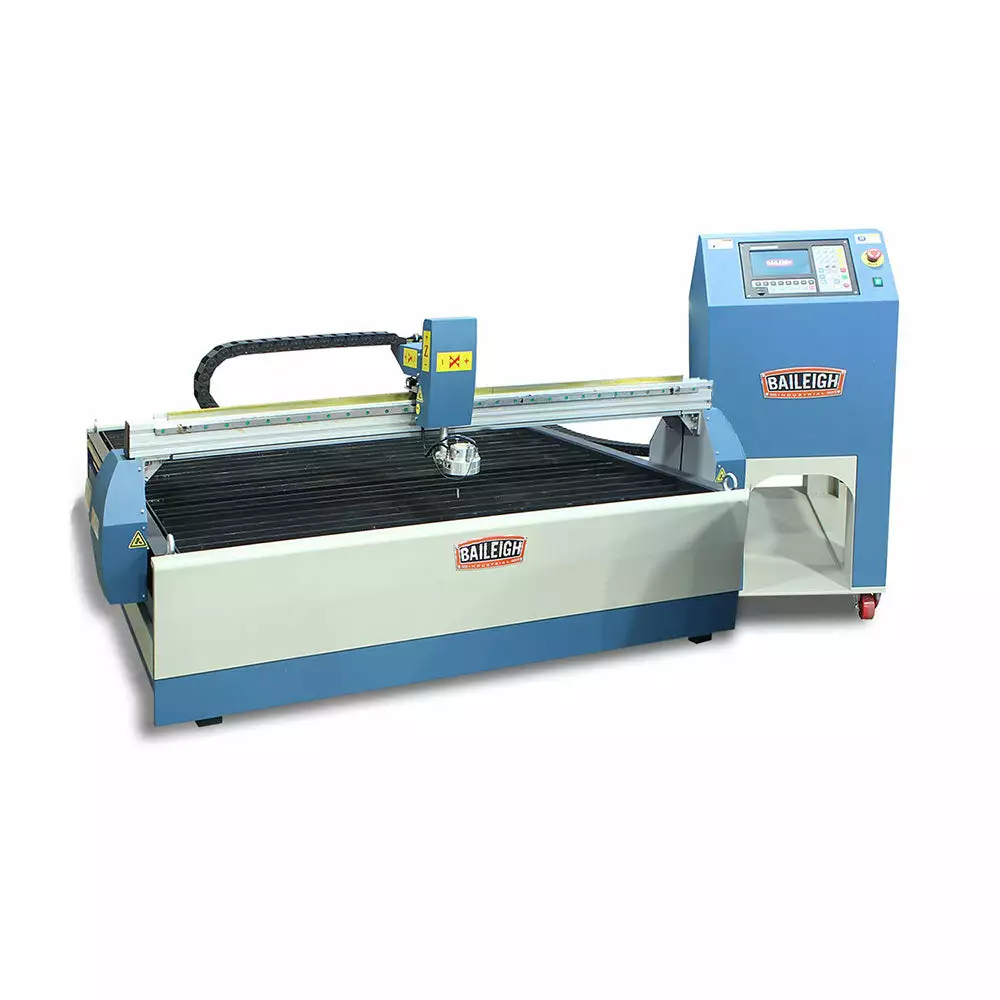

Baileigh 1225307 PT-44AH-W 220V CNC Plasma Table W/ 59″ X 59″ Work Area

Features

• 59″ x 59″ working area.
• Runs on 220-volt single-phase power, so it will work at most sites in North America.
• Customers love the design software package (more details below), which takes just a few minutes to learn.
• You can control the X, Y, and Z axes using the integrated panel on the podium.
• Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables.

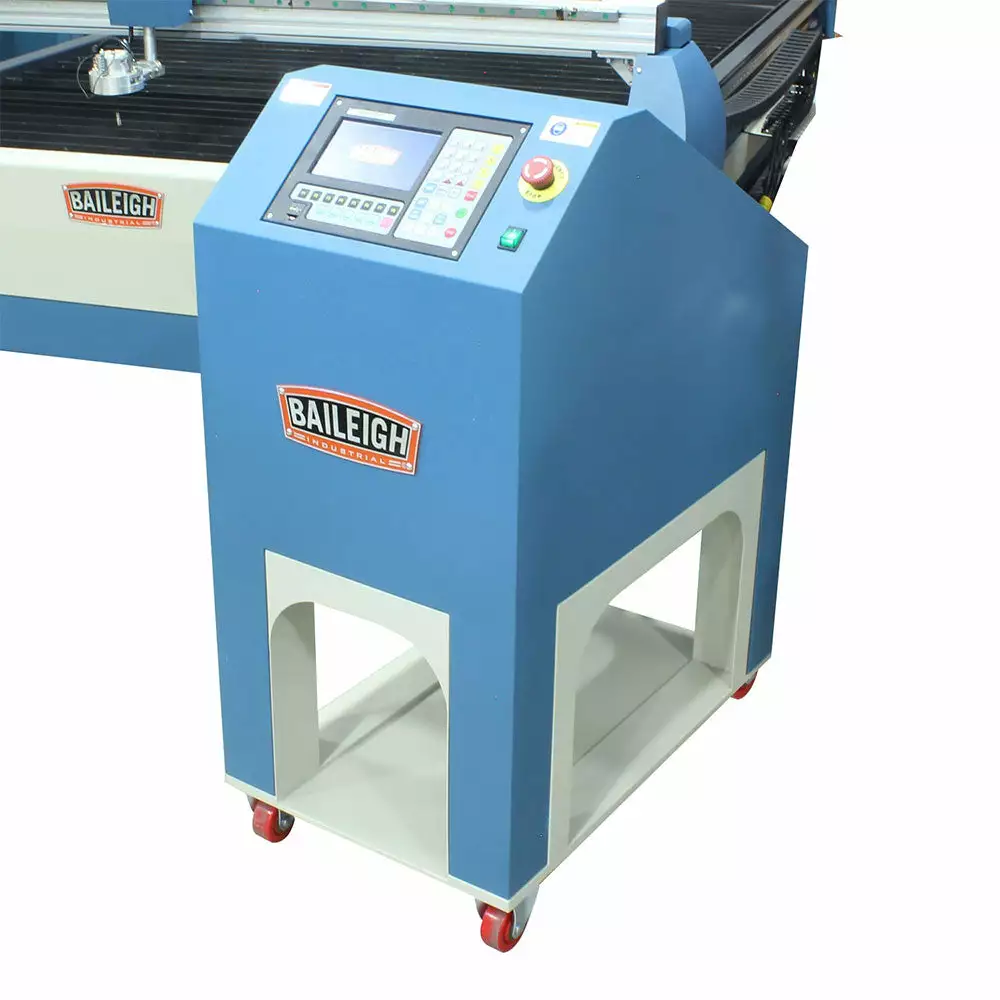

• Operators podium provides space for plasma power unit even while cutting.
• If the material is uneven or puckers under the heat of the torch, the variable height control will rise or lower in real time while cutting.

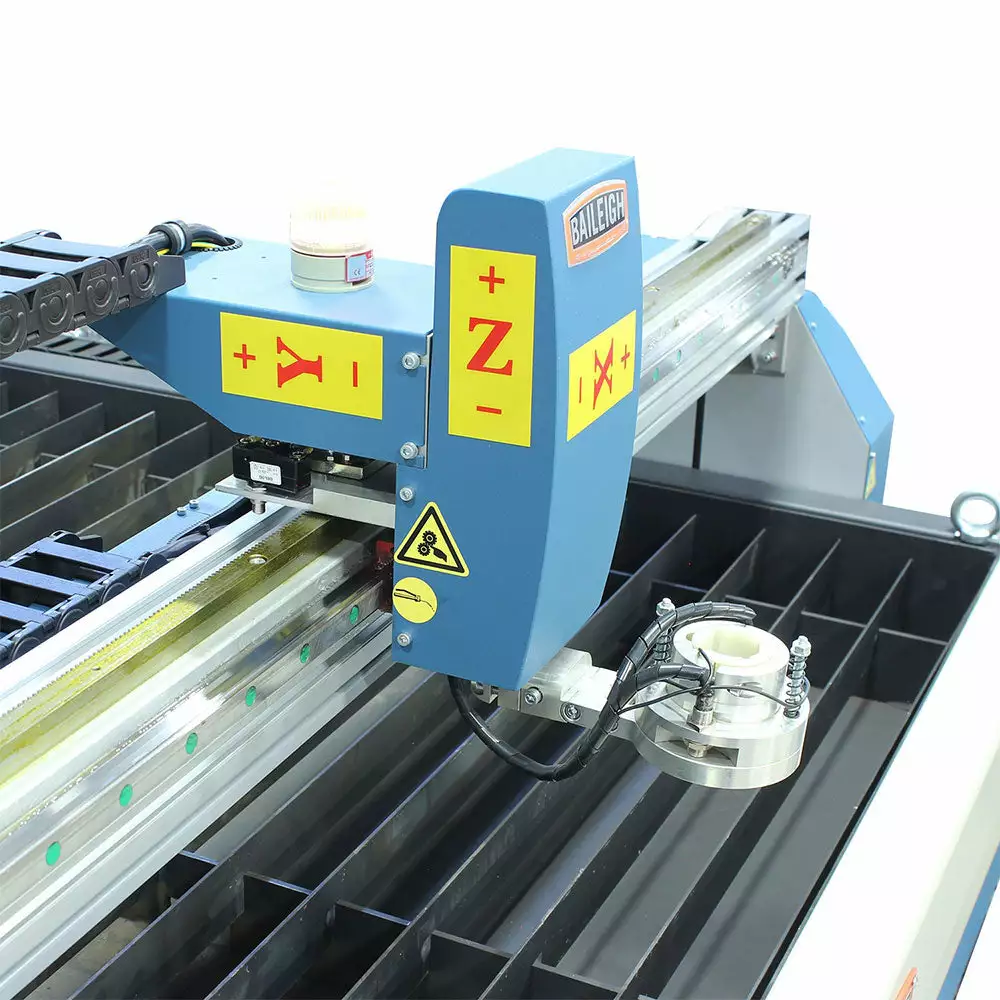

• X, Y, and Z axes are controlled by quality stepper motors, allowing for fast and fluid movement.

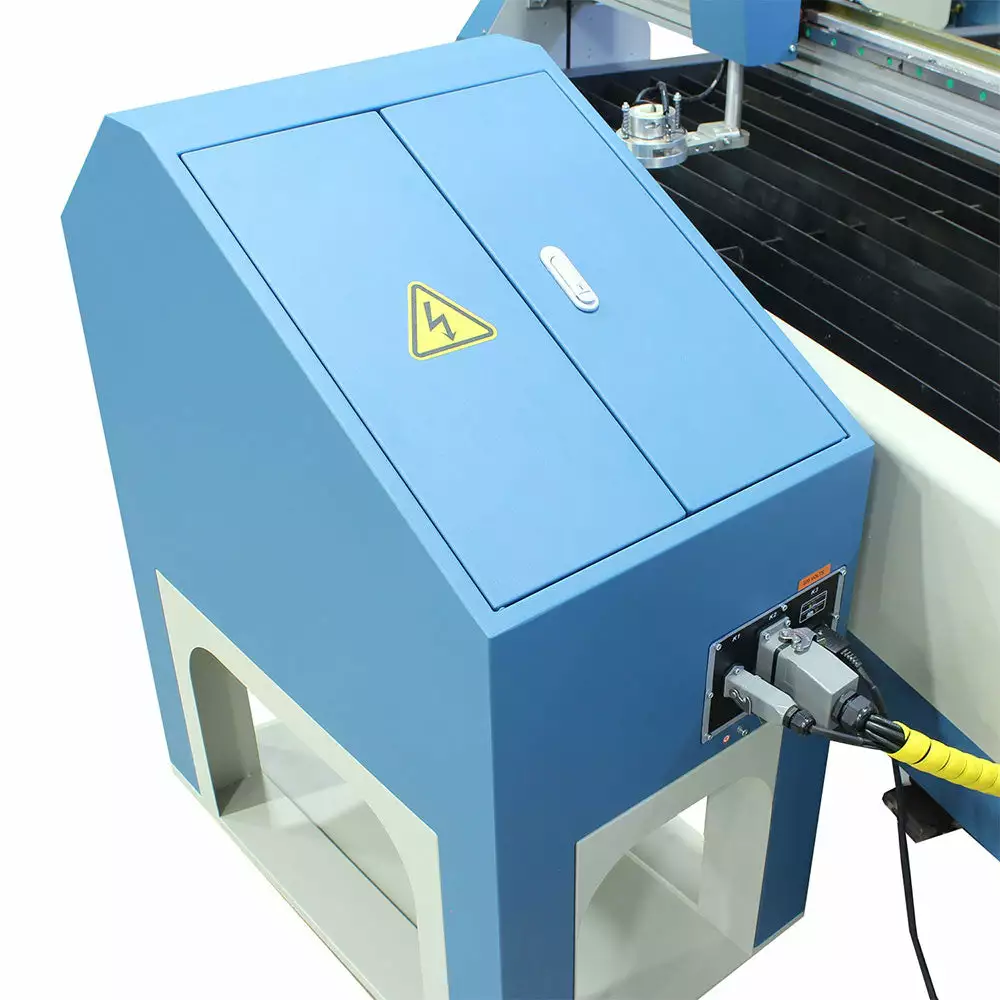

• Fully enclosed wires and electronics prevent snags and tangles.

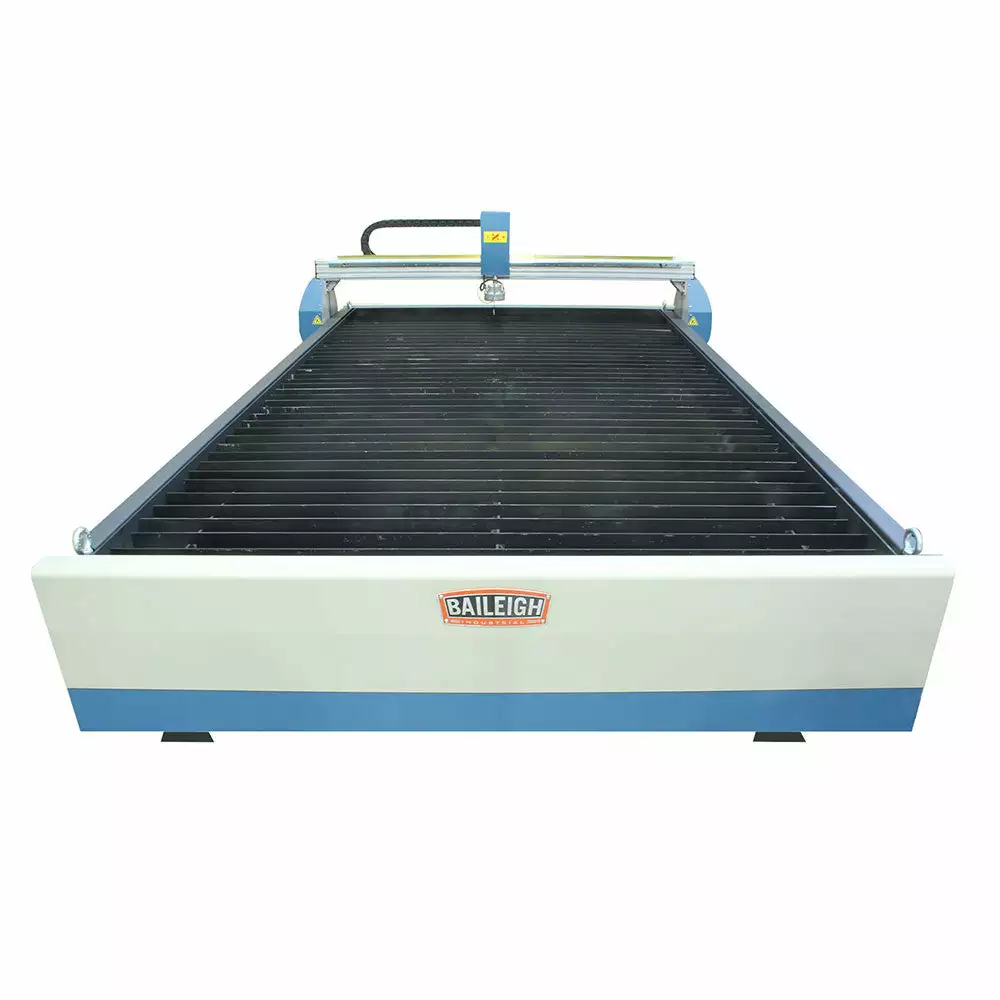

• Made of heavy-gauge boxed steel, this CNC plasma cutting machine can easily support large, thick industrial-sized sheets of metal.
• Steel frame will remain straight and accurate over the years—unlike competing plasma tables with aluminum frames, which will warp from heat.

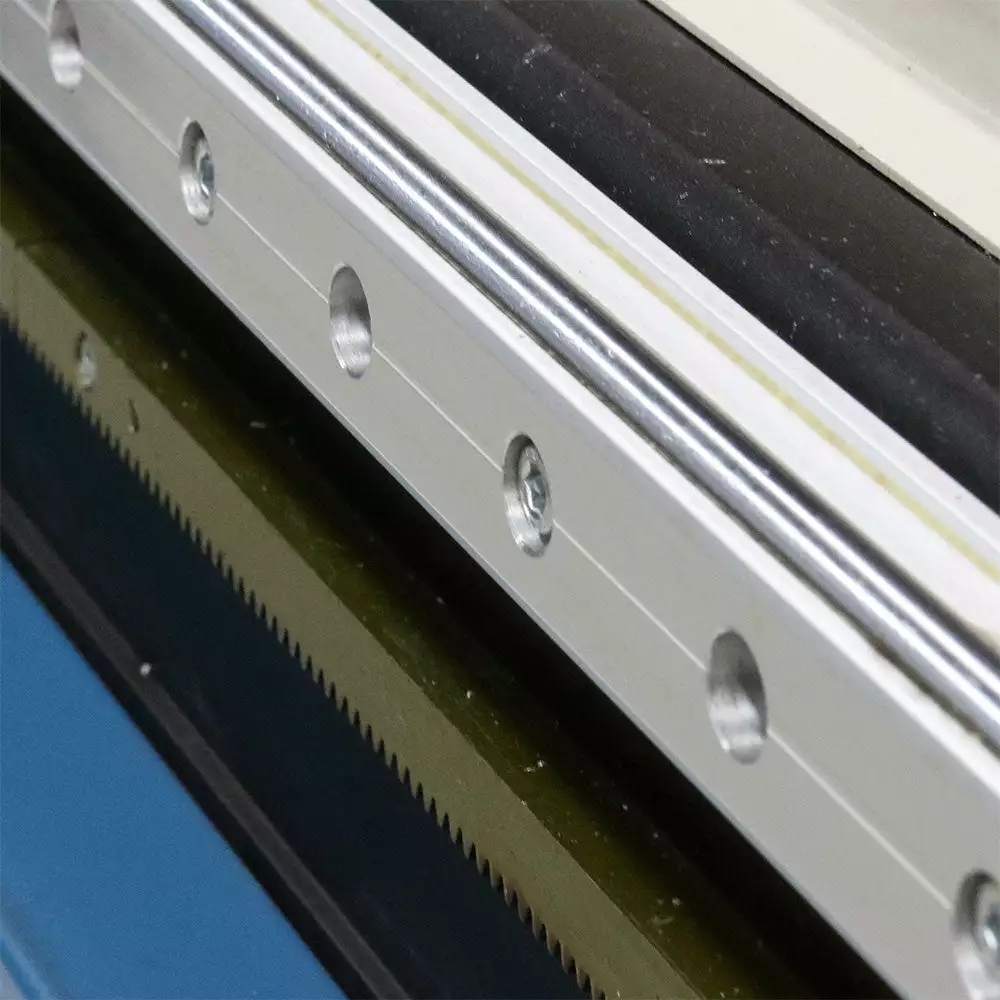

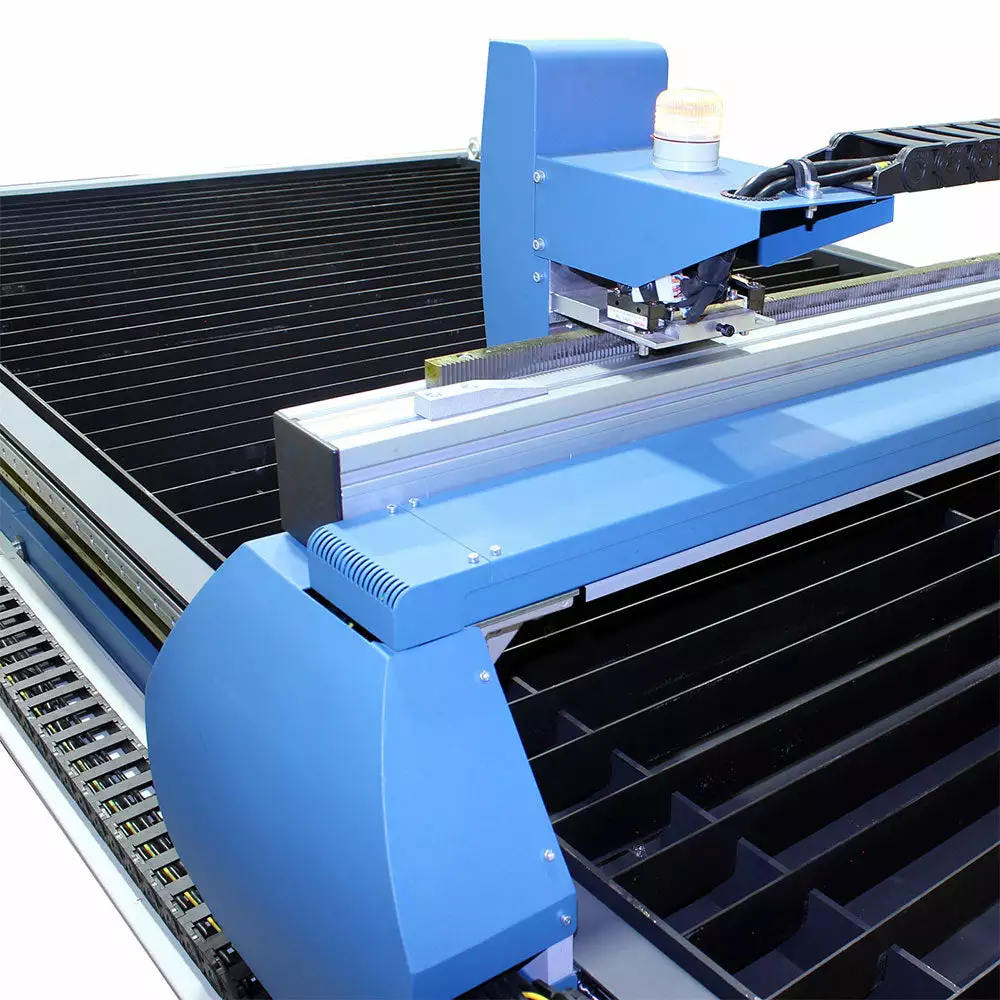

• Ground, hardened, and polished square rails combined with linear orbital bearings add impressive strength to the machine.
• Arrives pre-built at your shop, so you don’t have to spend hours putting it together and risk misalignment.

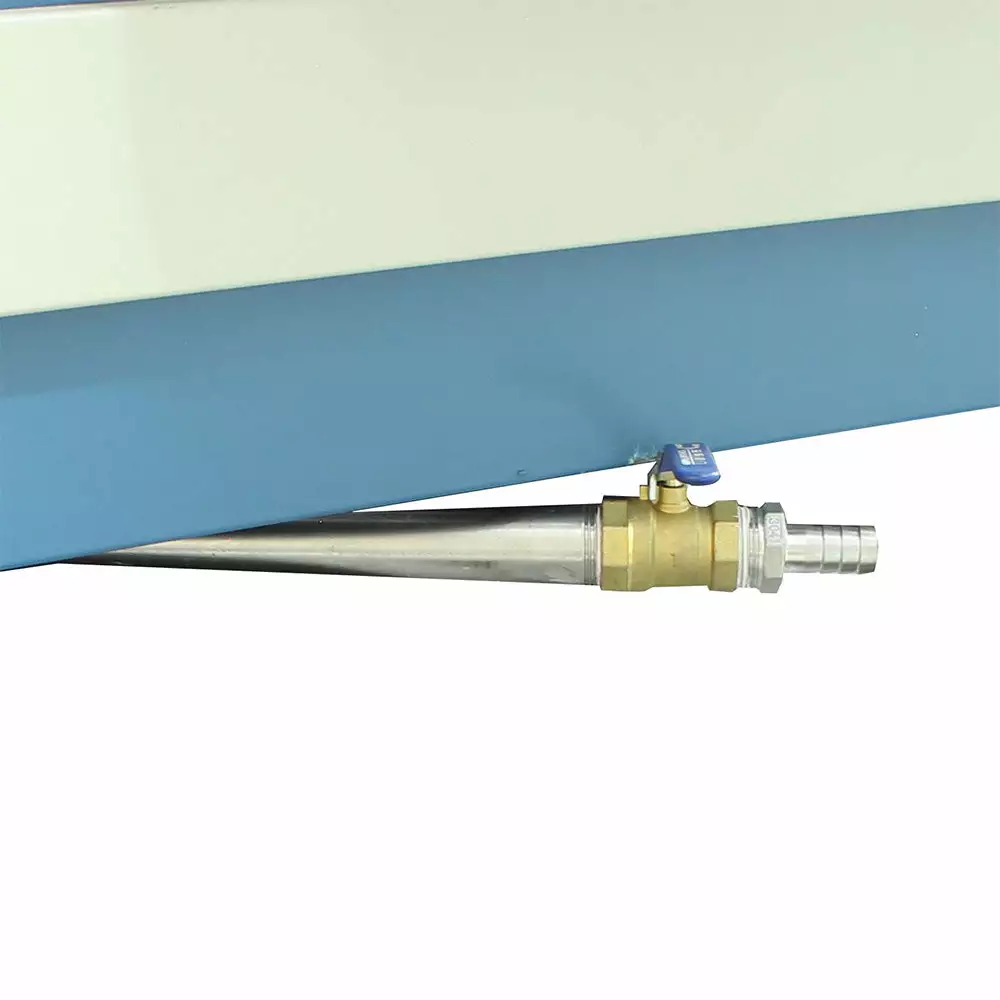

• Integrated water table helps control smoke and dust created while cutting to help keep your shop clean.
• To get started just:
• Uncrate the machine.
• Add a plasma system, power, and a clean, dry air supply.
• Fill tank with water.
• Industrial plasma cutter Covered by a 1-year parts warranty.

What’s in The Box

• PT-44AH-W – CNC Plasma Table
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	PT-44AH-W
Power	220V / 1-phase
Table Style	Water
Working Table Size	59” x 59” (1500 x 1500mm)
Overall Size	82.75” x 90″ x 40” (2102 x 2286 x 1016mm)
Controller Type	Touch Pad w/7” LCD Screen
Travel Speed	315 Inches Per Minute (8000mm Per Minute)
Table Dimensions	67″ x 64″ (1702 x 1626mm)
Z Axis Travel	3.4” (86mm)
Table Load Capacity	1″ (25.4mm) Mild Steel @ 48” x 48” (1220 x 1220mm)
Capacity	Depends on Plasma System Chosen
Table Height	19.6” (500mm)
Drive	Stepper Motor
Software	BobCAD-Cam Express software included
Things to Know Before Purchase	Does Not come with Plasma System
Dimensions (Inches)	90.5″ x 90.5″ x 52″
Weight	2293 lbs.
