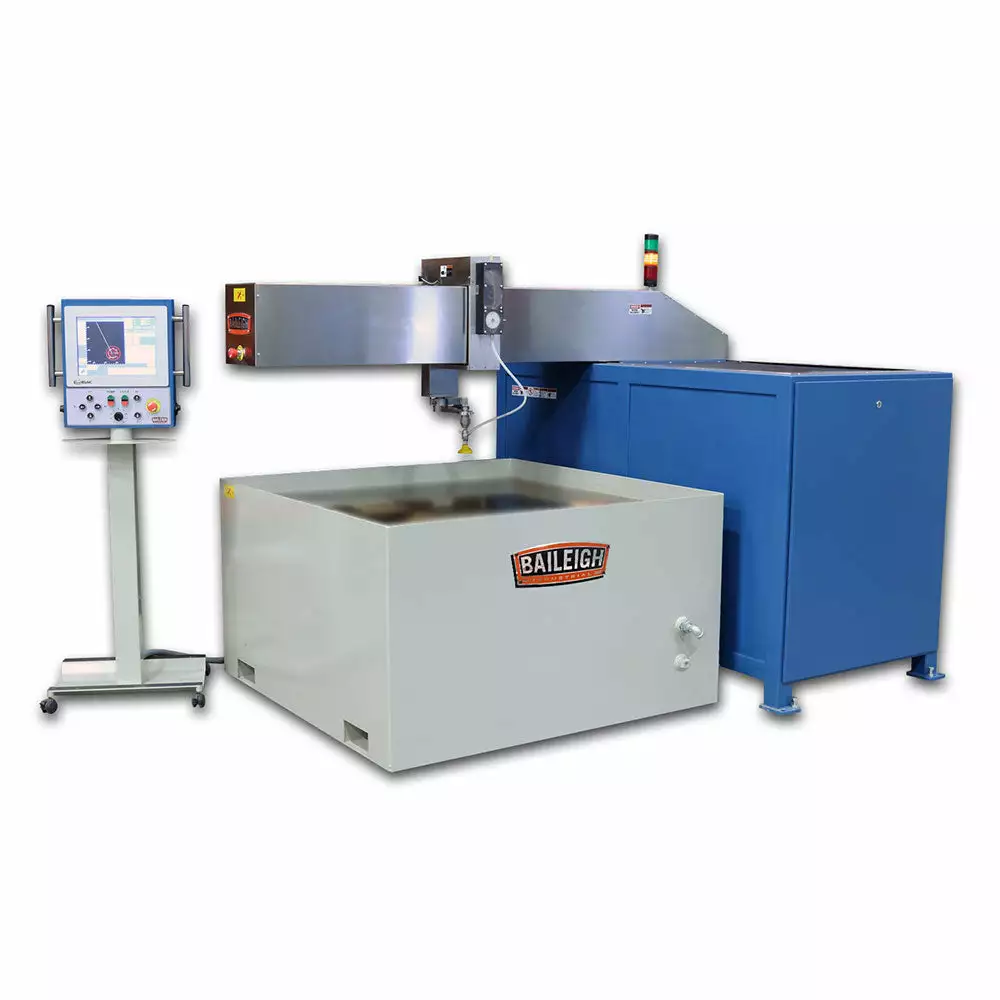

Baileigh 1019139 WJ-4X4CNC 48″ X 48″ 480V 3PH CNC Water Jet

Features

• The WJ-4x4CNC water jet from Baileigh Industrial is a great value for anyone looking to get into water jet cutting.
• This great machine has the ability to cut just about any material with precision.
• This includes glass, granite, ceramic, plastic, foam, mild steel, stainless steel, titanium, aluminum, and copper in its 48” x 48” table.
• The design is a cantilever design that allows for much easier material loading and unloading.
• This design also offers smoother action on the axis with exclusion of moving parts.
• All axis ride on precision balls screws with square slide ways.
• All slide ways are covered and protected from water for long life.
• The frame of the WJ-4x4CNC is laser cut and interlocked, then welded for strenght, rigidity, and accuracy.

What’s in The Box

• WJ-4x4CNC – Water Jet
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	WJ-4x4CNC
Power	460V / 3-phase 60amp
Motor KW	30kw
Working Table Size	48″ x 48″
Working Table Travel (X/Y)	48″/48″
Table Size	59″ x 59″
Filter Type	2 Stage/2 Filter, 10 Micron & 1 Micron
Number of Filters	2
Supported File Formats	DXF
Repeatability Accuracy	± .001″
Production Pressure	56,000 psi
Max. Flow Rate	7.92 gallons per minute
Orifice Size	.014″
Travel Speed	40 fpm (26 fpm Cutting) Maximum
CNC System	Windows Based
Cutting Accuracy	±.001″
Inlet Pressure	30 psi
Motor	40 hp
X Axis Travel	48″
Y Axis Travel	48″
Z Axis Travel	6.75″
Hopper Capacity	250 lbs
Software	BobCAD Cam
Shipping Dimensions (Inches)	107x49x75 & 64x64x71
Weight	4000 lbs
