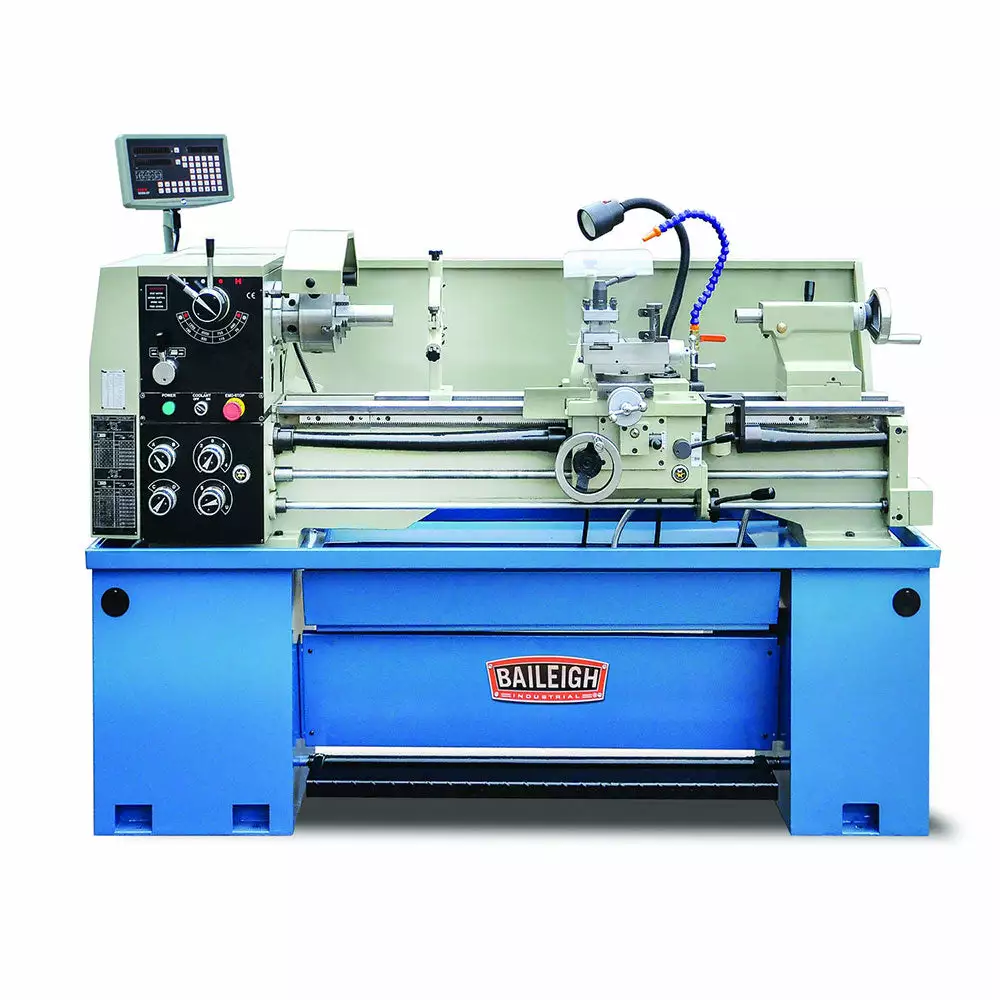

Baileigh 1016623 PL-1440E-1.0 14″ X 40″ Metal Lathe W/ Integrated Coolant System

$90.99

Fast, friendly, always here to help.

Sustainable materials, for a better tomorrow.

Nature-friendly materials, for a better planet.

Control the delivery date and try to deliver it in the fastest time

Recommended for small to medium shops and schools.
8 spindle speeds, ranging from 90 to 1,800 rpm.
3 hp motor runs on a 220-volt single-phase power, so you can use it almost anywhere.
No assembly required. Just open the crate and wire it up.
Precision-ground and hardened ways ensure years of tight tolerances.
Digital readout (pre-installed) helps you make precise cuts.
Capable of making metric and standard threads.
Gap lathe design allows you remove a section of the slide to fit a slightly larger diameter.
Comes standard with:
3-jaw and 4-jaw chucks.
Headstock chuck guard with automatic safety switch.

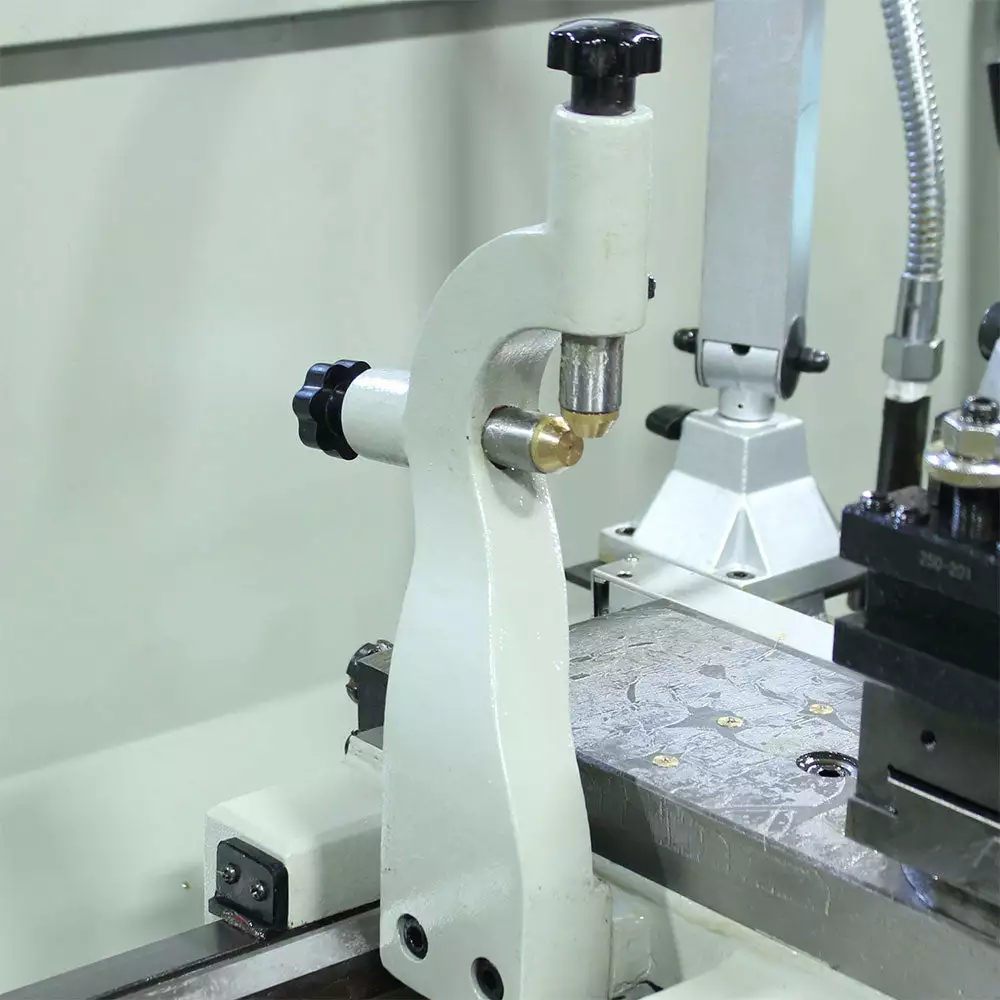

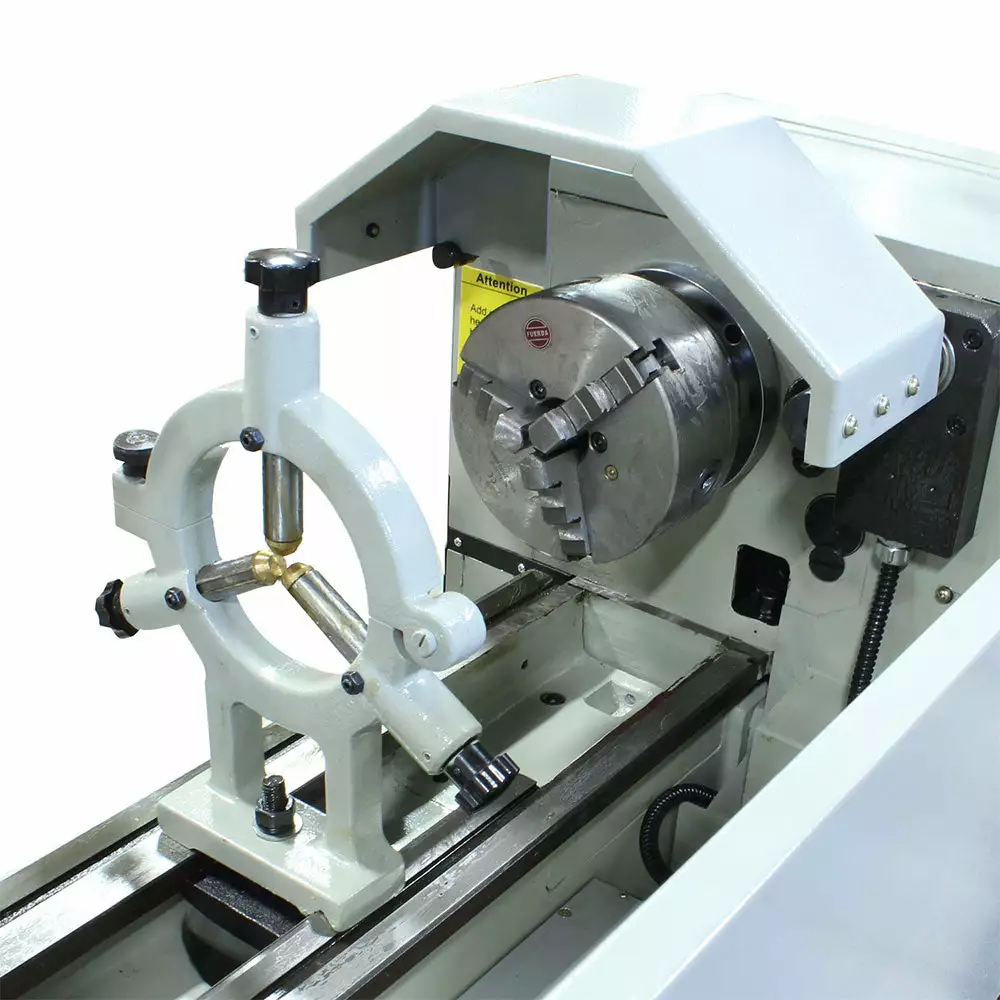

Steady rest and follow rest.
Face plate.
Safety foot brake.

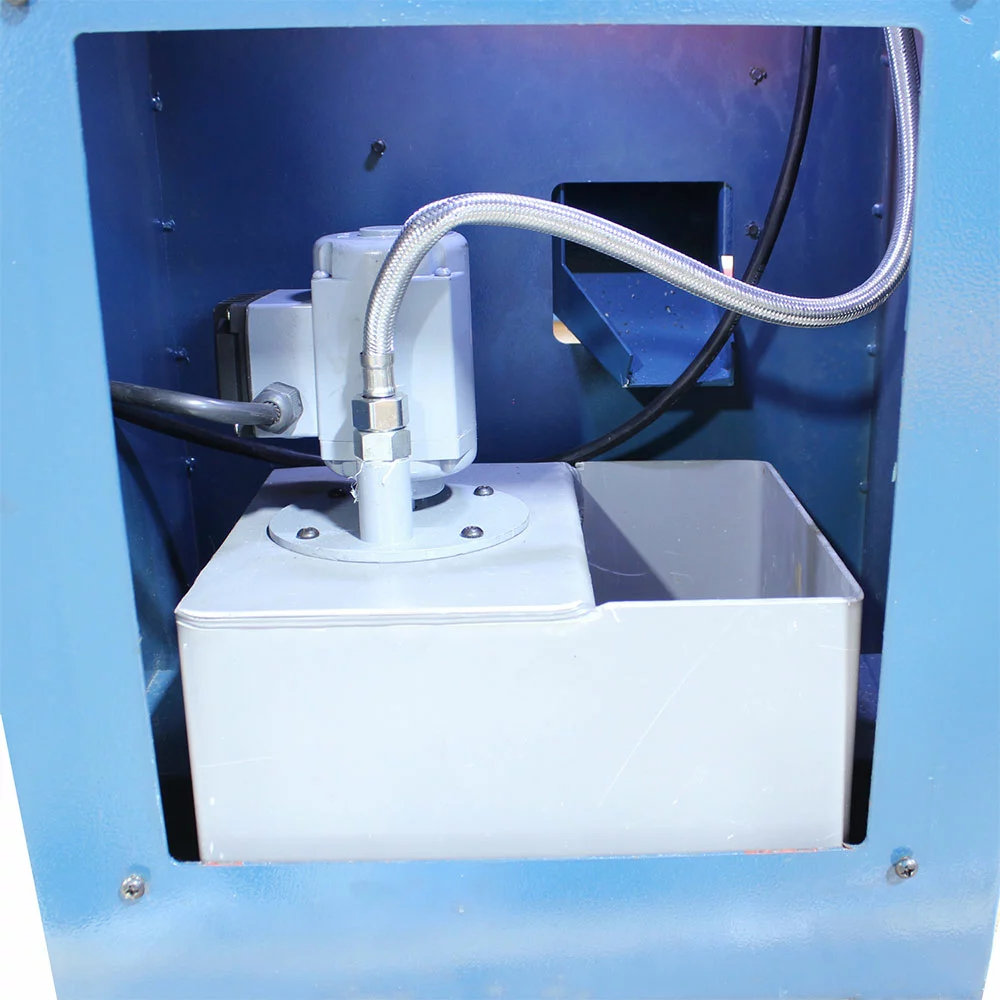

Integrated coolant system, which maintains accuracy and helps the machine last longer.
Halogen work light.
Optional taper attachment for making cones is sold separately.
Covered by a 1-year parts warranty.

SKU	PL-1440E-1.0
Power	220V / 1-phase
Spindle Speeds	90 – 1800 rpm
Spindle Bore	1.5″
Spindle Nose	D1-4″
Threads Imperial Qty Speed	44 / 4-112 T.P.I.
Threads Metric Qty Speed	22 / .45-7.5 mm
Spindle Taper Sleeve	Morse #3
Spindle Taper Nose	Morse #5
Tailstock Quill Dia	1.772″
Tailstock Quill Taper	Morse #3
Tailstock Quill Travel	4.72″
Bed Length	17156
Bed Width	7.086″
Main Motor	2 hp
Longitudinal Feeds Imperial Qty Speed	.0012″ – .0294″/rev.
Lead Screw Diameter	.866″
Lead Screw Thread Pitch	4 T.P.I.
Max. Swing Over Bed	14″
Max. Swing Over Cross Slide	8.6″
Max. Swing In Gap Dia	19.9″
Cross Feeds Imperial Qty Speed	.0003″ – .01″/rev.
Distance Between Centers	40″
Feed Rod	.708″ dia.
Dimensions (Inches)	79x44x63
Dimensions L x W x H	76″ x 30″ x 61″
Shipping Weight	1450 lbs
